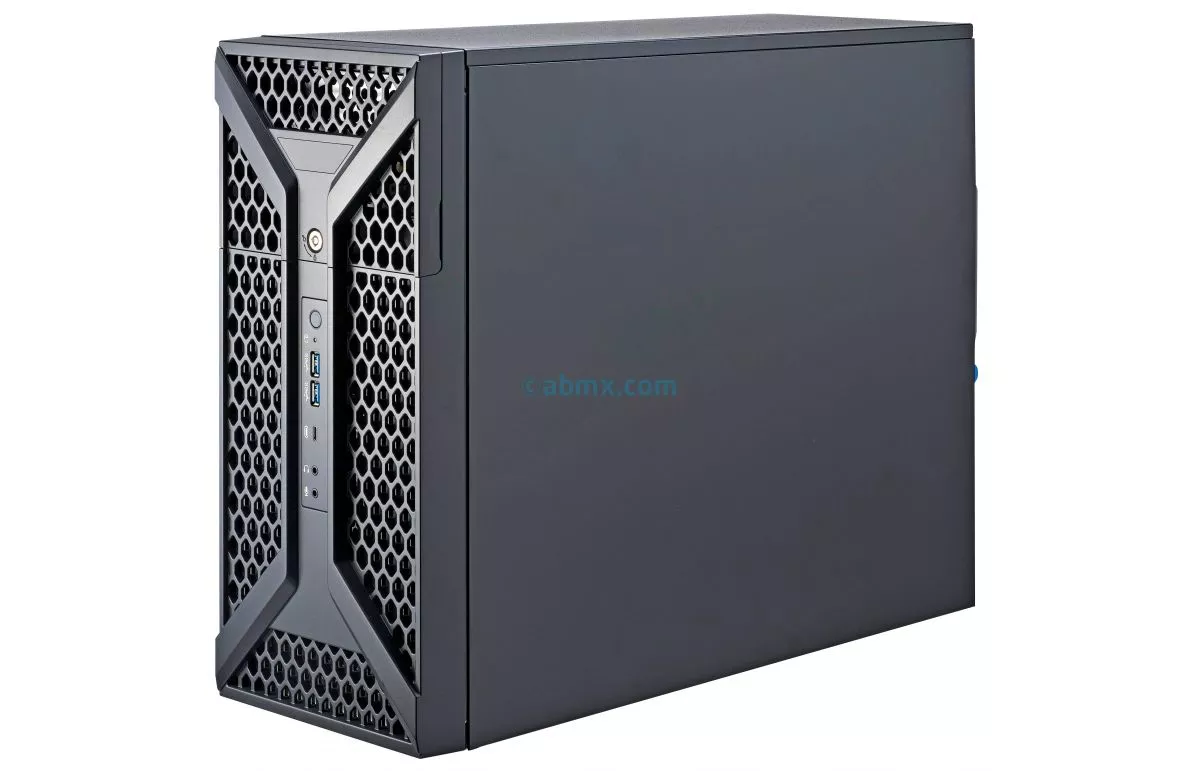

Intel 10th Gen Workstation

Model: T174S2Q

2 - 6 Cores
Core i9, i7, i5
i3, Pentium, Celeron

8 - 128 GB

4 x 3.5 Fixed

2 x 1GbE

4 x PCI-e

Case/Tower

Motherboard

Processor

Memory

Storage

M.2 NVMe SSD
Western Digital® Black - SATA HDD
Western Digital® Enterprise-class - SATA HDD
Samsung 860 EVO - SATA SSD
Samsung 870 EVO - SATA SSD
Samsung 860 PRO - SATA SSD
Samsung 870 QVO - SATA SSD
Intel® D3-S4510 Enterprise - SATA SSD
Intel® D3-S4610 Enterprise - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Trusted Platform Module (TPM)

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • Mini-Tower Industrial Grade Chassis
  • Dimensions: 16.75" (D) x 7.25" (W) x 14.25" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB 3.0 ports
  • Rear 9cm PWM Cooling Fan with tool-less design
  • Optimized cooling technology at 25dB Whisper-Quiet Operation
Processor/Chipset
  • Single Socket H5 (LGA 1200)
  • Supports Intel® 10th Gen Core™ i3/i5/i7/i9, Intel® Pentium®, Intel® Celeron®
  • Intel® Q470E chipset
BIOS
  • SMBIOS 3.0 or later
  • UEFI 2.7
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • PCI FW 3.0
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB DDR4 non-ECC Un-buffered memory 2933 DDR4 ECC UDIMM
Storage / IPMI
  • 6 x SATA3 (6Gbps) ports
  • Chassis supports up to four hard drives
  • 1 x M.2 NVMe 2242/2280
Drive Bays
  • HD1-4 Bay: tool-less SATA/ SSD Hard Drive Trays
  • Up to 32 Terabyte of storage can be supported
  • 2 x 5.25-inch External Drive Bays
I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (2 rear + 4 via header)
  • 6 x USB 3.1 Gen2 ports (2 rear + 2 rear Type C + 2 via header)
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x DVI-D port
  • 4 x COM port (4 header)
  • 1 x SuperDOM (Disk on Module) port
  • 1 x TPM Header
Video
  • Intel HD Graphics

Network
  • Single Intel® I219LM Gigabit Ethernet LAN port
  • Single Intel® I210-AT Gigabit Ethernet LAN port
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 3.0 x16 (in x16) slot
  • 1 x PCI-E 3.0 x8 slot
  • 2 x PCI-E 3.0 x4 slots
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • AC HE Power Supply with PFC
  • Tested to comply with FCC Standards
  • Certifications: UL/CB, CE/EMC
CD-ROM /DVD-ROM
  • Optical Drive (OPTIONAL)
Rack Support
  • Not supported
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12SCQ (2933MHz RAM and up - not 2666Mhz)
VMWare ESXi 7.0
AsteriskNOW 10.13
CentOS 5.0
6.0
6.10
7.0
7.6
8.0
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
Debian 10.2
10.7
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 25
26
27
29
32
Fedora Workstation 25
26
27
29
32
33
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 5.0
6.0
6.4
6.8
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15
OpenSUSE Tumbleweed
OPNsense 19.1
Oracle Linux 7
7.6
PFSense 2.3
2.4
Proxmox VE 5.3-2
Red Hat Enterprise Linux 5.0
6.0
7.6
8.1
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
VyOS 1.2.0
Windows 10
7
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
