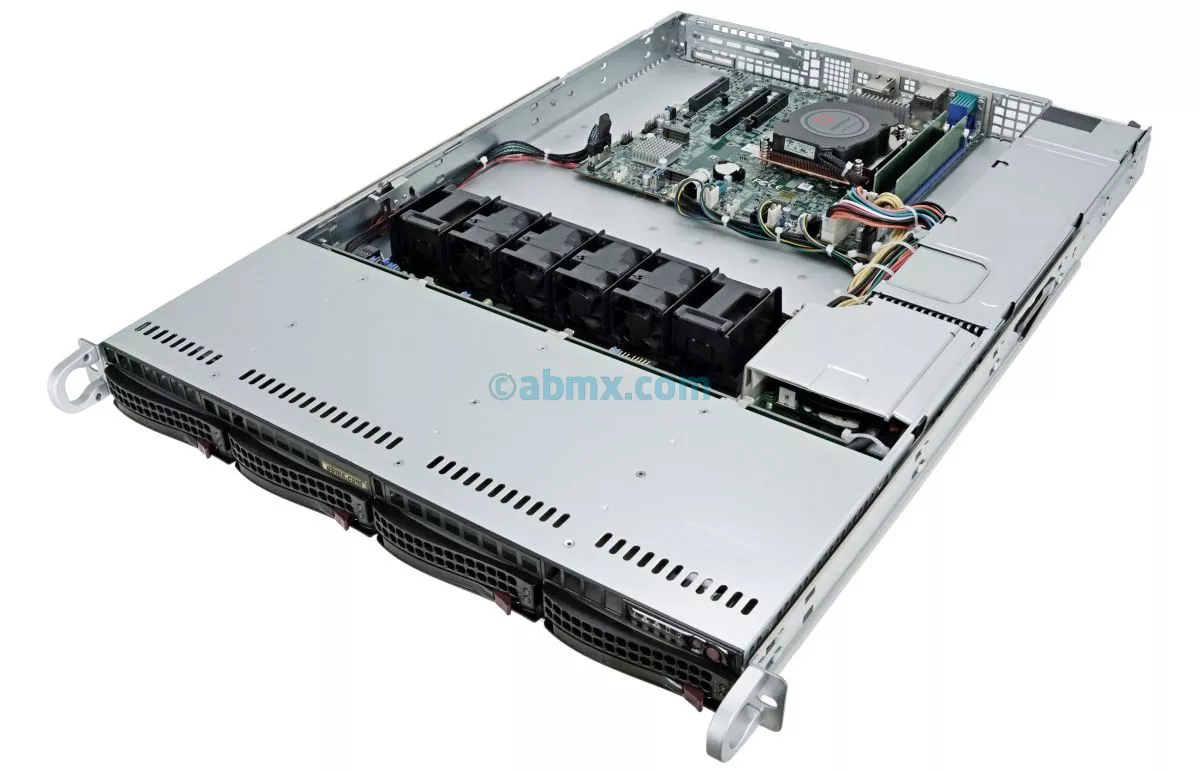

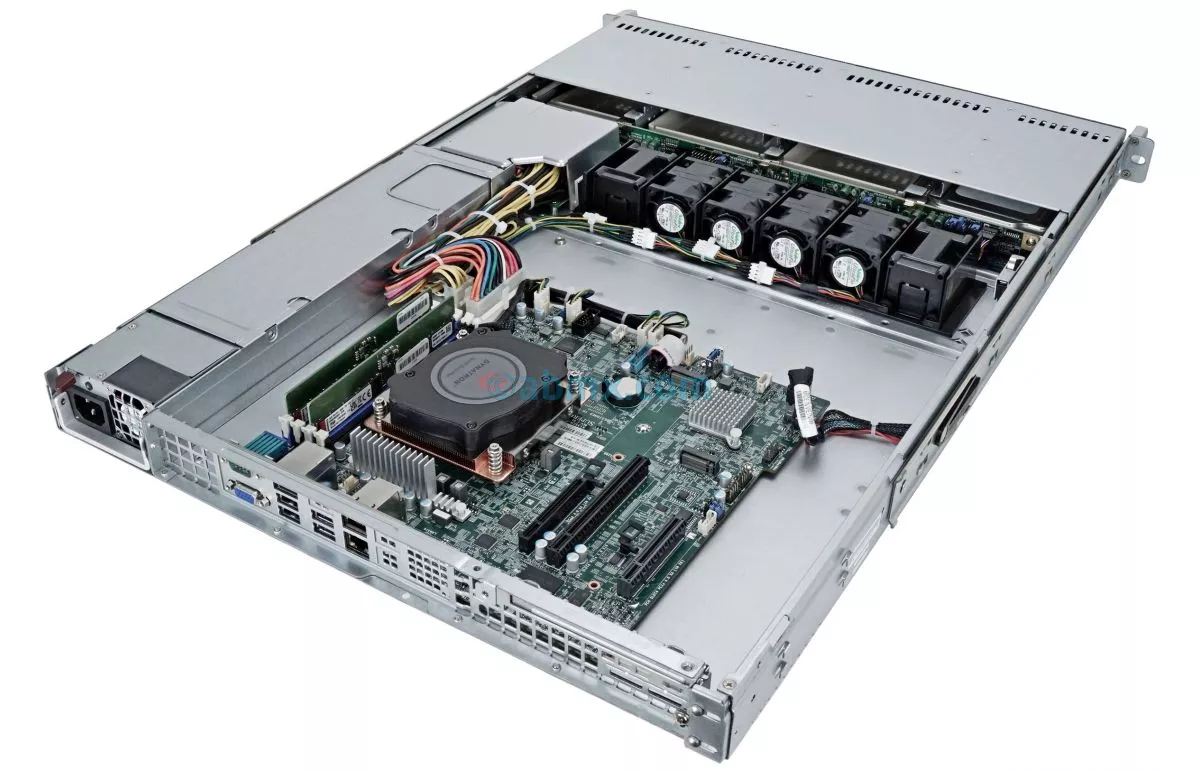

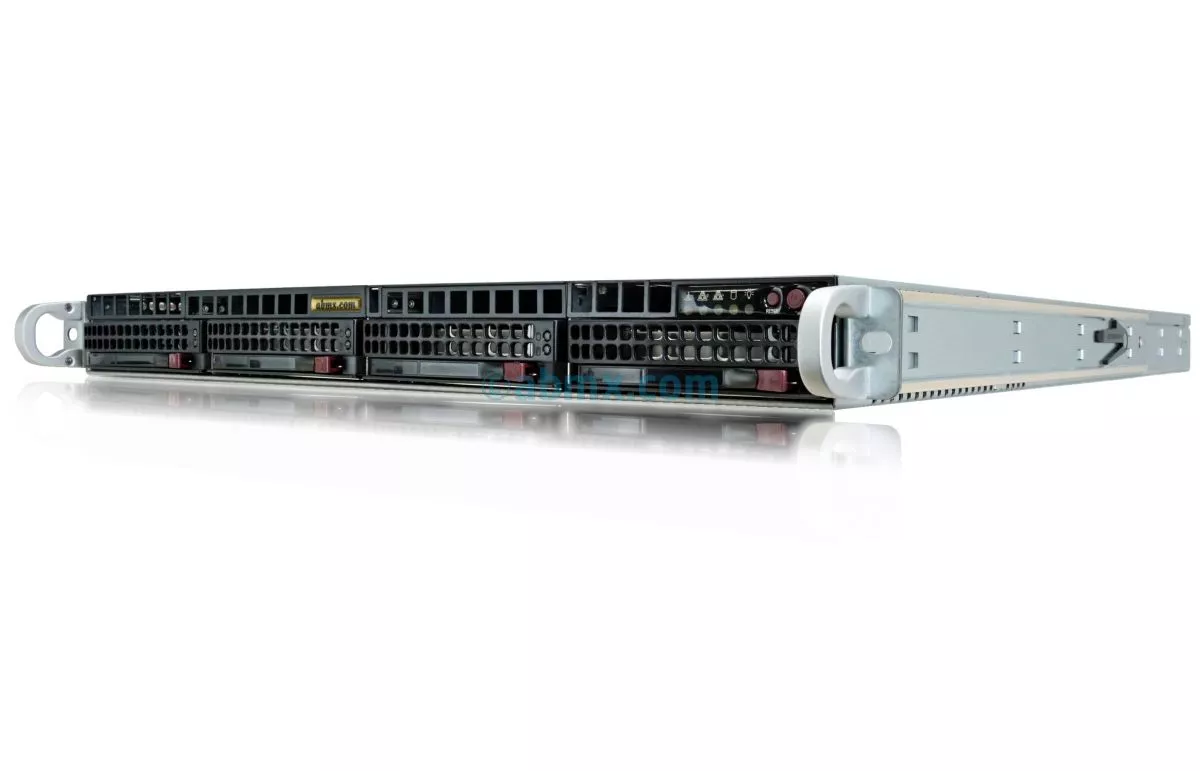

1U Rackmount Server - 4 x Hot-Swap Bays

Model: 120S1CM

The 120S1CM is an excellent 20" short-depth server with 4 hot-swap bays and room for a RAID controller. Equipped with the latest 1151 Coffee Lake Xeon E platform from Intel™, this server is capable of up-to 16 processing threads and 128GB of RAM suitable for a number of workloads. Check out the 18TB hard drives to bring the total disk space up to 72 terabytes. This server is designed for applications such as a NAS, web server, virtualization host, or backup server where a 1U form factor is needed while maximizing storage capacity. New to this server line is the option to add up to two NVMe SSD's for high-speed storage.

Key Features
  • Short Depth
  • Redundant Power (optional)
  • 20-Inch deep
  • Dual NVMe M.2
  • TPM 2.0 (optional)
Recommended Uses

2 - 8 Cores
Xeon E
i3, Pentium, Celeron

8 - 128 GB

4 x 3.5 Hot-Swap

2 x 1GbE

1 x PCI-e (optional)

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 970 PRO - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

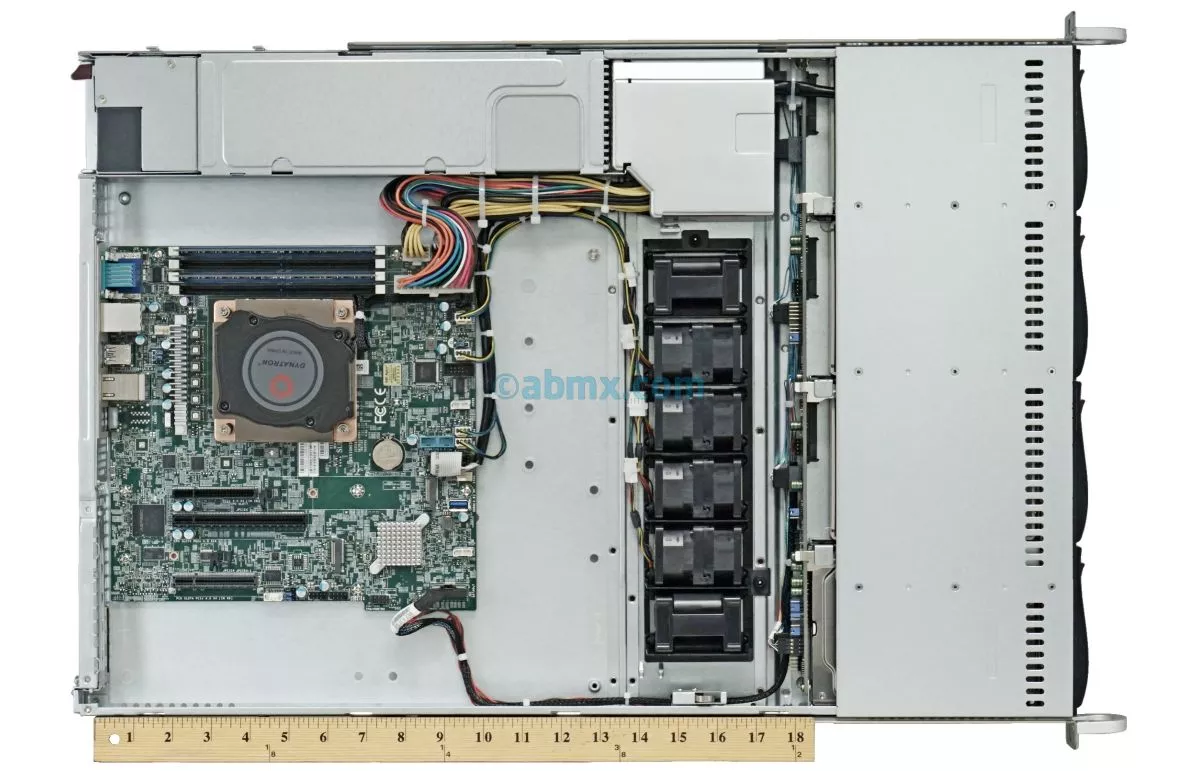

Chassis
  • 1U Rackmountable Enclosure
  • Black color
  • 1 Rack Unit Height (1.7")

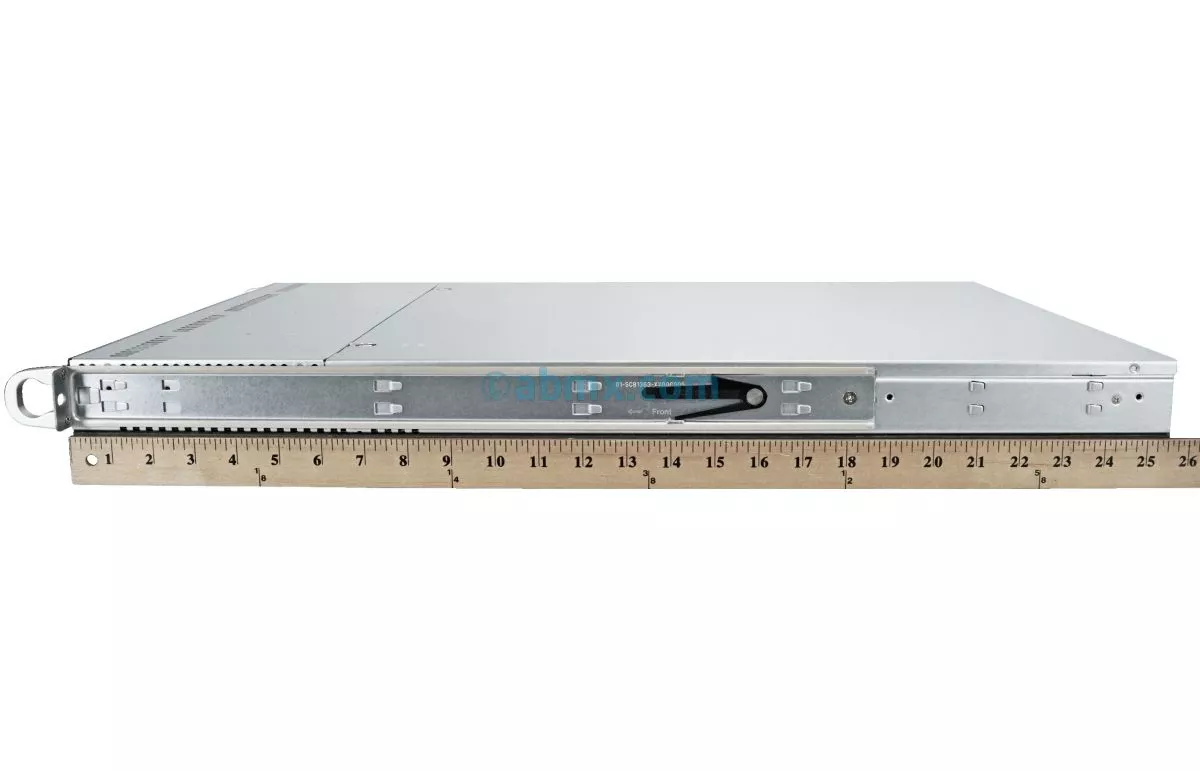

  • Dimensions: 19.85" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-1151 (Socket H4)
  • Supports 8th Gen. Intel® Core i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100/E-2200 Processor
  • Intel® C246 Chipset
BIOS
  • 256MB UEFI
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB Unbuffered ECC UDIMM
  • 3200/2933MHz ECC DDR4 SDRAM
Storage / IPMI
  • 6 x SATA3 (6Gbps) ports
  • Intel® C246 controller on-board
  • IPMI 2.0, ASPEED AST2500
  • Chassis supports up to four drives
  • 2 x M.2 NVMe (2280/22110)

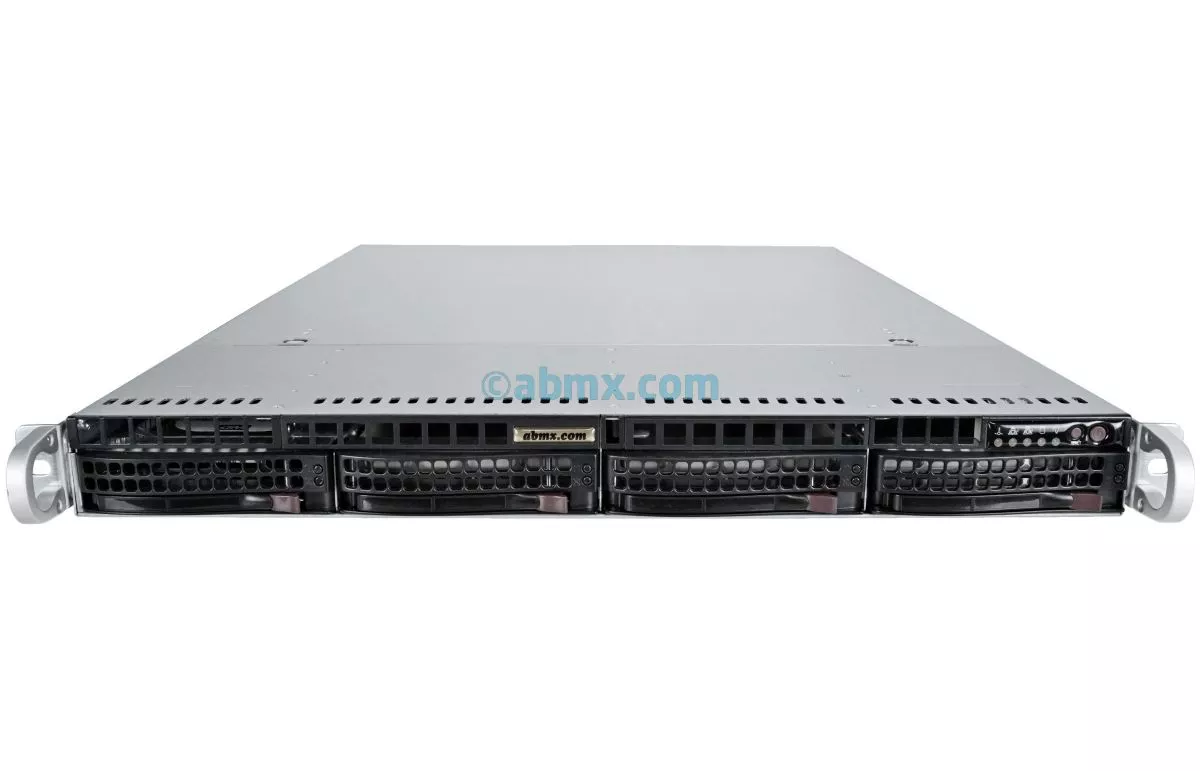

Drive Bays
  • HD1-4 Bay: hot-swap 3.5-inch SATA/ SSD Drive
  • Slim-line Optical Drive Bay
  • Up to 72 Terabyte of storage can be supported

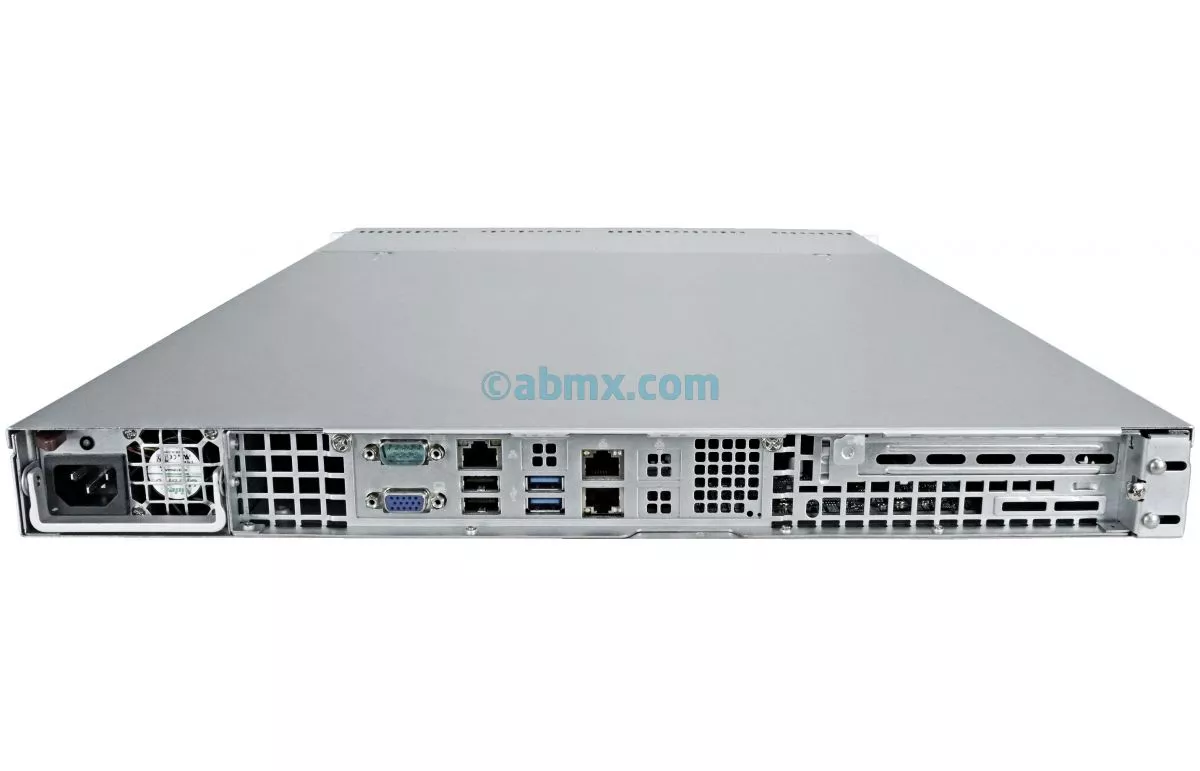

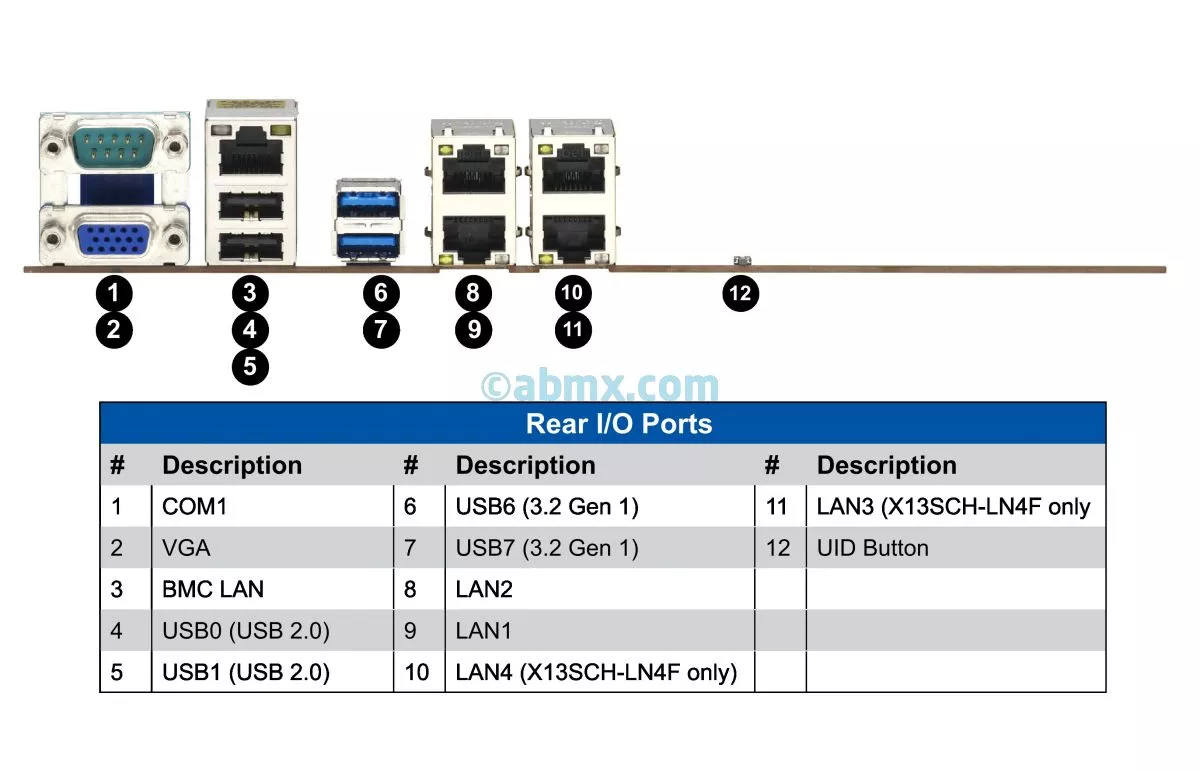

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (2 x rear + 2 x headers)
  • 5 x USB 3.1 Gen1 ports (2 x rears, 2 x headers, 1 x Type A)
  • 1 x VGA port
  • 1 x COM Port (1 header)
  • 1 x TPM Header
  • 2 x SuperDOM with built-in power
Video
  • Aspeed AST2500 BMC on-board

Network
  • Dual LAN with Intel® Ethernet Controller I210-AT
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 3.0 x16 slot (via riser card - OPTIONAL)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • HE power supply
  • Tested to comply with FCC class B Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X11SCM-F
AsteriskNOW 10.13
CentOS 6.0
7.0
7.6
7.9
8.4
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
7.9
Debian 10.10
10.2
10.7
11.4
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 26
27
29
32
35
36
Fedora Workstation 26
27
29
32
33
35
36
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
13.1
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
21
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
6.0.24
OpenBSD 5.0
6.0
6.4
6.8
6.9
7.1
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15.4
OpenSUSE Tumbleweed
OPNsense 19.1
22.7
Oracle Linux 7
7.6
9.0
PFSense 2.3
2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 5.0
8.1
9.0
Rocky Linux 8.4
9.0
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
7.9
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
13
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
7.0
VyOS 1.2
Windows 10
7
Windows 11 Original Release
Windows 32-bit 10
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS 12.3.0.4
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
