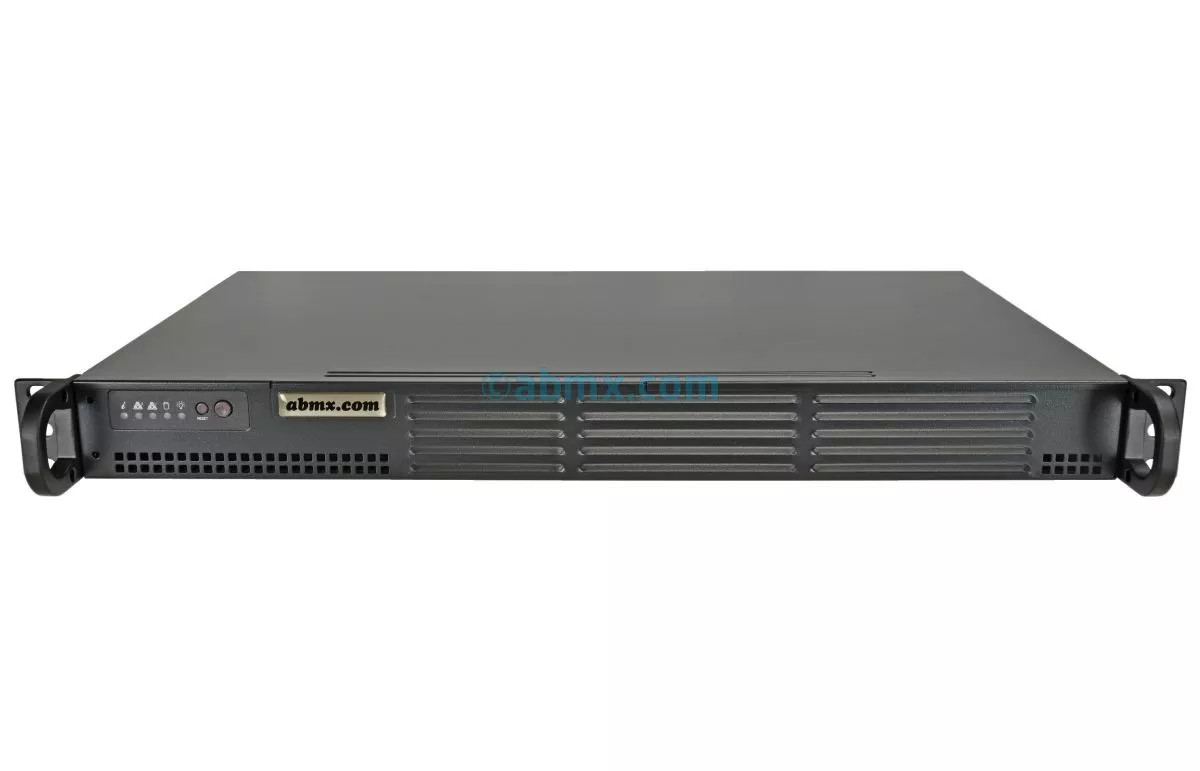

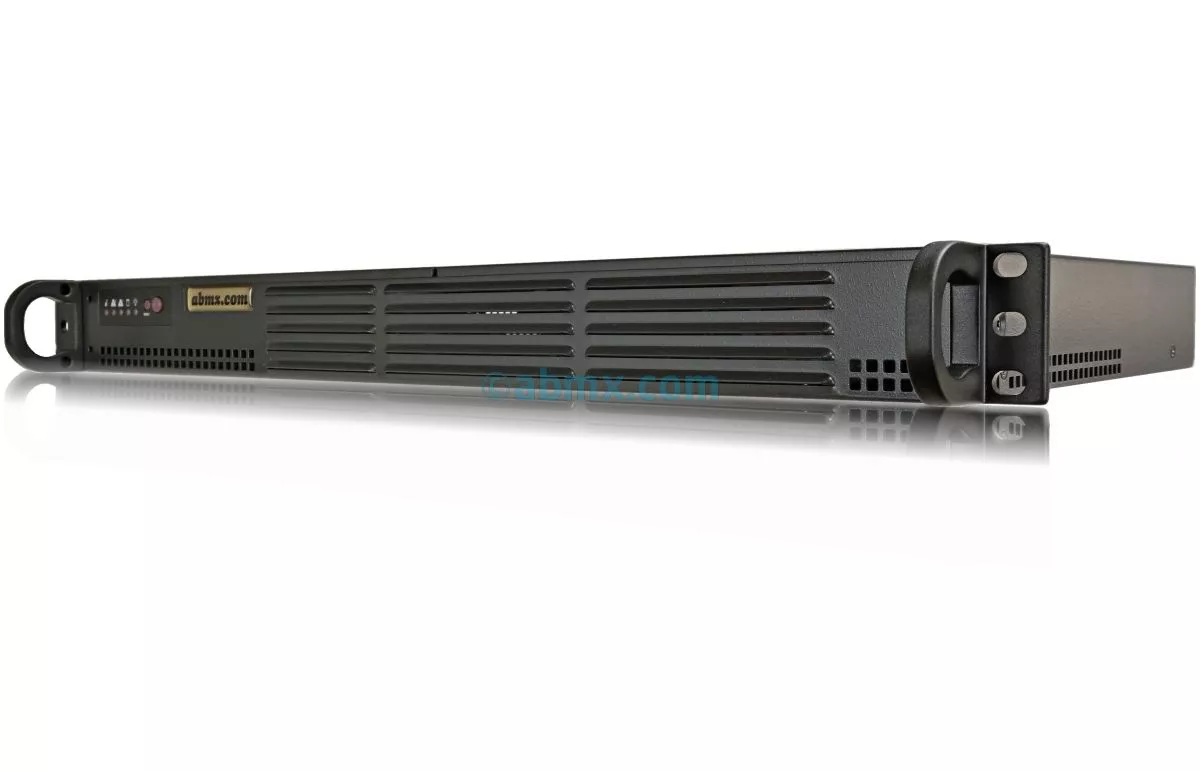

1U Mini Server - 10-inch deep

Model: 110S3CLi

This 1U Mini Server is the perfect platform for applications where rack depth is incredibly limited. Offering up-to 8 processing cores with the latest Intel Xeon E, this systems packs the most power possible into a super shallow 10" deep chassis. Designed for use as an appliance server where processing power and available memory take priority over storage volume.

Key Features
  • Short Depth
  • 10-Inch deep
  • Dedicated IPMI / iKVM
  • Dual LAN
  • Front USB (optional)
  • TPM 2.0
Recommended Uses

4 - 8 Cores
Xeon E

16 - 64 GB

1 x 3.5 Fixed
4 x 2.5 Fixed

2 x 1GbE

1 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 980 PRO
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM) -- Required for Windows

External Optical Drive (for OS installation, Backups, etc.)

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

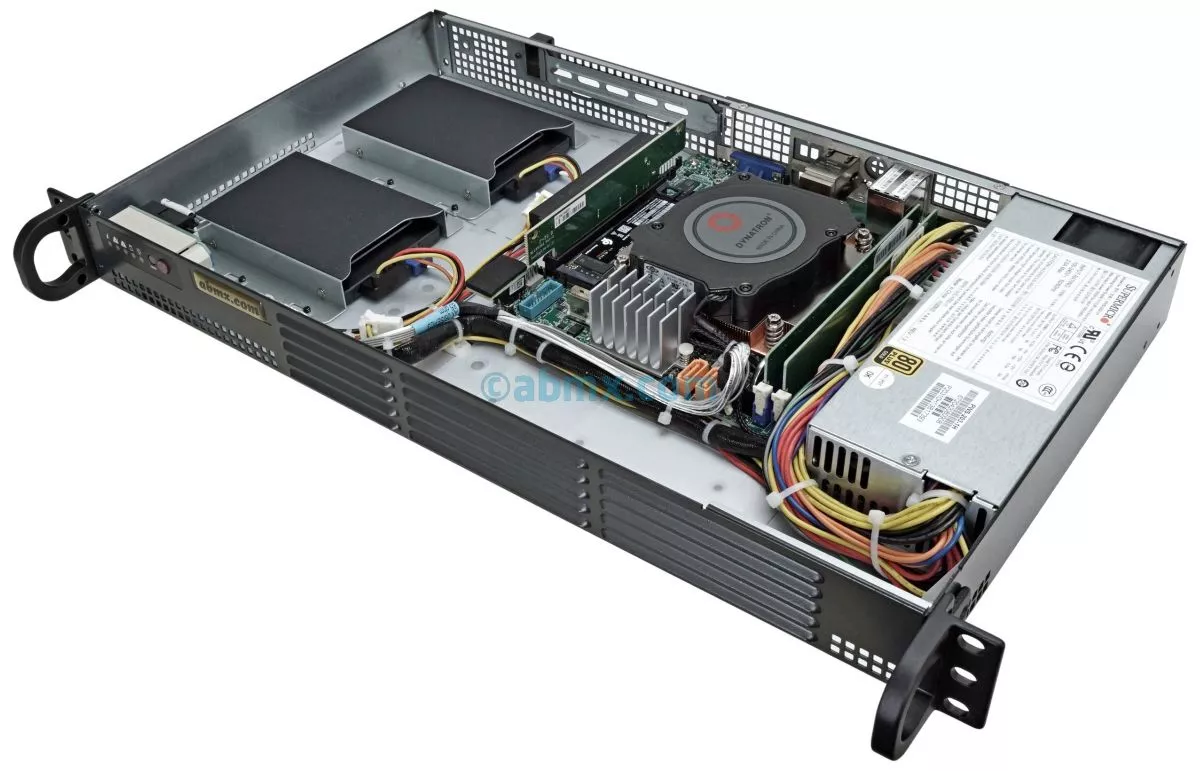

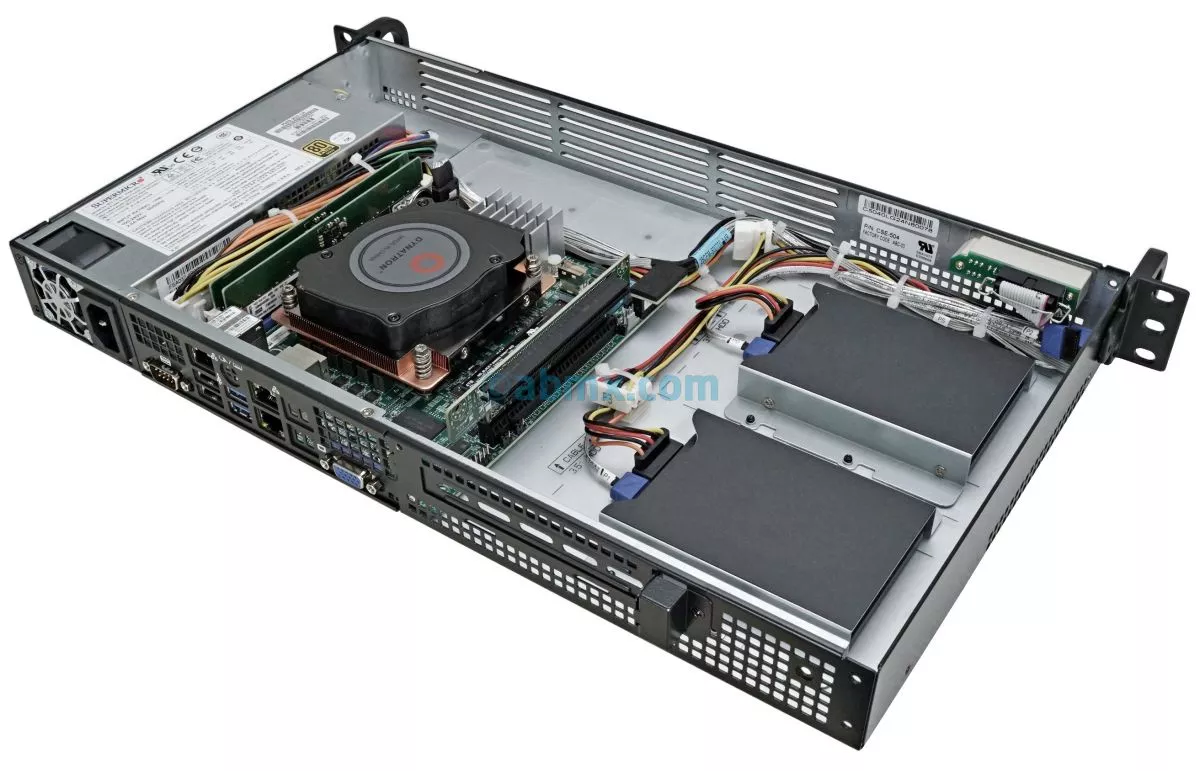

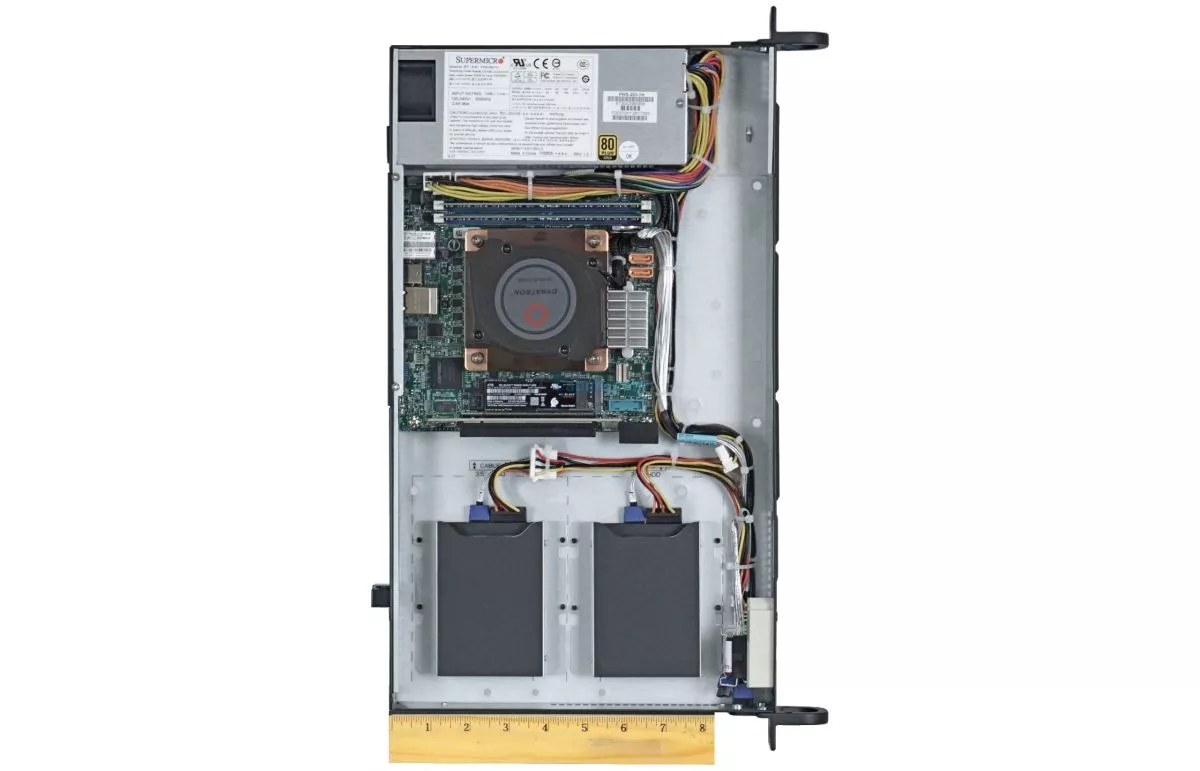

  • 9.8-inch 1U Mini Rack Mountable Enclosure
  • Rack Unit Height: 1.7-inch

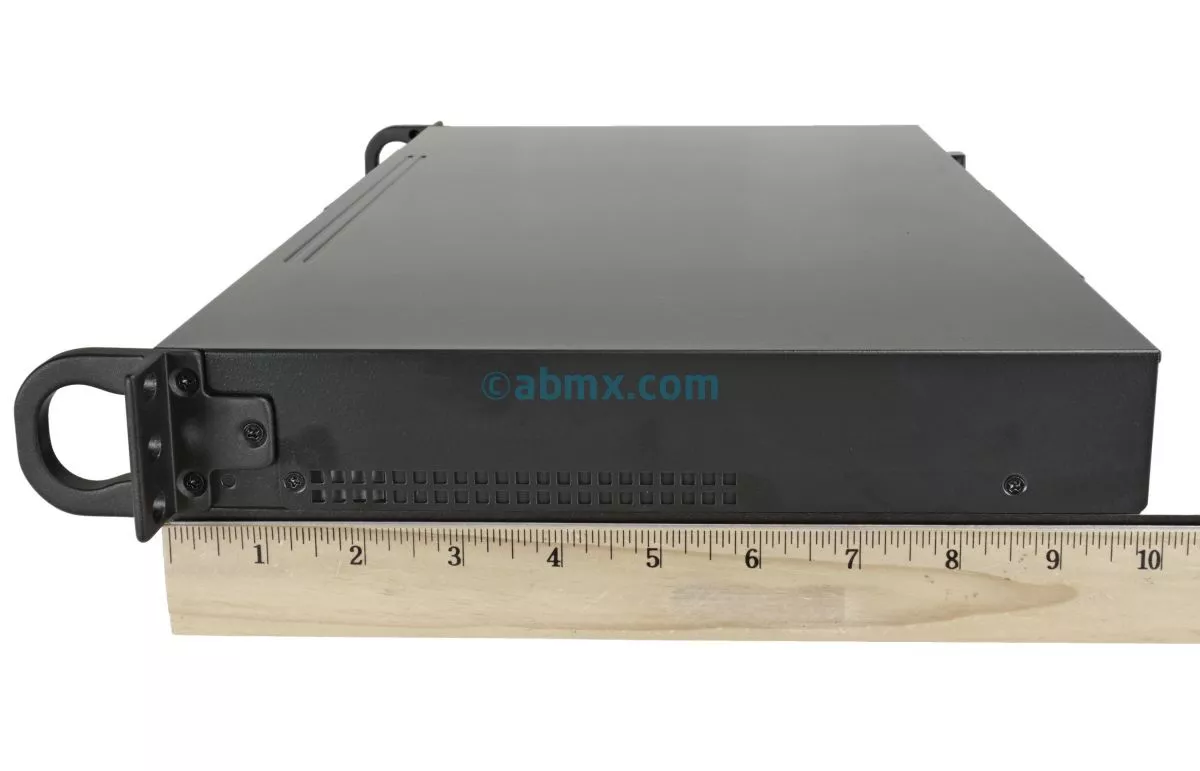

  • Dimensions: 9.8" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-1700 (Socket V0)
  • Supports 14th Gen Intel® Xeon® E-2400 Processors
  • Intel® C262 Chipset
BIOS
  • AMI 32MB AMI UEFI
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8
  • Plug and Play (PnP)
  • PCI FW 3.3
Memory
  • 2 x DDR5 DIMM sockets
  • Supports up to 64GB Unbuffered ECC UDIMM
  • 4400/4000/3600 MT/s
Storage / IPMI
  • 6 x SATA3 6Gbps ports (4 x via Slimline SAS x4 connector)
  • Intel® C262 controller on-board
  • IPMI 2.0 on-board (ASPEED AST2600 BMC)
  • Chassis supports 1 x 3.5-inch Drive or up to 4 x 2.5-inch Drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1 Bay: fixed 3.5-inch Drive, OR up to 4 x 2.5-inch Drives
  • Up to 32 Terabyte of storage can be supported

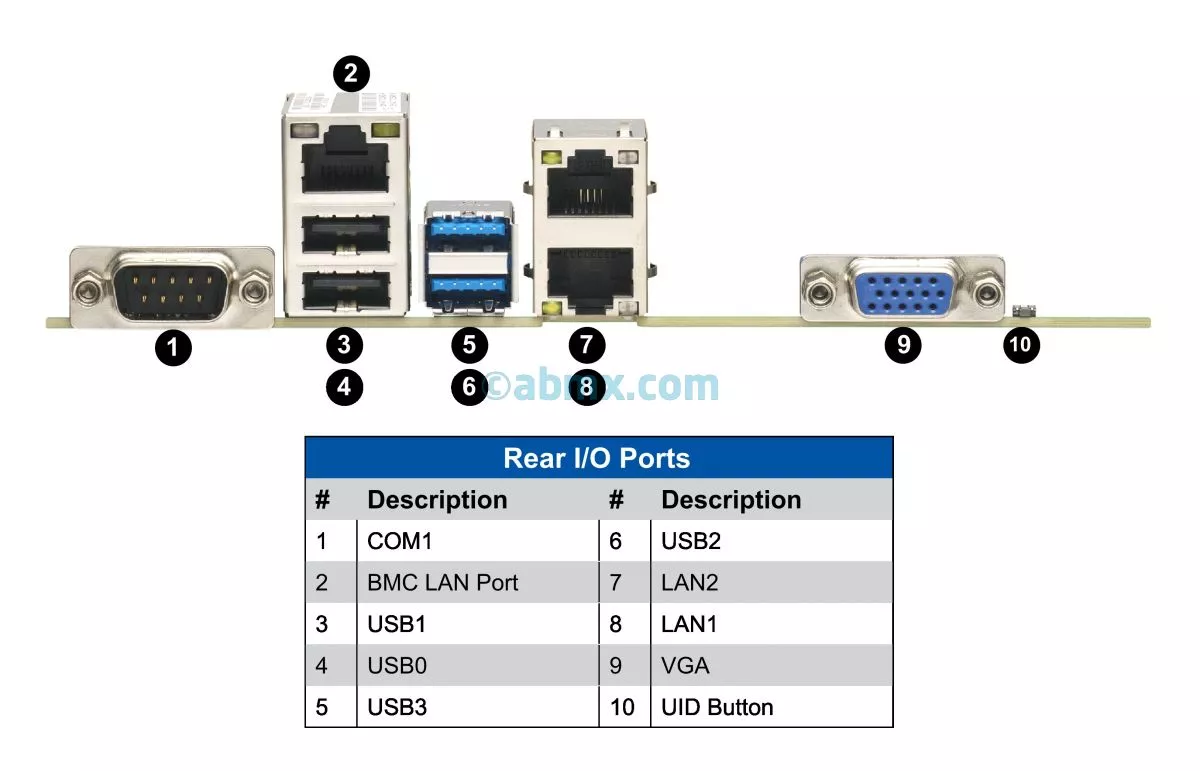

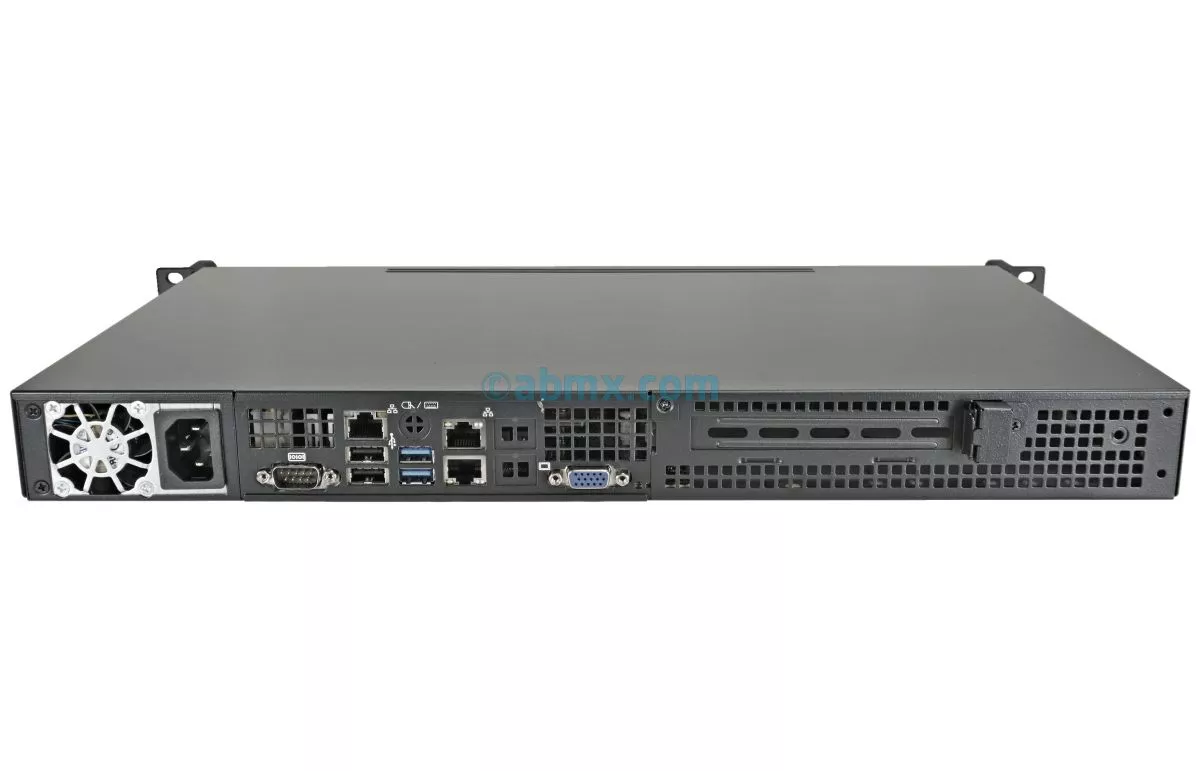

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x USB 2.0 ports (2 x rear)
  • 4 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear)
  • 1 x VGA D-Sub Connector port
  • 2 x COM Ports (1 x header, 1 x rear)
  • 1 x TPM Header
Video / Audio
  • Aspeed AST2600 BMC graphics on-board

Network
  • Dual Gigabit LAN (Intel® I210) on-board
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 5.0 x16 slot - full height (via Riser card)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, TUV/CB, UL/CB
CD-ROM /DVD-ROM
  • External USB Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X13SCL-iF

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
