1U Rackmount Server - Xeon Scalable 3d Gen - 4 x 2.5-inch Hot-Swap Bay

Model: 1222X2PL

8 - 38 Cores
Xeon Scalable

8 - 512 GB

4 x 2.5 Hot-Swap

2 x 1GbE

1 x PCI-e (optional)

Chassis

Motherboard

Processor

Special Order

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 970 PRO - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Seagate® Enterprise, 2.5-inch - SAS HDD
Seagate® Enterprise, 2.5-inch - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM)

Optical Drive

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

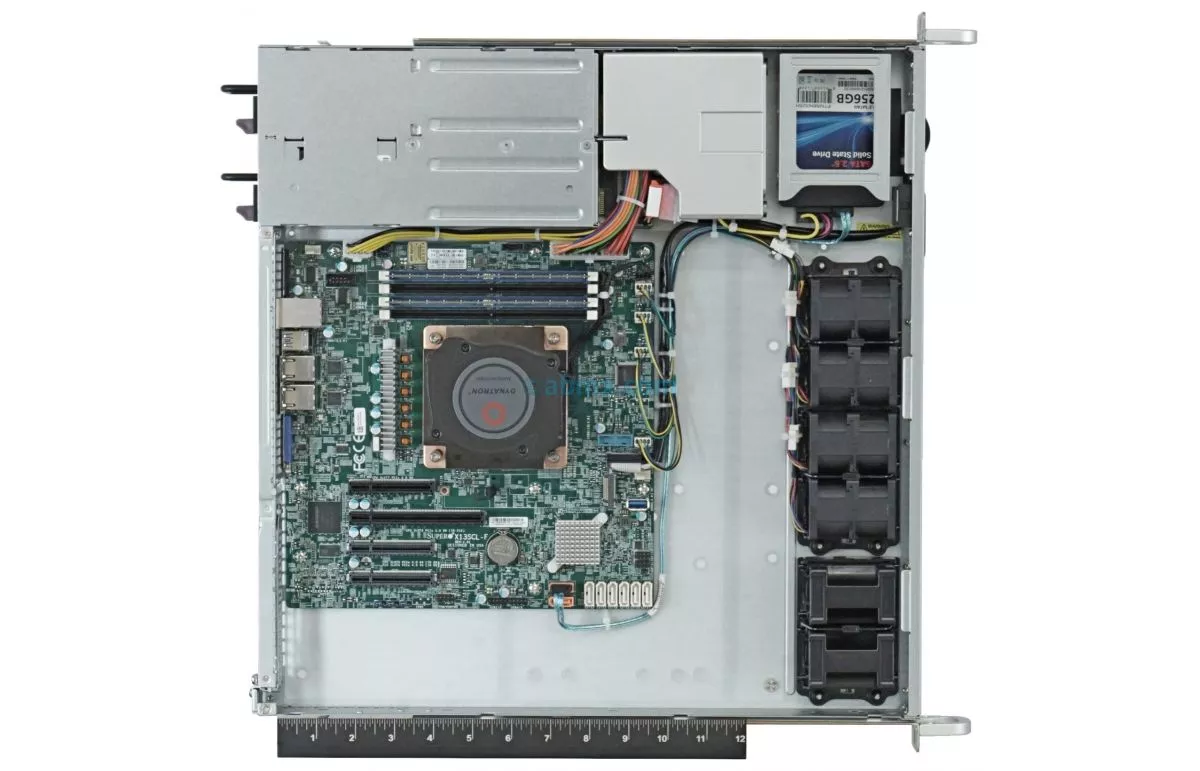

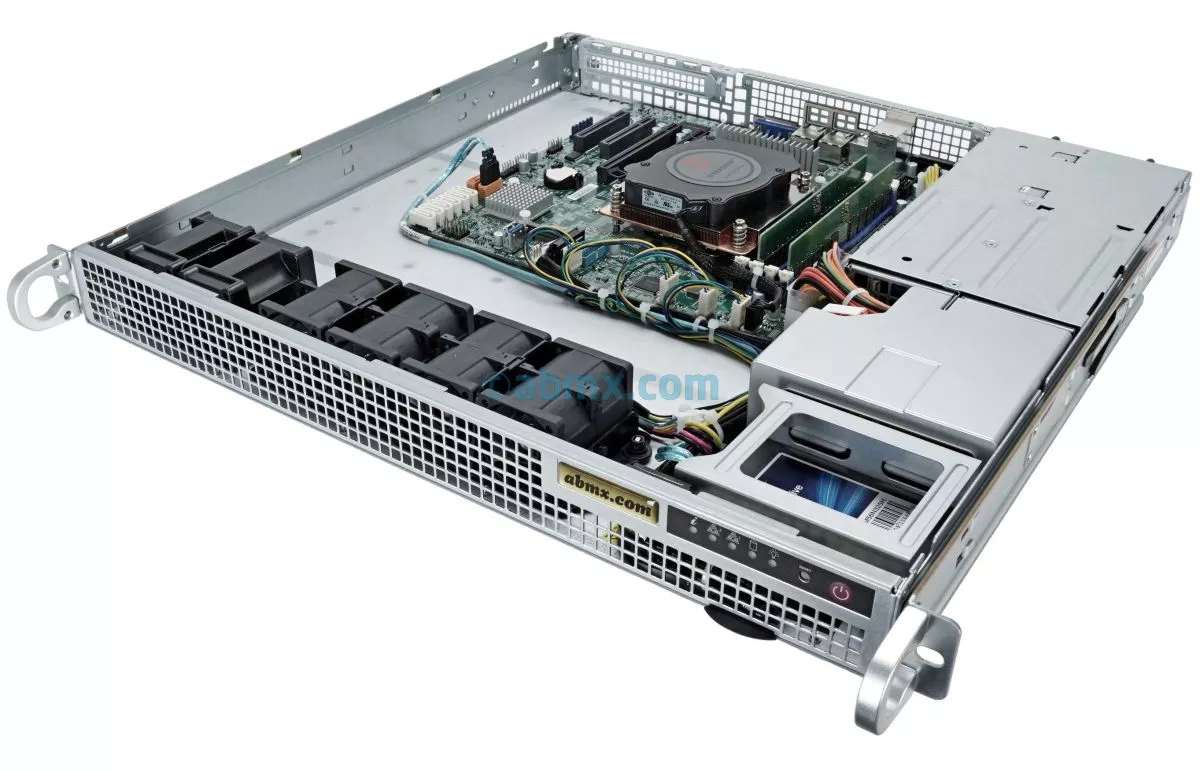

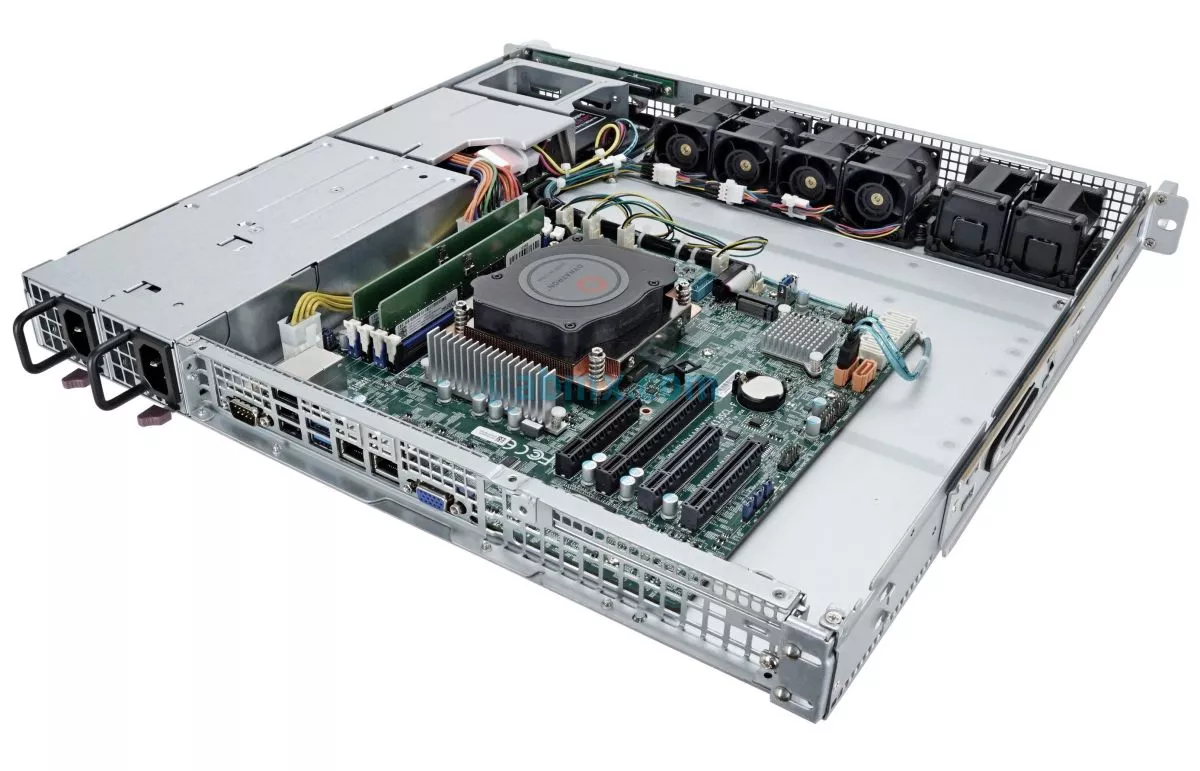

Chassis
  • 1U Rackmountable Enclosure
  • Rack Unit Height: 1.7-inch
  • Dimensions: 21.95" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
  • Front 2-port USB in Slim DVD Bay (OPTIONAL)
Processor/Chipset
  • Single Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933MHz ECC 3DS, LRDIMM, RDIMM
Storage / IPMI
  • 10 x SATA3 (6Gbps) ports
  • Intel® C621A controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports up to four drives
  • 1 x M.2 NVMe 2280/22110
Drive Bays
  • HD1-4 Bay: Hot-swap 2.5-inch SATA/ SSD Drive
  • Up to 32 Terabyte of storage can be supported
  • 1 x Slim-line Optical Drive Bay

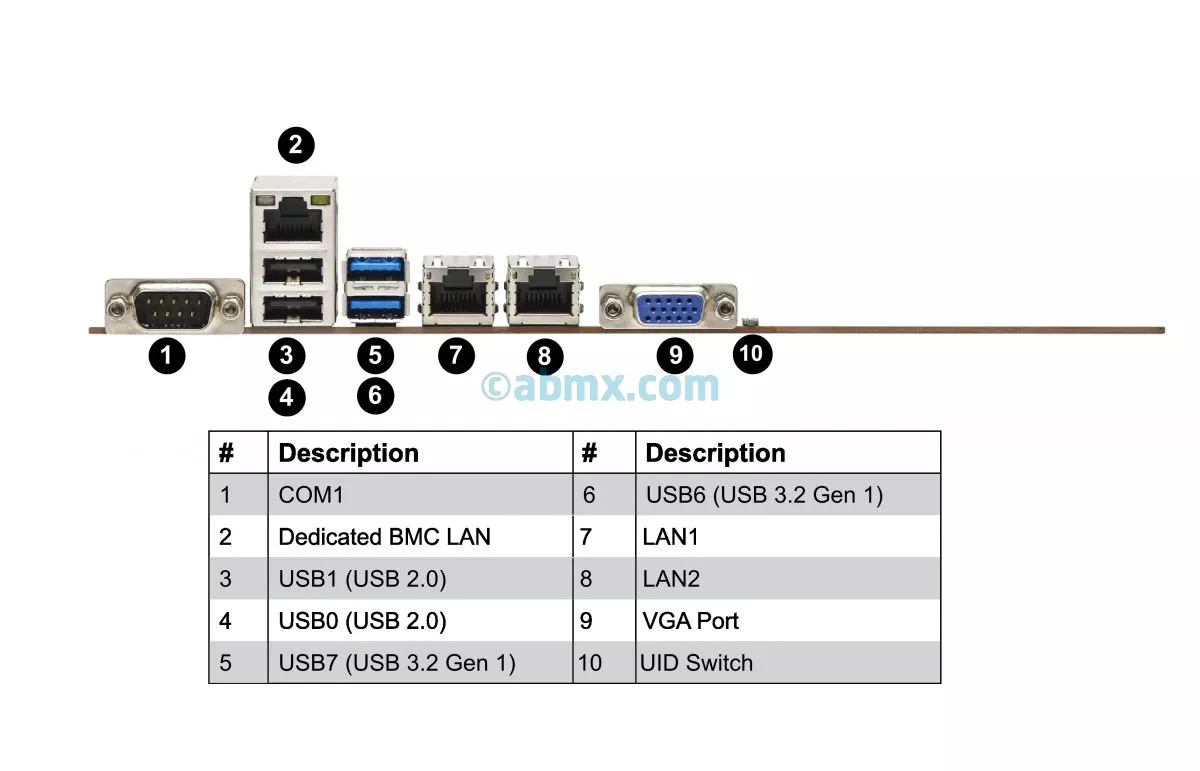

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (4 x via header, 2 x rear)
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 4.0 x16 (in x16) - full height (via Riser card - OPTIONAL)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • High-efficiency power supply
  • Tested to comply with FCC Class B Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12SPL-F OverallChipset
Intel C621A
LAN
Intel I210
Video
ASPEED AST2600
CentOS 7.9
8.4
ClearOS Community Edition 7.7
7.9
Debian 10.10
11.4
Fedora Server 32
35
36
Fedora Workstation 33
35
36
FreeBSD 12.2
13.1
Linux Mint 20
21
Manjaro Linux 20.2
Open Media Vault 4.1.3
6.0.24
OpenBSD 6.8
6.9
7.1
OpenSUSE Leap 15.4
OPNsense 19.1
22.7
Oracle Linux 7.6
9.0
PFSense 2.4
2.5.2
Proxmox VE 7.0
Red Hat Enterprise Linux 8.1
9.0
Rocky Linux 8.4
9.0
Scientific Linux 7.6
7.9
SUSE Enterprise Server 15
TrueNAS 12.0
13
Ubuntu Desktop 18.04.4 LTS
20.04 LTS
22.04 LTS
Ubuntu Server 18.04.4 LTS
20.04 LTS
22.04 LTS
VMWare ESXi 6.7
7.0
Windows 10
Windows 32-bit 10
Windows Server 2019
Xenserver 7.6
XigmaNAS 12.3.0.4
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
