1U Short-Depth Server - Front I/O

Model: 117FS1CM8

The 117FS1CM8 is an excellent 1U Front IO platform for a firewall or appliance server. The capability of handling two PCI-express 3.0 cards combined with the front I/O design in a short-depth rackmount format makes this system hard to beat. The system has a redundant power supply and utilizes up-to two high speed solid state drives for storage as well as an NVMe M.2 drive. Perfect for an advanced router, firewall, or network security appliance.

Key Features
  • Short Depth
  • Front I/O Ports
  • Redundant Power
  • 17-Inch deep
  • 2 x PCIe Slots
Recommended Uses

2 - 6 Cores
Xeon E
i3, Pentium, Celeron

8 - 128 GB

2 x 2.5 Fixed

8 x 1GbE

1 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM)

External Optical Drive (for OS installation, Backups, etc.)

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 1U Short-depth Mini Rackmountable Enclosure
  • 1 Rack Unit Height (1.7")

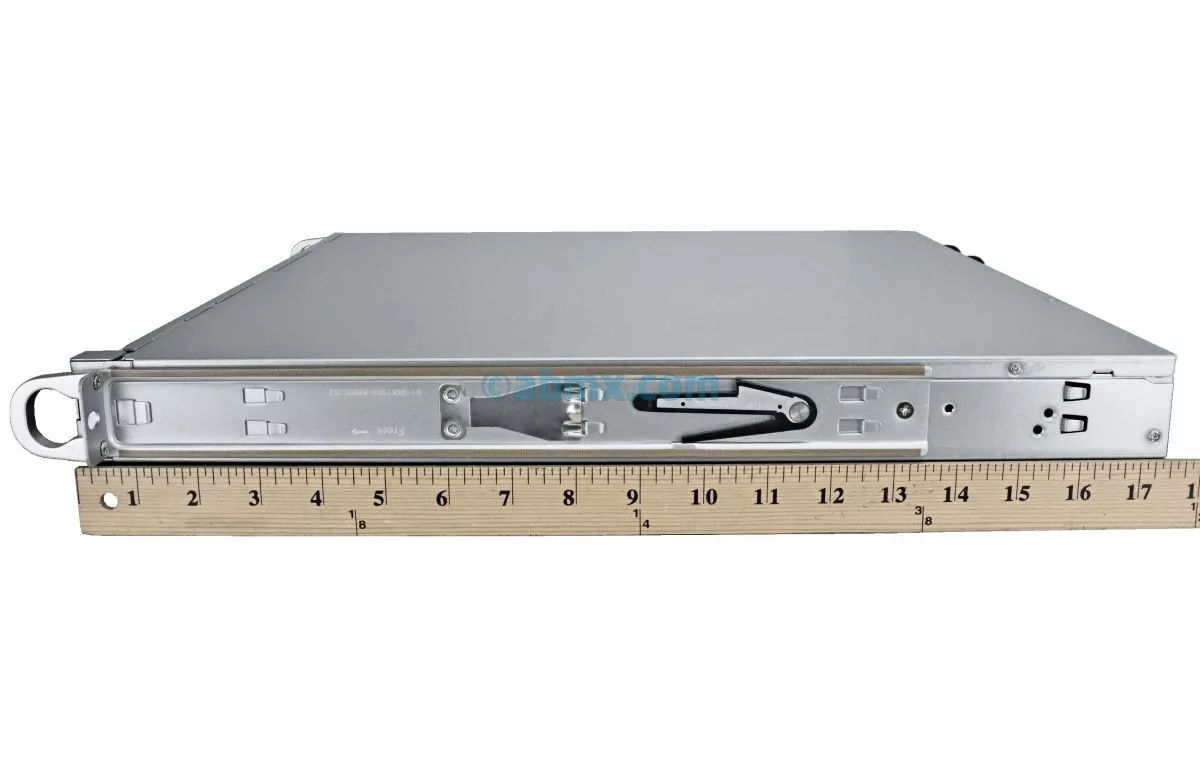

  • Dimensions: 16.9" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
  • Front I/O ports
Processor/Chipset
  • Single Socket LGA-1151 (Socket H4)
  • Supports 8th/9th Gen.Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
  • Intel® C246 Chipset
BIOS
  • 256MB UEFI
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB Unbuffered ECC UDIMM
  • 3200/2933 MHz ECC DDR4 SDRAM
Storage / IPMI
  • 6 x SATA3 (6Gbps) ports
  • Intel® C246 controller on-board
  • Chassis supports up to two SATA/SSD drives
  • IPMI 2.0, ASPEED AST2500
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-2 Bays:fixed 2.5-inch SATA/ SSD Drive
  • Up to 16 Terabyte of storage can be supported
I/O ports
  • 8 x RJ45 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (2 x rear + 2 x headers)
  • 5 x USB 3.1 Gen.1 ports (2 x rears, 2 x headers, 1 x Type A)
  • 1 x VGA port
  • 1 x COM Port (1 header)
  • 1 x TPM Header
  • 2 x SuperDOM with built-in power
Video
  • Aspeed AST2500 BMC on-board

Network
  • 8 x LAN with Intel® Ethernet Controller I210-AT
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 3.0 (x16) - full height (via Riser card - OPTIONAL)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~60 dBA (ISO 7779 operator position 0.6 meter).
Power Supply

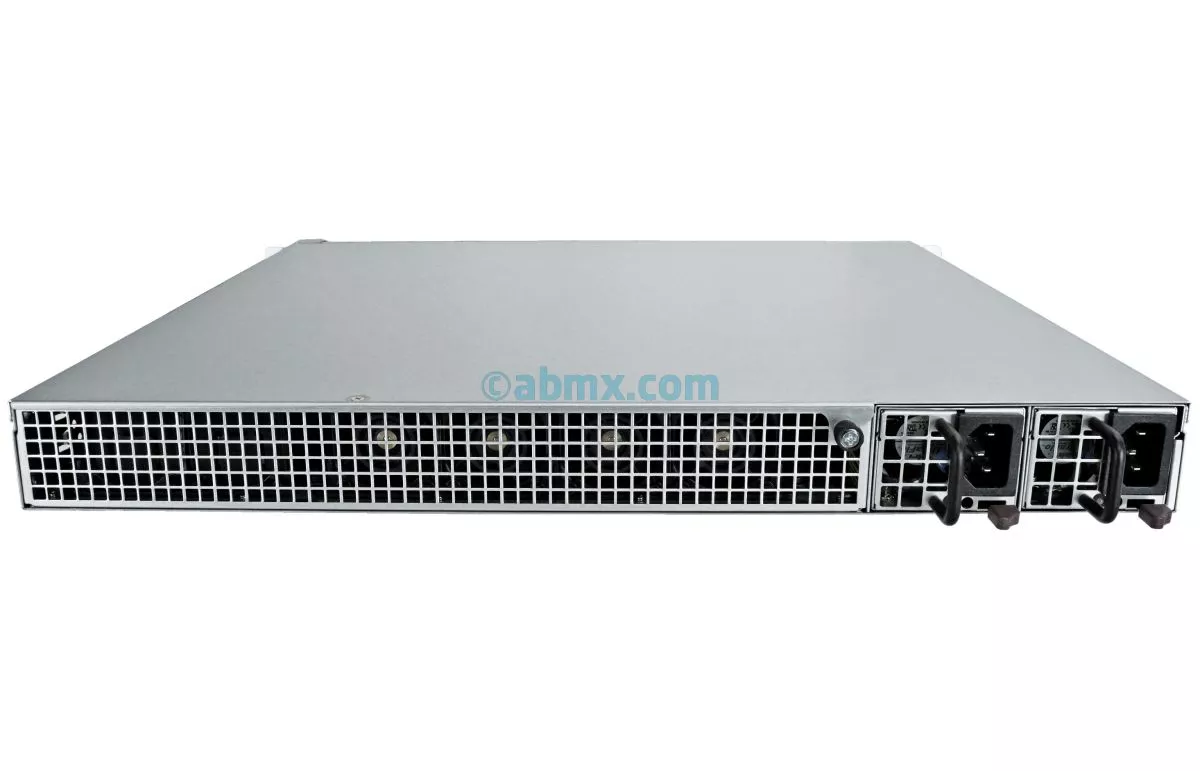

  • Redundant HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, UL/CB, UL/CUL
CD-ROM /DVD-ROM
  • USB External Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X11SCM-LN8F OverallChipset
Intel C246		LAN
Intel i210-AT		Video
Aspeed AST2500
CentOS 7.6
7.9
8.4
ClearOS Community Edition 7.5
7.7
Debian 10.2
9.11
9.8
Elastix 5.0
Fedora Server 29
32
Fedora Workstation 29
32
FreeBSD 12
12.1
FreeNAS 11.2
FreePBX 14
15
Linux Mint 19.1
19.2
Manjaro Linux 18.0.4
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 6.4
OpenIndiana Hipster 2018.10
OpenSUSE Leap 15.4
OPNsense 19.1
Oracle Linux 7.6
PFSense 2.4
Red Hat Enterprise Linux 8.1
9.0
Scientific Linux 7.6
SUSE Enterprise Server 12
SUSE Enterprise Server 15
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
Ubuntu Server 16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
VMWare ESXi 6.7
VyOS 1.2
Windows 10
7
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
