14-Inch deep

This 2U mini server is the shortest model in this form factor category. It now features Intel's latest Rocket Lake Xeon E processors for unbeatable performance with up to 8 cores, 16 threads, and up to 128GB of DDR4 memory for blazing fast speeds. The short 14" deep design strikes the perfect balance between compact design while still providing the expansion capabilities needed in a 2U server with up to 3 x Full-Height, Full-Length PCIe cards.

Chassis

2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
Rack Unit Height: 3.5-inch

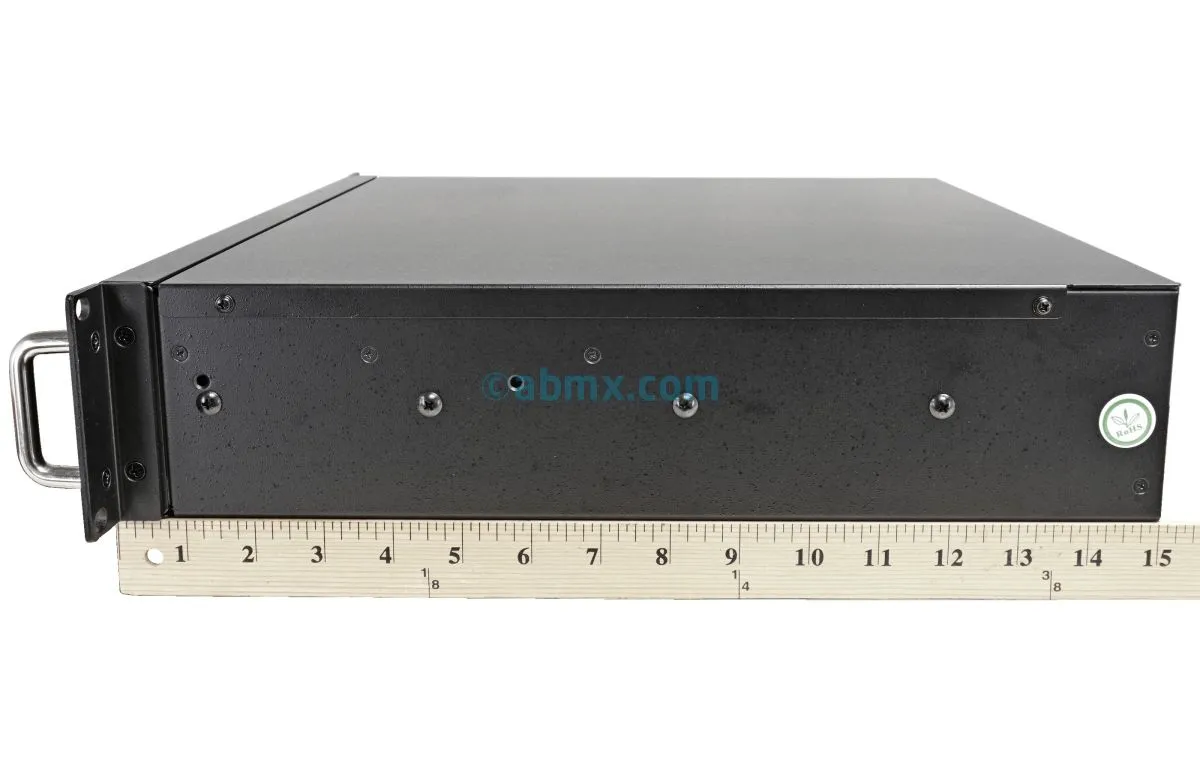

Dimensions: 14.1" (D) x 19" (W) x 3.5" (H)
Metal thickness: 1.2 mm
2 x Front USB Ports

Processor/Chipset

Single Socket LGA-1200 (Socket H5)
Supports 10th Gen. Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor
Intel® C252 chipset

BIOS

256MB UEFI
ACPI 6.0
SMBIOS 3.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0

Memory

4 x DIMM sockets
Supports up to 128GB ECC Un-buffered DIMM
3200/2933 MHz ECC DDR4 UDIMM

Storage / IPMI

6 x SATA3 (6Gbps) ports
Intel® C252 controller on-board
IPMI 2.0 support (ASPEED AST2600 BMC)
Chassis supports one drive
1 x M.2 NVMe (2280)

Drive Bays

HD1 Bay: fixed 1 x 3.5-inch HDD or 2 x 2.5-inch SSD
Up to 22 Terabyte of storage can be supported

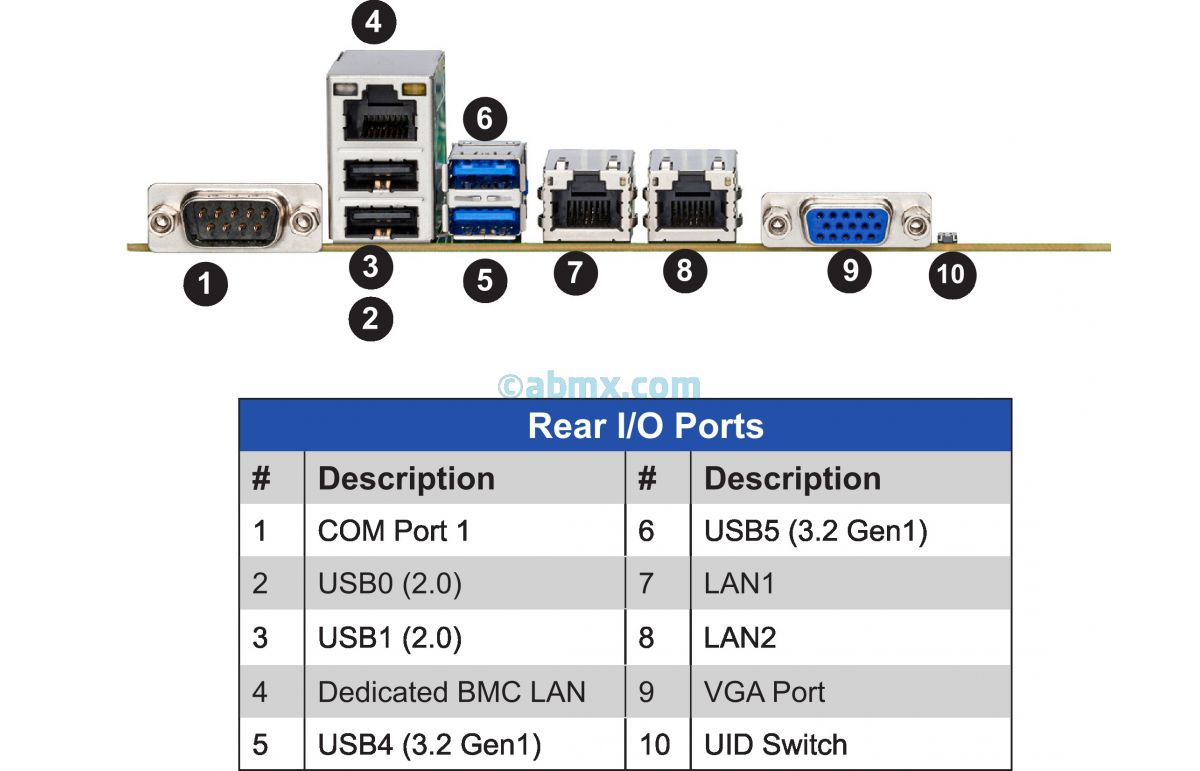

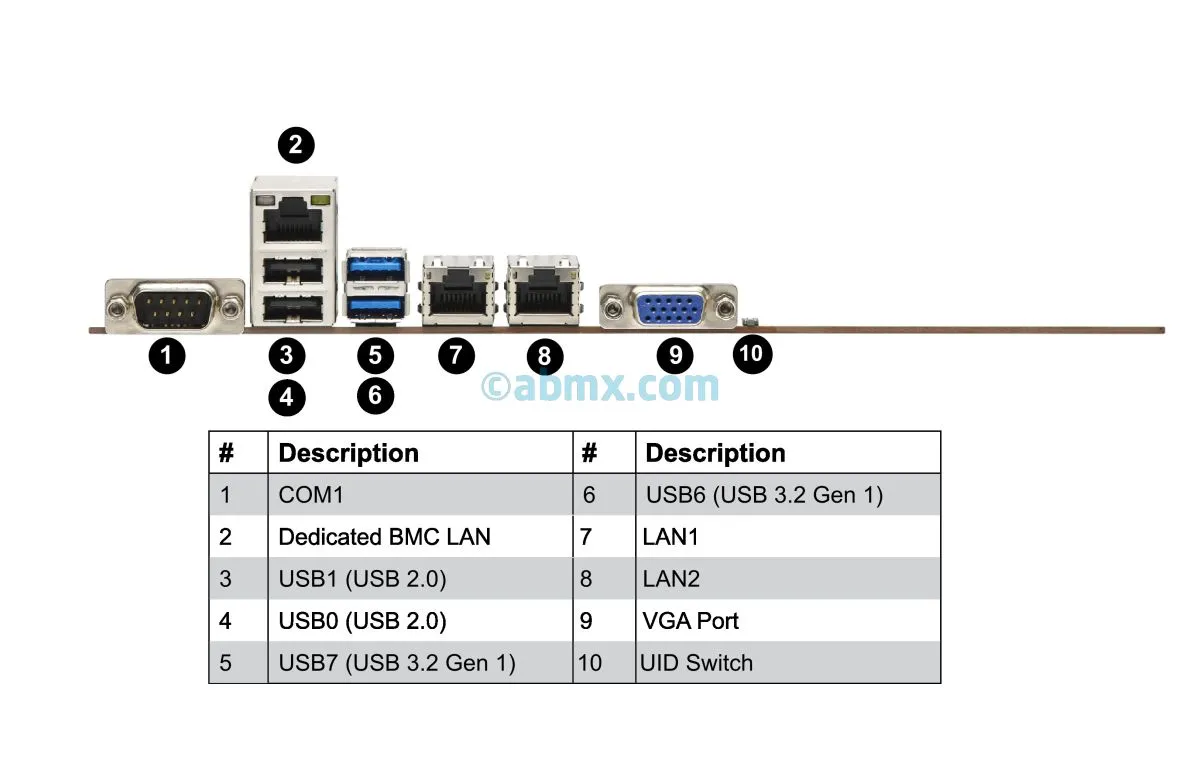

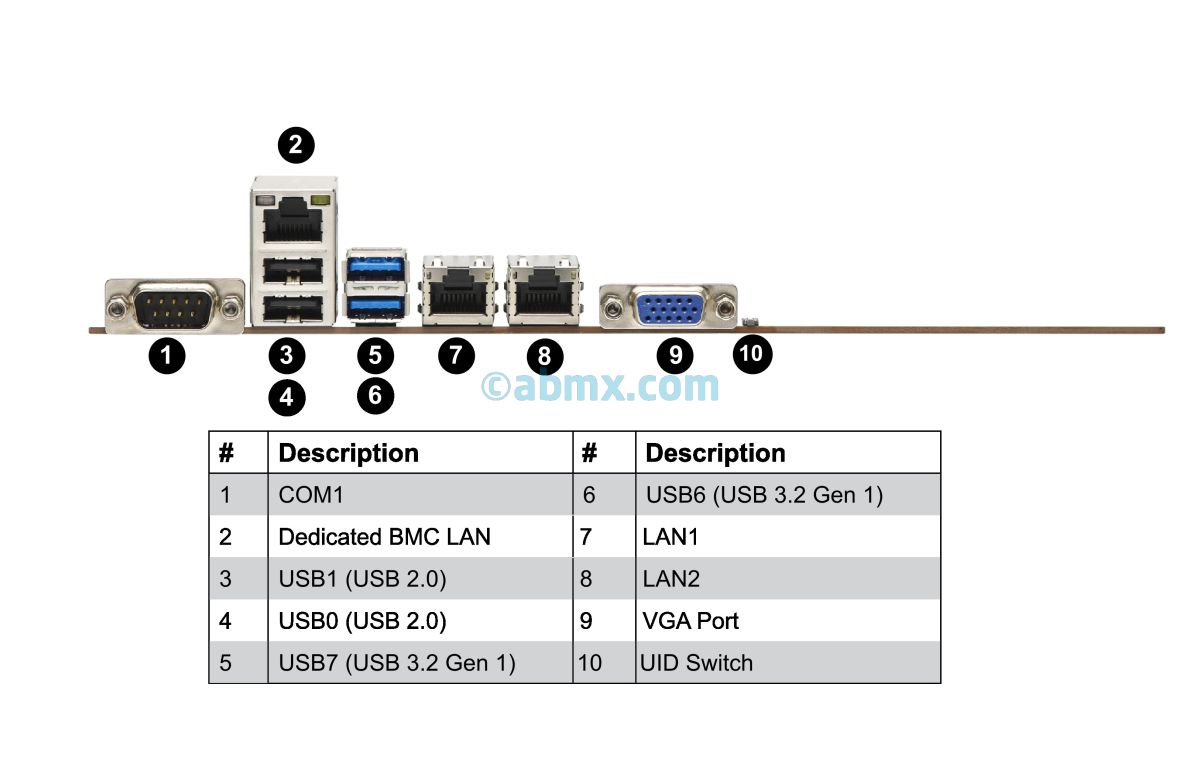

I/O ports

2 x RJ45 Gigabit Ethernet LAN ports
4 x USB 2.0 ports (2 x rear, 2 x via header)
5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear, 1 x type A)
1 x VGA D-Sub Connector port
2 x COM Port (1 x header, 1 x rear)
2 x SATA DOM (Disk on Module) power connector support
1 x TPM Header

Video

ASPEED AST2600 BMC on-board

Network

Dual LAN with Intel® i210 Gigabit Ethernet Controller on-board

Hardware Monitor

CPU/System Fan Speed
CPU Temperature
System Voltage Vcore,+3.3V,+5V,+12V

Expansion (LOW-PROFILE)

1 x PCI-e 4.0 (x8) in (x16) slot
1 x PCI-e 4.0 (x8) slot
1 x PCI-e 4.0 (x4) in (x8) slot
1 x PCI-e 3.0 (x2) in (x4) slot

Power Consumption/Acoustic noise emission

Between W to W with the standard configuration
Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).

Power Supply

High-Efficiency Power Supply
Tested to comply with FCC Standards
Certifications: TUV, CB, CE, CCC

CD-ROM /DVD-ROM

External USB Optical Drive (OPTIONAL)

Rack Support

2U rackmount rails kit is OPTIONAL

OS Compatibility

Please call our tech support at 714-258-2269 for details

Warranty

3 years Parts* and Labor Standard
* Batteries are subject to DOA only and are NOT subject for replacement or return
Extended Warranties Available

Motherboard X12STL-F	Overall	Chipset Intel C252	LAN Intel I210	Video ASPEED AST2600
CentOS 8.4
Debian 11.4
Red Hat Enterprise Linux 9.0
Rocky Linux 9.0
Scientific Linux 7.9
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
Windows 10
Windows Server 2019

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
