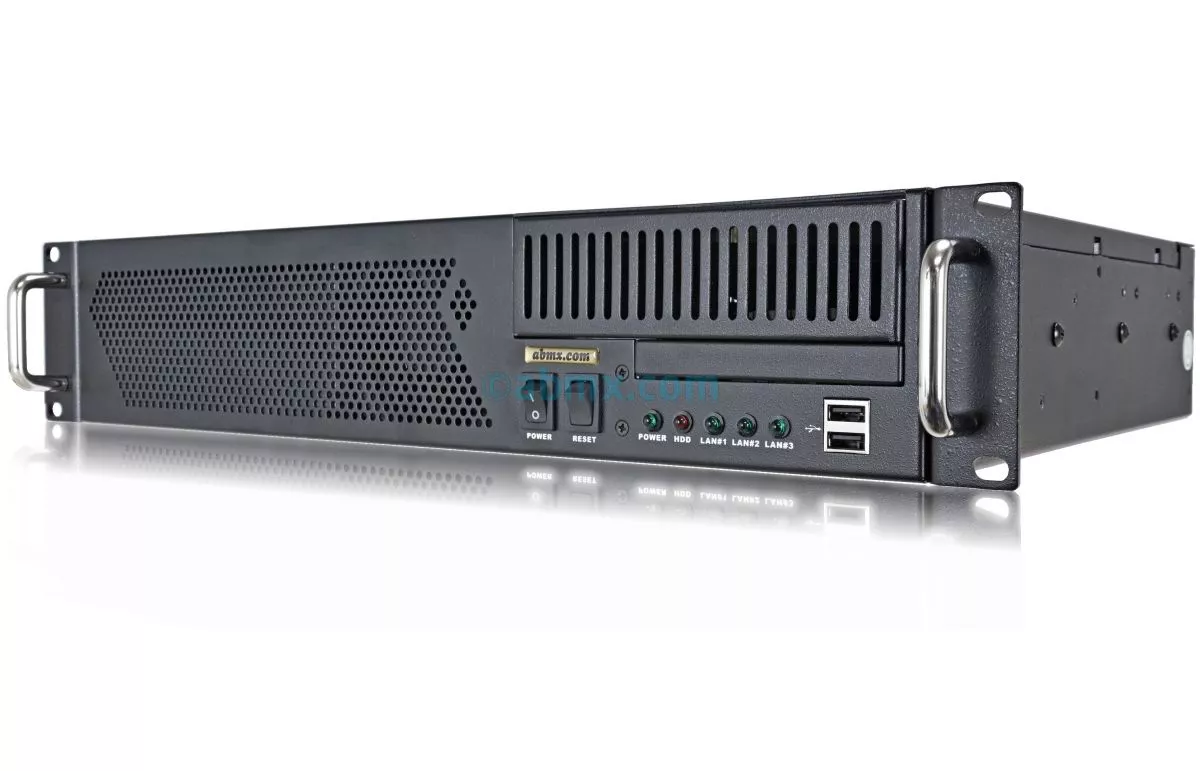

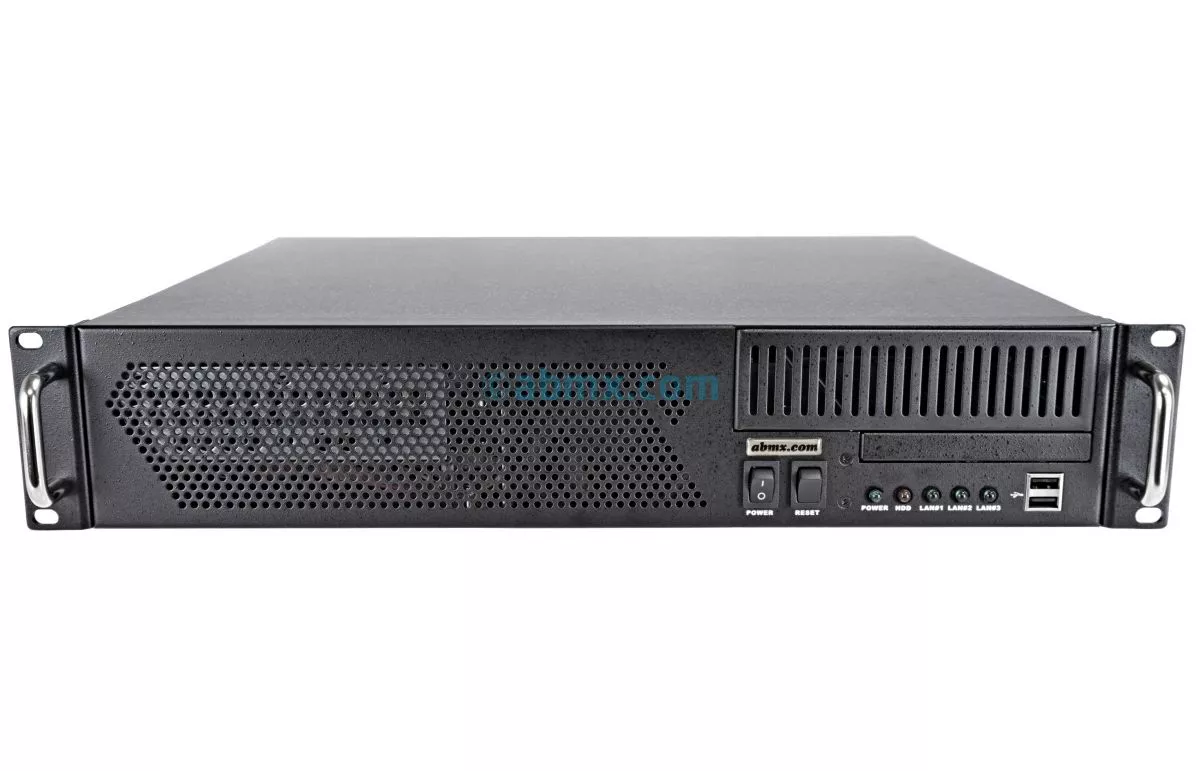

2U Short-Depth Server - 2 x Hot-swap Bays

Model: 215LPAS131

This 2U short-depth server is the shortest model in this form factor category that is built with hot-swap bays. It features the latest 10th generation Intel processors, boasting up to 10-cores / 20-threads and a maximum of 128GB of memory. The 2U form factor with low-profile PCIe slots provide better expansion opportunities compared to it's 1U rackmount counterparts.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • 15-Inch deep
Recommended Uses

2 - 10 Cores
Xeon W-1200
Core i9, i7, i5
i3, Pentium, Celeron

8 - 128 GB

2 x 3.5 Hot-Swap
2 x 3.5 Fixed

2 x 1GbE

4 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 970 PRO - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

RAID / Storage Controller

PCIe Expansion Slot

Additional Network Adapter

Video Adapter

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Power Supply

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

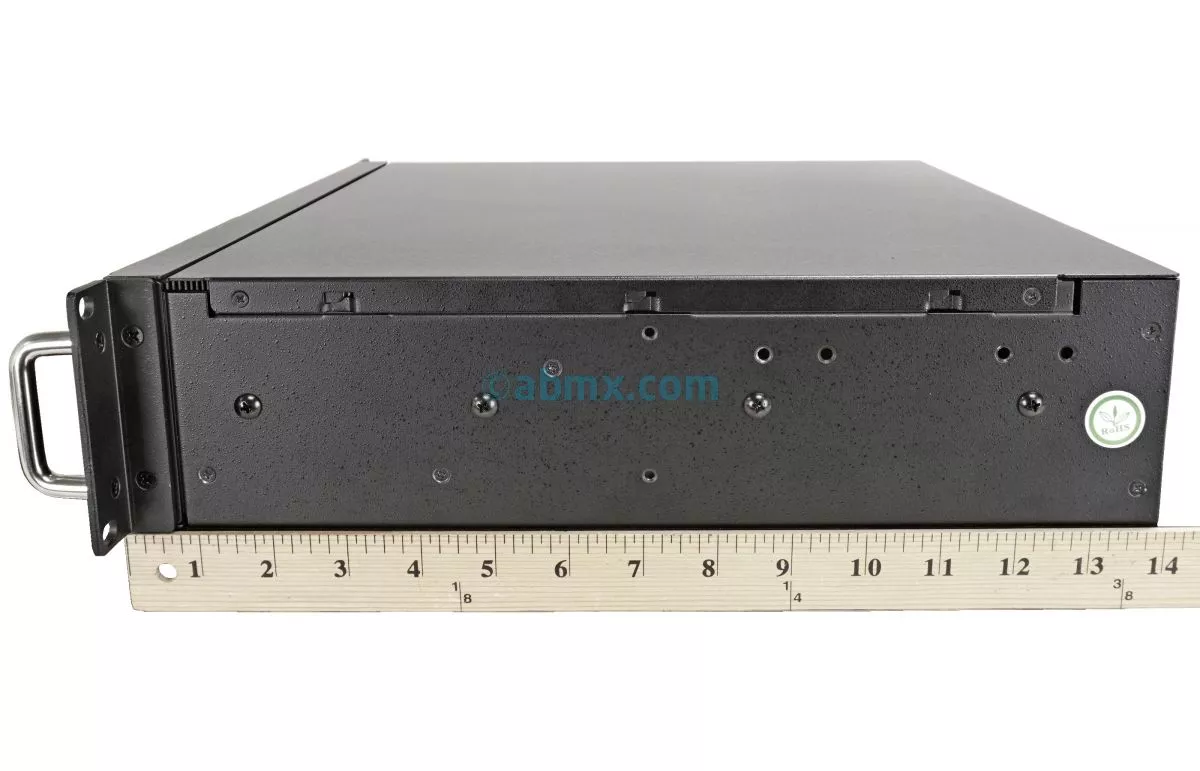

  • Dimensions: 15.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front: 2 x USB Ports
Processor/Chipset
  • Single Socket H5 (LGA 1200)
  • Supports Intel® 10th Gen Core™ i3/i5/i7/i9, Intel® Pentium®, Intel® Celeron®
  • Intel® Q470E chipset
BIOS
  • AMI SPI 256 Mbit
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB (Intel Core i9/i7/i5) (up to 32GB per DIMM)
  • Supports up to 64GB (Intel Core i3/Pentium/Celeron) (up to 16GB per DIMM)
  • 2933MHz DDR4 non-ECC UDIMM memory
Storage
  • 8 x SATA3 (6Gbps) ports
  • 1 x M.2 NVMe 2280
  • Chassis supports up to four hard drives
Drive Bays
  • HD1-2 Bay: hot-swap SATA/ SSD Hard Drive
  • HD3-4 Bay: fixed SATA/SSD Hard Drive
  • 1 x Slim Optical Drive Bay
  • Up to 72 Terabyte of storage can be supported

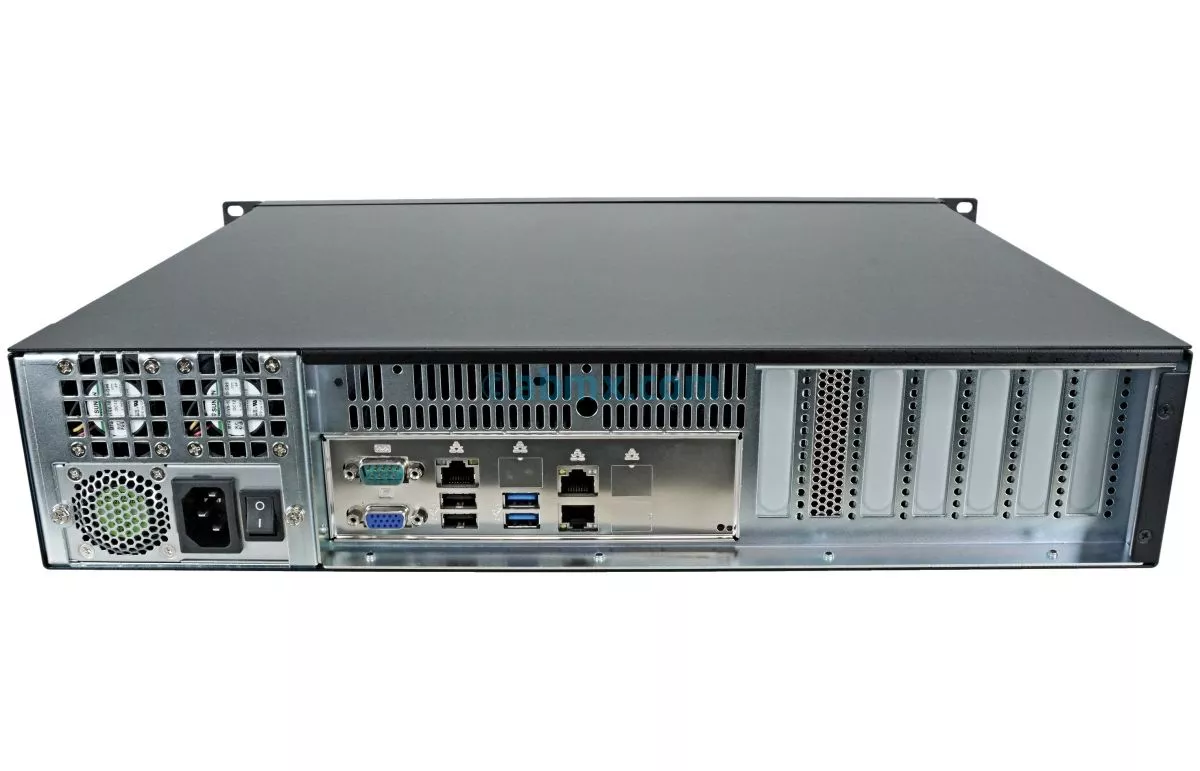

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 4 x USB 3.2 Gen.2 ports
  • 2 x USB 2.0 ports
  • 1 x HDMI 2.0a port
  • 1 x DisplayPort (DP 1.2 port)
  • 1 x VGA port
  • 1 x PS2 port
  • 3 x Audio ports (Line-In, Line-Out, Mic-In )
  • 2 x COM ports (RS-232/422/485)
  • 1 x TPM 2.0 on-board
Video / Audio
  • Intel® UHD Graphics
  • HDMI 2.0a, Max resolution up to 4096 x 2160 @60Hz
  • DisplayPort 1.2, DP++ (Max resolution up to 4096 x [email protected])
  • Max resolution up to 1920 x [email protected]
  • Dual channel 24 bit up to 1920 x [email protected]
  • Triple Display
  • eDP 1.4, Max resolution up to 4096 x [email protected]
  • Audio: Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In

Network
  • Single Intel® I225LM Gigabit (10/100/1000/2500 Mbps) LAN port
  • Single Intel® I219LM Gigabit (10/100/1000 Mbps) LAN port (support AMT / vPro)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-E 3.0 x16 slot
  • 1 x PCI-E 3.0 x8 slot
  • 2 x PCI-E 3.0 x4 slots
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).

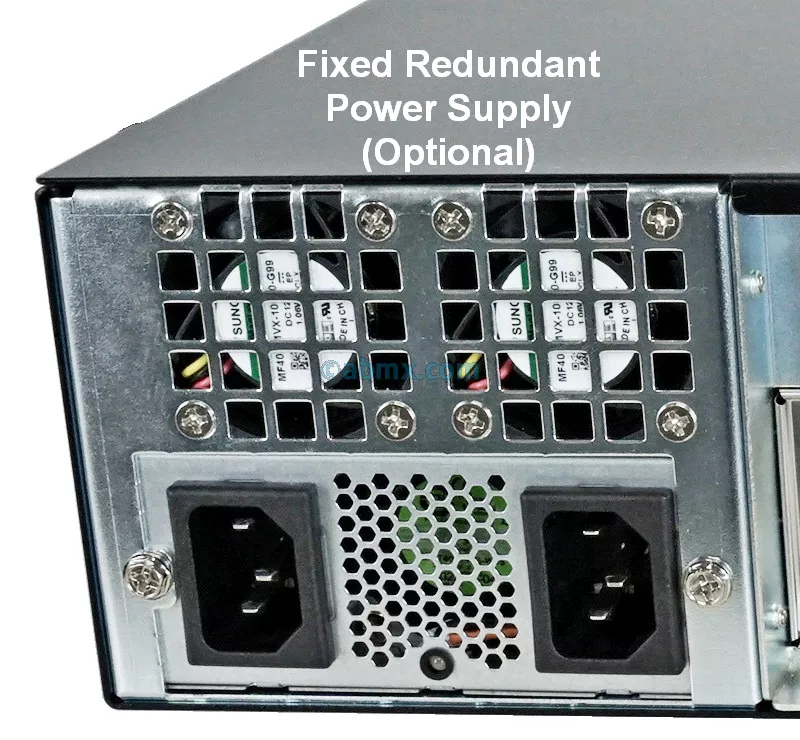

Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • 24V or 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit (OPTIONAL)
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard IMB-1313 OverallChipset
Intel Q470E		LAN
Intel i225LM		LAN
Intel i219LM		Video
Intel HD 10th Gen
CentOS 7.9
8.4
ClearOS Community Edition 7.7
7.9
Debian 11.4
Fedora Server 36
Fedora Workstation 36
FreeBSD 13.1
Linux Mint 21
Manjaro Linux 20.2
Open Media Vault 6.0.24
OpenBSD 7.1
OpenSUSE Leap 15.4
OPNsense 22.7
Oracle Linux 9.0
PFSense 2.5.2
Proxmox VE 7.0
Red Hat Enterprise Linux 9.0
Rocky Linux 9.0
Scientific Linux 7.9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
VMWare ESXi 6.7
7.0
Windows 10
Windows Server 2019
Xenserver 7.6
XigmaNAS 12.3.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
