1U AMD Ryzen Firewall


Key Features
  • Short Depth
  • Front USB
  • Redundant Power (optional)
  • 48v DC Power (optional)
  • 15-Inch deep
Samsung 990 EVO Plus
Samsung 990 PRO
Samsung 9100 PRO
SK hynix Platinum P51
WD_BLACK SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620

Tech Specs

Chassis
  • 1U Rackmount Server Chassis
  • 19" Rackmount Standard

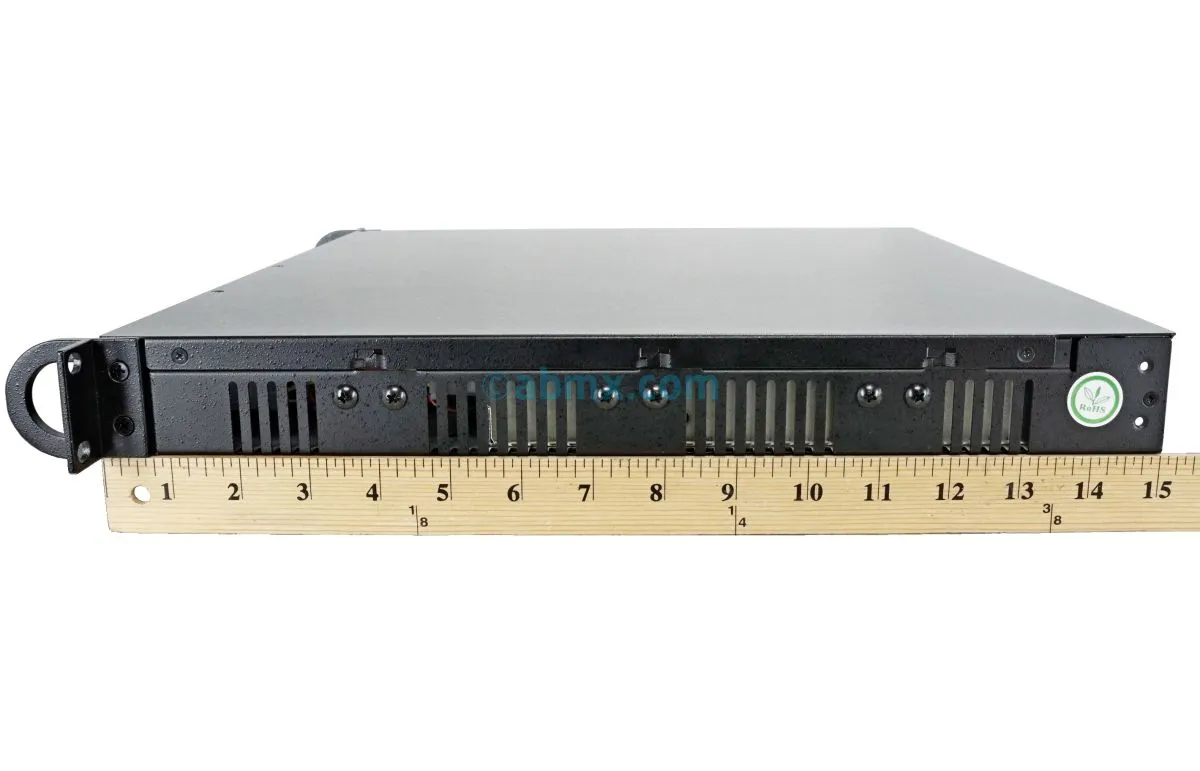

  • Dimensions: 15.2" (D) x 19" (W) x 1.7" (H)

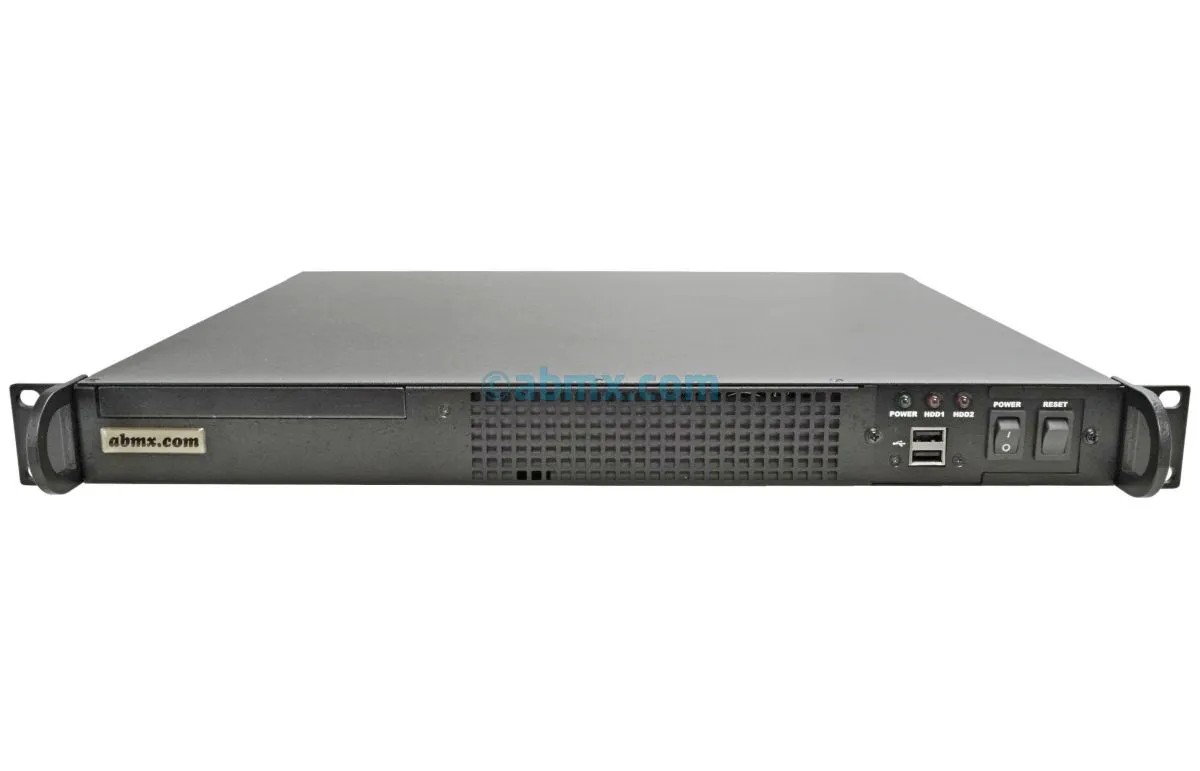

  • Front Ports: 2 x USB 2.0 Type-A
  • Cooling: 3 x 40mm fans
Processor/Chipset
  • Single AMD Socket (AM5 LGA 1718)
  • Supports AMD Ryzen™ 9000/8000/7000 Series Processors
  • AMD B650E chipset
BIOS
  • AMI UEFI BIOS
  • 256Mb (32MB) SPI Flash ROM
  • Plug and Play (PnP)
  • ACPI 6.4 Compliance Wake Up Events
  • SMBIOS 3.5 Support
Memory
  • 4 x DDR5 DIMM sockets
  • Supports up to 192GB
  • DDR5 ECC/non-ECC Un-buffered memory
  • 5600MHz
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • IPMI 2.0 support (ASPEED AST2600)
  • 2 x M.2 NVMe (2280/2242)
Drive Bays
  • 1 x 3.5-inch or 2 x 2.5-inch Internal Drive Bay(s)
  • 1 x Slim Optical Drive Bay
  • Please contact our technical support team at (714) 258-2269 or [email protected] for storage configuration options

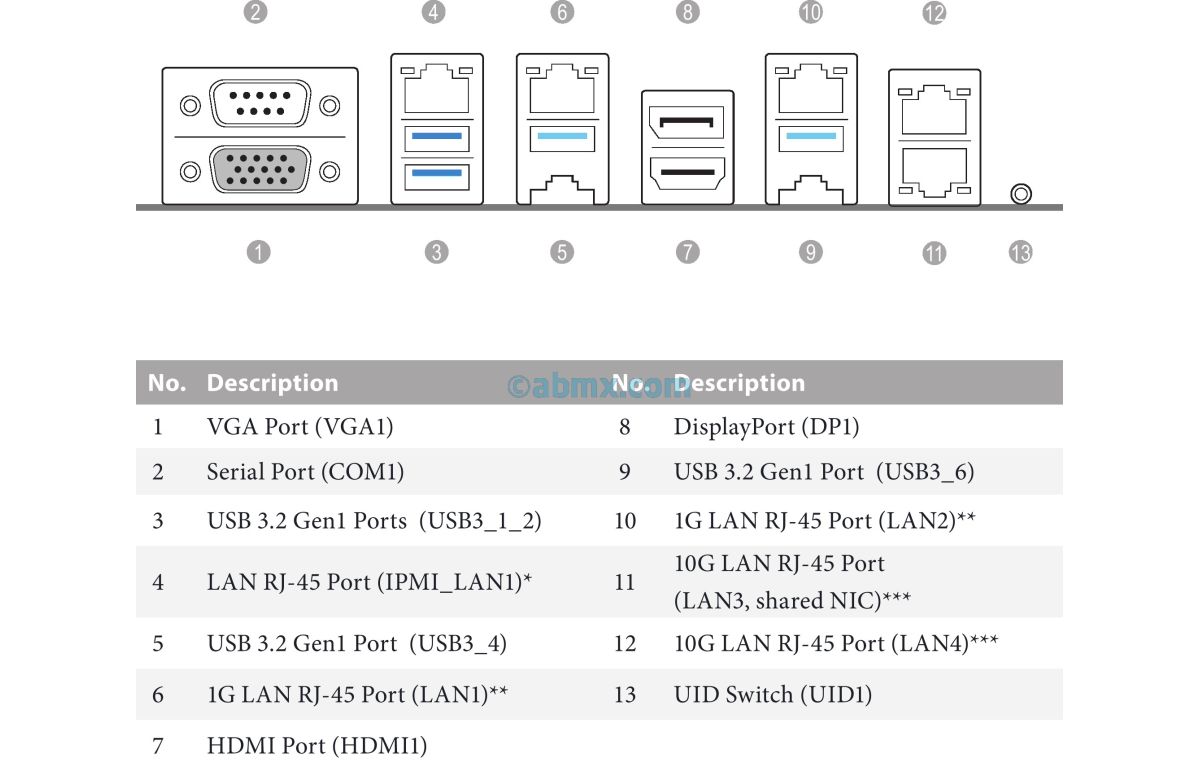

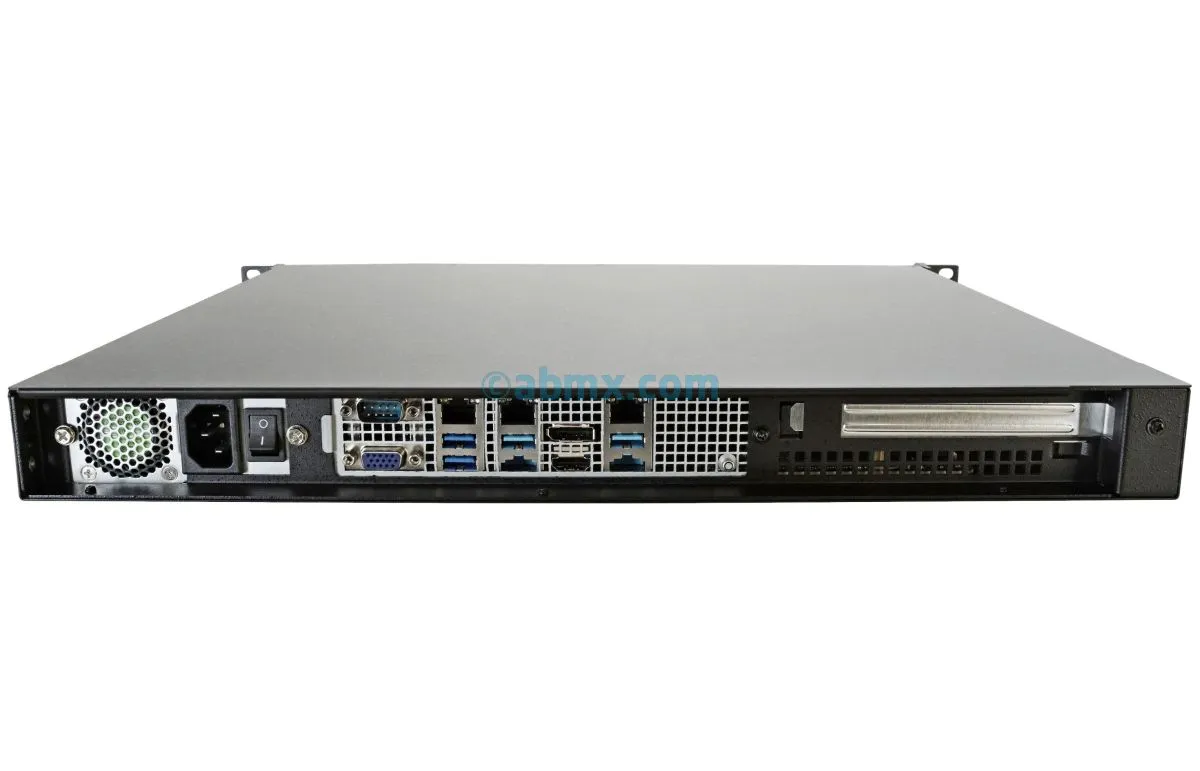

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x Dedicated LAN (IPMI)
  • 4 x USB 3.2 Gen.1 ports (Type-A)
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x DB9 (COM) port
  • 1 x TPM Header (13-pin, SPI)
Video
  • ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header
  • AMD Processors with Graphics: 1 x HDMI, 1 x DisplayPort

Network
  • Dual Intel® i210 Gigabit LAN (RJ45)
Hardware Monitor
  • Operating Temperature Range 10°C - 35°C (50°F - 95°F)
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 5.0 (x16) slot - full height (via Riser card)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • 1U HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
