Tower Server - Intel Xeon Scalable

Model: T17X1PM

The T17X1PM is the high-end Intel Xeon Scalable version of our popular mini-tower server. Sporting a single Scalable Xeon, this small form factor tower server can house up-to 22 powerful cores with a total of 44 threads. Great for appliances that need to handle a high traffic load or highly parallel tasks.

Key Features
  • Quiet / Low-Noise
  • Front USB
  • 17-Inch deep
Recommended Uses

4 - 22 Cores
Xeon Scalable

8 - 384 GB


4 x 3.5 Fixed

2 x 1GbE

3 x PCI-e

Case/Tower

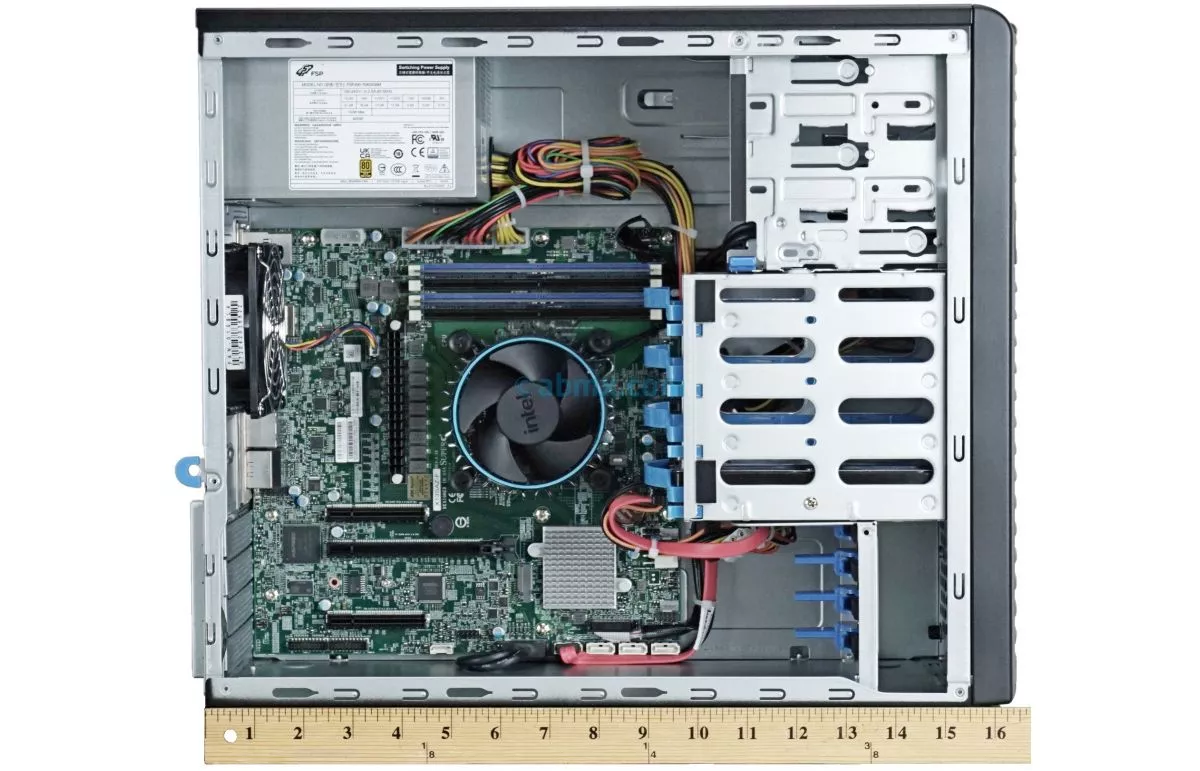

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM)

OS Compatibility

Operating System

Microsoft®
Special Order
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

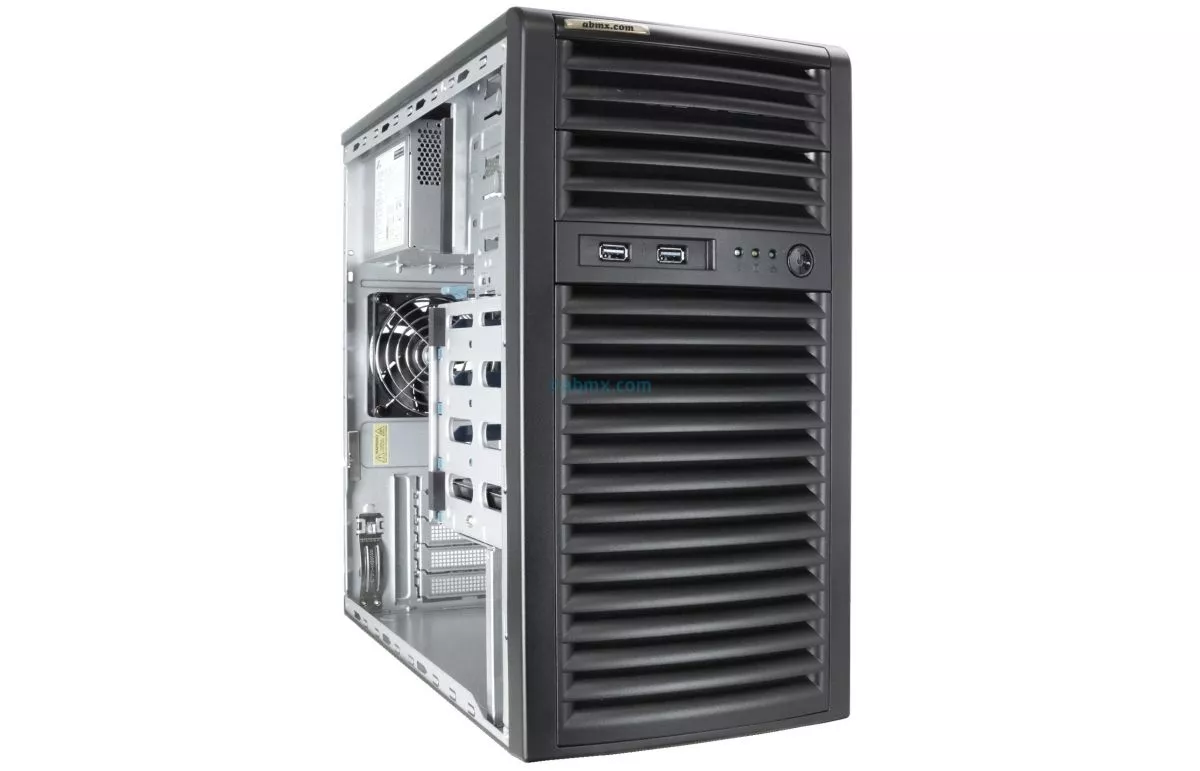

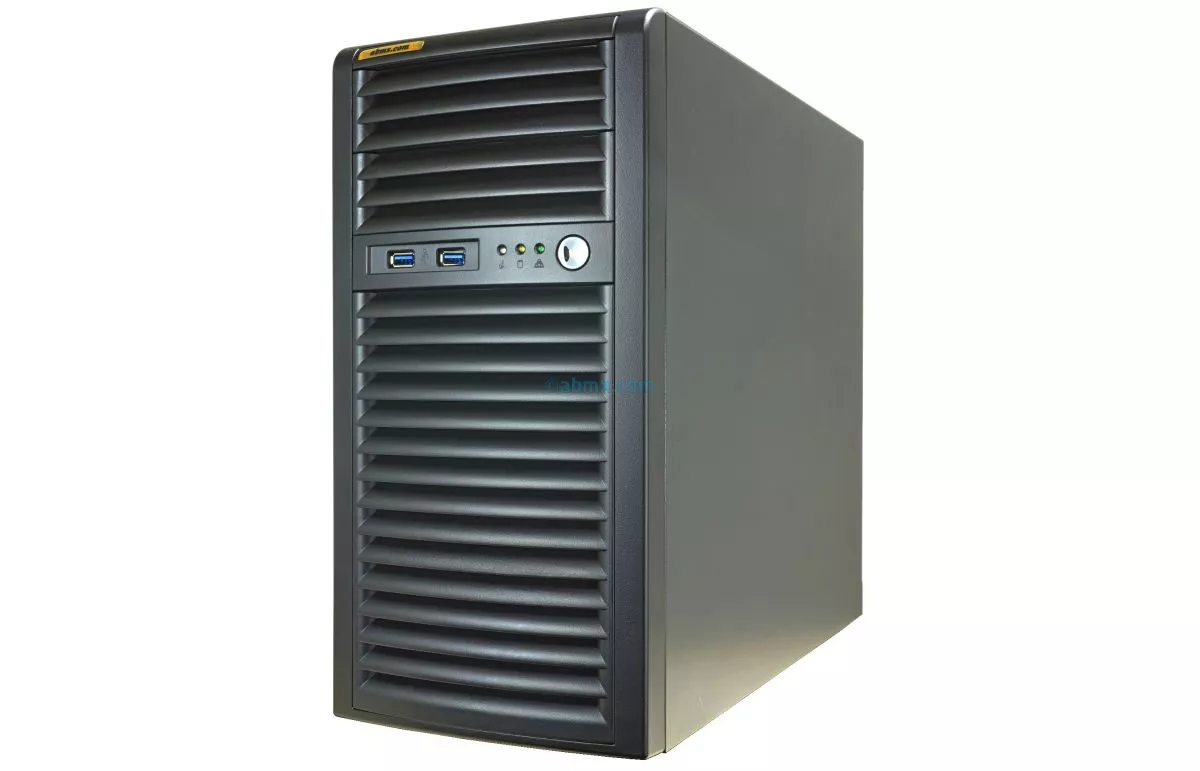

  • Mini-Tower Industrial Grade Chassis

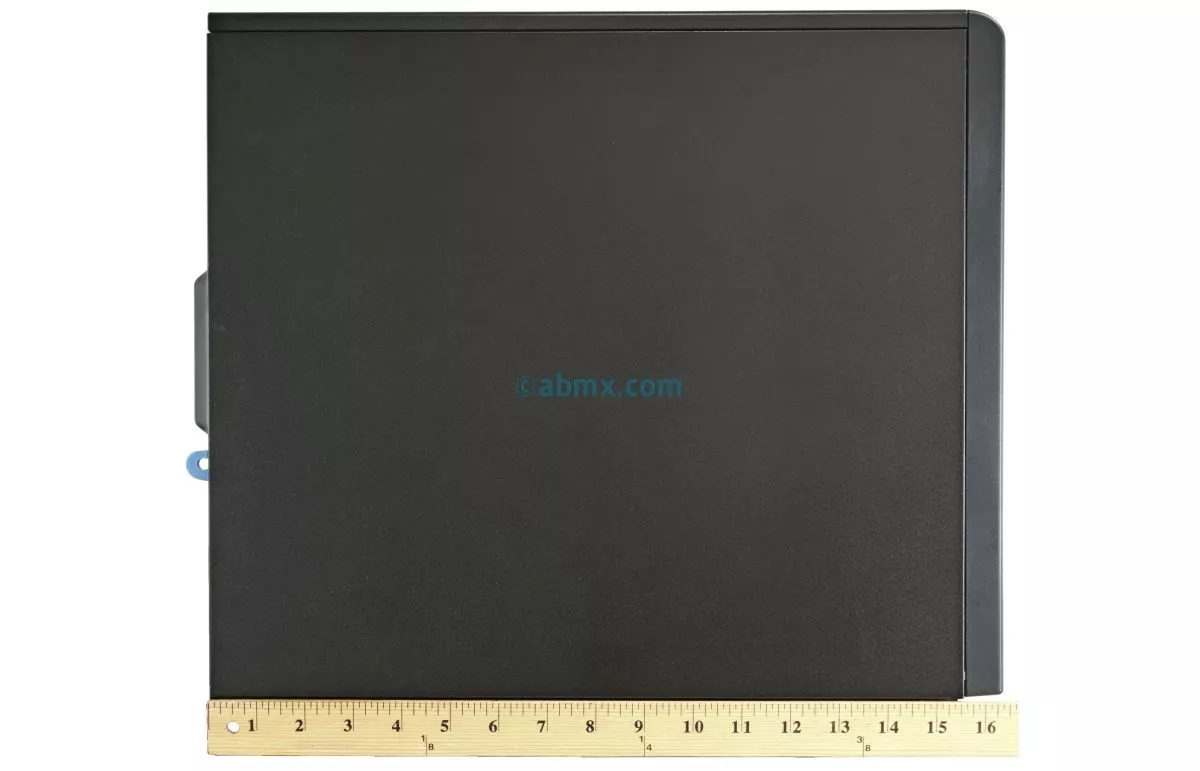

  • Dimensions: 16.75" (D) x 7.25" (W) x 14.25" (H)
  • Metal thickness: 1.2 mm

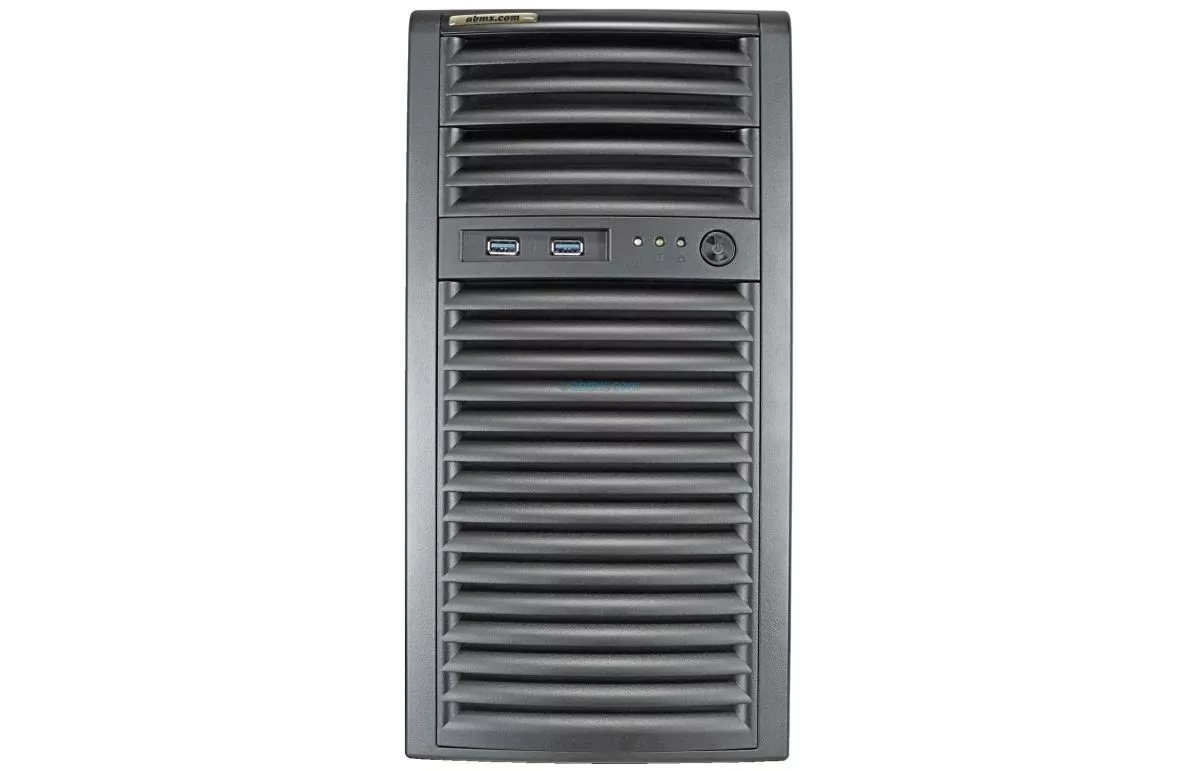

  • 2 x Front USB ports

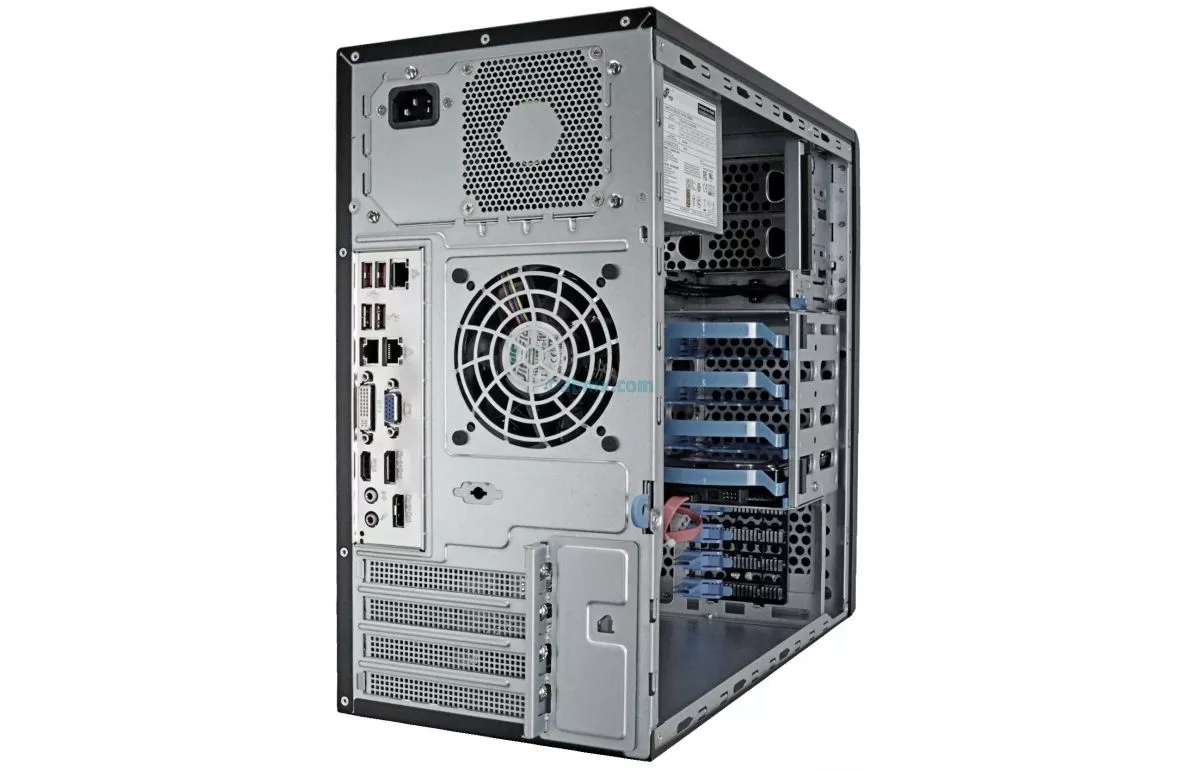

  • Rear 9cm PWM Cooling Fan
  • 90° Rotatable HDD Cage
  • Whisper-Quiet (<25dB)
  • Kensington Lock Support
Processor/Chipset
  • Single Socket P (LGA 3647)
  • Supports Single Intel® Xeon® Scalable Processors
  • Intel® C621 chipset
BIOS
  • AMI UEFI
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later
Memory
  • 6 x 288-pin DDR4 DIMM slots
  • Supports up to 1.5TB ECC RDIMM / LRDIMM
  • 3200/2933/2666 MHz ECC DDR4 RDIMM/LRDIMM
Storage / IPMI
  • 12 x SATA3 (6Gbps) ports
  • On-board Intel® C621 controller on-board
  • Chassis supports up to four drives
  • IPMI 2.0, ASPEED AST2500
  • 1 x M.2 NVMe (2242, 2280)
Drive Bays
  • HD1-4 Bay: tool-less SATA/ SSD Hard Drive Trays
  • Up to 72 Terabyte of storage can be supported
  • 2 x 5.25-inch External Drive Bays

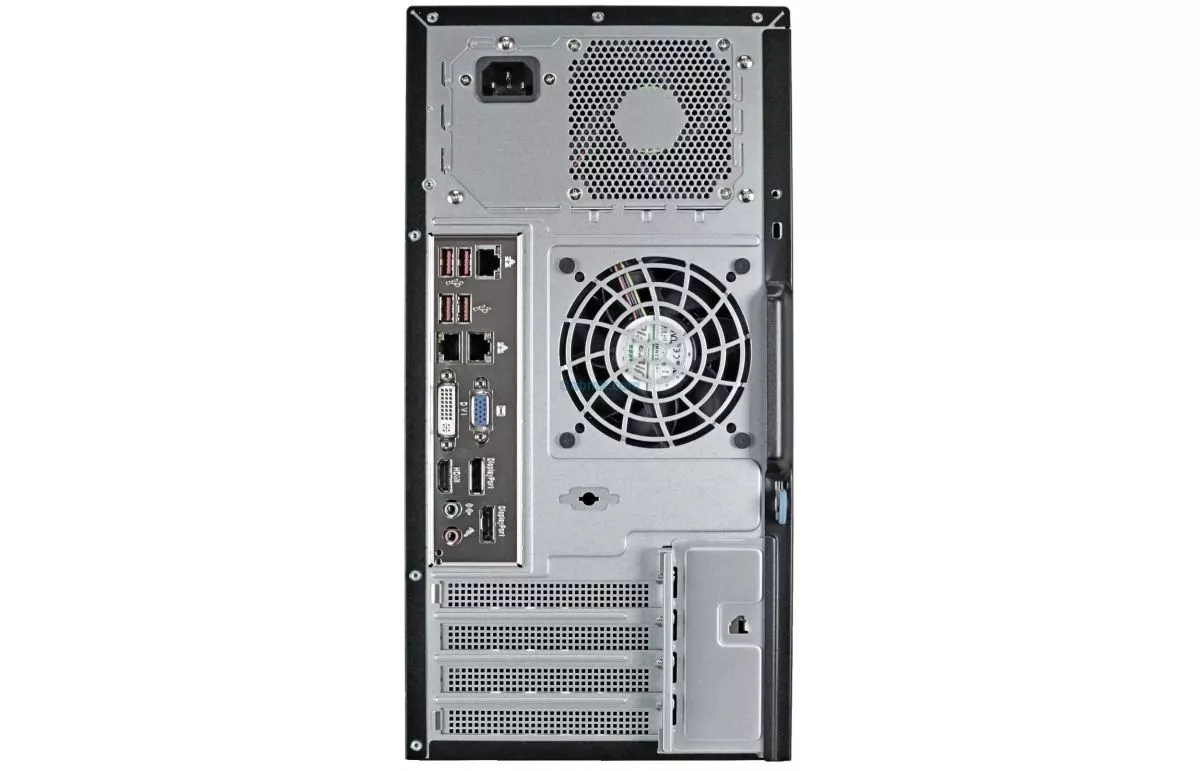

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (2 x rear + 4 x headers)
  • 5 x USB 3.0 ports (2 x rear + 2 x headers + 1 x Type A)
  • 1 x VGA port
  • 2 x COM ports (1 x rear, 1 x header)
  • 1 x TPM 1.2 20-pin Header
Video
  • Aspeed AST2500 BMC Video on-board

Network
  • Dual LAN with 1GbE with Marvell® 88E1512 Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 2 x PCI-e 3.0 (x16)
  • 1 x PCI-e 3.0 (x8)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: CE/EMC, FCC, UL/CB, UL/CUL
CD-ROM /DVD-ROM
  • Optical Drive (OPTIONAL)
Rack Support
  • Not supported
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X11SPM-F OverallChipset
Intel C621		LAN
Intel X722		Video
Aspeed AST2500
CentOS 7.6
7.9
8.4
ClearOS Community Edition 7.5
7.7
Debian 10.10
10.2
11.4
9.11
9.8
Elastix 5.0
Fedora Server 29
32
35
Fedora Workstation 29
32
33
35
FreeBSD 12
12.1
12.2
13.1
FreeNAS 11.2
FreePBX 14
15
Linux Mint 19.1
19.2
20
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 6.4
6.8
6.9
OpenIndiana Hipster 2018.10
OpenSUSE Leap 15.4
OPNsense 19.1
Oracle Linux 7.6
PFSense 2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 8.1
9.0
Rocky Linux 8.4
Scientific Linux 7.6
SUSE Enterprise Server 12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
Ubuntu Server 16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
VMWare ESXi 6.7
7.0
VyOS 1.2
Windows 10
7
Windows 32-bit 10
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
