4U Rackmount Server - AMD Ryzen

The 420AZ65U is a 4U Rackmount Server featuring the latest AMD Ryzen 9000 / EPYC 4005 processors, and up to 192GB of RAM. Equipped with enough space for GPUs, or other full-height PCIe expansion cards, this versatile system is perfect as a rackmount workstation, application or appliance server.

Processor: AMD Ryzen 9000/8000/7000 | EPYC 4005/4004
Memory: Up to 192GB DDR5 Non-ECC | ECC-Unbuffered
Networking: Dedicated BMC port | 2 x GbE RJ45
Upgrade Option: 2 x GbE + 2 x 10GbE RJ45 ** Only 1 x M.2 Slot with 10G
Expansion: 1 x PCIe 5.0 x16 | 1 x PCIe 5.0 x4 | 1 x PCIe 4.0 x1
Storage: 2 x M.2 NVMe | 4 x 3.5" HDD or 2.5" SSD
Rear I/O: 1 x VGA | 1 x HDMI | 1 x DP | 1 x COM Port | 4 x USB Type A | UID

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 5.25" Drive Bay
  • 20-Inch deep
Related Tags
Samsung 990 EVO Plus
Samsung 990 PRO
Samsung 9100 PRO
SK hynix Platinum P51
WD_BLACK SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
SATA HDD
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Microsoft®

Tech Specs

Chassis

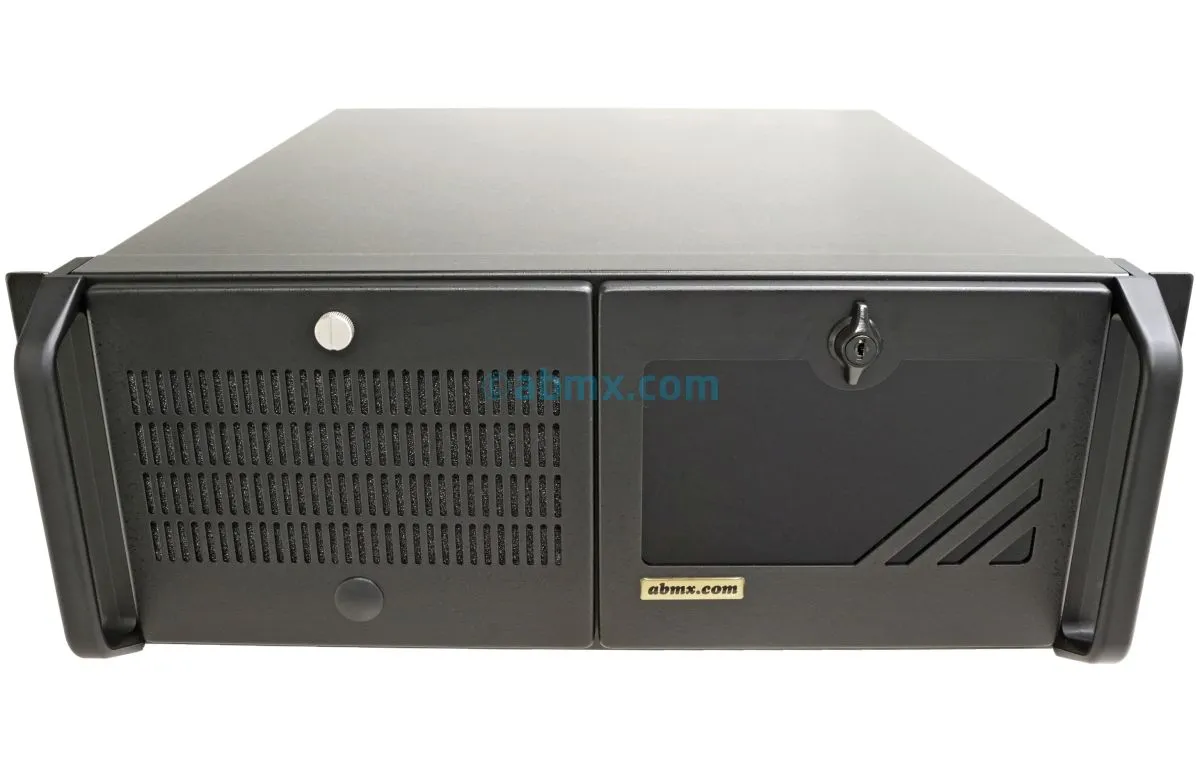

  • 4U 20-inch deep Short Rack Mountable Enclosure
  • Rack Unit Height: 7.0-inch

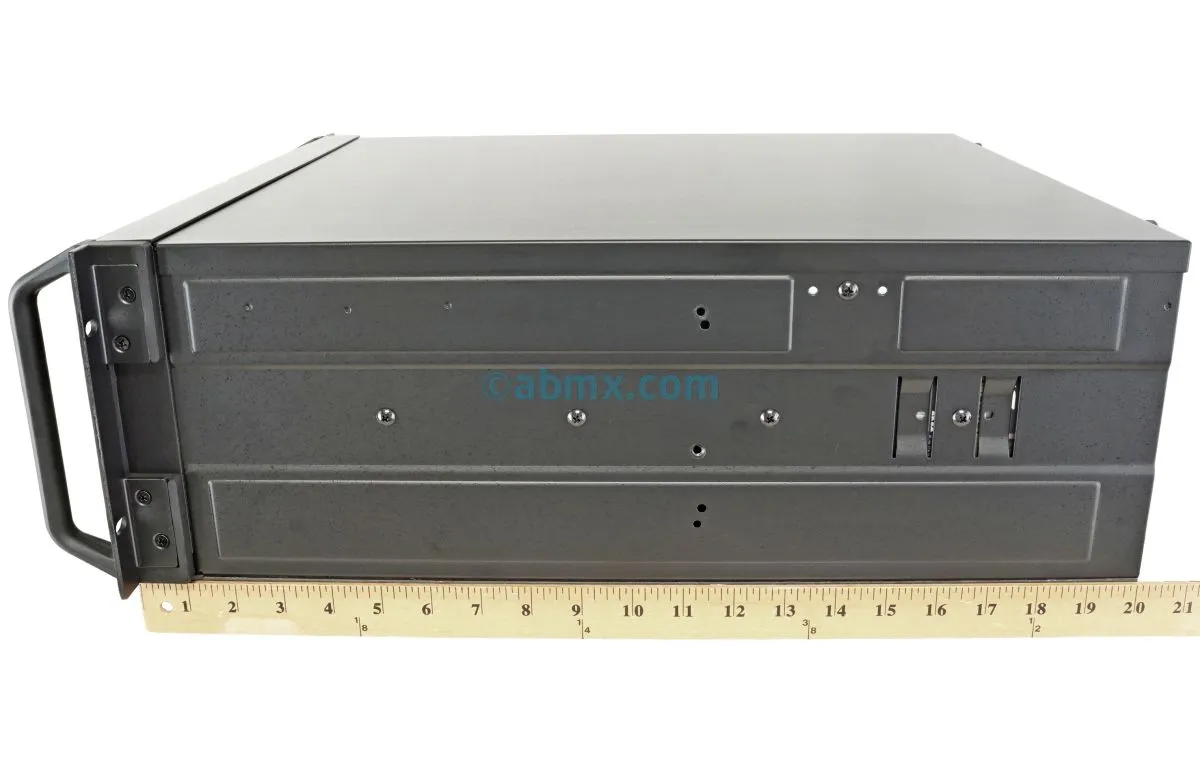

  • Dimensions: 20.1" (D) x 19" (W) x 7.0" (H)
  • Metal thickness: 1.2 mm
  • Front USB: 2 x Ports
  • Single Door with 1 x Thumbscrew
Processor/Chipset
  • Single AMD Socket (AM5 LGA 1718)
  • Supports AMD Ryzen™ 9000/8000/7000 Series Processors
  • AMD B650E chipset
BIOS
  • AMI UEFI BIOS
  • 256Mb (32MB) SPI Flash ROM
  • Plug and Play (PnP)
  • ACPI 6.4 Compliance Wake Up Events
  • SMBIOS 3.5 Support
Memory
  • 4 x DDR5 DIMM sockets
  • Supports up to 192GB
  • DDR5 ECC/non-ECC Un-buffered memory
  • 5600MHz
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • IPMI 2.0 support (ASPEED AST2600)
  • ***2 x M.2 NVMe (2280/2242)
  • *** Only 1 x M.2 NVMe is available with upgrade to B650D4U-2L2T/BCM
Drive Bays
  • HD1-5 Bay: fixed SATA/ SSD Hard Drive
  • OPTIONAL: HD6 Bay: fixed SATA/SSD Hard Drive
  • 2 x 5.25" Peripheral Drive Bay
  • Please contact our technical support team at (714) 258-2269 or [email protected] for storage configuration options

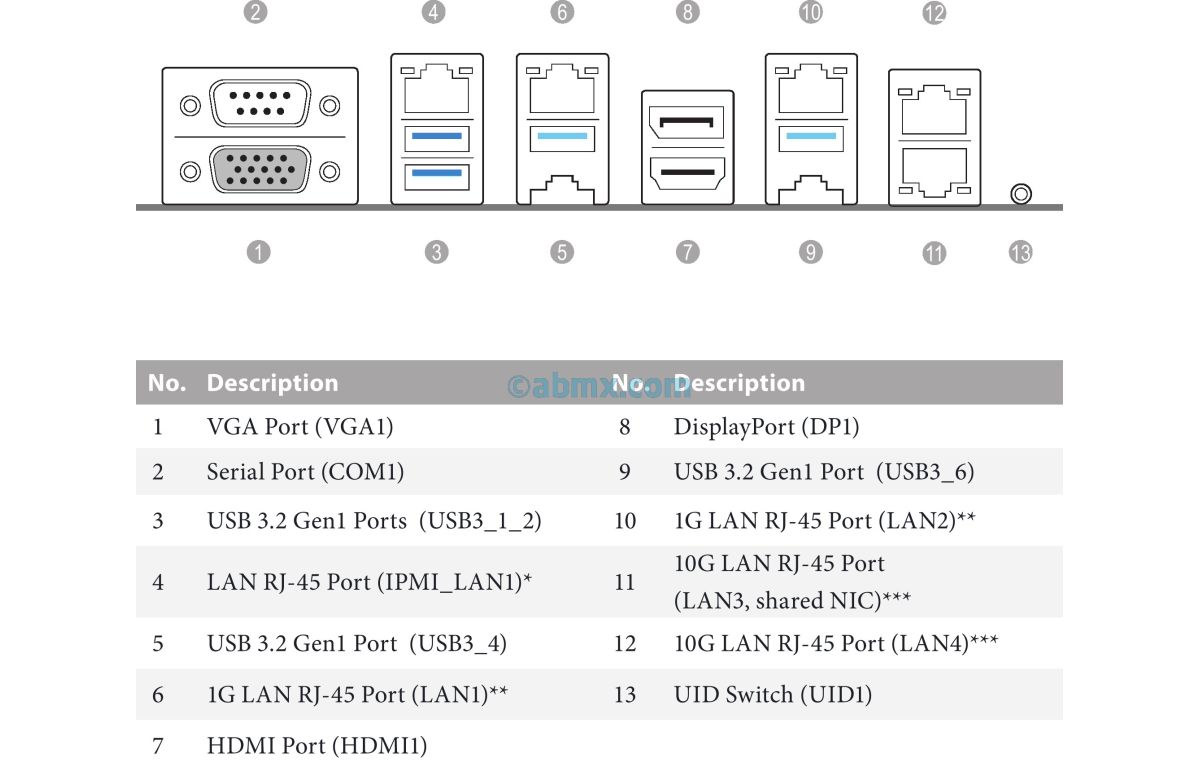

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x Dedicated LAN (IPMI)
  • 4 x USB 3.2 Gen.1 ports (Type-A)
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x DB9 (COM) port
  • 1 x TPM Header (13-pin, SPI)
Video
  • ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header
  • AMD Processors with Graphics: 1 x HDMI, 1 x DisplayPort

Network
  • Dual Intel® i210 Gigabit LAN (RJ45)
Hardware Monitor
  • Operating Temperature Range 10°C - 35°C (50°F - 95°F)
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 5.0 (x16) slot
  • 1 x PCI-E 5.0 (x4) slot
  • 1 x PCI-E 4.0 (x1) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit (OPTIONAL)
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
