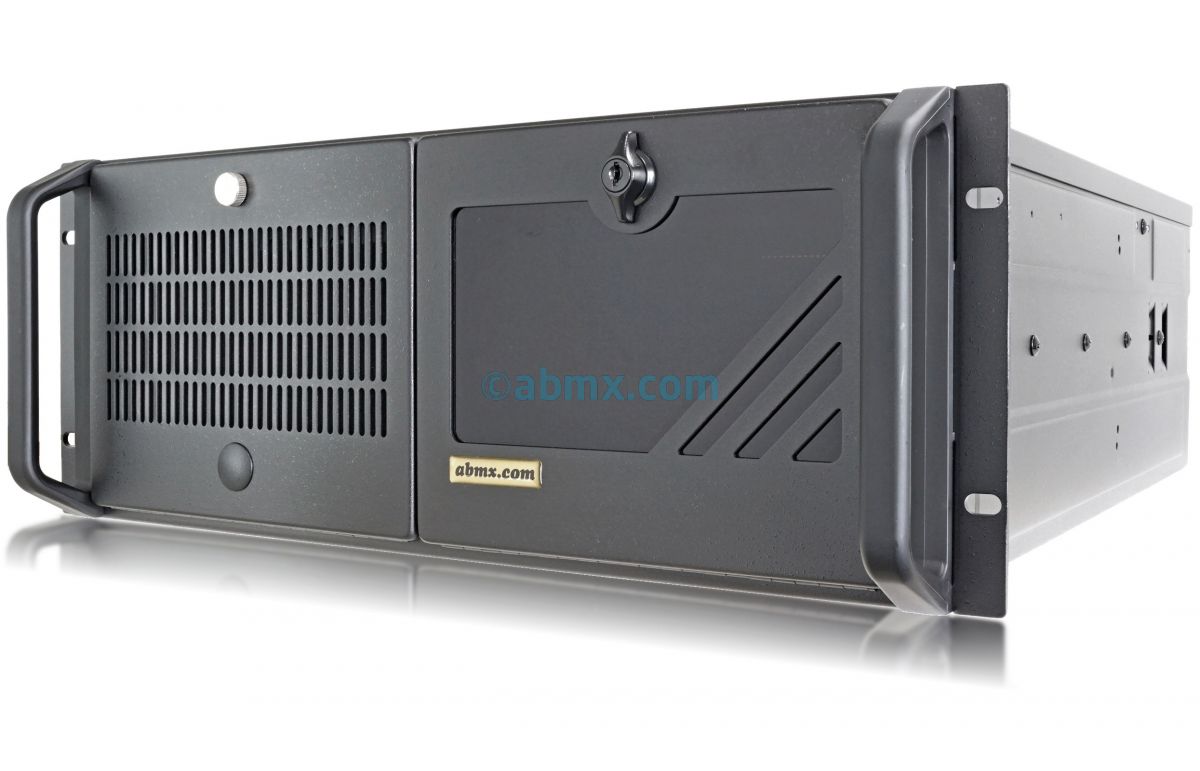

4U Short-Depth Server - Intel Xeon W

Key Features
  • Short Depth
  • Front USB
  • Redundant Power (optional)
  • Video (HD Output)
  • 5.25" Drive Bay
  • 20-Inch deep
Special Order
Special Order
Samsung 970 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
Western Digital® Enterprise-class
NVIDIA Ampere
AMD Radeon™ PRO W6400
NVIDIA Turing
NVIDIA Ampere
Microsoft®

Tech Specs

Chassis

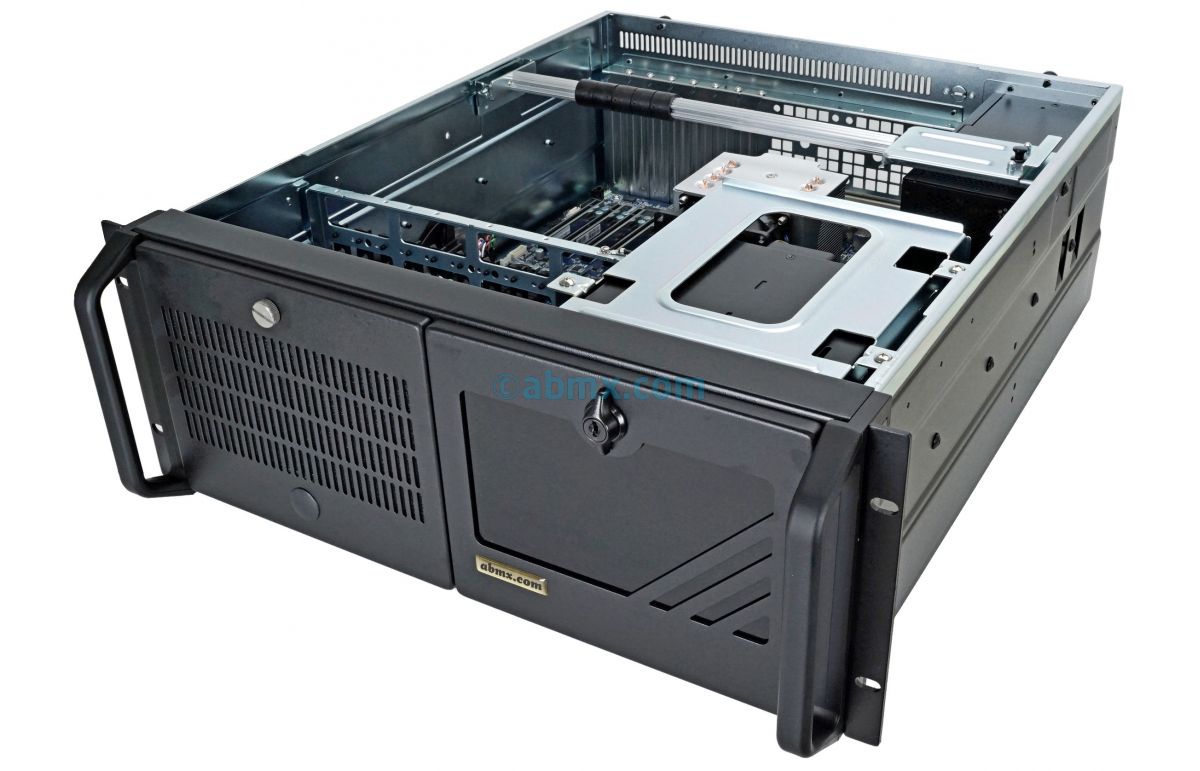

  • 4U Rackmount Server Chassis
  • EIA RS-310C Rackmount Standard

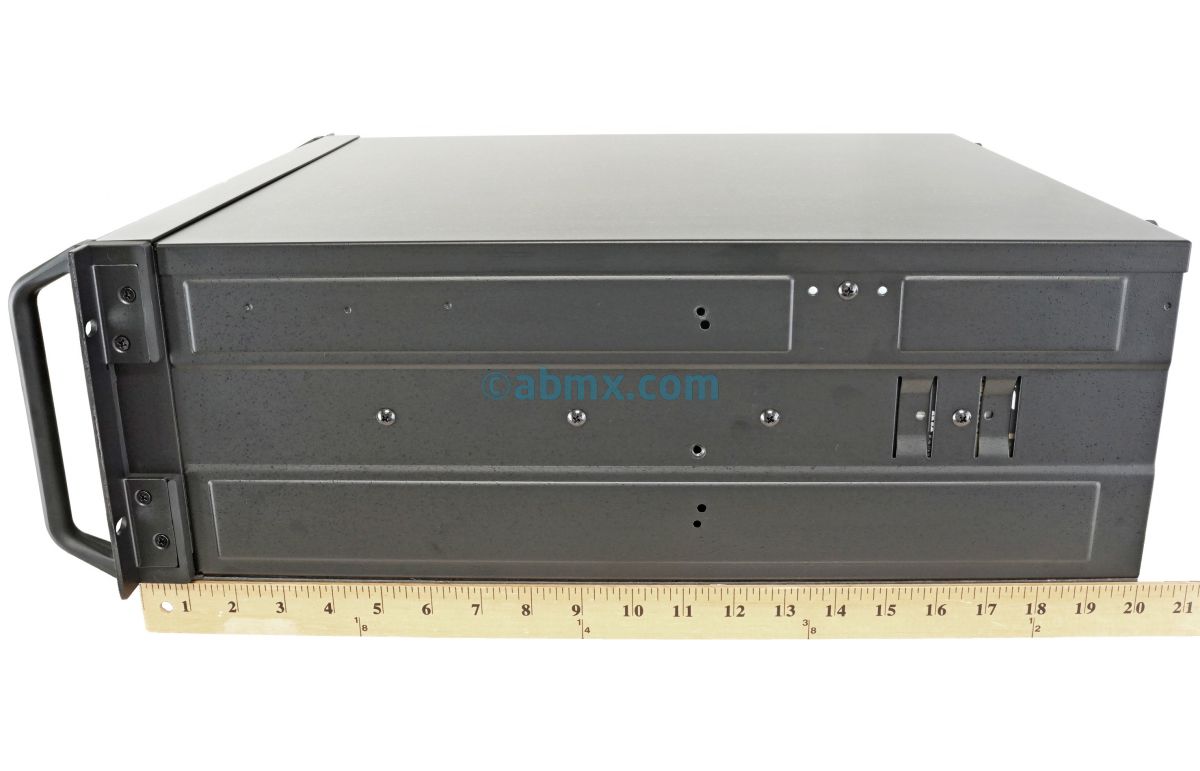

  • Chassis Dimensions : 20.1" (D) x 19" (W) x 7" (H)
  • Metal Thickness: 1.2 mm
  • Front Port: 2 x USB 3.0 / 3.1 Gen1 / 3.2 Gen1

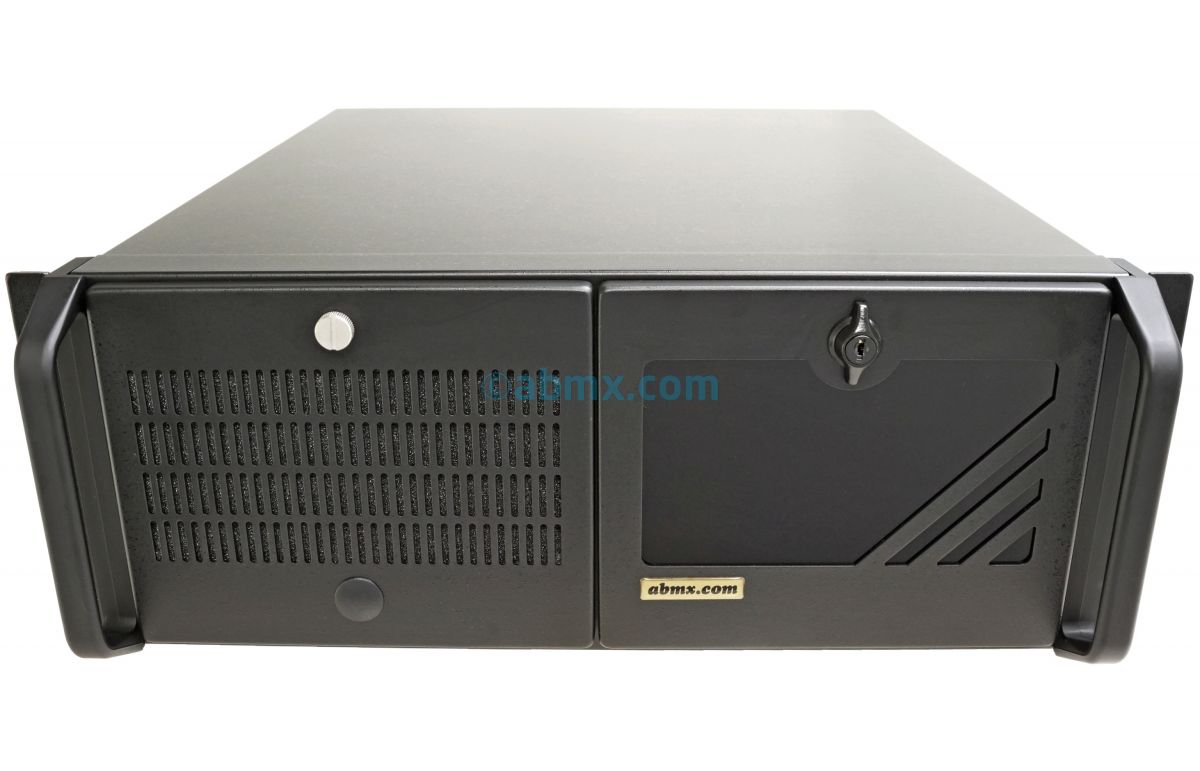

  • Front Panel: Two doors with Keylock and Thumbscrew
  • Cooling Front: 2 x 90mm intake fans
  • Cooling Rear: 2 x 60mm exhaust fans (optional, upon request)

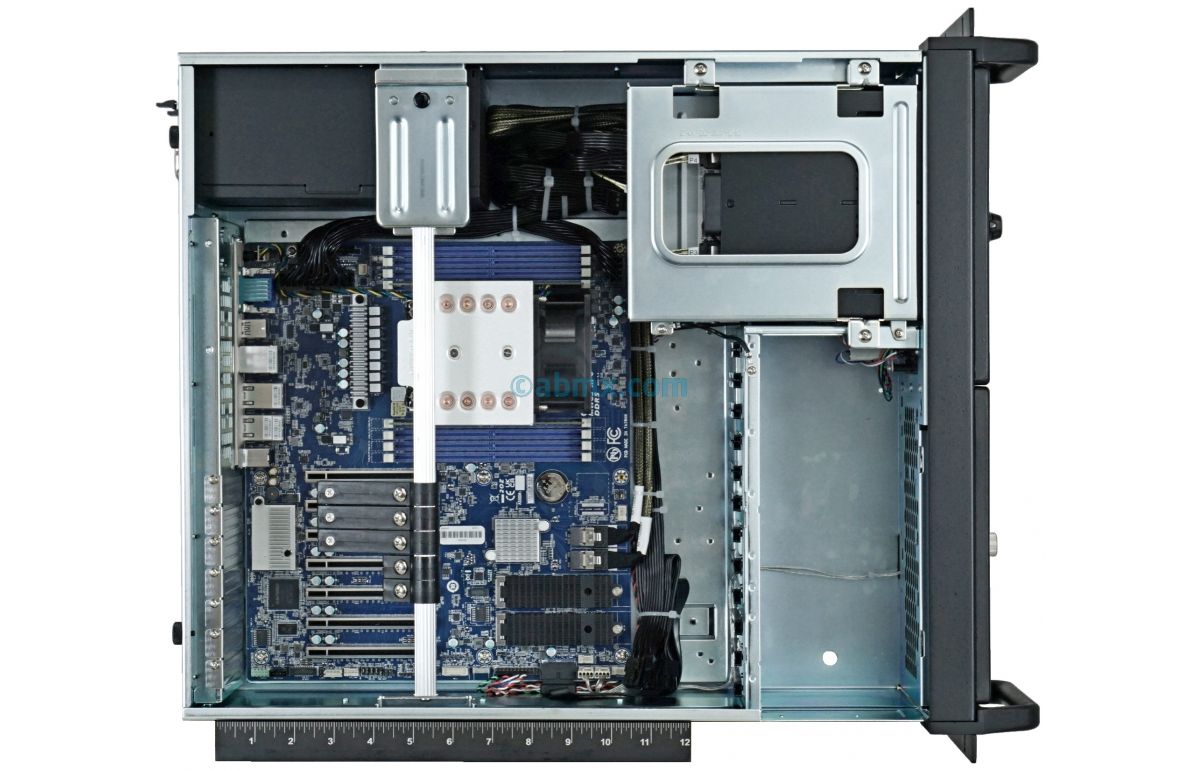

Processor/Chipset
  • Intel® Xeon® W-3500 Processors
  • Intel® Xeon® W-3400 Processors
  • Single processor, TDP up to 385W
  • Single Socket LGA 4677 (Socket E)
  • Intel® W790 Chipset
Memory
  • 8 x DIMM slots
  • DDR5 ECC Registered memory support
  • Up to 2TB total memory support
  • RDIMM up to 64GB supported
  • 3DS RDIMM up to 256GB supported
  • Memory Speed: Up to 4800 MT/s
Storage
  • 2 x SlimSAS connectors for 8 x SATA 6Gb/s
  • 2 x NVMe M.2 2280 PCIe Gen4 x4 slots
Drive Bays
  • 5 x 3.5-inch Internal Drive Bays
  • 1 x 3.5-inch External Drive Bay
  • 2 x 5.25-inch External Drive Bays
  • Mobile Rack(s) are available upon request for installation in the 5.25-inch External Drive Bay(s) for additional storage configuration(s)
  • Please contact our technical support team at (714) 258-2269 or [email protected] for storage configuration options

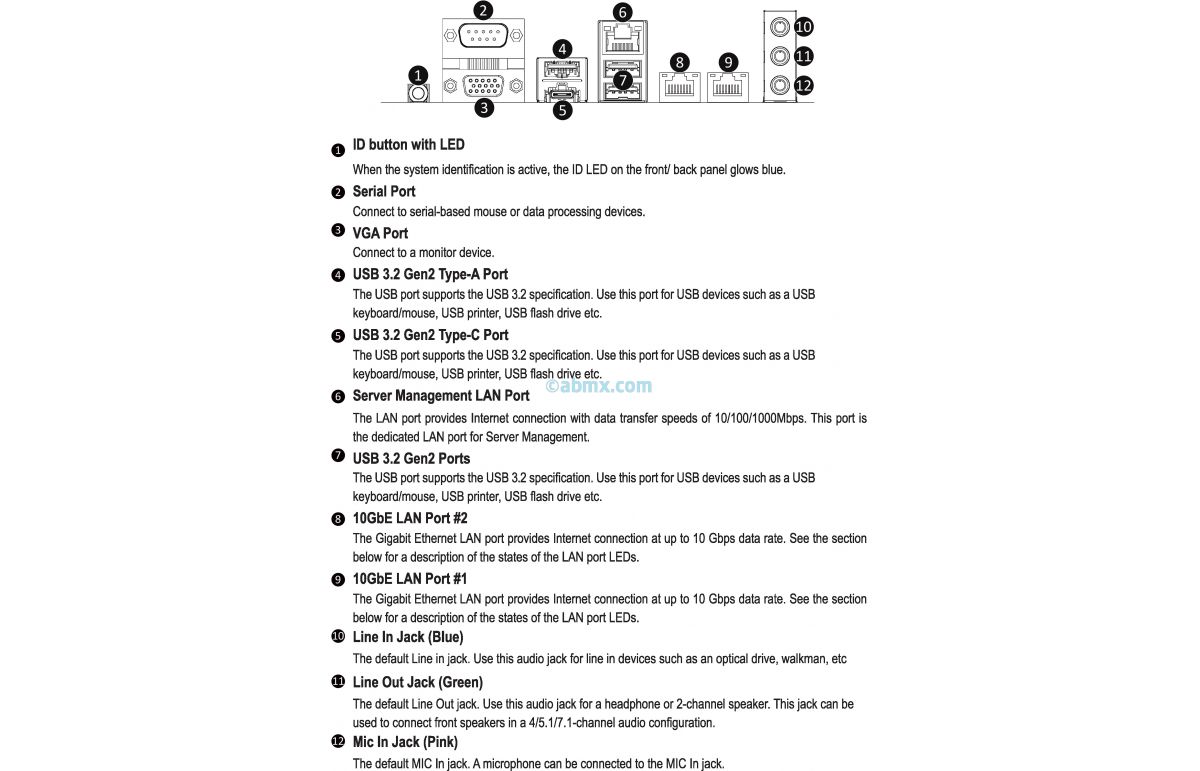

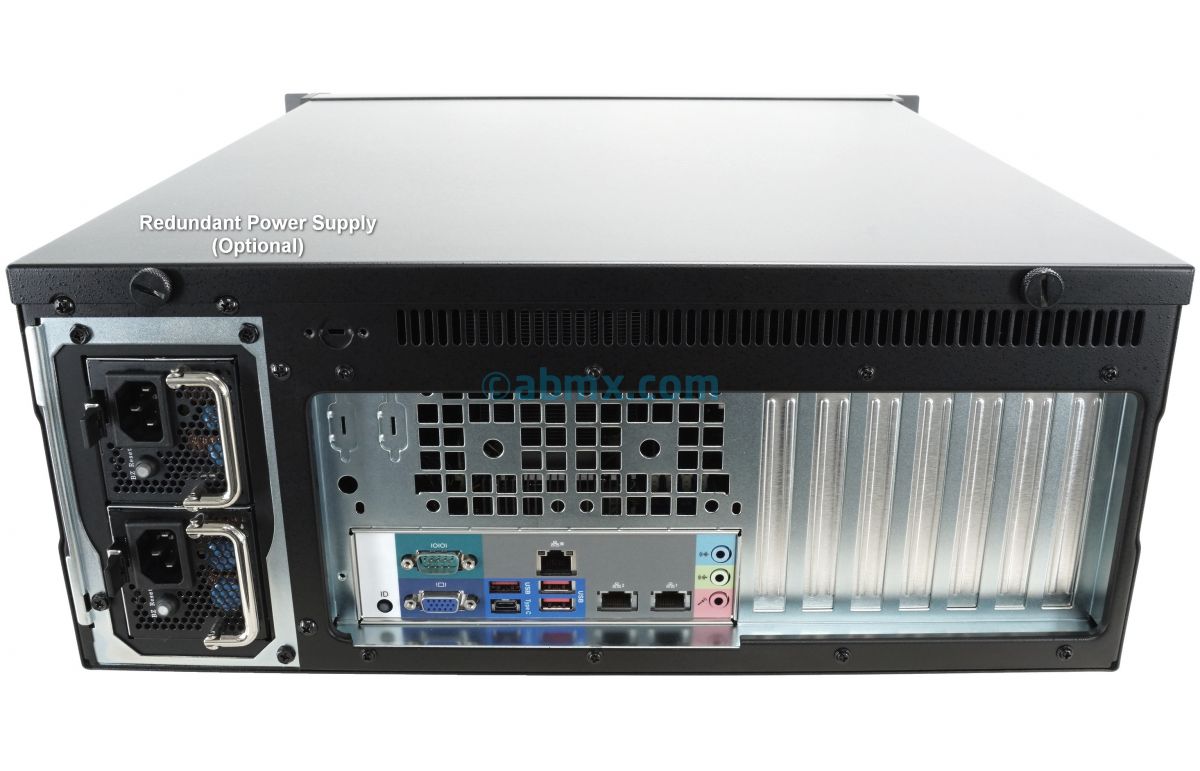

Rear I/O

  • 2 x RJ45 10G Ethernet LAN ports
  • 1 x RJ45 Management LAN port
  • 1 x USB 3.2 Gen2x2 ports (Type-C)
  • 3 x USB 3.2 Gen2 ports (Type-A)
  • 1 x VGA port
  • 1 x COM port
  • 3 x Audio Jacks
  • 1 x ID button with LED


Security Module

  • 1 x TPM header with SPI Interface
  • 1 x TCG TPM 2.0 kit - Infineon® SLB9670VQ2


Audio / Video

  • Integrated in ASPEED® AST2600 (1 x VGA port)
  • Realtek® ALC897 HD Audio Codec
  • Support for 2 / 4 / 5.1 / 7.1 channel configurations
  • 3 x Audio Jacks (audio in / audio out / mic)


Network
  • 2 x 10G RJ45 LAN ports (Intel® X710-AT2)
  • Support for NCSI function via Intel® X710-AT2
  • 1 x 10 / 100 / 1000 RJ45 Management LAN port
Board Management
  • ASPEED® AST2600 Baseboard Management Controller
  • GIGABYTE® Management Console web interface
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU status...etc.)
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
PCIe Expansion Slots
  • 5 x PCIe Gen5 x16 slots
  • 2 x PCIe Gen4 x16 slots
Power Supply
  • High Efficiency Power Supply

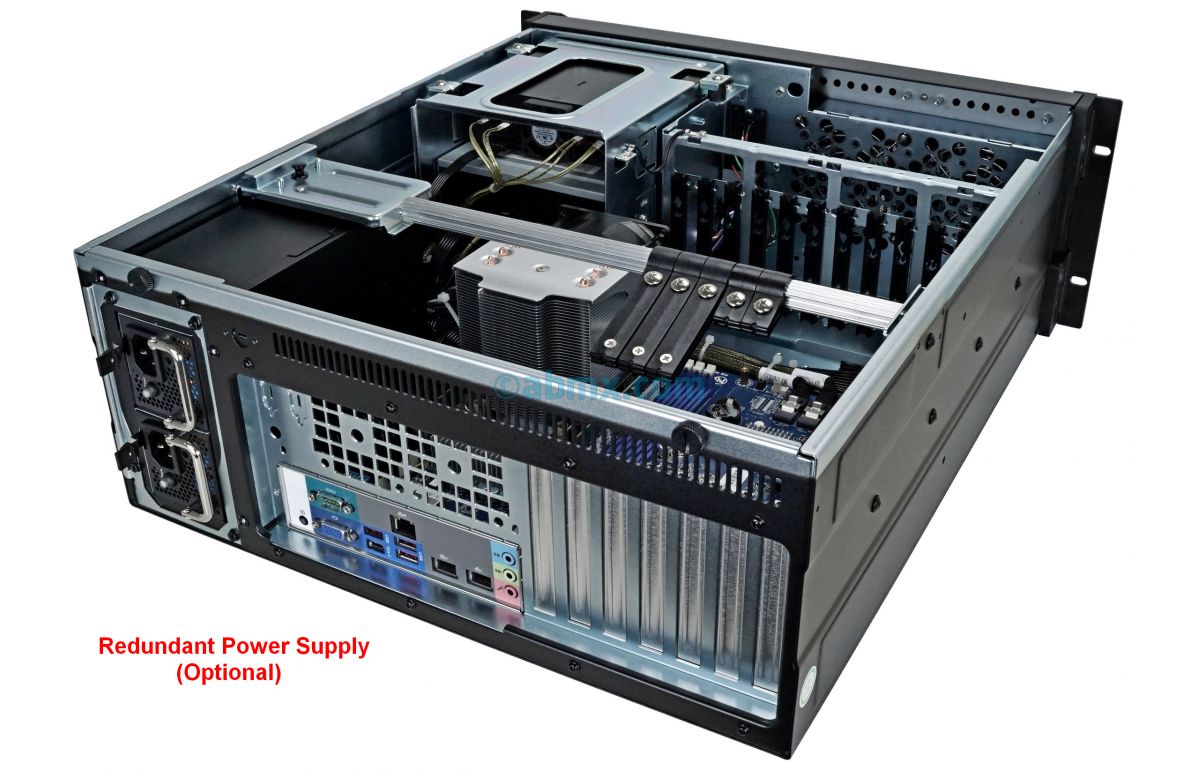

  • Optional: Redundant High Efficiency Power Supply
  • Form Factor: ATX / EPS
  • Input Voltage: 100 - 240VAC
  • Protection: OCP, OVP, SCP, OPP, OTP, UVP
Rack Support
  • EIA RS-310C Rackmount Standard
  • Rackmount Rail Kit is available in the system configurator (optional)
OS Compatibility
  • Please contact our technical support team at (714) 258-2269 or [email protected] for questions about OS compatibility
Warranty
  • 1 year Parts* and Labor Standard
    * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
  • Please visit https://www.abmx.com/terms-and-warranties
    to see our complete terms and warranty information
