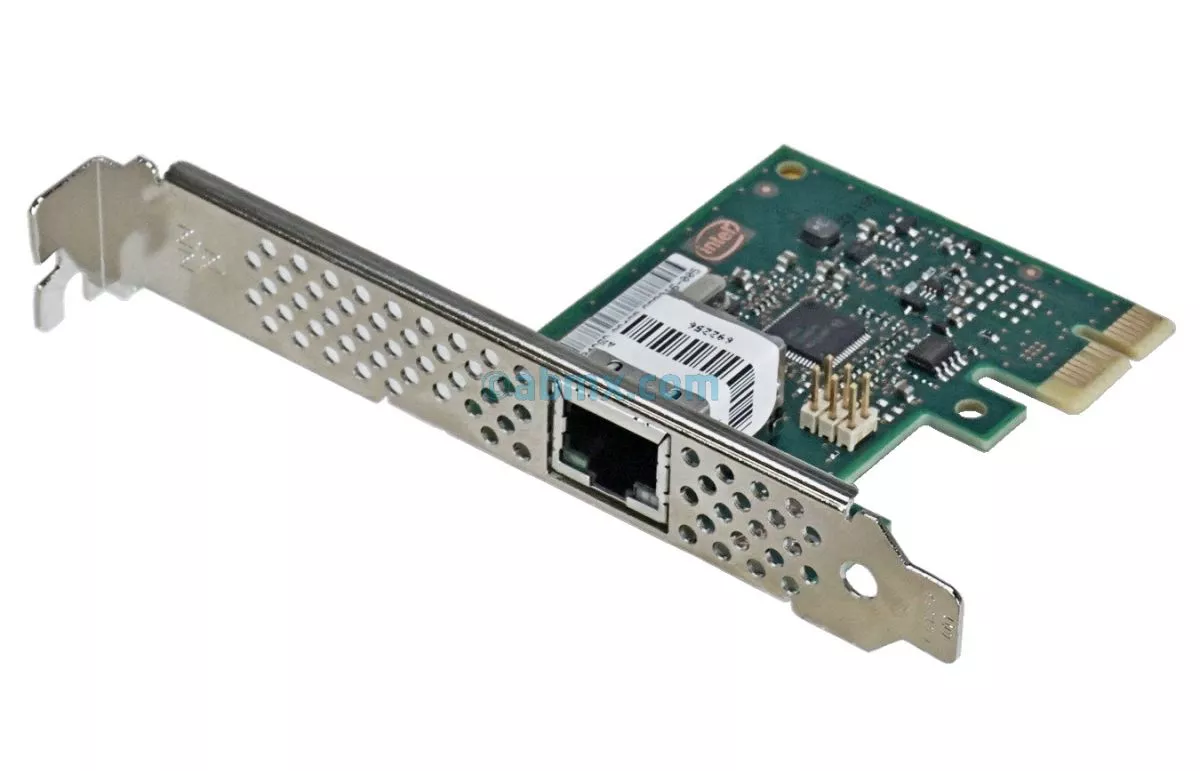

Intel SINGLE Server Port 10/100/1000 Mbps PCI-e Network Adapter

Model: 41157

Key Features
  • Intel I210T1
  • Speed: 10/100/1000 Mbps
  • Connector: 1 x RJ-45

-

  • Intel I210T1
  • Speed: 10/100/1000 Mbps
  • Connector: 1 x RJ-45
  • Intel Model: I210T1
  • Speed: 10/100/1000Mbps
  • Interface: PCI-Express
  • Intel Ethernet Controller I210 w/ PCI Express v2.1 Support
  • Low Halogen
  • Low profile single-port copper adapter
  • Ventilated bracket
    Ethernet Features:
  • Audio-Video Bridging (AVB) Support (802.1 Qav)
  • IEEE 802.3 auto-negotiaton
  • 1 Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
  • Integrated PHY for 10/ 100/ 1000 Mb/s for multi-speed, full, and half-duplex
  • IEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
  • Automatic cross-over detection function (MDI/MDI-X)
  • IEEE 1588 protocol and 802.1AS implementation
    Power Management and Efficiency:
  • IEEE 802.3az - Energy Efficient Ethernet (EEE)
  • DMA Coalescing
  • Smart Power Wown (SPD) at S0 no link/Sx no link
  • Active State Power Management (ASPM)
  • LAN disable function
  • Full wake up support
  • Advanced Power Management (APM) Support (formerly Wake on LAN)
  • Advanced Configuration and Power Interface (ACPI) specification v2.0c
  • Magic Packet wake-up enable with unique MAC address
  • ACPI register set and power sown functionality supporting D0 and D3 states
  • MAC Power Management controls
  • Low Power Link Up - Link Speed Control
  • Power Management Protocol Offload (Proxying)
    Stateless Offloads/Performance Features:
  • TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors
  • IPv6 support for IP/TCP and IP/UDP receive checksum offload
  • Transmit Segmentation Offloading (TSO) (IPv4, IPv6)
  • Interrupt throttling control
  • Legacy and Message Signal Interrupt (MSI)
  • Message Signal Interrupt Extension (MSI-X)
  • Intelligent interrupt generation
  • Receive Side Scaling (RSS) for Windows
  • Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP)
  • Support for packets up to 9.5K Bytes (Jumbo Frames)
  • Low Latency Interrupts
  • Header/packet data split in receive
  • PCIe v2.1 TLP Processing Hint Requester
  • Descriptor ring management hardware for Transmit and Receive
    Remote Boot Option Features:
  • Preboot eXecution Environment (PXE) flash interface support
  • Intel iSCSI Remote Booo for Windows, Linux, and VMware
  • Intel Boot Agent software-- Linux boot via PXE or BOOTP Windows Deployment Services, or UEFI
  • Descriptor ring management hardware for transmit and receive
    Manageability Features:
  • DMTF Network Controller Sideband Interface (NC-SI) Pass-through
  • Intel System Management Bus (SMBus) Pass-through
  • Management Component Transport Protocol (MCTP) over SMBus and PCIe
  • OS2BMC Traffic support
  • Private OS2BMC Traffic Flow
  • Firmware Based Thermal Management
  • IEEE 802.3 MII Management Interface
  • MAC/PHY Control and Status
  • Watchdog timer
  • Extended error reporting
  • Controller Memory Protection
  • Vital Product Data (VPD) Support
  • Standards: IEEE 802.3/10BASE-T, 100BASE-T, 1000BASE-T
  • Controller Processor: Intel Ethernet Controller I210
  • Connectors: 1x RJ45 (Copper)
  • Data Rate: 10/100/1000 Mbps Per Port
  • Cabling:
  • Category-3 or higher for 10BASE-T operation
  • Category-5 or higher for 100BASE-TX operation
  • Category-5e or higher for 1000BASE-T operation
  • Bus Type: PCI-Express 2.1 (2.5 GT/s)
  • Bus Width: PCI-Express x1; operable in x1 or greater slots
  • Interrupt Levels: INTA, INTB, INTC, INTD, MSI, MSI-X
  • Power Consumption: 0.81W Typical
  • Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
  • Dimensions (WxLxH):
  • Full-height End Bracket: 0.709 x 2.640 x 4.755 inch / 1.80 x 6.70 x 12.07 cm
  • Low-profile End Bracket: 0.709 x 2.640 x 3.150 inch / 1.8 x 6.7 x 8.0 cm
Motherboard
AsteriskNOW 10.13
CentOS 6.0
7.0
7.6
7.9
8.4
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
7.9
Debian 10.10
10.2
10.7
11.4
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 26
27
29
32
35
36
Fedora Workstation 26
27
29
32
33
35
36
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
13.1
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
21
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
6.0.24
OpenBSD 5.0
6.0
6.4
6.8
6.9
7.1
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15.4
OpenSUSE Tumbleweed
OPNsense 19.1
22.7
Oracle Linux 7
7.6
9.0
PFSense 2.3
2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 5.0
8.1
9.0
Rocky Linux 8.4
9.0
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
7.9
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
13
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
7.0
VyOS 1.2
Windows 10
7
Windows 11 Original Release
Windows 32-bit 10
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS 12.3.0.4
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
