Tower Server - Dual Xeon Scalable

Model: T26BCD1H

6 - 24 Cores
Xeon Scalable

16 - 2048 GB

8 x 3.5 Hot-Swap

2 x 1GbE

7 x PCI-e

Case/Tower

Motherboard

Processor

Memory

Storage

M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 860 PRO - SATA SSD
Samsung 870 QVO - SATA SSD
Intel® D3-S4510 Enterprise - SATA SSD
Intel® D3-S4610 Enterprise - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM)

Power Supply

OS Compatibility

Operating System

VMware
Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

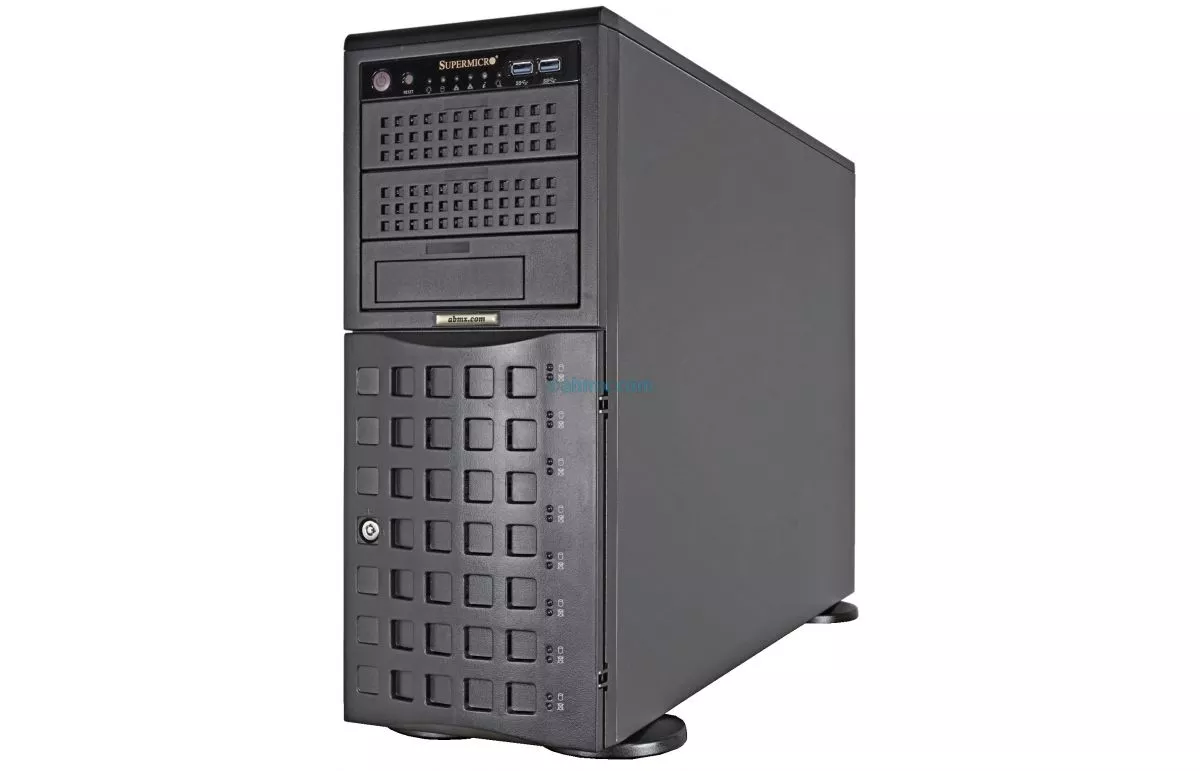

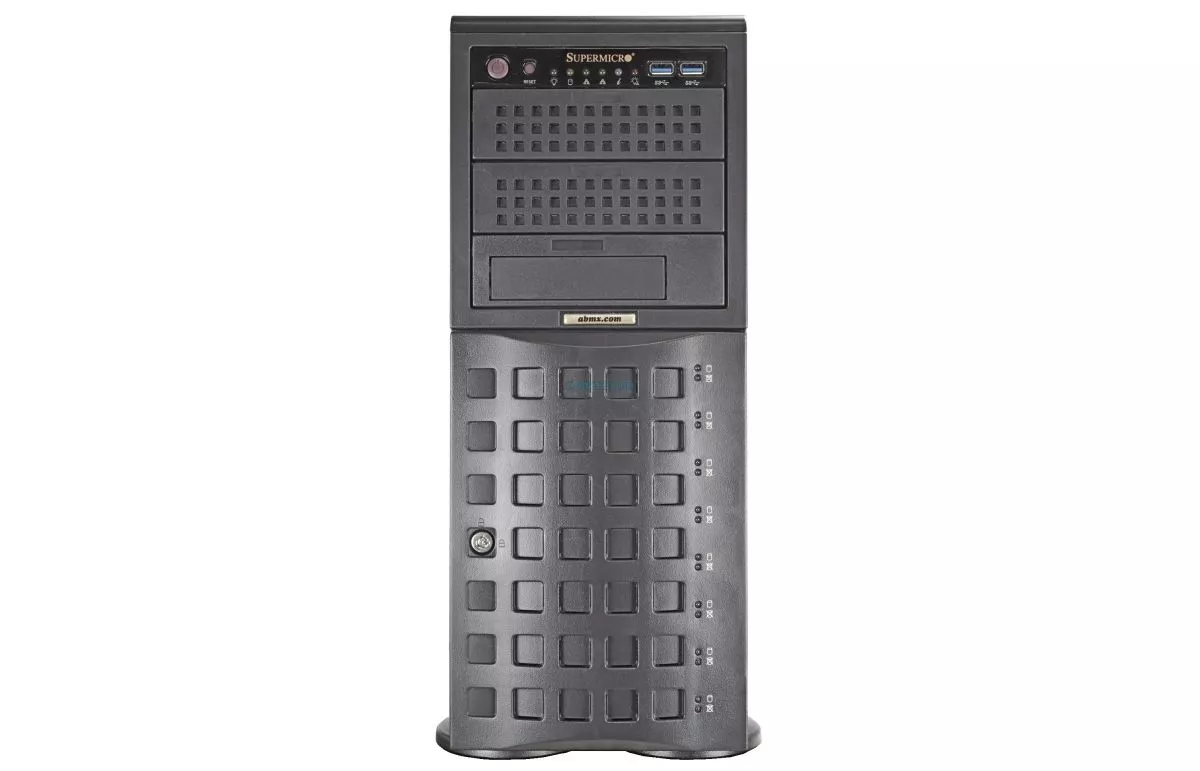

Chassis
  • Tower Enclosure

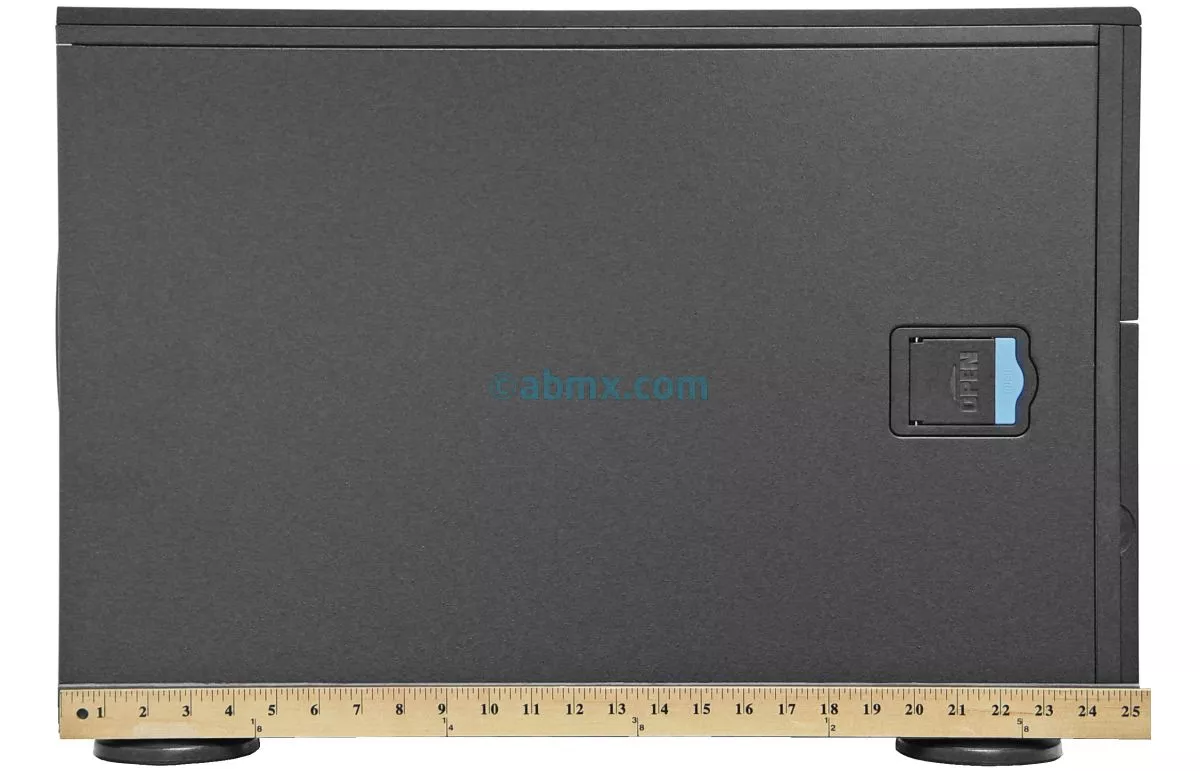

  • Dimensions: 25.5" (D) x 7" (W) x 17.8" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB Ports
  • Front HDD Door Lock & Side Panel Intrusion Switch
  • 3 x Middle 8cm (9400 rpm) PWM Fans
  • 2 x 8cm (9400 rpm) PWM Fans
Processor/Chipset
  • Dual Socket P (LGA 3647)
  • Support Dual Intel® Xeon® Scalable Processors
  • Intel® C621 chipset
BIOS
  • 64Mb SPI AMI BIOS® SM Flash UEFI BIOS
  • ACPI 3.0 or later
  • USB keyboard
  • Plug-and-Play (PnP)
  • SPI dual/quad speed support
  • SMBIOS 2.7 or later
Memory
  • 16 x 288-pin DDR4 DIMM sockets
  • Supports up to 4TB 3DS ECC RDIMM / Up to 4TB 3DS ECC LRDIMM
  • 3200/2933/2666 MHz ECC RDIMM / LRDIMM
Storage / IPMI
  • 10 x SATA3 (6Gbps) ports
  • Intel® C621 controller on-board
  • Chassis supports up to eight hard drives
  • IPMI 2.0 support (ASPEED AST2500)
  • 2 x M.2 NVMe (2242/2260/2280/22110)

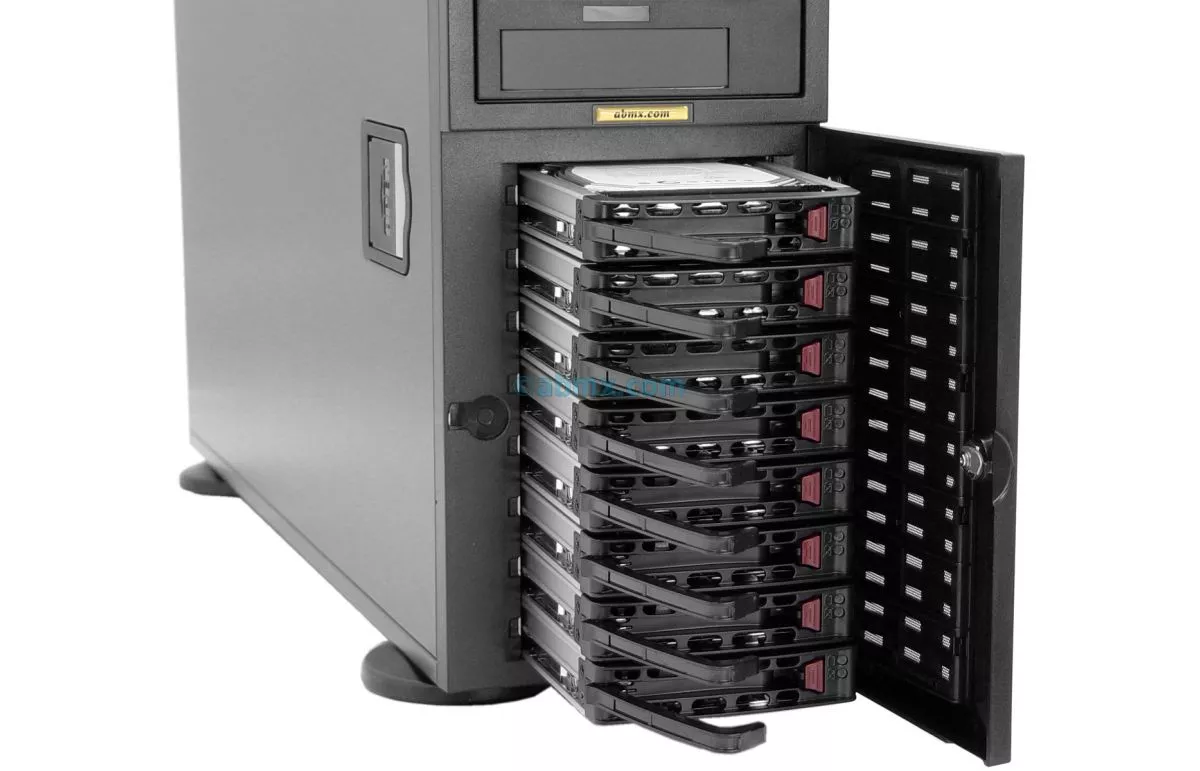

Drive Bays
  • HD1-8 Bay: Hot-swap SATA/ SSD Hard Drive
  • Up to 144 Terabyte of storage can be supported
  • 3 x 5.25-inch Peripheral Bay

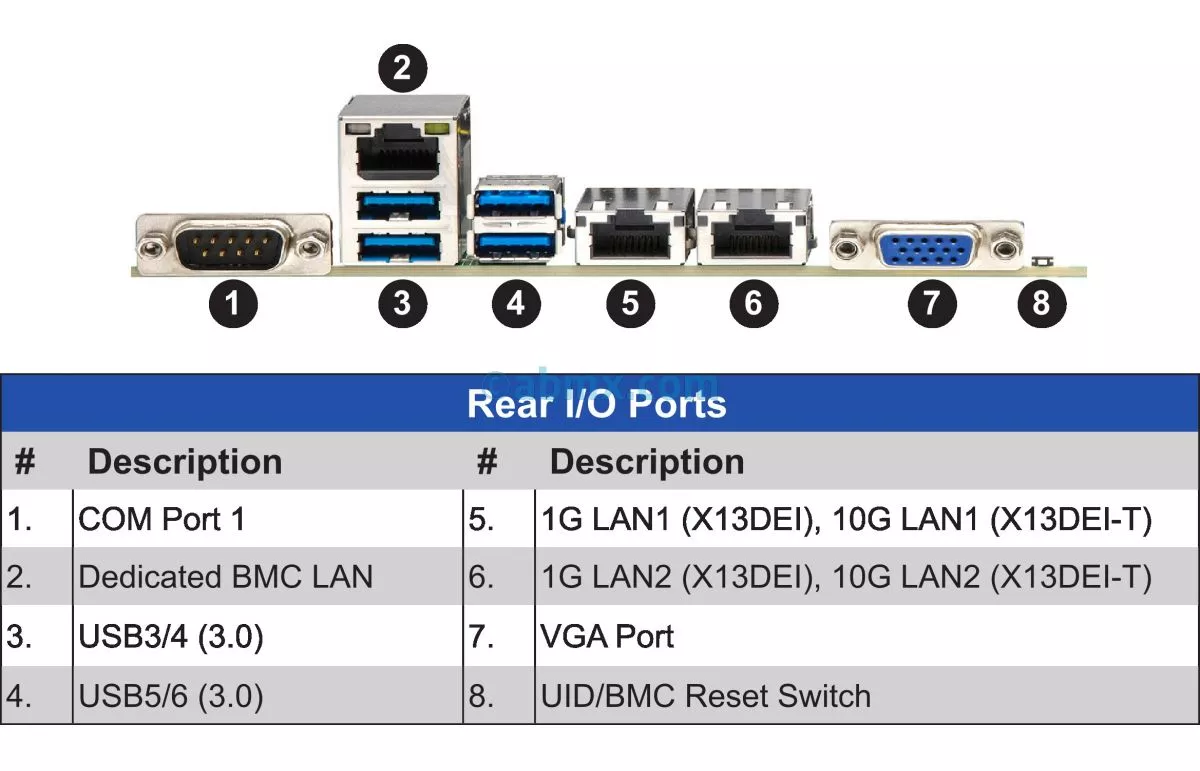

I/O ports
  • 2 x 1GbE LAN ports
  • 7 x USB 3.0 ports (4 x rear + 2 x headers + 1 x Type A)
  • 1 x VGA port
  • 1 x COM Port (1 x rear)
  • 1 x TPM Header
Video
  • Graphics controller via ASpeed AST2500 BMC on-board

Network
  • Dual Gigabit LAN (Intel® X722 + Marvell 88E1512)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 3 x PCI-e 3.0 (x16) slots
  • 4 x PCI-e 3.0 (x8) slots
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • Tower Servers does not supported rackmount rails
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X11DPH-i OverallChipset
Intel C621
LAN
Intel X722
VMWare ESXi 7.0
AsteriskNOW 10.13
CentOS 5.0
6.0
6.10
7.0
7.6
8.0
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
Debian 10.10
10.2
10.7
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 25
26
27
29
32
Fedora Workstation 25
26
27
29
32
33
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
13
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 5.0
6.0
6.4
6.8
6.9
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15
OpenSUSE Tumbleweed
OPNsense 19.1
Oracle Linux 7
7.6
PFSense 2.3
2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 5.0
6.0
7.6
8.1
Rocky Linux 8.4
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
VyOS 1.2
Windows 10
7
Windows 11 Original Release
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
