2U Custom Server - Xeon E

Engineered for ultimate versatility, this custom 2U server is a versatile system fit for almost any project. Its highly adaptable chassis lets you seamlessly configure storage arrays alongside extensive PCIe expansion slots to perfectly match your scaling demands. With flexible networking speeds and tailored, redundant or DC power supply options, every single component is optimized for your specific workload. It’s enterprise-grade infrastructure built exactly your way.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • 5.25" Drive Bay
  • 18-Inch deep
  • Dual LAN
  • Dedicated IPMI / iKVM
  • TPM 2.0
Related Tags
Samsung 990 EVO Plus
Samsung 990 PRO
Samsung 9100 PRO
SK hynix Platinum P51
WD_BLACK SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
SATA HDD
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Microsoft®
Special Order

Tech Specs

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

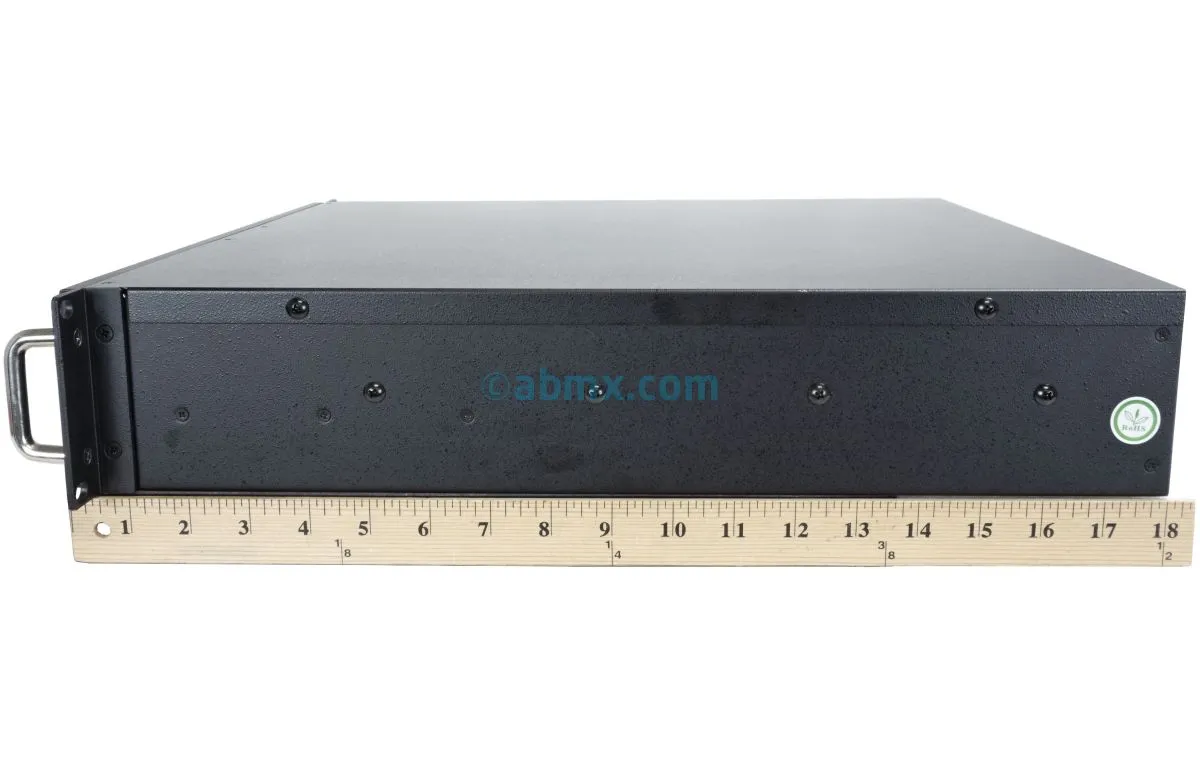

  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Single Door with 2 Thumbscrews
  • Air Filter Inside Front Panel (Washable)
  • Front USB: 2 x ports


Processor / Chipset

  • Intel® Xeon® 6300 Series processors
  • Intel® Xeon® E-2400 Series processors
  • Intel® Pentium® Gold processors
  • Single processor, TDP up to 95W
  • Intel® Socket LGA 1700 (Socket V0)
  • Intel® C262 chipset


Memory

  • 4 x DIMM slots
  • DDR5 ECC Unbuffered memory support
  • Up to 128GB total memory
  • ECC UDIMM up to 32GB supported
  • Memory Speed: Up to 4400 MT/s


Storage

  • 8 x SATA 6Gb/s ports via Intel® C262 chipset
  • 1 x M.2 NVMe 2280/22110 PCIe Gen4 x4 slot
  • SATA RAID 0/1/5/10 support via Intel® C262 chipset
  • Chassis supports up to three drives
  • Please contact our technical support team at (714) 258-2269 or [email protected] for storage configuration options

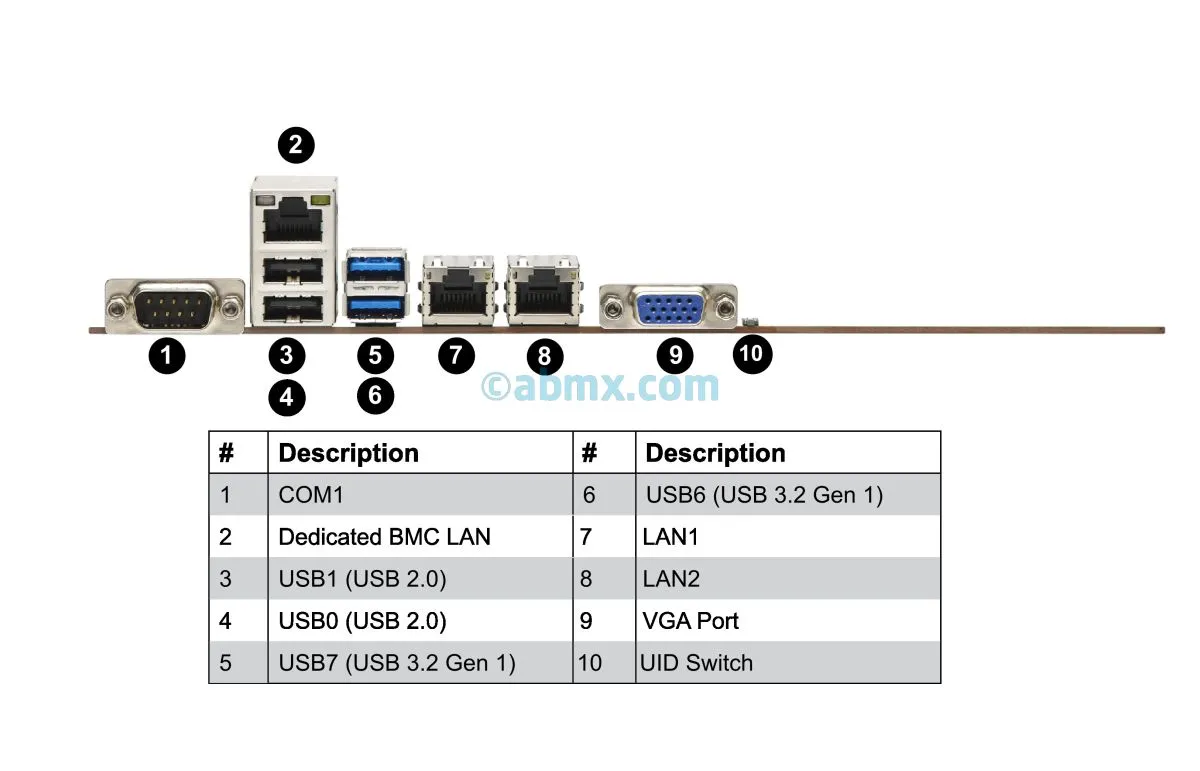

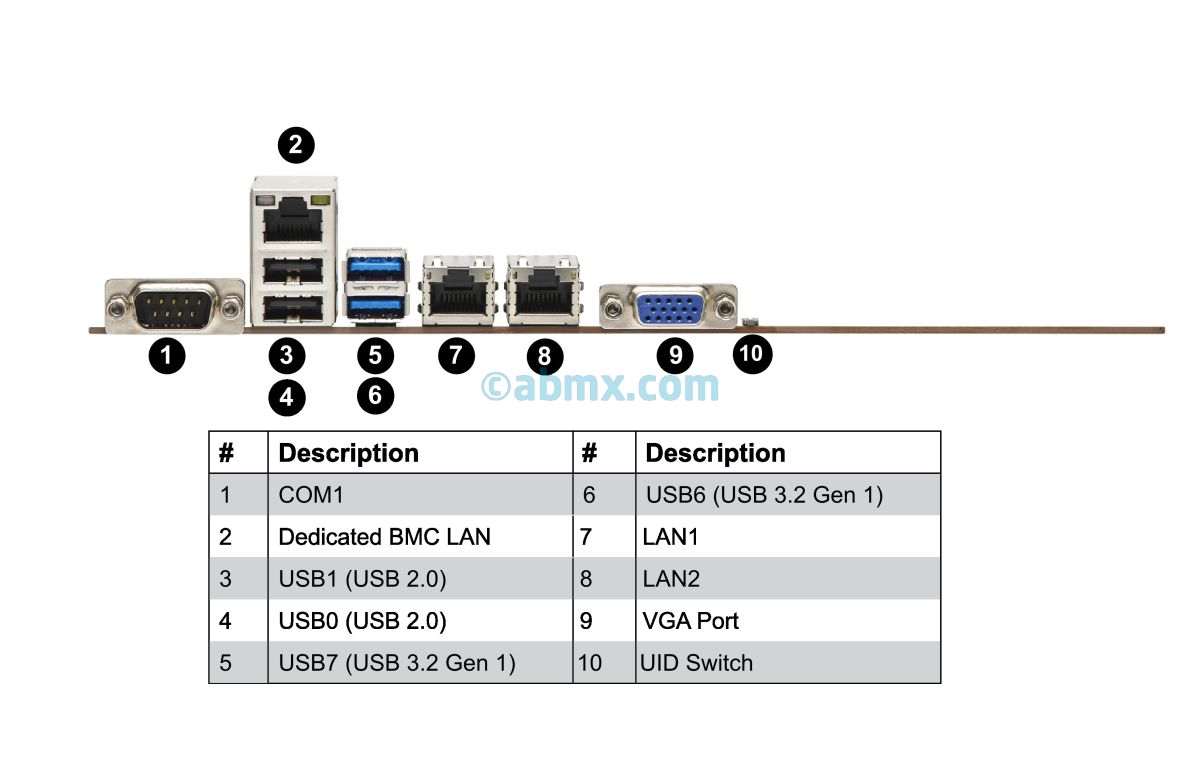

Input / Output

  • 2 x 1G RJ45 Etherenet LAN ports
  • 1 x 1G RJ45 Management LAN port
  • 2 x USB 2.0 Type-A ports (rear)
  • 4 x USB 2.0 ports (header)
  • 2 x USB 3.2 Gen 1 Type-A ports (rear)
  • 2 x USB 3.2 Gen1 ports (header)
  • 1 x USB 3.2 Gen1 Type-A port (internal)
  • 1 x VGA port
  • 1 x COM port (rear)
  • 1 x COM port (header)


Security Module

  • 1 x TPM 2.0 header with SPI interface
  • 1 x TCG TPM 2.0 kit - Infindeon 9670 controller


Audio / Video

  • No on-board Audio Codec
  • Integrated in ASPEED® AST2600 (1 x VGA port)















Network
  • 2 x 1G RJ45 LAN ports (Intel® i210 controller)
  • 1 x 1G RJ45 Management LAN port (IPMI)


Board Management

  • ASPEED® AST2600 Baseboard Management Controller - IPMI 2.0
  • Redfish APIs
  • BMC Web GUI
  • HTML5 KVM with multi-language support
  • DCMI 1.5
  • Serial Redirection
  • User account management and Role-based authority
  • Power control
  • Temperature monitoring
  • Real-time power reading
  • Power thresholds & alerts
  • Fan monitoring
  • Memory monitoring
  • CPU monitoring
  • RAID monitoring and configuration
  • GPU monitoring
  • NIC monitoring
  • HDD monitoring
  • Health /System Events
  • Syslog


PCIe Expansion Slots (LOW-PROFILE)

  • 2 x PCI-e 4.0 x4 (in x8) slots
  • 1 x PCI-e 5.0 x8 slot
  • 1 x PCI-e 5.0 x8 (in x16) slot


Power Supply

  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, CB, CCC, CE, TUV
  • Redundant or 48V or 24V DC Power Supply is OPTIONAL


Rack Support

  • Rackmount rails kit (OPTIONAL)


OS Compatibility

  • Please contact out technical support team at (714) 258-2269 or [email protected] for questions about OS compatibility.


Warranty

  • 3-Year Parts and Labor Standard*
    *Batteries are subject to DOA only and are NOT subject for replacement of Return
  • Extended Warranties Available
  • Please visit https://www.abmx.com/terms-and-warranties to see our complete terms and warranty information












Large Image

OS Compatibility

Motherboard X13SCL-F OverallChipset
Intel C262		LAN
Intel I210		Video
ASPEED AST2600
CentOS Stream 10
Debian 13
Fedora Server 38
43
Fedora Workstation 38
43
FreeBSD 15
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 10
Rocky Linux 10
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
24.04 LTS
26.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
24.04 LTS
26.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022
2025

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
