2U Rack Workstation - 5 x PCIe Slots

The 218LPASX27 2U Rack Workstation is a top choice in its class, now powered by the latest Intel Core processors for up to 24 cores, 32 threads, and support for up to 128GB of DDR5 memory, delivering exceptional performance. Its compact 18" deep design offers an ideal balance between space efficiency and expansion, supporting up to 5 low-profile PCIe cards making it perfect for users who need powerful performance and expansion flexibility in a compact form factor.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • Video (HD Output)
  • 5.25" Drive Bay
  • 18-Inch deep
  • Windows 11 Compatible
  • TPM 2.0 on-board
Related Tags
Special Order
Samsung 970 PRO
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
Western Digital® Enterprise-class
NVIDIA Ampere
NVIDIA Turing
NVIDIA Ampere
NVIDIA Turing
NVIDIA Ampere
NVIDIA Ada Lovelace
Special Order
AMD Radeon™ PRO W6400
Special Order
Microsoft®

Tech Specs

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

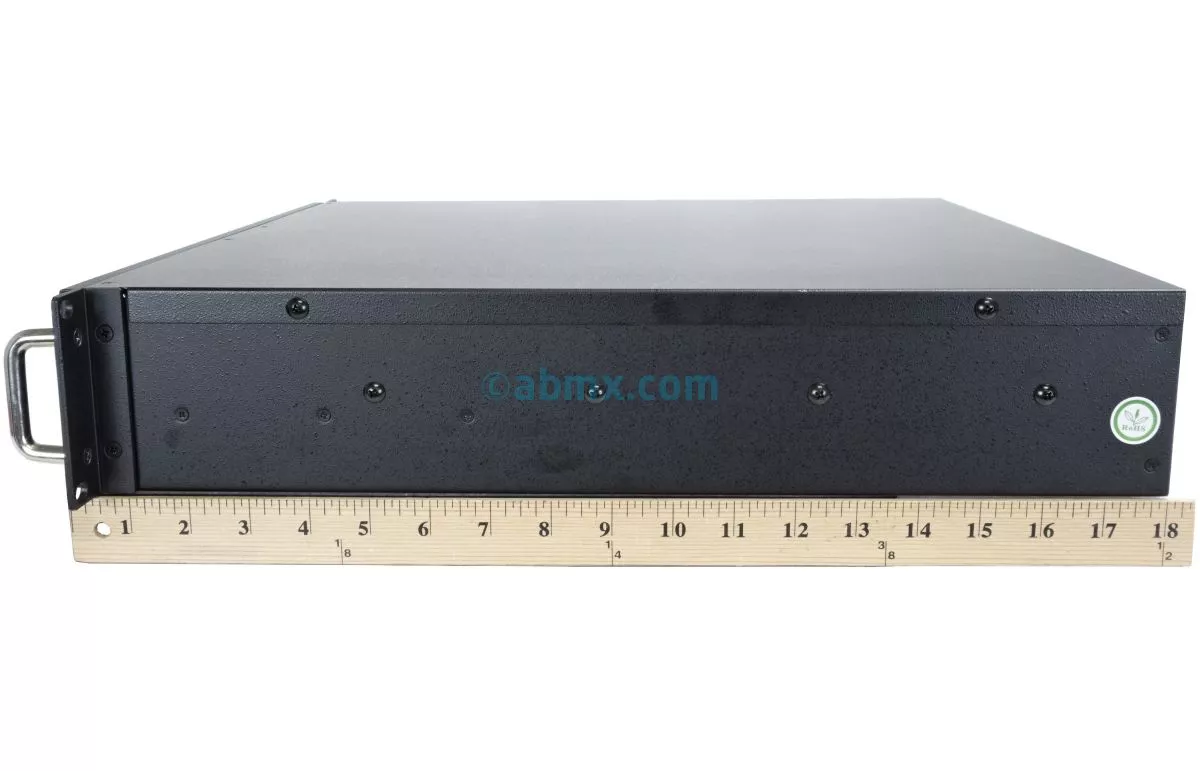

  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Single Door with 2 Thumbscrews
  • Air Filter Inside Front Panel (Washable)
  • Front USB: 2 x ports
Processor/Chipset
  • Single Socket LGA-1700
  • Supports Intel® 14th/13th/12th Gen. Core™ Processors
  • Intel® W680 Chipset
BIOS
  • AMI SPI 256 Mbit
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB non-ECC UDIMM
  • DDR4 3200 MHz
Storage
  • 8 x SATA3 (6Gbps) ports
  • Chassis supports up to three drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Drive
  • Up to 72 Terabyte of storage can be supported
  • 1 x 5.25-inch Drive Bay

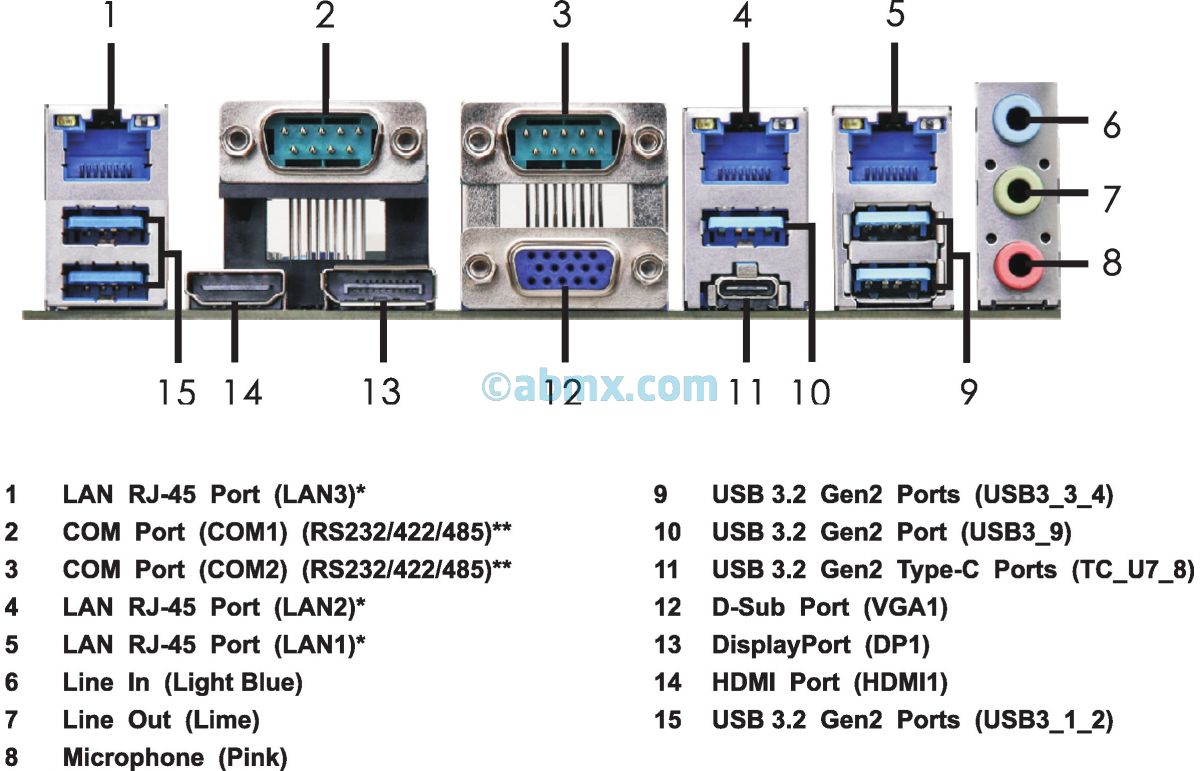

I/O ports
  • 3 x RJ45 2.5 Gigabit Ethernet LAN ports
  • 5 x USB 3.2 Gen.2 ports
  • 1 x USB 3.2 Gen.2x2 port (Type C, 5V/3A)
  • 2 x USB 3.2 Gen.1 ports
  • 4 x USB 2.0 ports
  • 1 x VGA port
  • 1 x HDMI 2.0b port
  • 1 x DP 1.4a++ port
  • 2 x COM Ports (RS-232/422/485)
  • TPM 2.0 onboard
Video / Audio
  • Intel® UHD Graphics Controller
  • HDMI 2.0b (Max resolution up to 4096x2160@60Hz)
  • DisplayPort 1.4a, DP++ (Max resolution up to 4096x2160@60Hz)
  • VGA (Max resolution up to 1920 x 1200@60Hz)
  • MultiDisplay (Triple Display)
  • Realtek ALC897, HD Audio (Line-In / Line-Out / Mic-In)

Network
  • Dual 2.5 Gigabit LAN Ethernet Controller (Intel® 225LM/I225V)
  • Single 2.5 Gigabit LAN Ethernet Controller (Intel® I225LM), supports vPro
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-e 4.0 (x16) slot
  • 1 x PCIe 4.0 (x8) slot
  • 2 x PCIe 4.0 (x4) slots
  • 1 x PCIe 3.0 (x4) slot
  • 2 x PCI 32bit 5V slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, CB, CCC, CE, TUV
  • Redundant or 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available

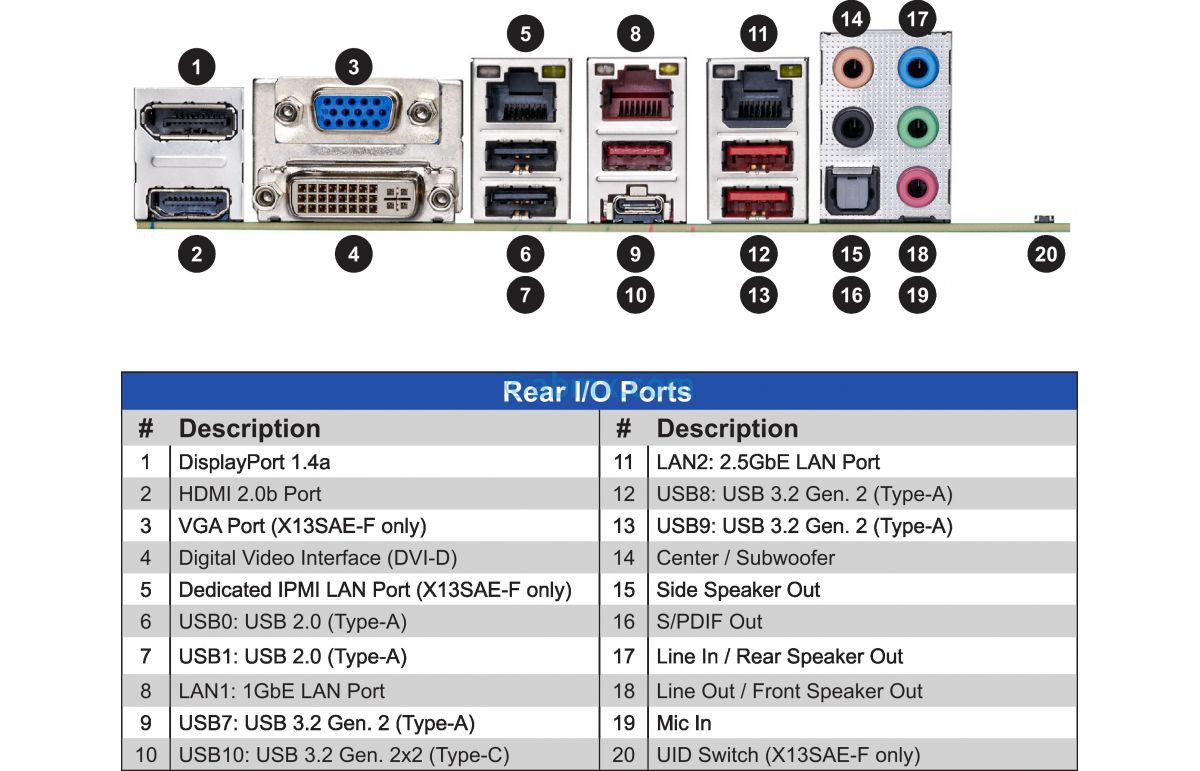

Large Image

OS Compatibility

Motherboard IMB-X1712 OverallChipset
Intel W680		LAN
Intel i225LM		Video
Intel UHD

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
