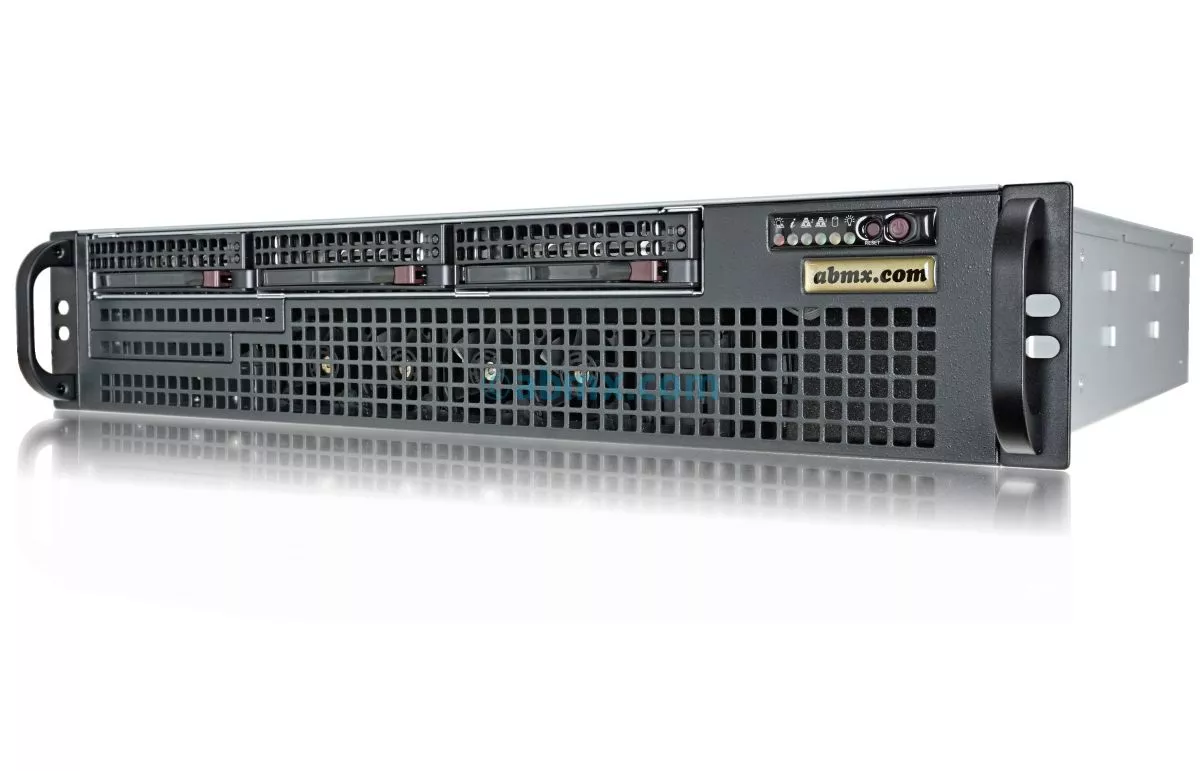

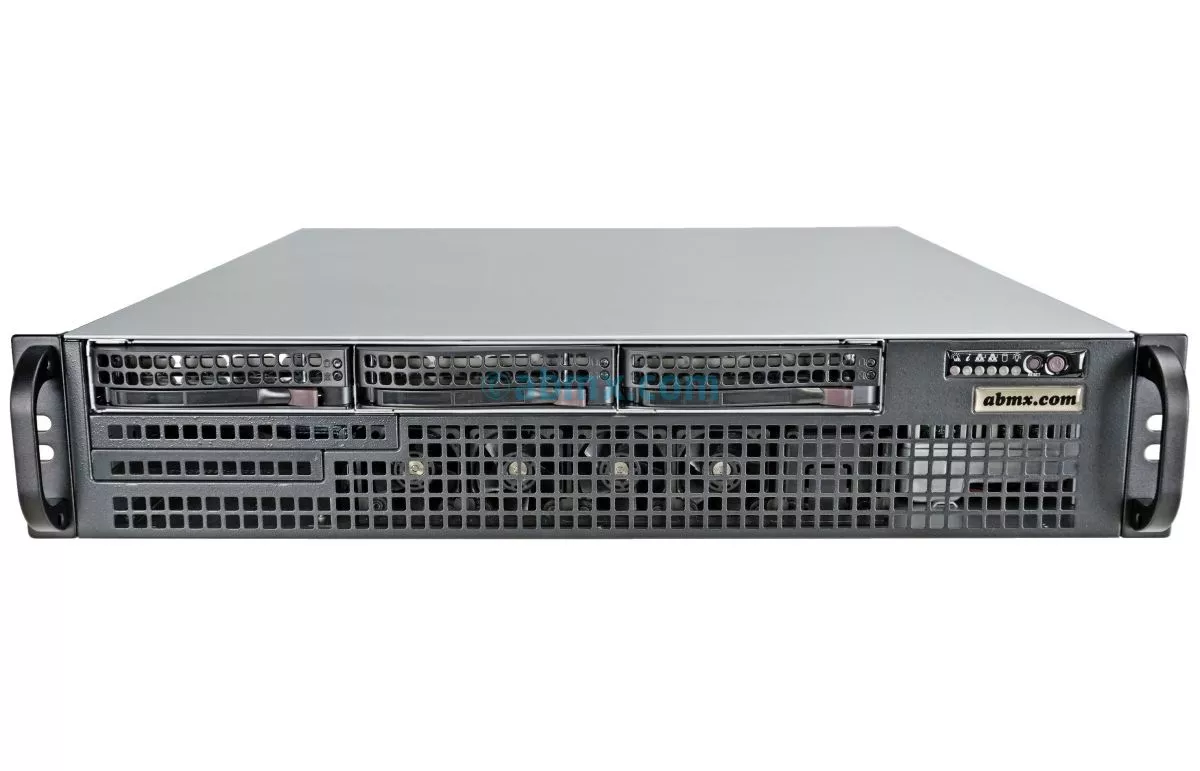

2U Server - Dual Xeon Scalable - 3 x Hot-Swap Bays - Redundant Power

This 2U Server features dual xeon scalable CPUs for a massive 64 cores for high performance processing power, and supports up to 2 TB of DDR4 ECC Registered memory. Housed in a robust 2U chassis with three front hot-swap drive bays and redundant power supplies for reliability and flexibility. Ideal for enterprise virtualization, storage, and compute-intensive workloads.

Key Features
  • Short Depth
  • Redundant Power
  • 18-Inch deep
Related Tags
Samsung 970 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
Western Digital® Enterprise-class
NVIDIA Ampere
NVIDIA Ada Lovelace
Special Order
Microsoft®
Special Order

Tech Specs

Chassis

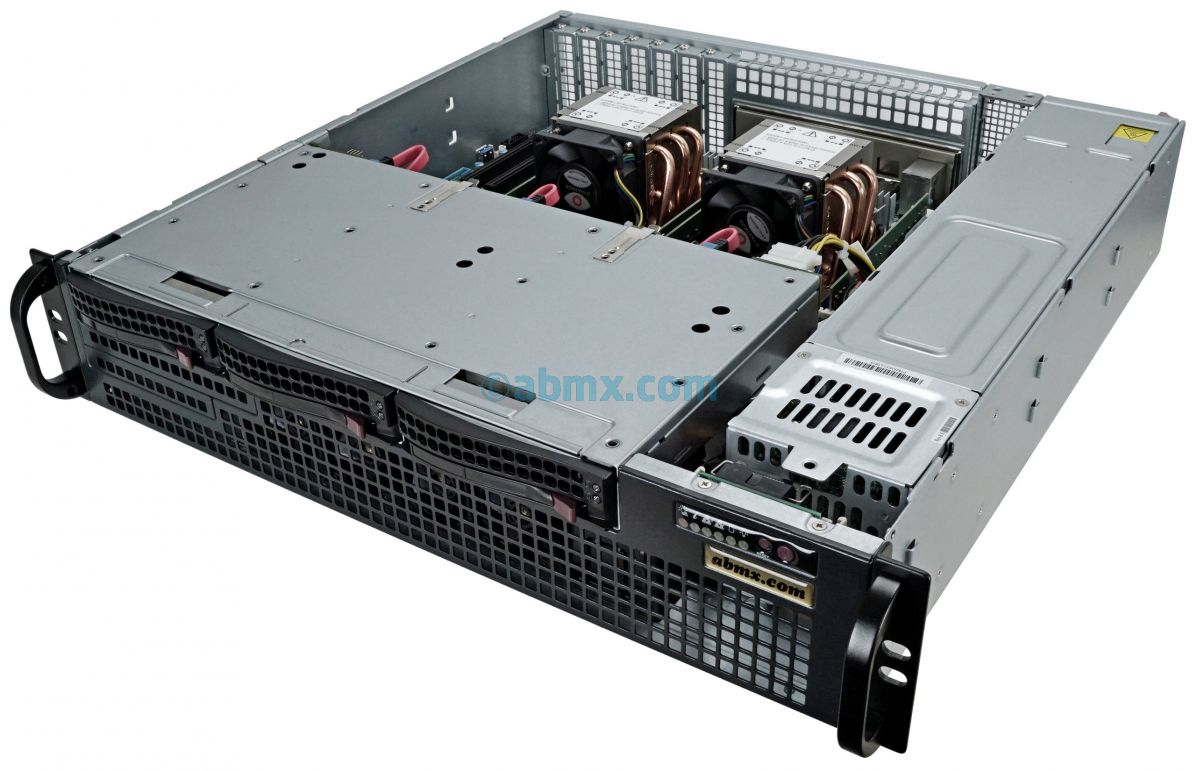

  • 2U Rackmountable Enclosure (LOW-PROFILE)
  • 1 Rack Unit Height (3.5")

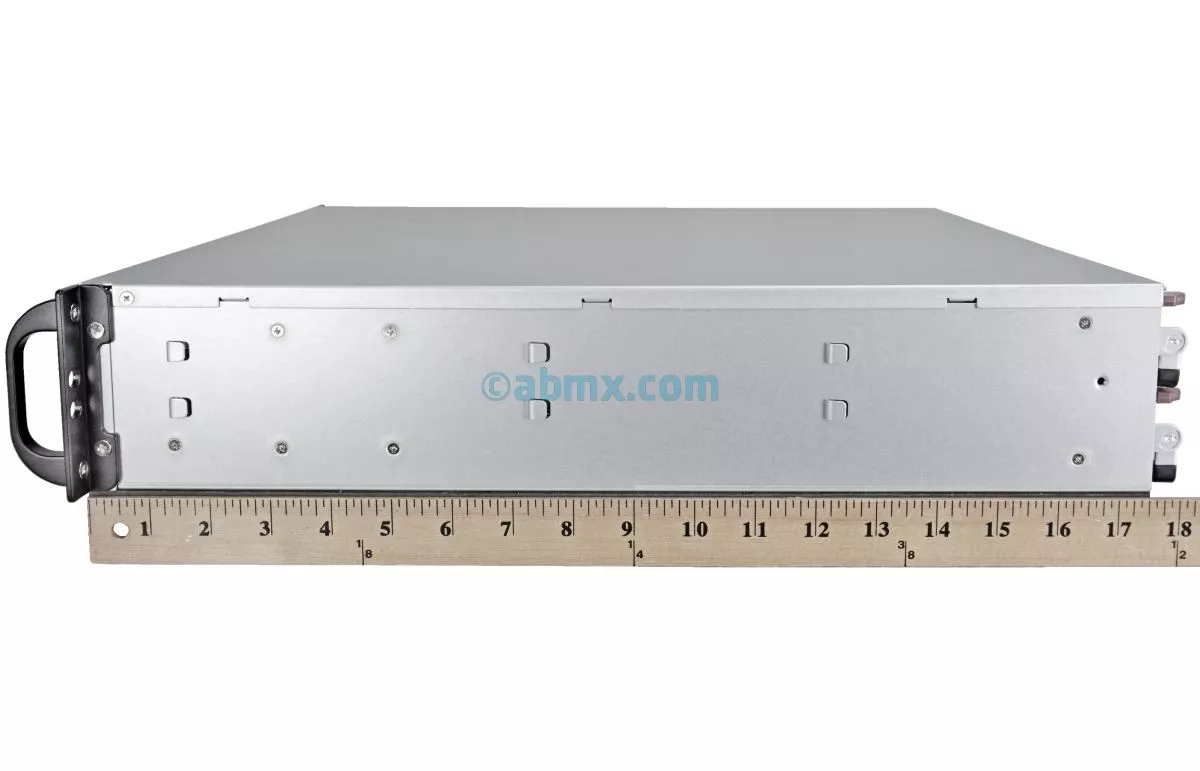

  • Dimensions: 17.2" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset

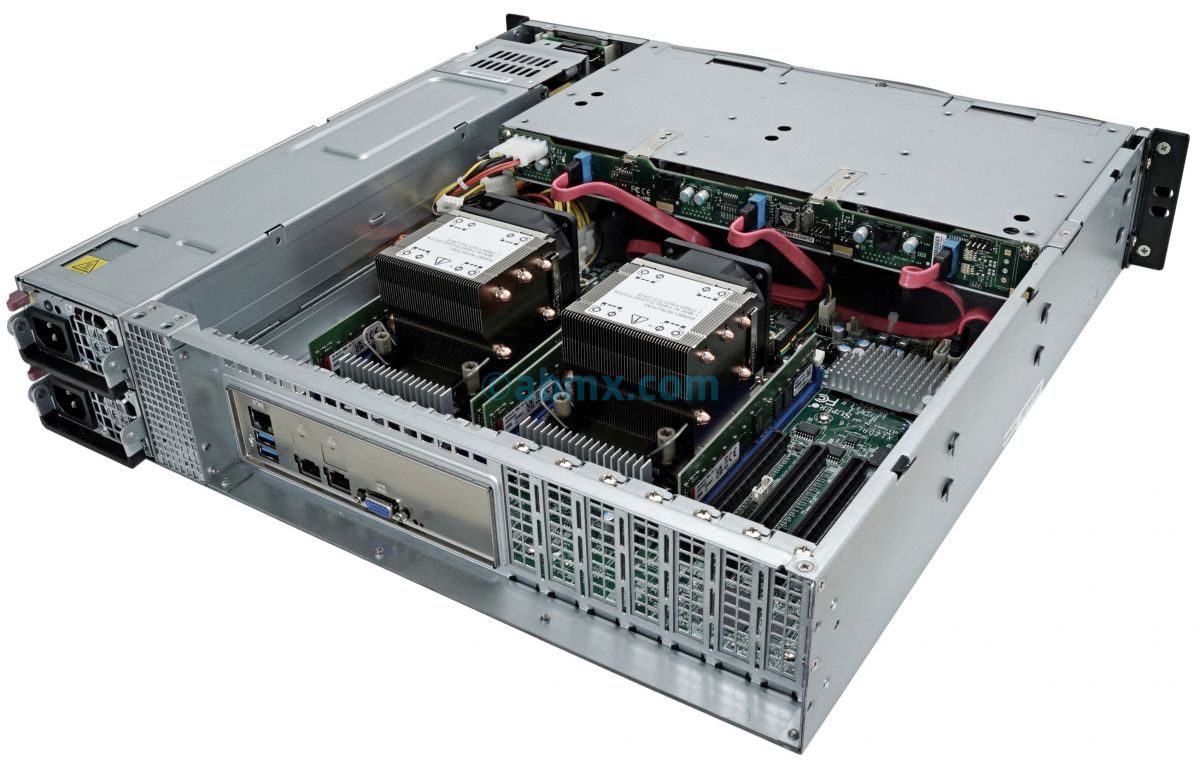

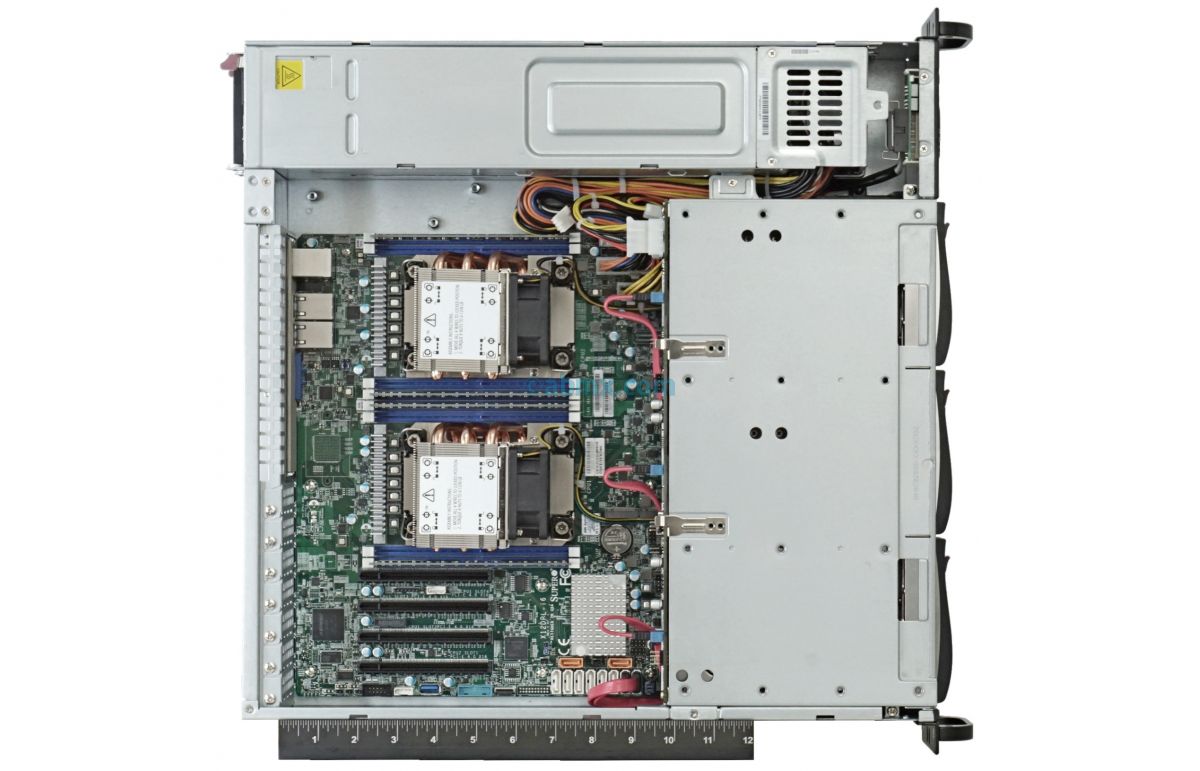

  • Dual Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933MHz ECC 3DS, LRDIMM, RDIMM
Storage / IPMI
  • 12 x SATA3 (6Gbps) ports
  • Intel® C621A controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports up to three drives
  • 2 x M.2 NVMe 2280/22110
Drive Bays

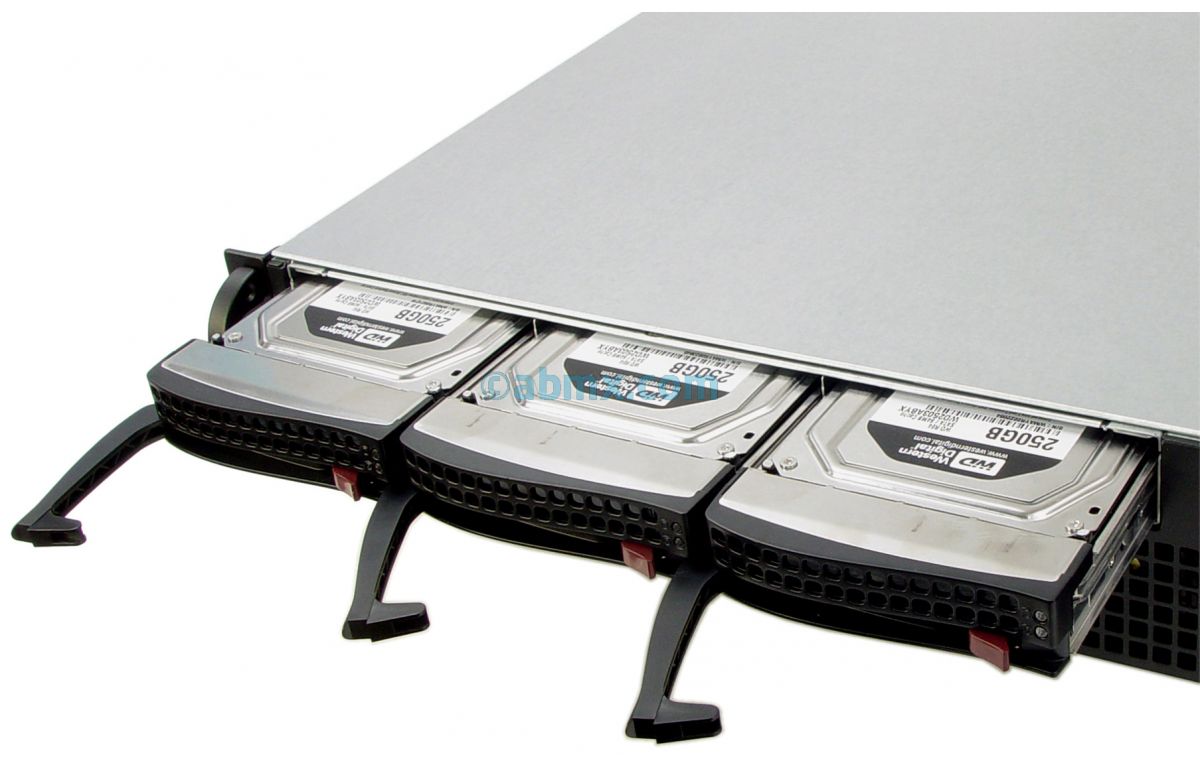

  • HD1-3 Bay: Hot-swap 3.5/2.5-inch Drive Bays
  • Up to 72 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

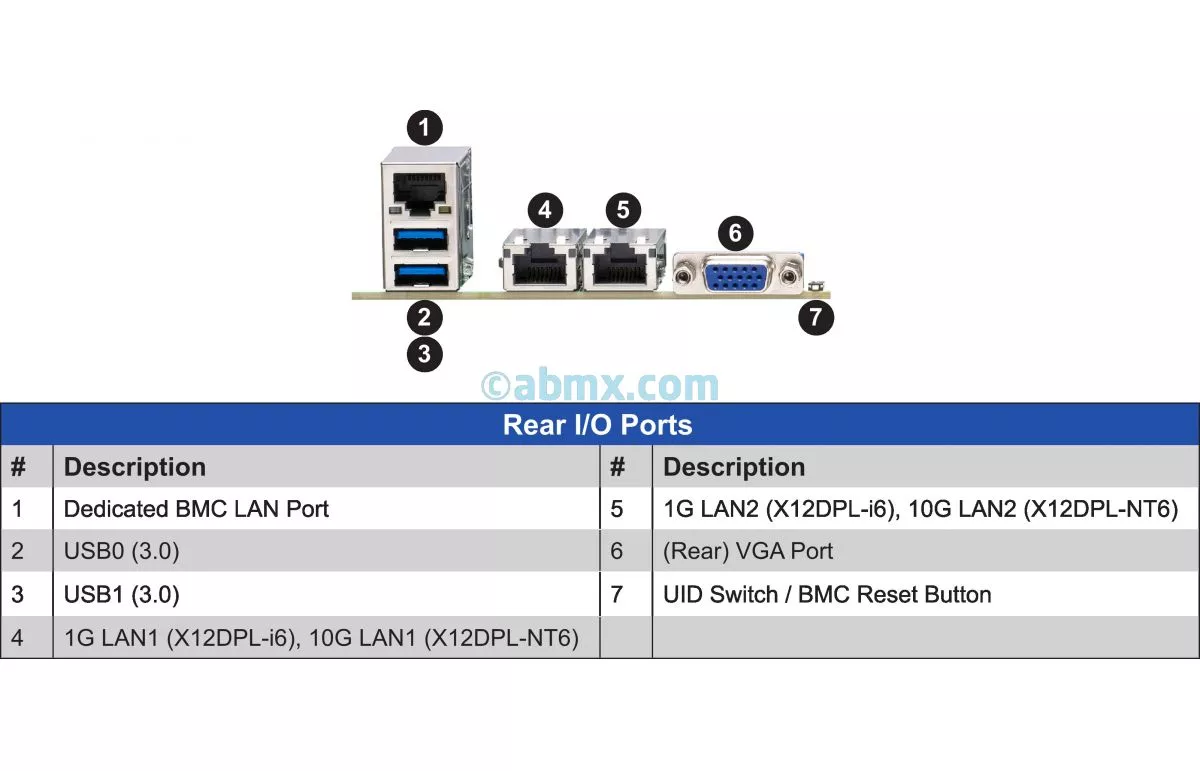

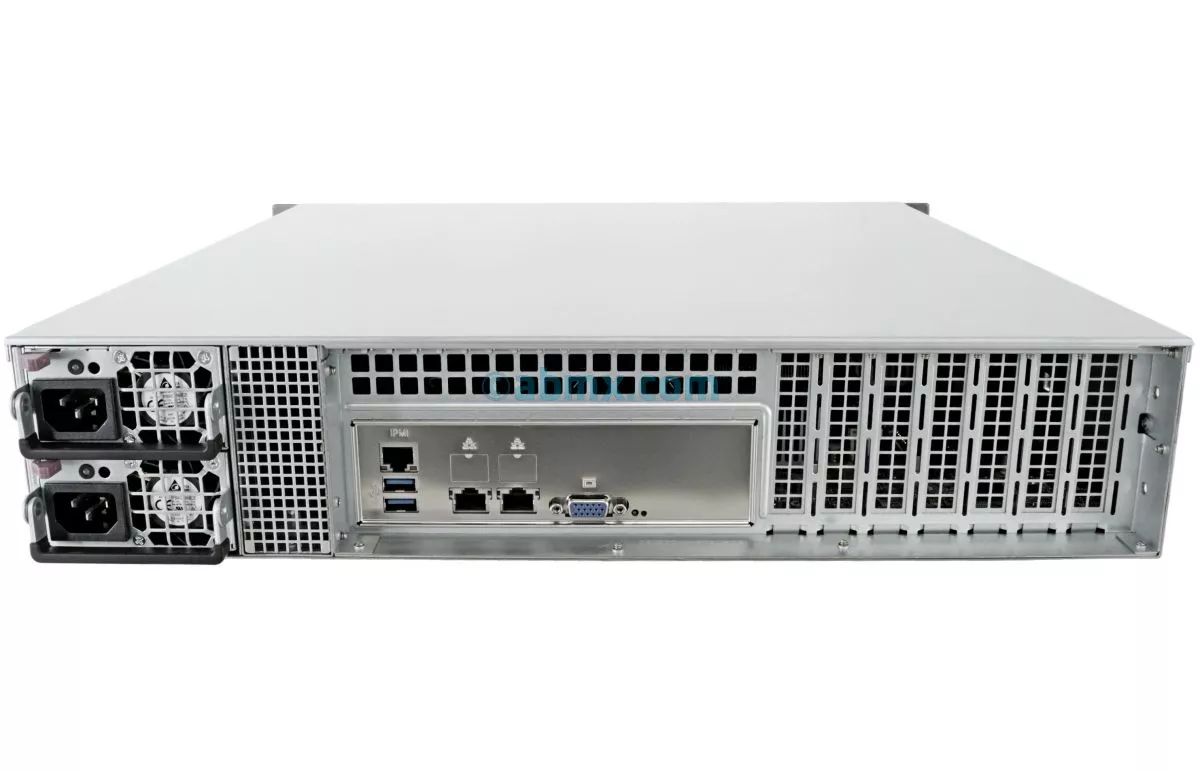

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 4 x PCI-e 4.0 (x16) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC,  TUV/CB, UL/CUL
CD-ROM /DVD-ROM

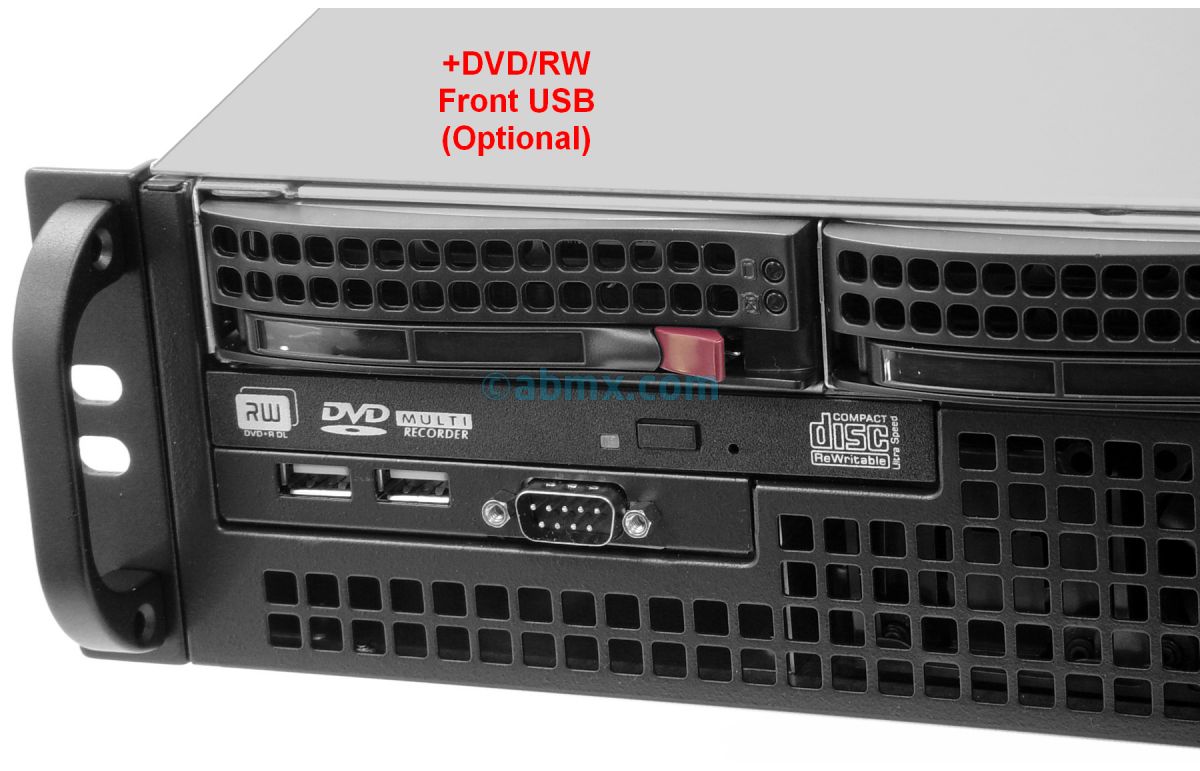

  • Slim-line Optical Drive is OPTIONAL
Rack Support
  • Rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Large Image

OS Compatibility

Motherboard X12DPL-i6 OverallChipset
Intel C621A		LAN
Intel I210		Video
ASPEED AST2600
CentOS 9
Debian 12
Fedora Server 41
Fedora Workstation 41
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 22.04 LTS
24.04 LTS
Ubuntu Server 22.04 LTS
24.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
