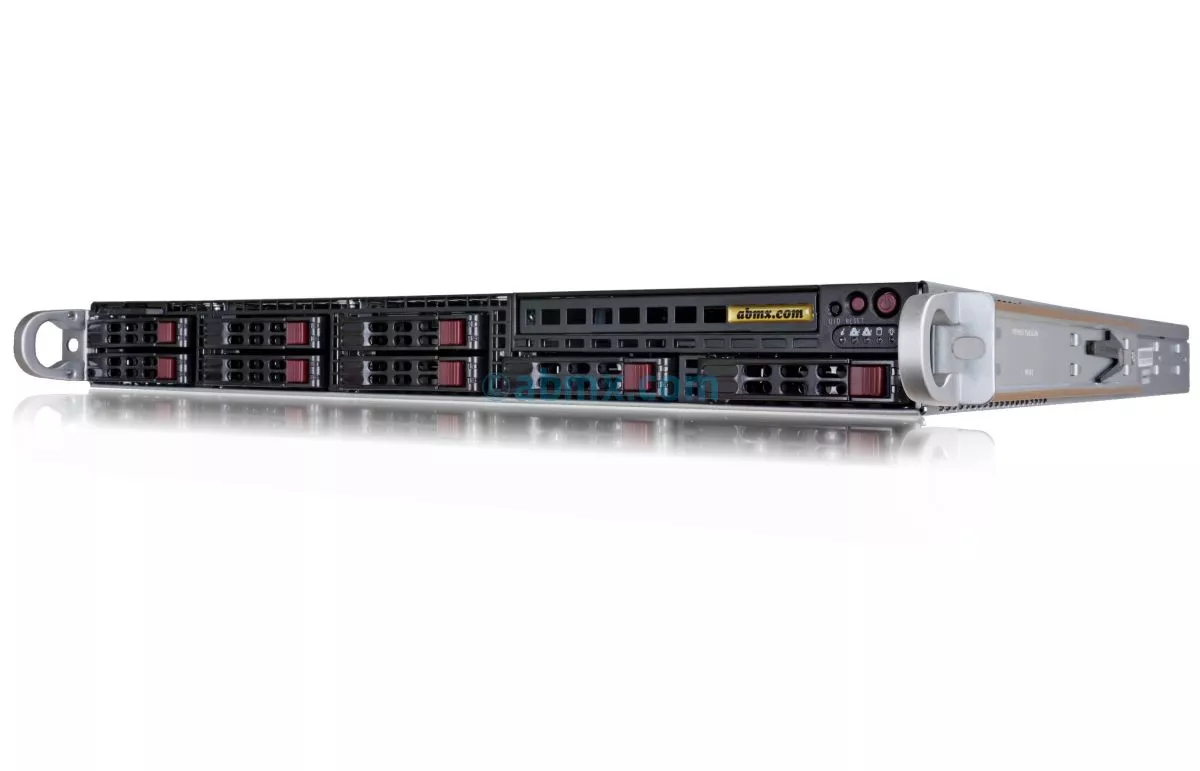

1U Rackmount Server - Intel Scalable - 8 x 2.5-inch Hot-swap Bays

Model: 120QX1PM

6 - 24 Cores
Xeon Scalable

8 - 384 GB

8 x 2.5 Hot-Swap

2 x 1GbE

1 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 970 PRO - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Seagate® Enterprise, 2.5-inch - SAS HDD
Seagate® Enterprise, 2.5-inch - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Intel D3-S4520 - SATA SSD
Intel D3-S4620 - SATA SSD

Storage 2

Storage 3

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM)

Optical Drive

Rack Mounting Rail Kit

OS Compatibility

Operating System

VMware
Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 1U Rackmountable Enclosure
  • 1 Rack Unit Height (1.7")

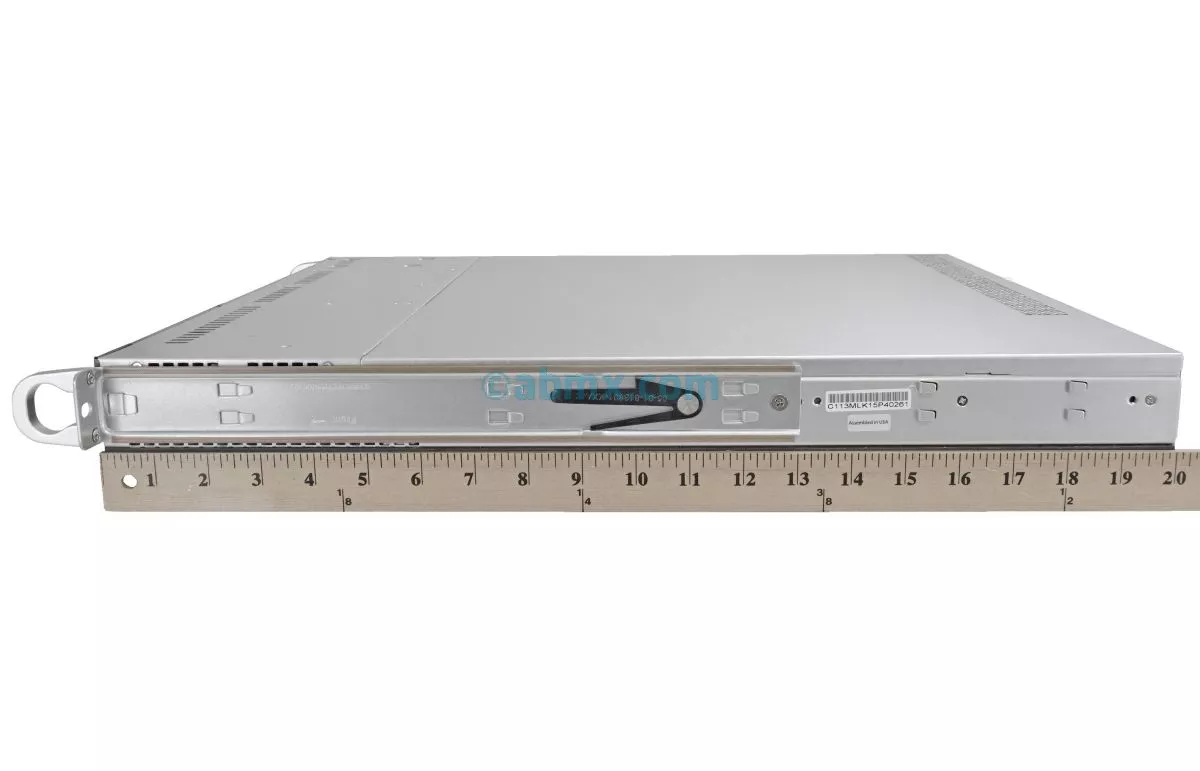

  • Dimensions: 19.98" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket P (LGA 3647)
  • Supports Single Intel® Xeon® Scalable Processors
  • Intel® C621 chipset
BIOS
  • AMI UEFI
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later
Memory
  • 6 x 288-pin DDR4 DIMM slots
  • Supports up to 1.5TB ECC RDIMM
  • 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Storage / IPMI
  • 12 x SATA3 (6Gbps) ports
  • On-board Intel® C621 controller on-board
  • IPMI 2.0 support (ASPEED AST2500)
  • Chassis supports up to eight 2.5-inch hard drives

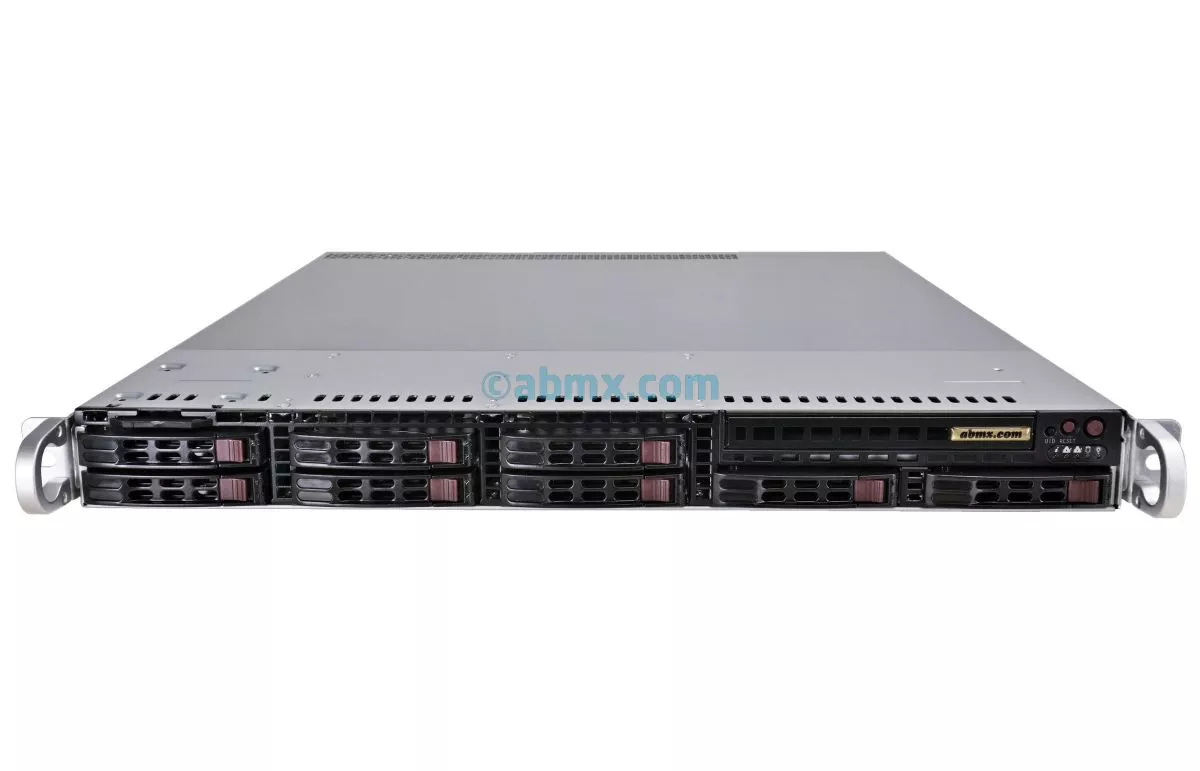

Drive Bays
  • HD1-8 Bay: hot-swap 2.5-inch SATA/ SSD Drive
  • Slim-line Optical Drive Bay
  • Up to 32 Terabyte of storage can be supported

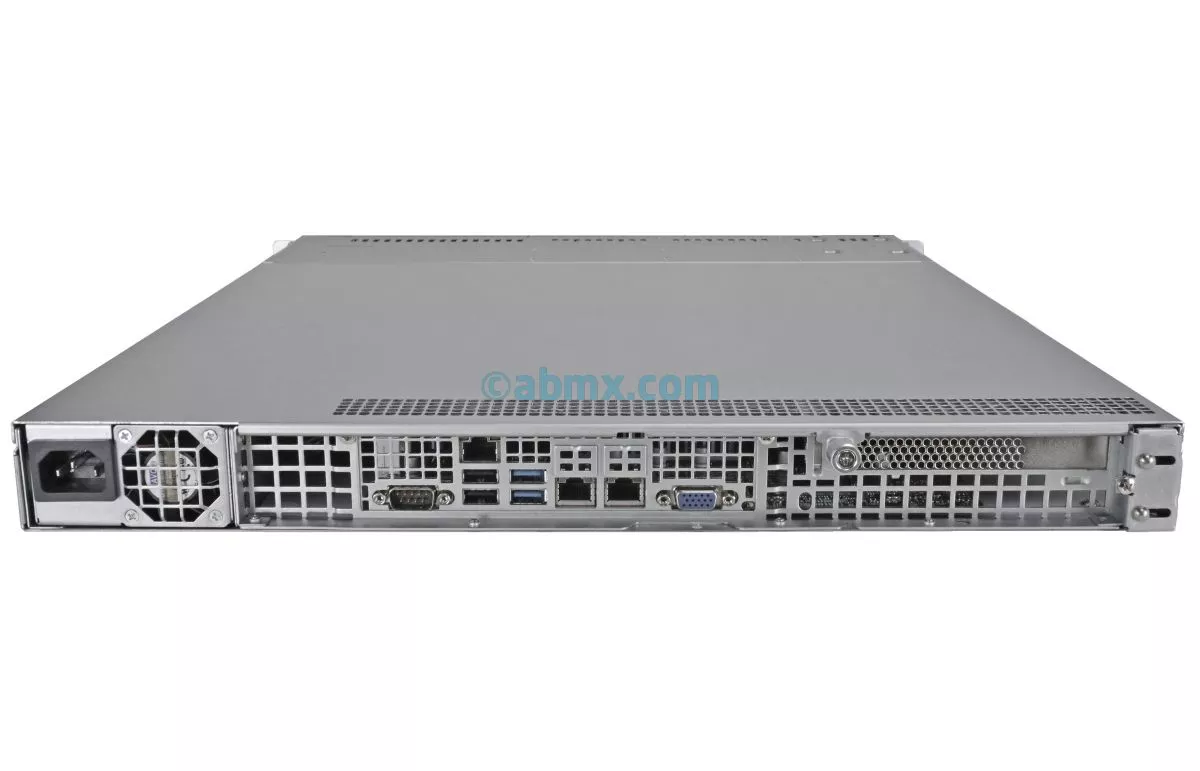

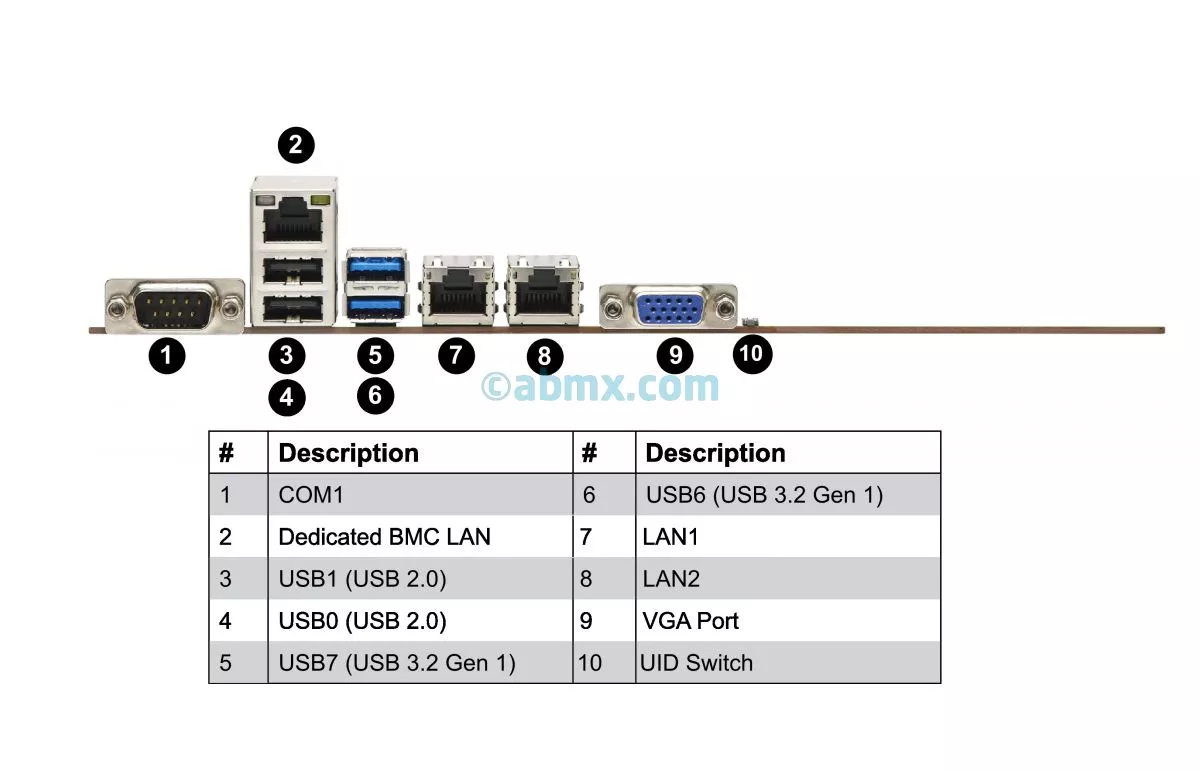

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (2 x rear + 4 x headers)
  • 5 x USB 3.0 ports (2 x rear + 2 x headers + 1 x Type A)
  • 1 x VGA port
  • 2 x COM ports (1 x rear, 1 x header)
  • 1 x TPM 1.2 20-pin Header
Video
  • Aspeed AST2500 BMC Video on-board

Network
  • Dual LAN with 1GbE with Marvell® 88E1512 Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 3.0 (x16) slot - full height (Riser card is requited - OPTIONAL)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • HE power supply
  • Tested to comply with FCC class B Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X11SPM-F OverallChipset
Intel C621
LAN
Intel X722
Video
Aspeed AST2500
CentOS 6.10
7.6
8.0
ClearOS Community Edition 7.5
7.7
Debian 10.2
9.11
9.8
Elastix 5.0
Fedora Server 29
32
Fedora Workstation 29
32
FreeBSD 12
12.1
FreeNAS 11.2
FreePBX 14
15
Linux Mint 19.1
19.2
Manjaro Linux 18.0.4
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 6.4
OpenIndiana Hipster 2018.10
OpenSUSE Leap 15
OPNsense 19.1
Oracle Linux 7.6
PFSense 2.4
Proxmox VE 5.3-2
Red Hat Enterprise Linux 7.6
8.1
Scientific Linux 7.6
SUSE Enterprise Server 12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
Ubuntu Server 16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
VMWare ESXi 6.7
VyOS 1.2
Windows 10
7
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
