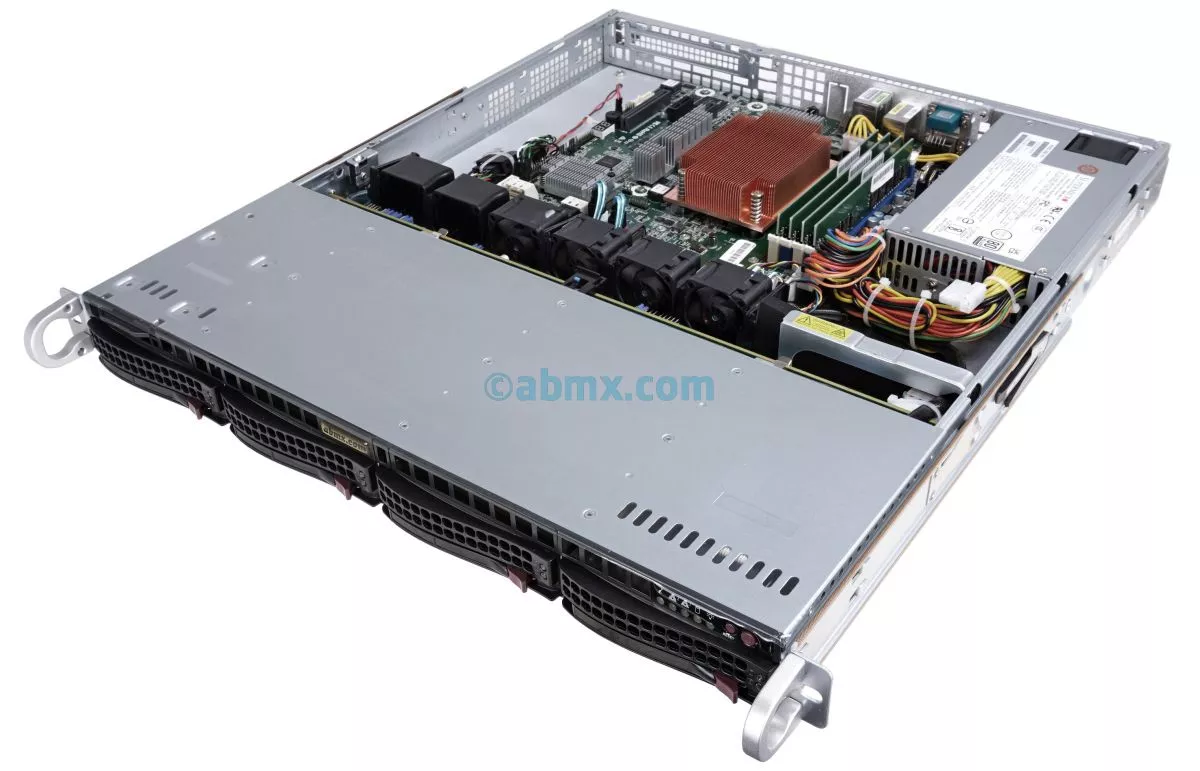

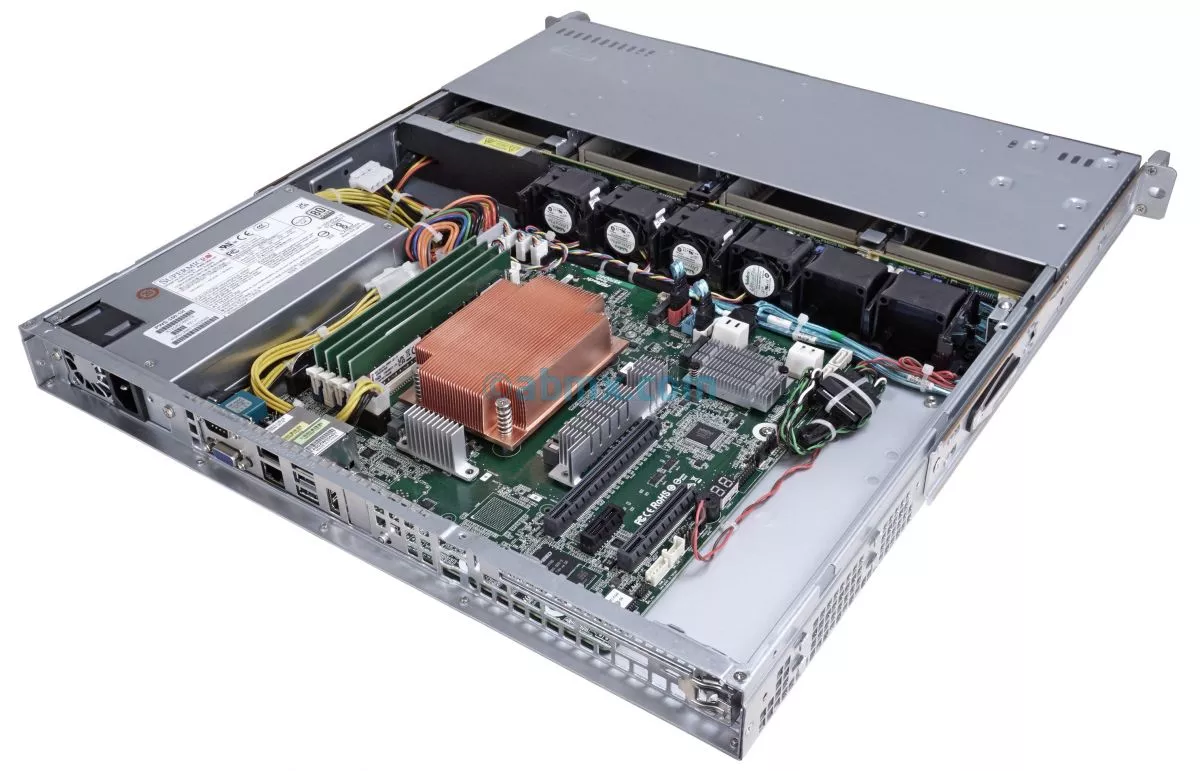

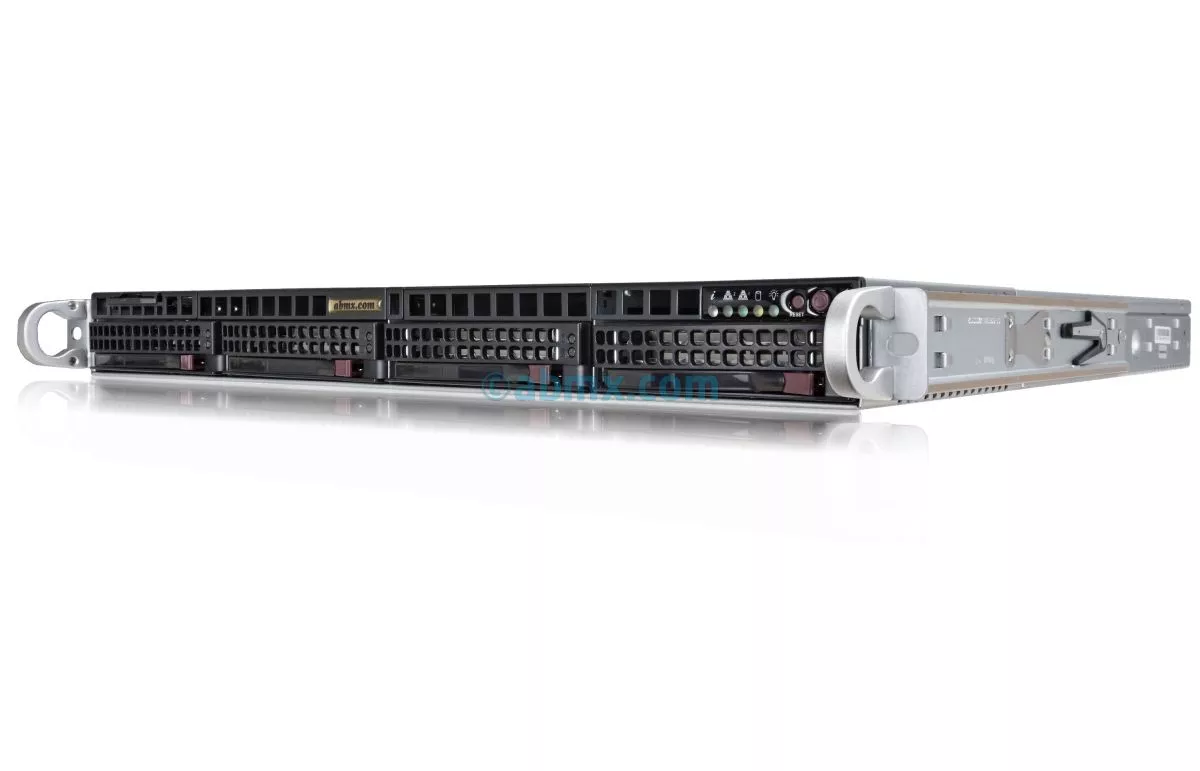

1U Server - AMD Ryzen - 4 x Hot-Swap Bays

Model: 120ZA57

The Ryzen AM4 platform from AMD™ offers higher core count and a better cost-to-performance ratio than alternatives. This 1U short depth server is a cost-effective solution for simple to advanced level projects that require up to 16 cores and 128GB of RAM and includes 4 hot-swap bays for high capacity storage. This server is a perfect solution for appliance server, basic file server, or edge device.

Key Features
  • Short Depth
  • Front USB (optional)
  • Redundant Power (optional)
  • 48v DC Power (optional)
  • 20-Inch deep
  • TPM 2.0 (optional)
Recommended Uses

4 - 16 Cores
AMD Ryzen

8 - 128 GB

4 x 3.5 Hot-Swap

2 x 1GbE

1 x PCI-e (optional)

Chassis

Motherboard

Out of Stock - ETA - End of October 2024
Out of Stock - ETA - End of October 2024

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 980 PRO
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Front USB/COM port

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

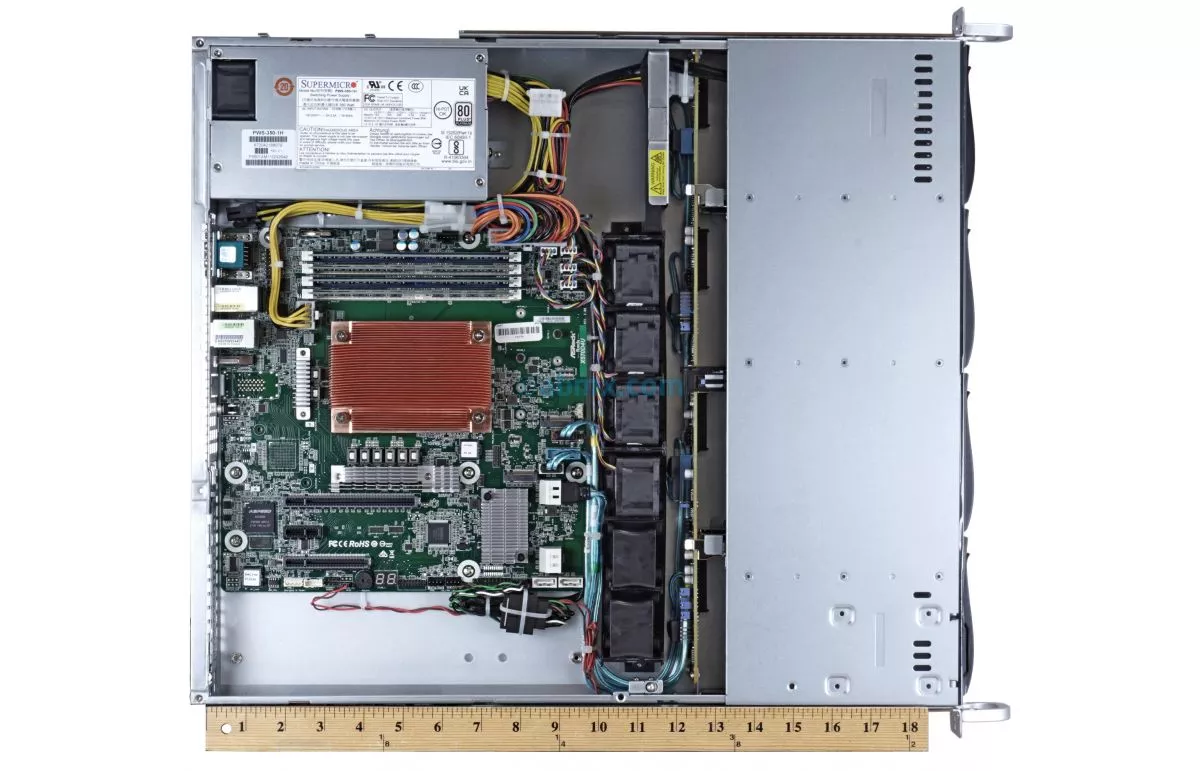

  • 1U Short-Depth Mini Rackmountable Enclosure
  • Rack Unit Height: 1.7-inch

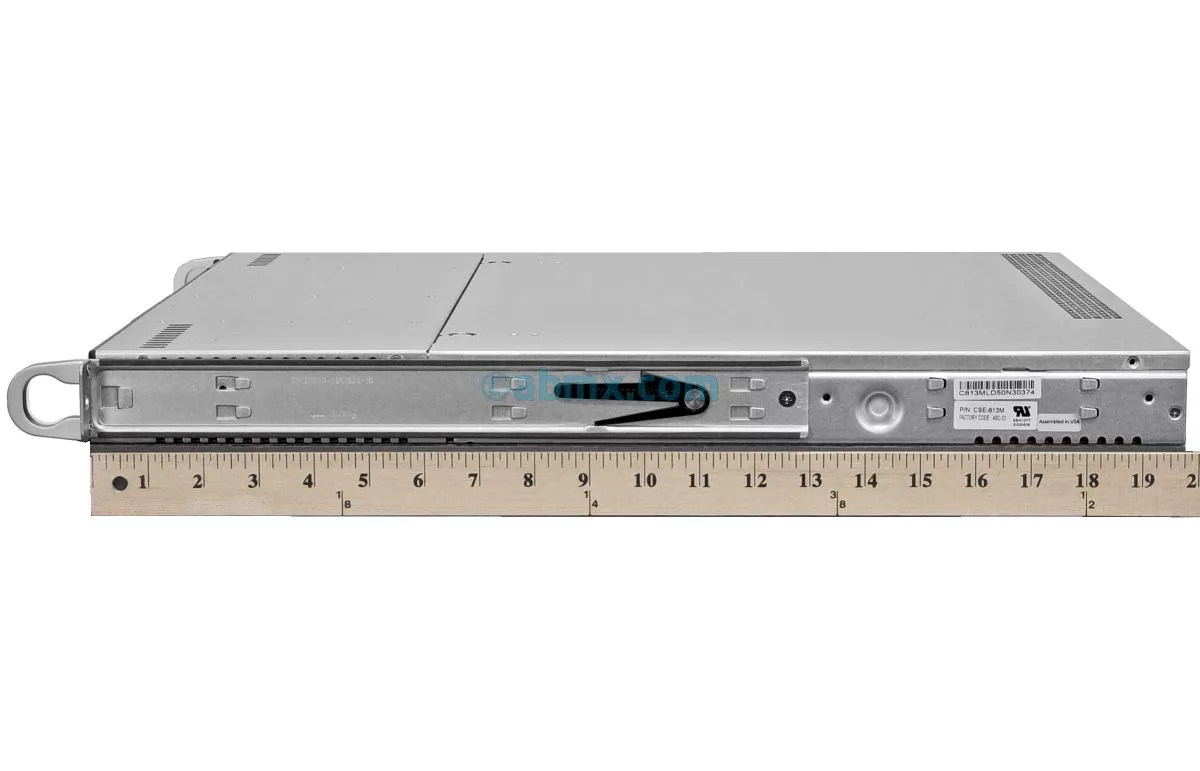

  • Dimensions: 19.85" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
  • Front USB/COM port (OPTIONAL)
Processor/Chipset
  • Single AMD Socket (AM4 PGA 1331)
  • Supports AMD Ryzen™ 5000/4000 Series Processors
  • AMD X570 chipset
BIOS
  • 32MB AMI UEFI Legal BIOS
  • Plug and Play (PnP)
  • ACPI 2.0 Compliance Wake Up Events
  • SMBIOS 2.8.0 Support
Memory
  • 4 x DDR4 DIMM sockets
  • Supports up to 128GB
  • DDR4 ECC/non-ECC Un-buffered memory
  • 3200/2933/2666 MHz
Storage / IPMI
  • 8 x SATA3 (6Gbps) ports
  • Chassis supports four hard drives
  • IPMI 2.0 support (ASPEED AST2500)
  • 2 x M.2 NVMe (22110/2280/2260/2242)

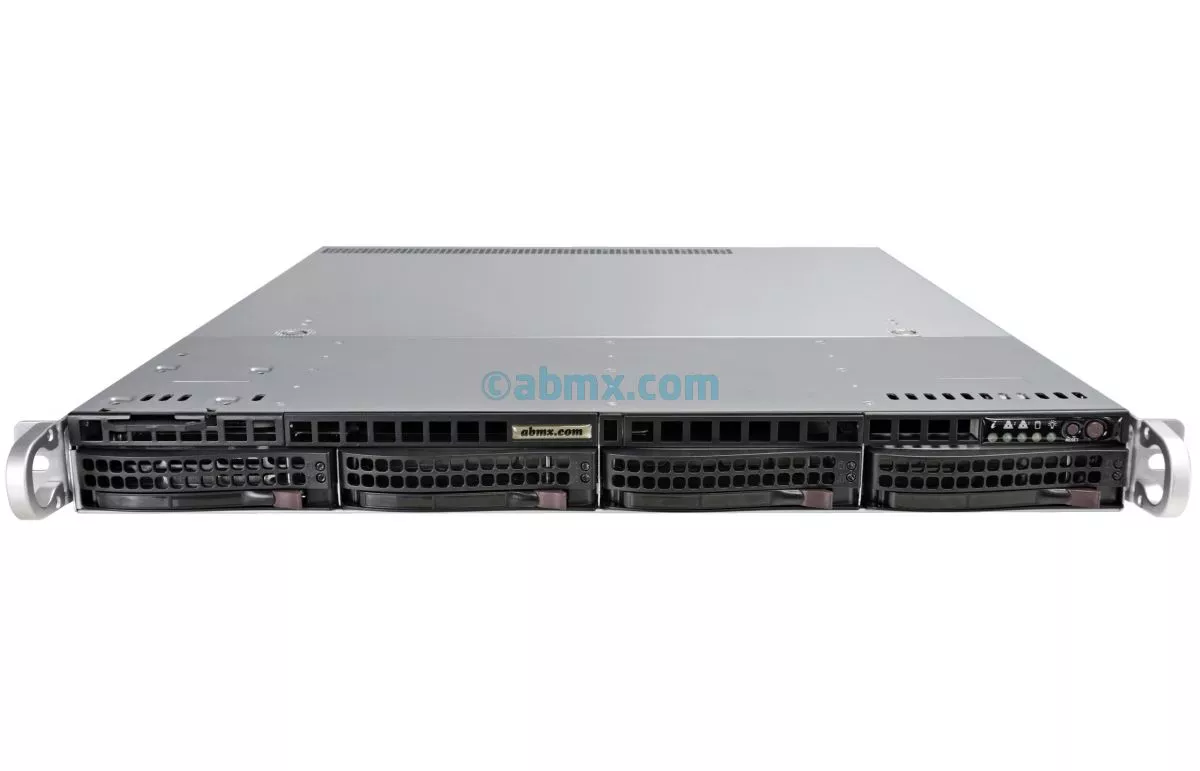

Drive Bays
  • HD1-4 Bay: Hot-swap 3.5-inch SATA/ SSD Drive
  • Up to 72 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

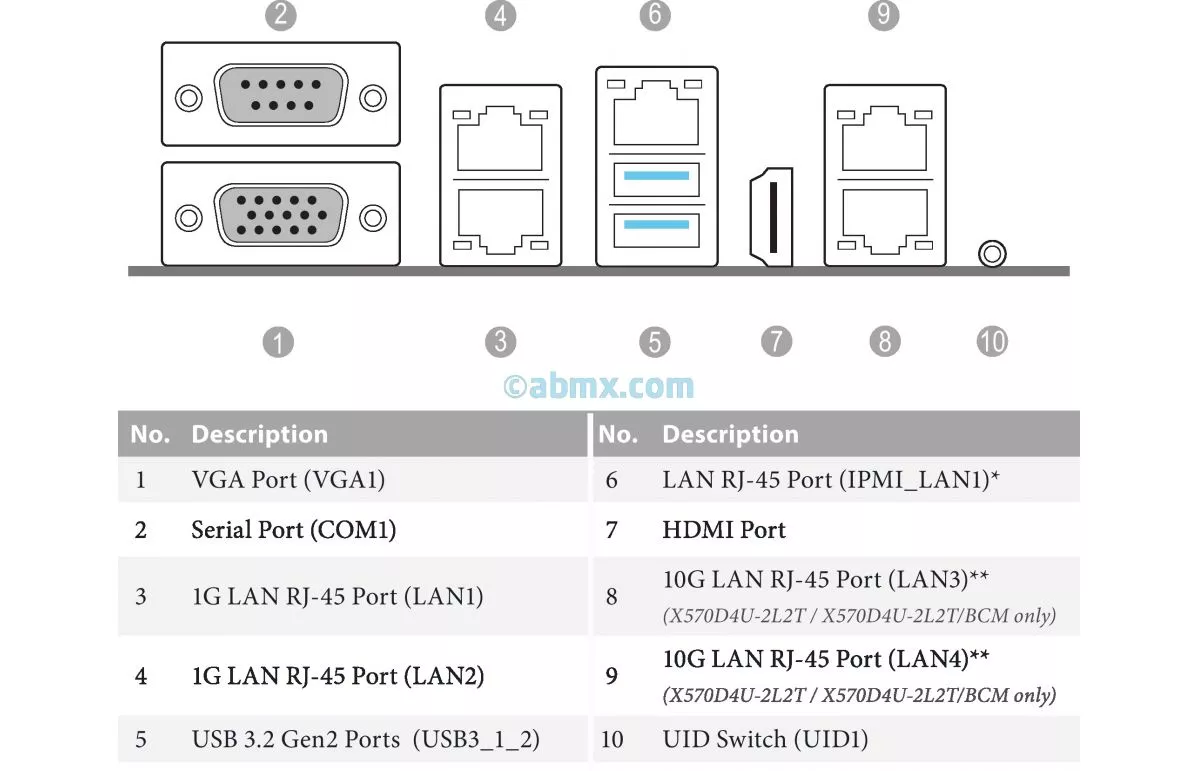

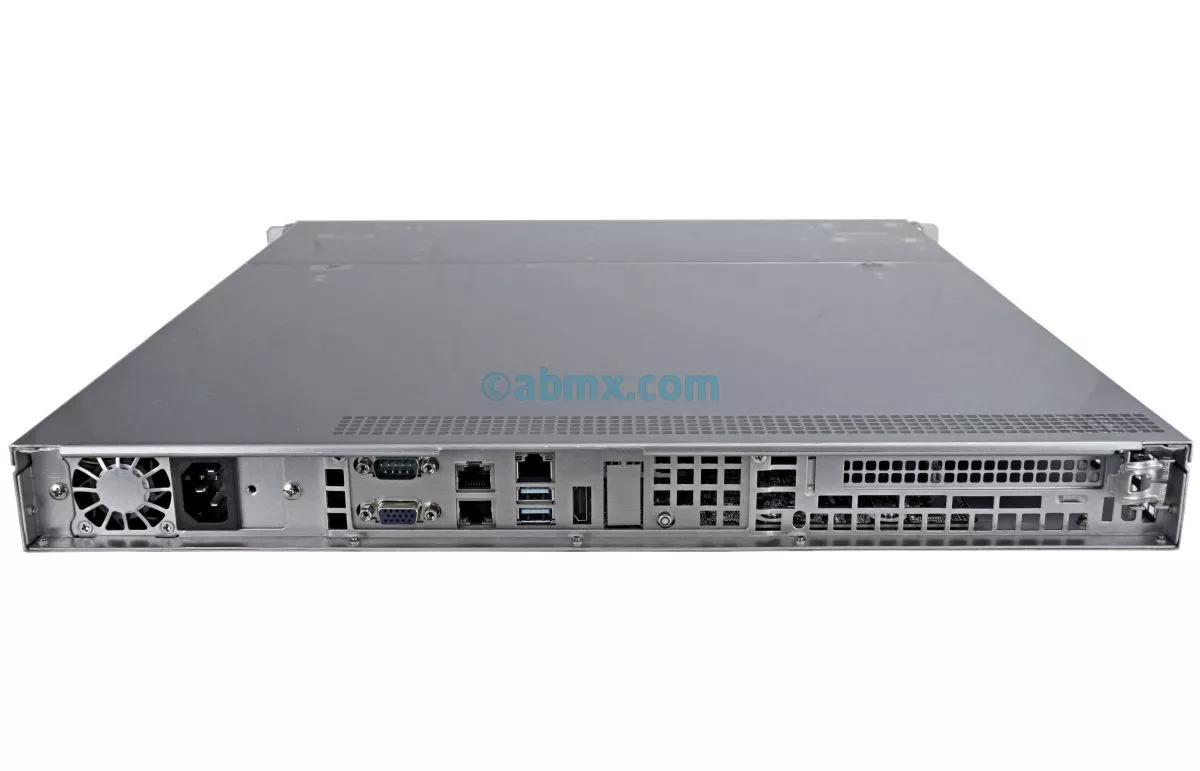

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x Dedicated LAN (IPMI)
  • 2 x USB 3.2 Gen.2 ports 2 (Type-A)
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x Serial Port
  • 1 x TPM Header
  • 1 x SATA DOM port
Video
  • ASPEED AST2500: 1 DB15, 1 (15-pin) header
  • 1 HDMI (HDMI functionality requires AMD Ryzen Processors with Radeon Graphics)

Network
  • Dual Intel® i210 Gigabit LAN (RJ45)
Hardware Monitor
  • Operating Temperature Range 10°C - 35°C (50°F - 95°F)
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 4.0 (x16) slot - full height (via Riser card)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • 1U HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB
  • 48V DC or Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X570D4U OverallChipset
AMD X570		LAN
Intel i210-AT		LAN
Realtek RTL8211E		Video
Aspeed AST2500
Fedora Server 35
Fedora Workstation 35
Windows 11

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
