1U Rackmount PC - Intel Core i3 - i9

Model: 115LS3ZF

-
Core i9, i7, i5
i3, Pentium, Celeron

8 - 64 GB

1 x 3.5 Fixed
4 x 2.5 Fixed

2 x 1GbE

1 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 980 PRO
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

External Optical Drive (for OS installation, Backups, etc.)

Power Supply

Front Bezel Color

Rack Mounting Rail Kit

Special Order

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

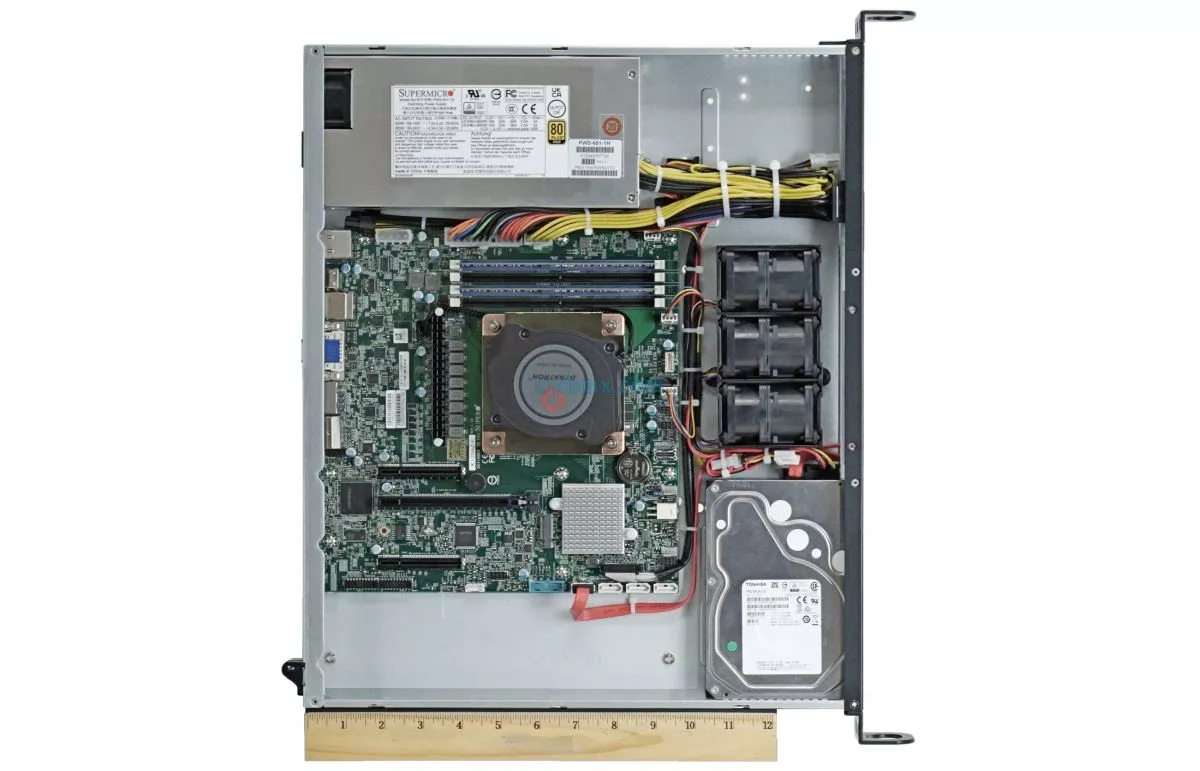

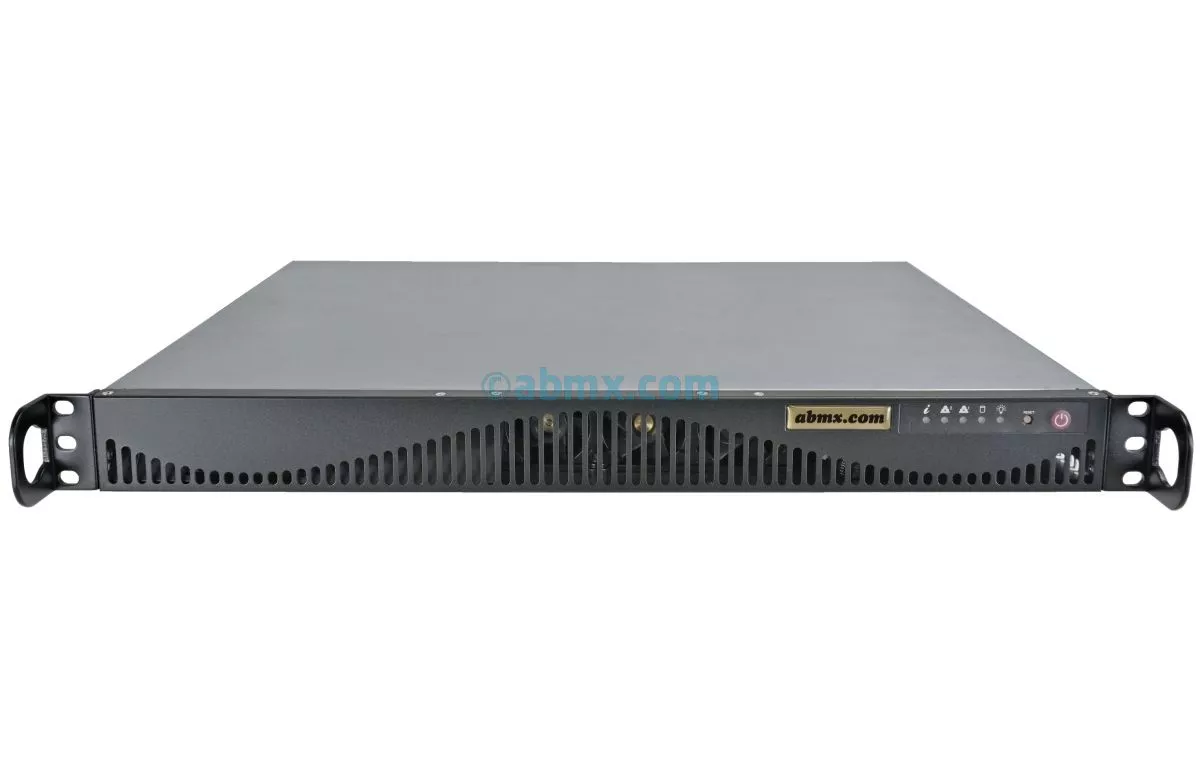

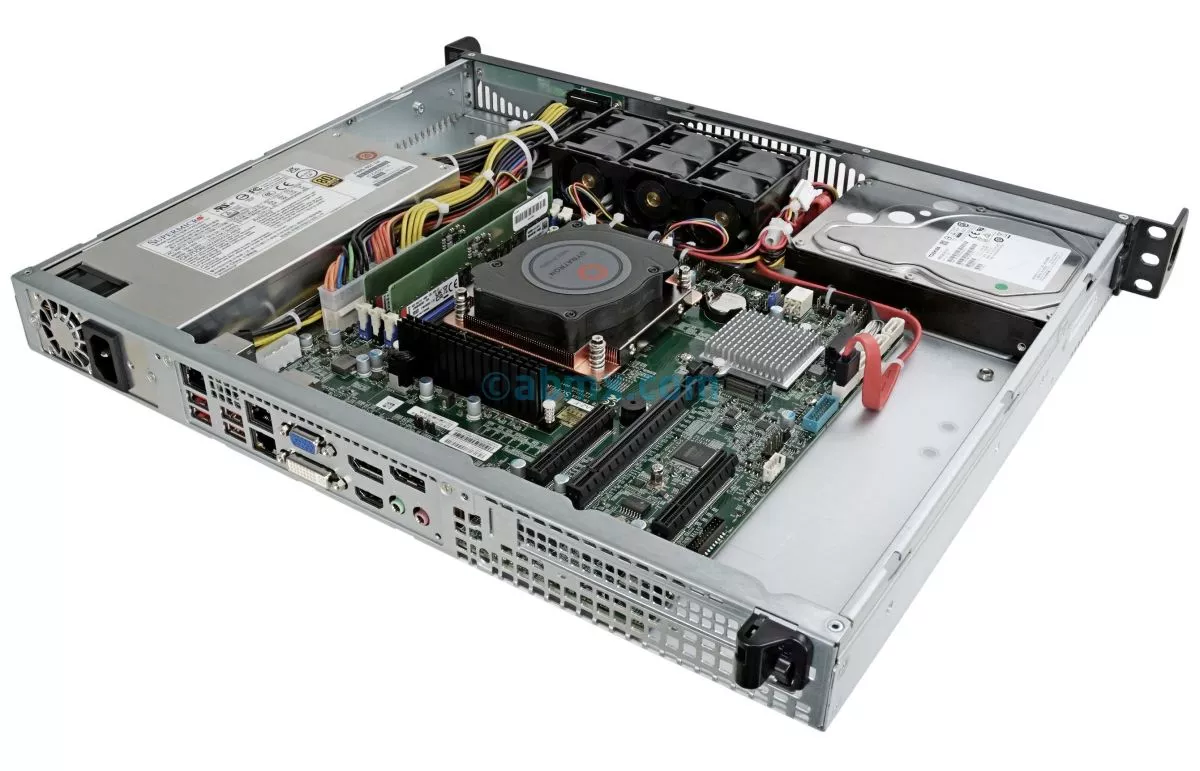

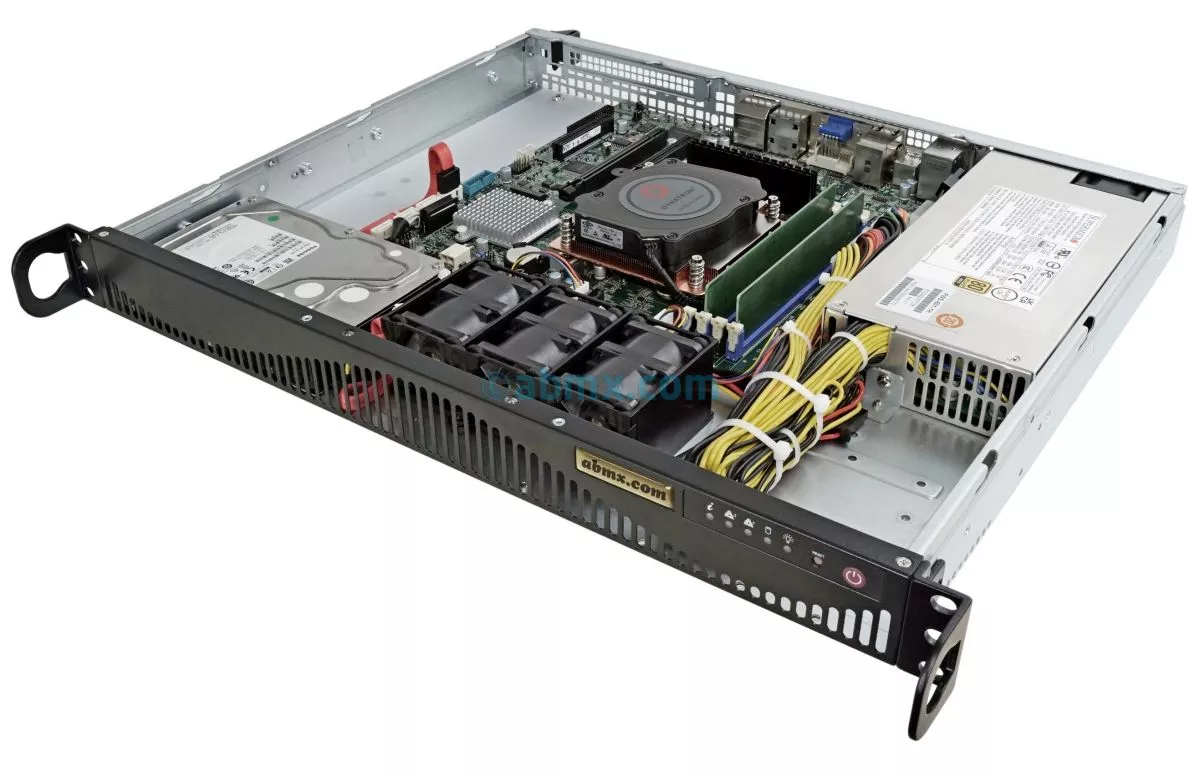

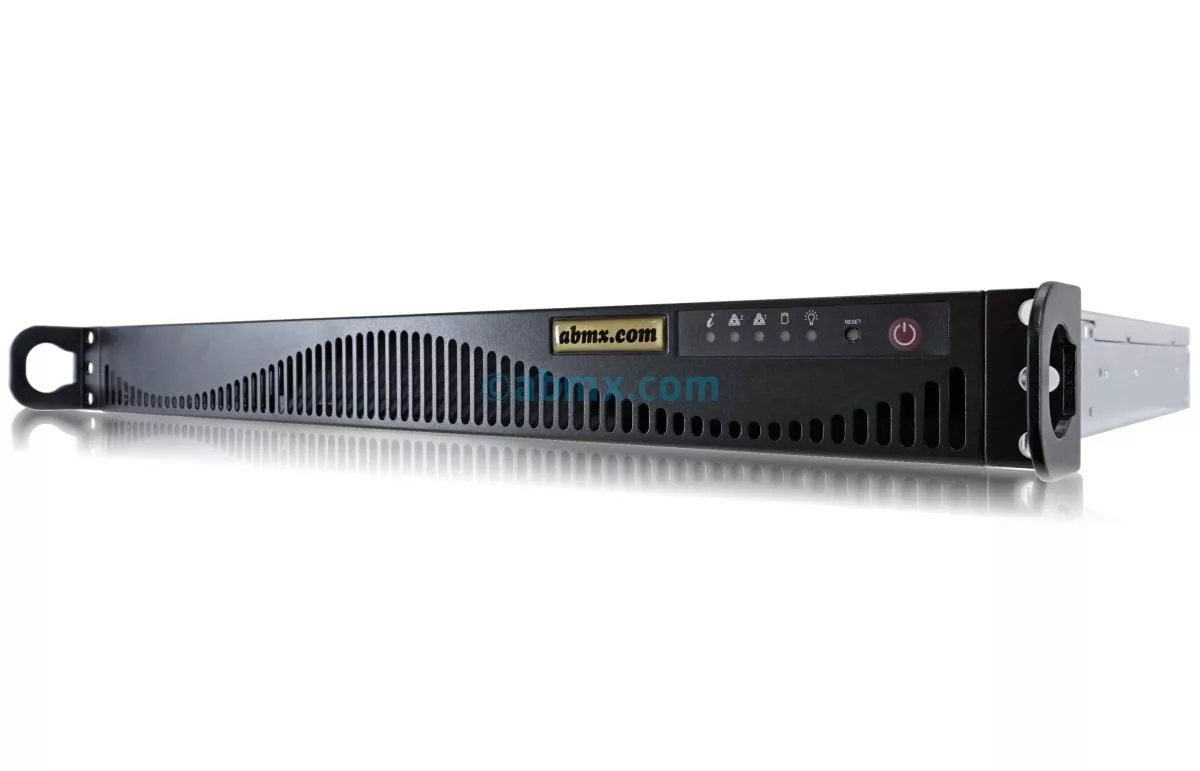

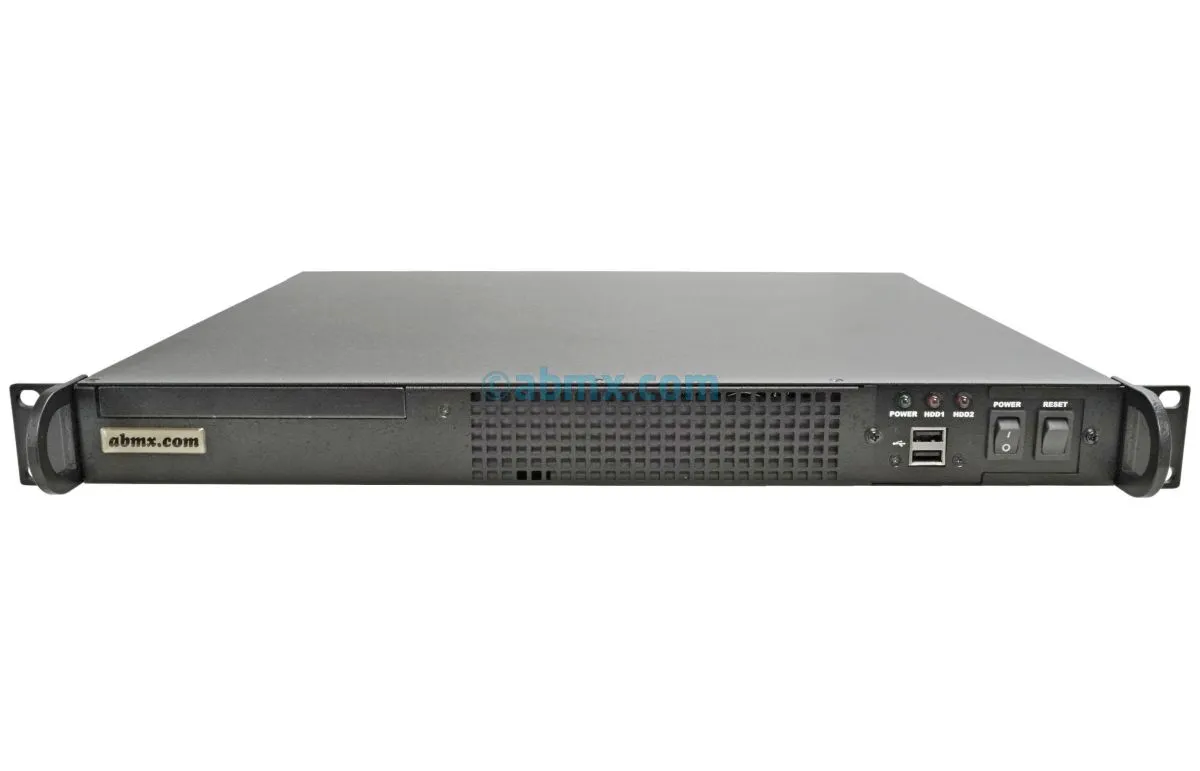

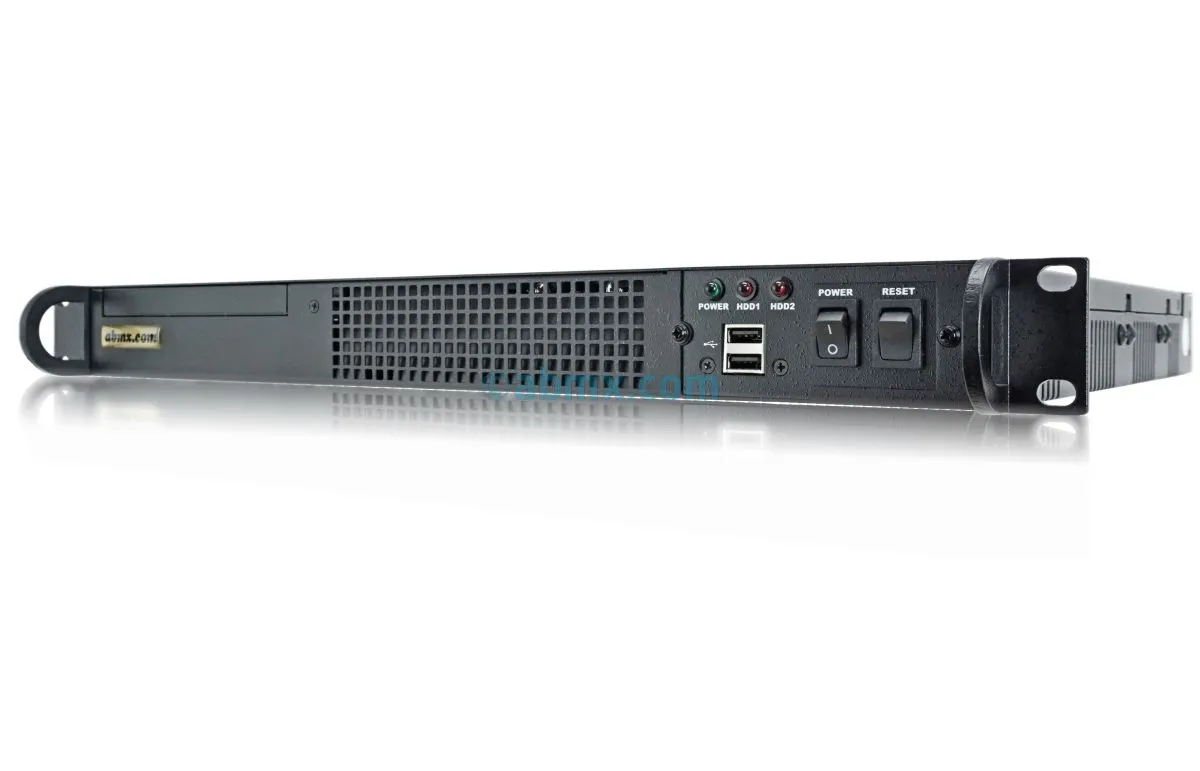

  • 1U Short-depth Mini Rackmountable Enclosure
  • Black color
  • 1 Rack Unit Height (1.7")

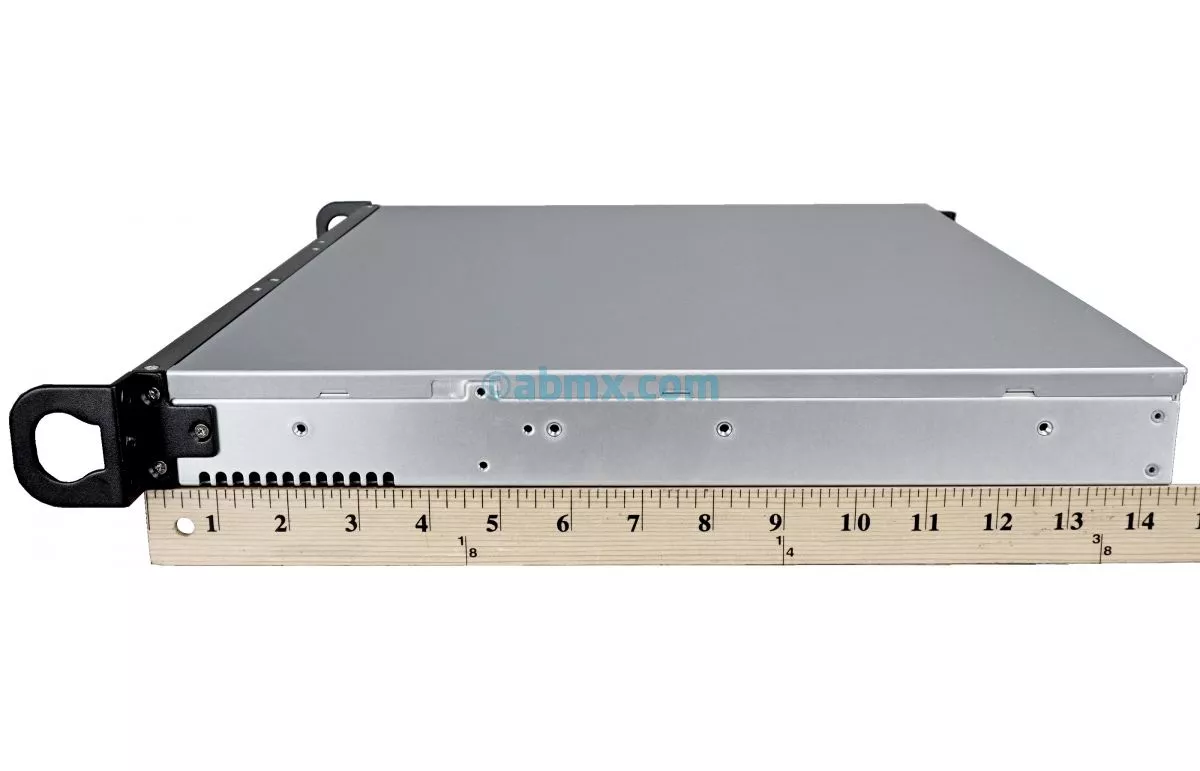

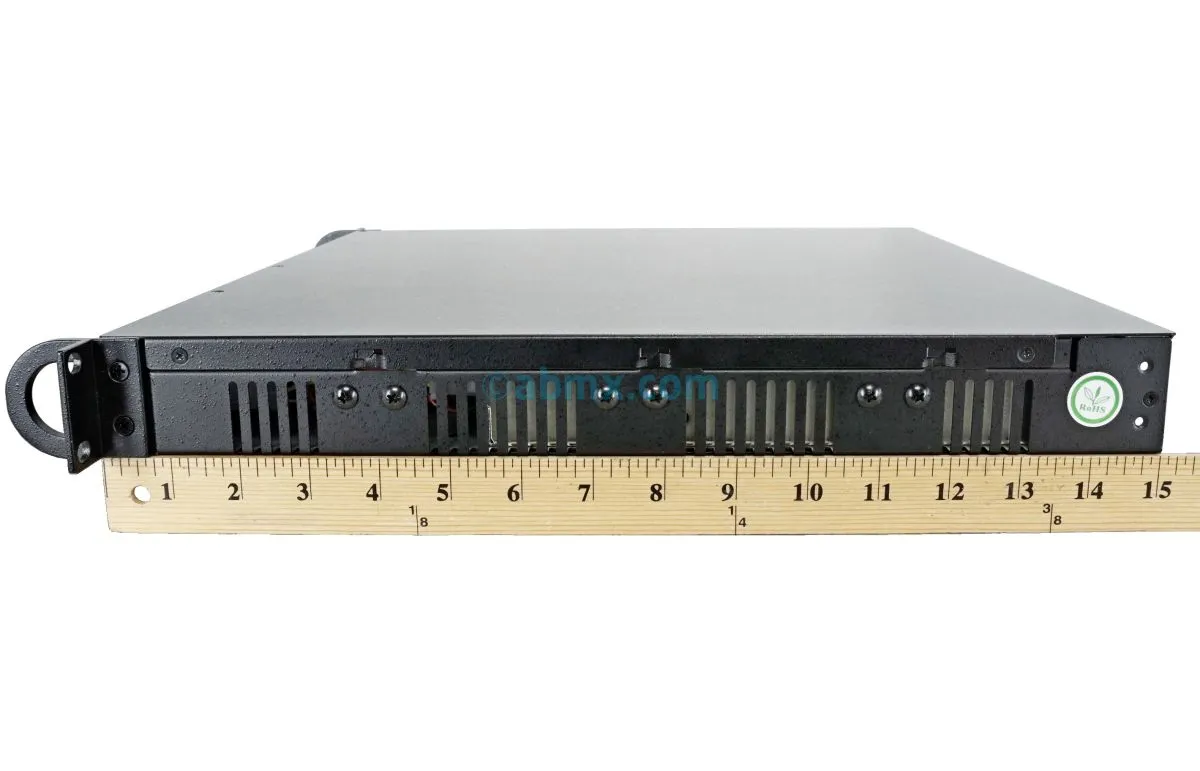

  • Dimensions: 14.5" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-1700
  • Supports 13th /12th Gen. Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Intel® R680E Chipset
BIOS
  • AMI UEFI
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR5 DIMM sockets
  • Supports up to 128GB Unbuffered ECC/non-ECC UDIMM
  • 4400/4000/3600 MT/s
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • Intel R680E controller on-board
  • IPMI 2.0 on-board
  • Chassis supports 1 x 3.5-inch Drive or 4 x 2.5-inch Drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1 Bay: fixed 3.5-inch SATA/ SSD Drive, OR up to ***4 x 2.5-inch SATA/SSD Drives (***Slim-line Optical Drive Option is not available)
  • Up to 24 Terabyte of storage can be supported

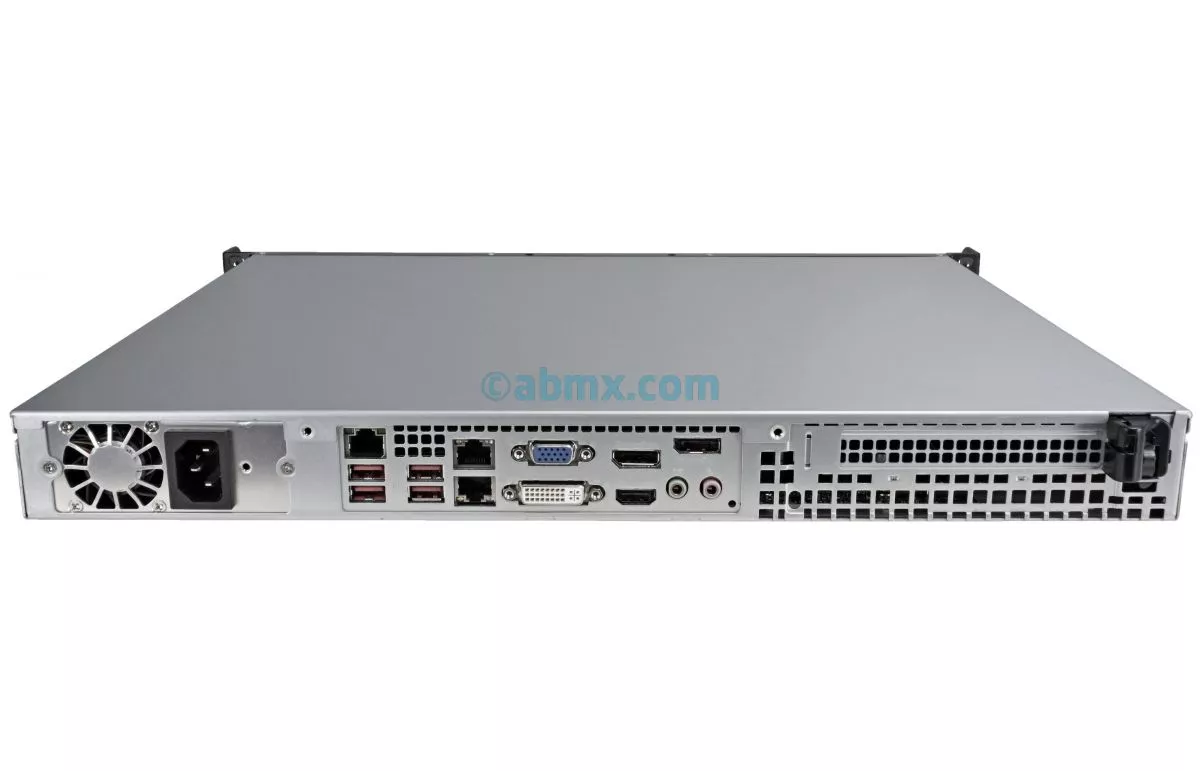

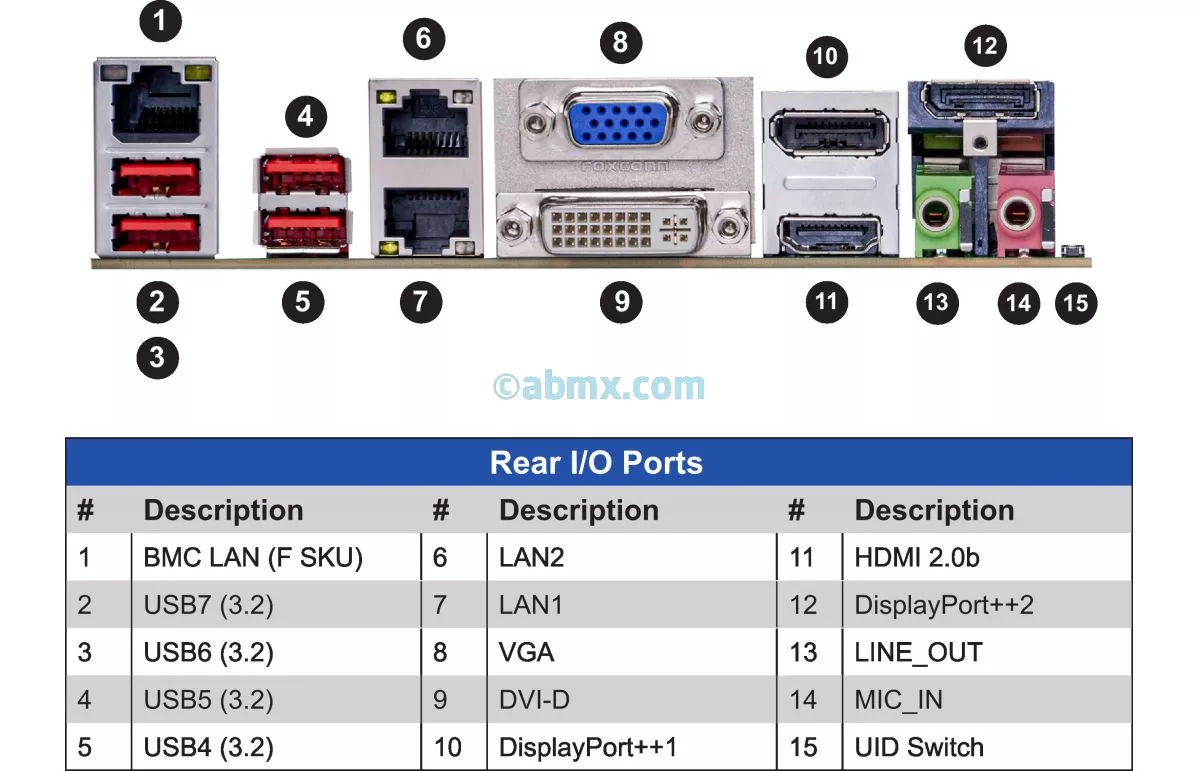

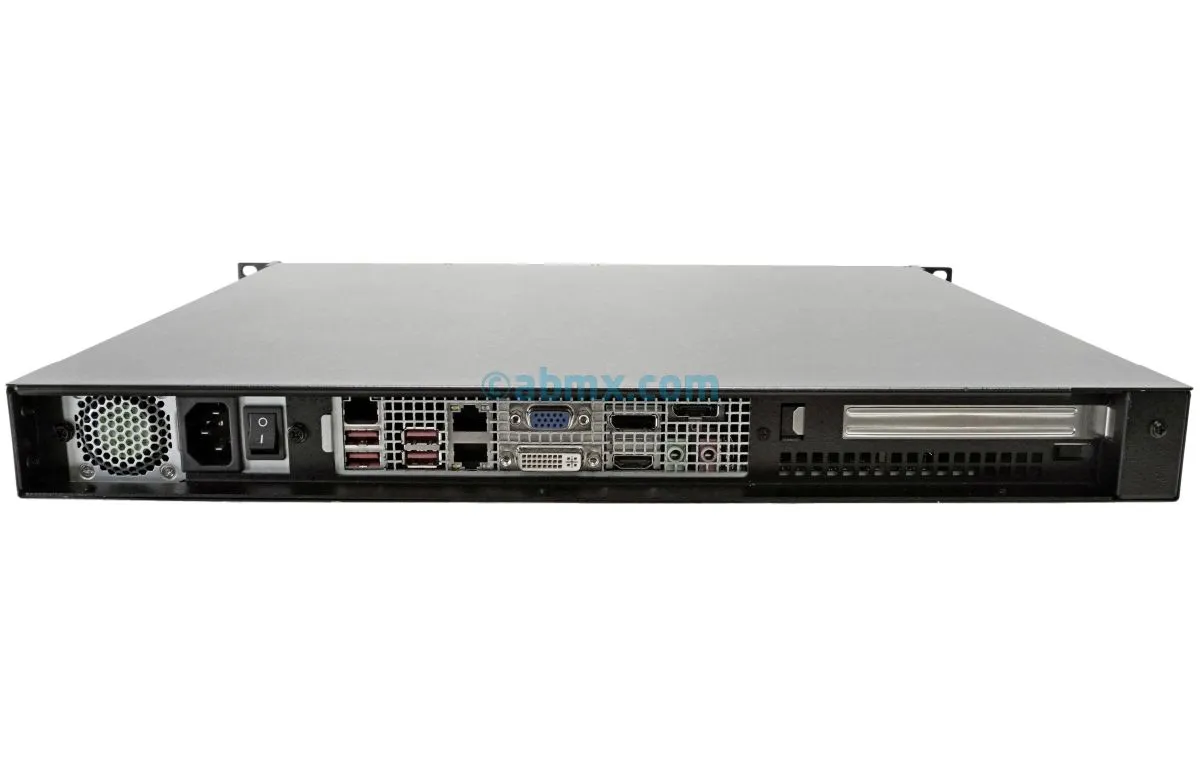

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (4 x headers)
  • 6 x USB 3.2 Gen.2 ports (4 x rear type A, 2 x via header)
  • 2 x USB 3.2 Gen.1 ports (2 x via header)
  • 1 x VGA port
  • 1 x DVI - D port
  • 1 x HDMI 2.0b port
  • 2 x DP (DisplayPort) ports
  • 4 x COM Ports (2 x header RS232/422/485, 2 x header RS232)
  • 1 x TPM Header
Video / Audio
  • ALC 888S HD Audio on-board
  • DVI - D port, 1 HDMI 2.0b port, 2 DP (DisplayPort) ports: integrated graphics from CPU

Network
  • Dual LAN with Intel® Ethernet Controller i225LM
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 5.0 x16 - full height (Riser card)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.

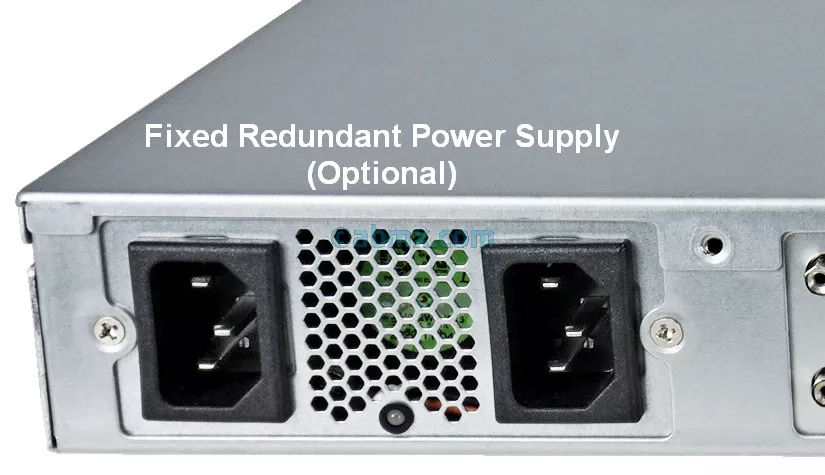

Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB
  • 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)***
  • *** Available only if 1 x 3.5-inch HDD selected
  • External USB Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X13SAZ-F OverallChipset
Intel R680E
LAN
Intel i225LM
Video
ASPEED AST2600
CentOS Stream 9
Debian 12
Fedora Server 38
Fedora Workstation 38
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
