Workstation - AMD Ryzen Threadripper

Model: T26KQZ3SRA

24 - 96 Cores
AMD Ryzen

16 - 256 GB

8 x 3.5 Hot-Swap

2 x 1GbE

4 x PCI-e

Case/Tower

Motherboard

Special Order - ETA - 08/2024

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order

Trusted Platform Module (TPM) -- Required for Windows

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • Tower Chassis
  • Dimensions: 25.5" (D) x 7" (W) x 17.8" (H)
  • Metal thickness: 1.2 mm
  • 90degree Rotatable HDD Cage
  • Whisper-Quiet (<27dB)
  • Front HDD Door Lock / Side Panel Intrusion Switch
  • Kensington Lock Support
  • Front: 2 x USB 3.0
  • 2 x 8cm PWM Fans
  • 1 x Rear 9cm PWM Fan
Processor/Chipset
  • Single Socket sTR5 (LGA-4844)
  • Supports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
  • TRX50 chipset
BIOS
  • AMI 32MB SPI Flash EEPROM
  • ACPI 6.5
  • SMBIOS 3.6 or later
  • UEFI 2.9
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x DDR5 DIMM sockets
  • Suppots up to 4TB
  • 5200 MT/s DDR5 ECC RDIMM/3DS RDIMM
  • Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
Storage
  • 4 x SATA3 (6Gbps) ports
  • 8-channel RAID card is included
  • 2 x M.2 NVMe 2280
  • IPMI 2.0 (ASPEED AST2600)
  • Chassis supports up to eight hard drives
Drive Bays
  • HD1-8 Bay: Hot-swap SATA/ SSD Drive
  • Up to 192 Terabyte of storage can be supported
  • 3 x 5.25-inch Drive Bays

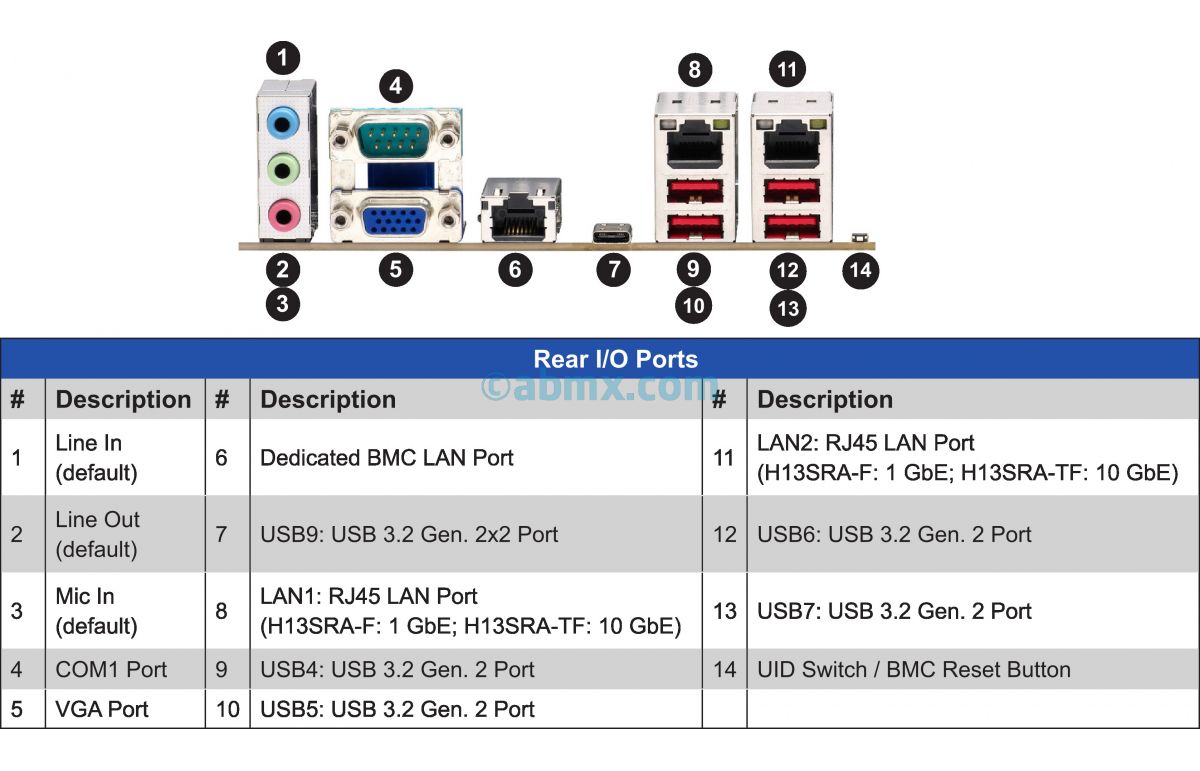

I/O ports
  • 2 x RJ45 Gigabyte Ethernet Lan ports
  • Optional Upgrade to 2 x RJ45 10-Gigabit Ethernet LAN ports
  • 5 x USB 3.2 Gen2x1 ports (1 x header type C, 4 x rear type A)
  • 1 x USB 3.2 Gen2x2 port (1 x rear type C)
  • 2 x USB 3.2 Gen1x1 ports (2 x via header)
  • 2 x USB 2 ports (2 x via header)
  • 1 x VGA port
  • 1 x COM Port (1 x COM rear)
  • 1 x TPM Header
Video / Audio
  • Graphics controller & VGA support via ASPEED AST2600 BMC
  • ALC 888S HD Audio 5.1 Channel on-board

Network
  • Dual Gigabit LAN (Broadcom BCM5720), OR
  • Dual 10Gb LAN (Broadcom BCM57416) (OPTIONAL)
  • Single LAN with ASPEED AST2600 (Dedicated LAN for IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 2 x PCI-E 5.0 (x8) slots (Open rear)
  • 2 x PCI-E5.0 (x16) slots (Metal armor protection, support 2 triple/dual/single-width GPU cards)
  • 1 x PCI-E 4.0 (x8) slot (MCIO connector)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, UL/CB
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Not supported
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard H13SRA-F

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.

Motherboard H13SRA-TF

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
