Workstation HPC - Dual AMD EPYC - 4 x U.2 NVMe

Workstation HPC - Dual AMD EPYC - 4 x U.2 NVMe-1

Workstation HPC - Dual AMD EPYC - 4 x U.2 NVMe-2

1
2

The W227GP73L is a powerful Workstation HPC featuring two of AMD's latest EPYC processors for high-performance computing. With anywhere from 16-cores, up to a massive 320-cores, 640-threads, and up to 6TB of blazing fast DDR5 memory, this dual processor system is capable of handling even the most demanding workloads. Supports U.2 NVMe drives for high-speed and high-capacity storage.

Tech Specs

Chassis

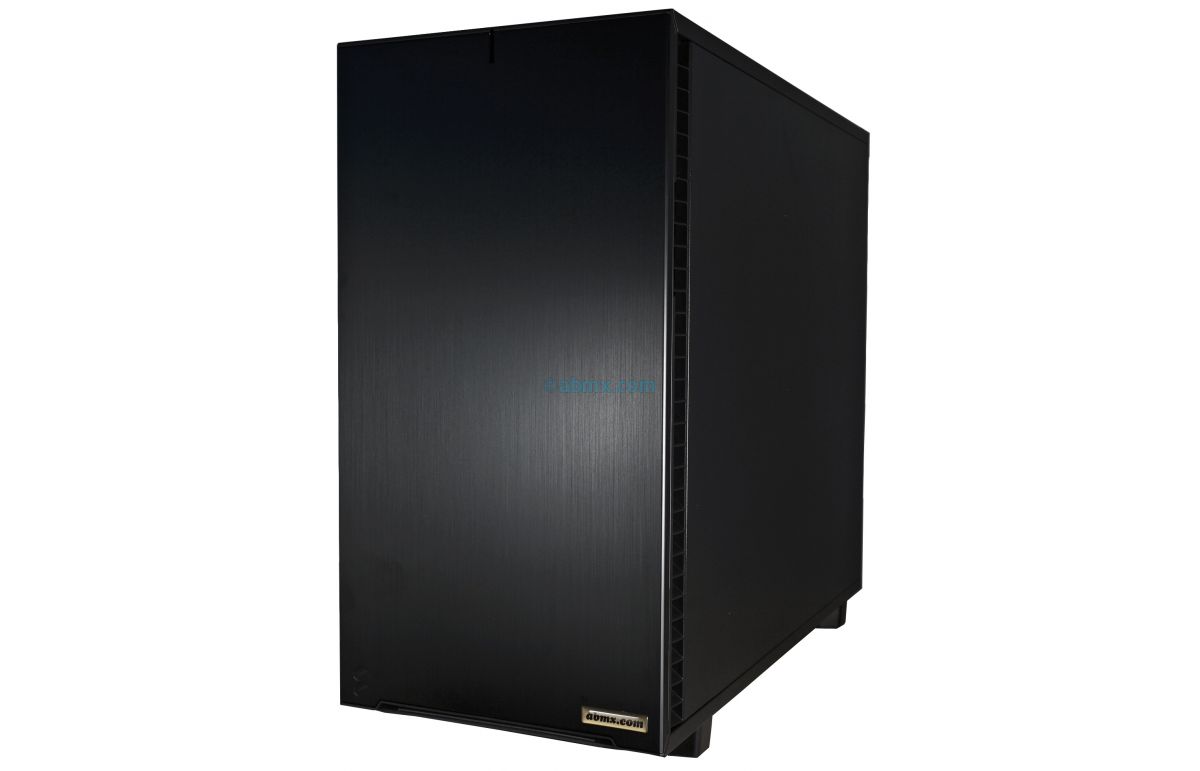

Mini-Tower Industrial Grade Chassis
Dimensions : 21.54" (D) x 9.45" (W) x 18.7" (H)
Metal thickness: 0.8 mm
Front I/O: 1 x USB 3.1 Gen.2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts : 9 x 120/140 mm

Processor/Chipset

Dual Socket SP5 (2 x LGA 6096)
Supports Dual AMD EPYC™ 9005/9004 series Processors
Chipset: System on Chip

Expansion

4 x PCI-e 5.0 (x16) slots

Memory

24 x DIMM slots
Supports up to 3TB
DDR5 ECC Registered memory
12-Channel memory per processor
6400 MT/s

Storage

2 x MCIO 8i for 4x Gen5 NVMe or 16 x SATA
1 x SlimSAS 4i for 4 x SATA
1 x M.2 NVMe (2280, 22110) PCIe Gen4 x4

Drive Bays

4 x 2.5-inch NVMe U.2/U.3 SSD Bays

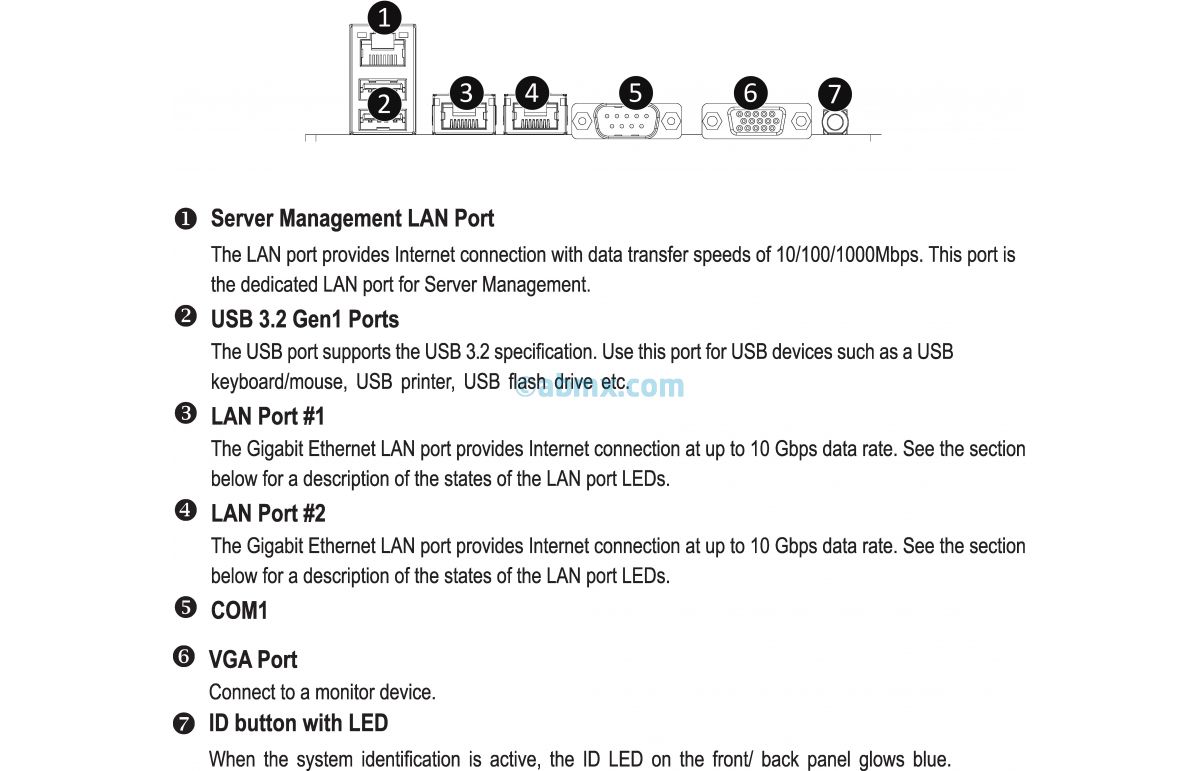

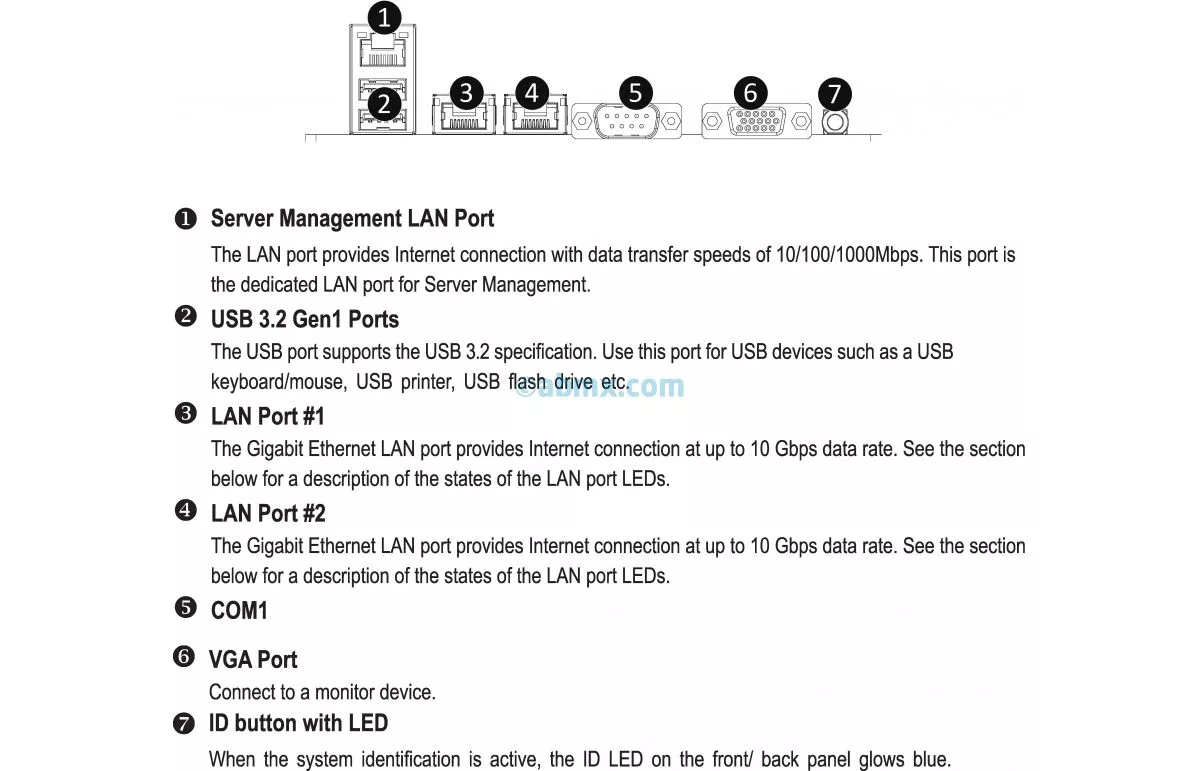

I/O ports

2 x RJ45 10-Gigabit Ethernet LAN ports
1 x RJ45 Managment LAN port
2 x USB 3.2 Gen.1 ports (Type-A)
1 x VGA port
1 x COM port (rear)
1 x TPM 2.0 header
1 x ID button with LED

Video

Integrated ASPEED® AST2600 on-board

Network / IPMI

Dual 10Gb/s LAN ports (Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
IPMI controller on-board via AST2600 BMC

Board Management

ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Power Consumption/Acoustic noise emission

Dependent upon hardware configuration.
Please contact our tech support at 714-258-2269 for further details.

Power Supply

High-efficiency AC power supply
Tested to comply with FCC Standards
Certifications: TUV, CB, CE, CCC

Rack Support

Not supported

OS Compatibility

Please call our tech support at 714-258-2269 for details

Warranty

3 years Parts* and Labor Standard
* Batteries are subject to DOA only and are NOT subject for replacement or return
Extended Warranties Available
