2U Server - Xeon Scalable - All Flash SSD

Model: 218LPX2PL-FLASH

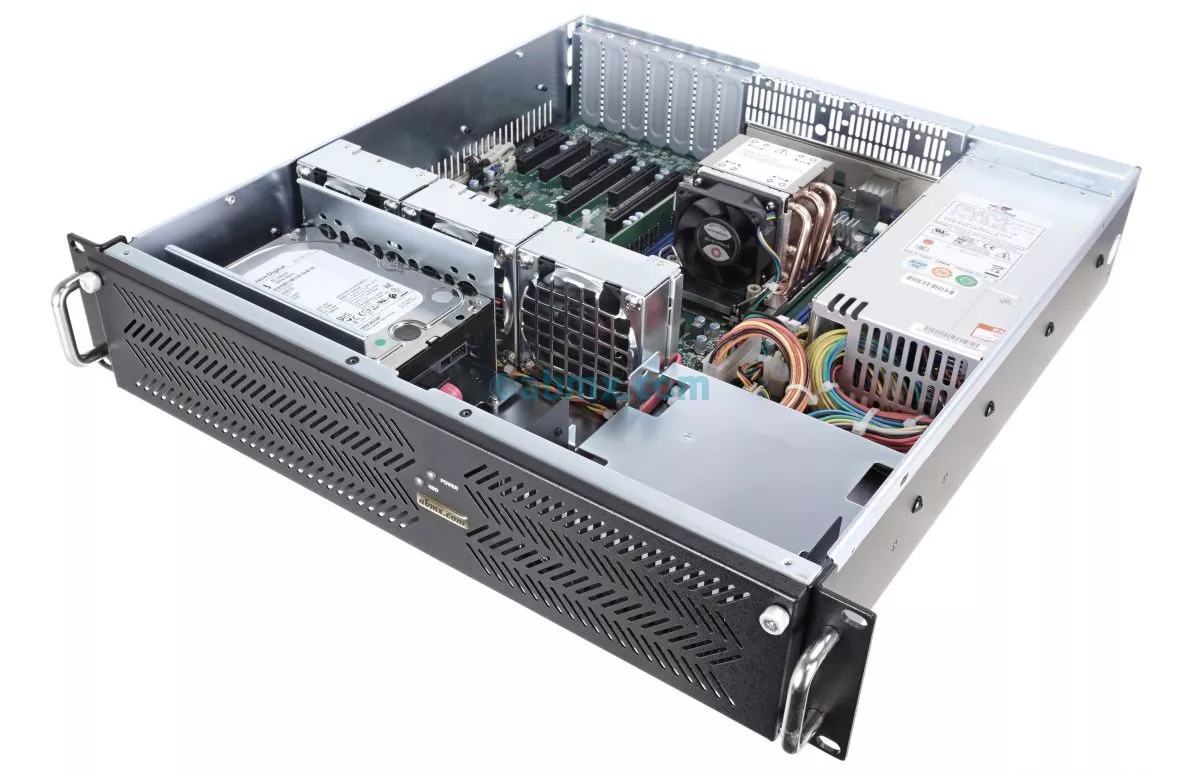

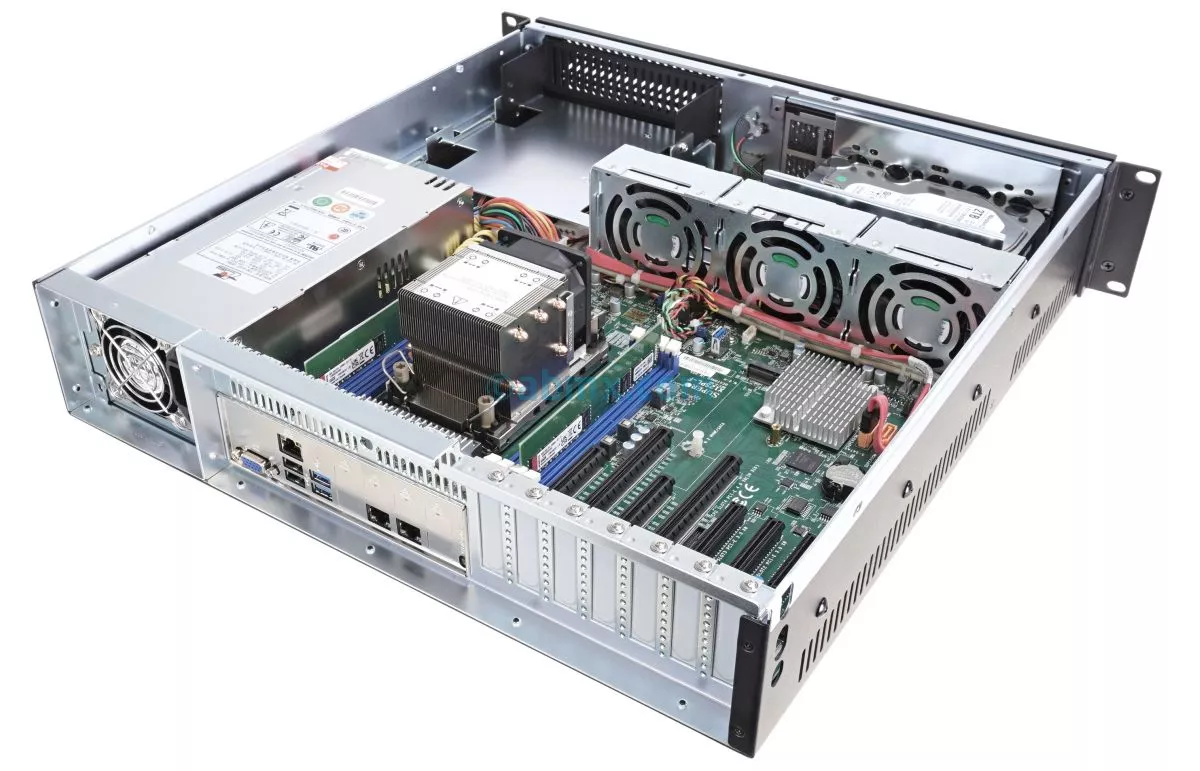

The 218LPX2PL-FLASH is a high-end Xeon Scalable version of our most popular short-depth rackmount server. At only 18" deep, this system can house up to 38 powerful cores and a total of 76 computational threads. Supports 2.5" FLASH SSD's and NVMe M.2 drives for high-speed storage. Great for appliances that need to handle high traffic load or highly parallel tasks in a short-depth form factor.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 18-Inch deep
Recommended Uses

8 - 32 Cores
Xeon Scalable

8 - 512 GB

2 x 1GbE
4 x 1GbE

7 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Samsung 870 EVO - SATA SSD

NVMe M.2 SSD

Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD

PCIe Expansion Slot

PCIe Expansion Slot

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Power Supply

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

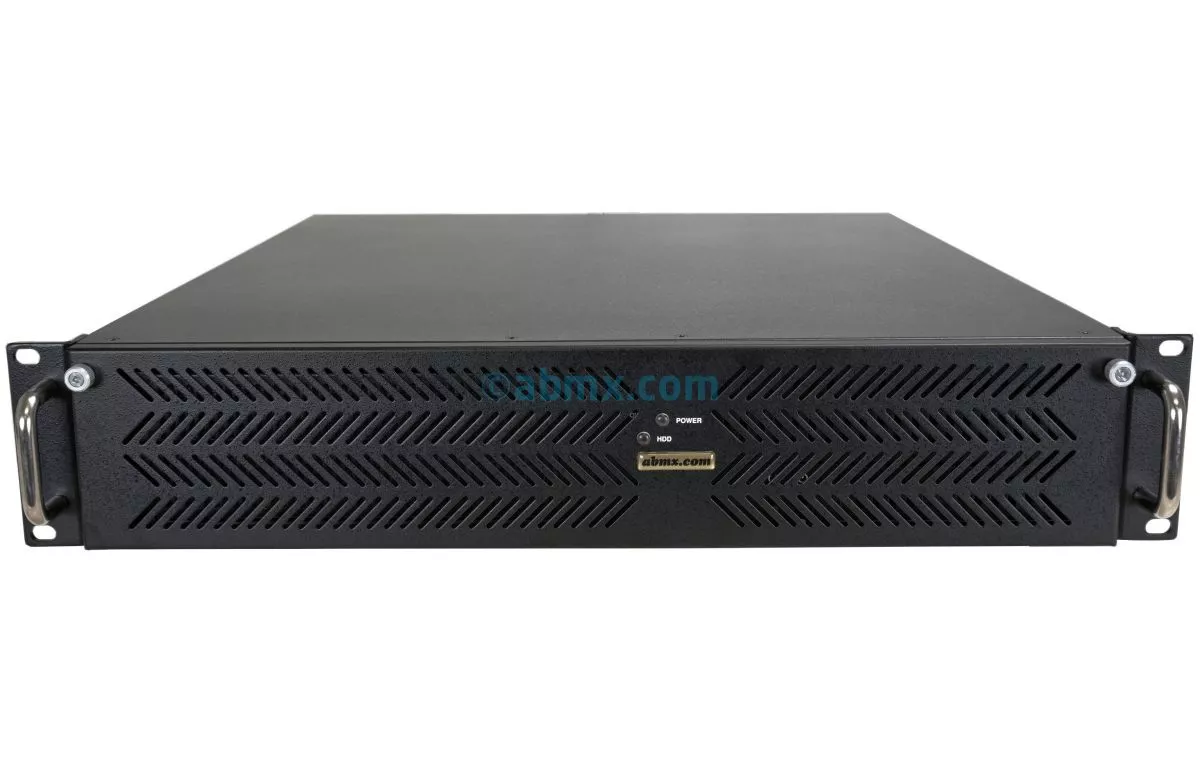

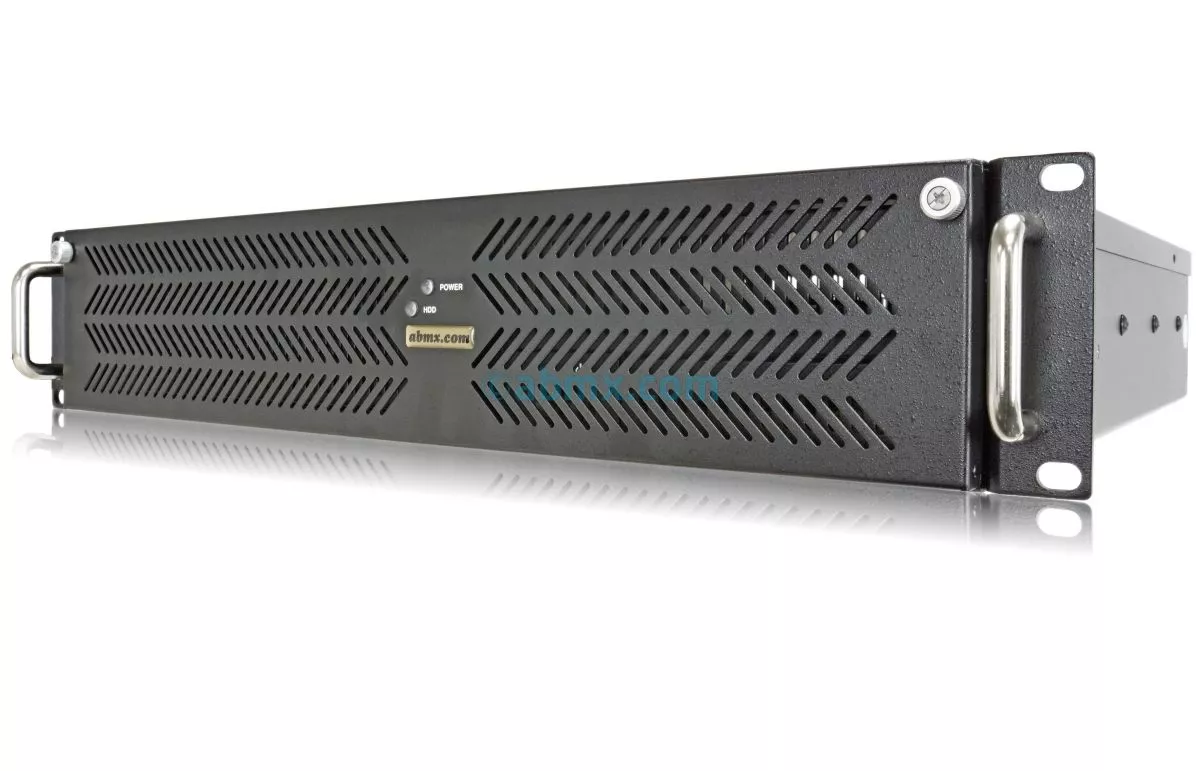

  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

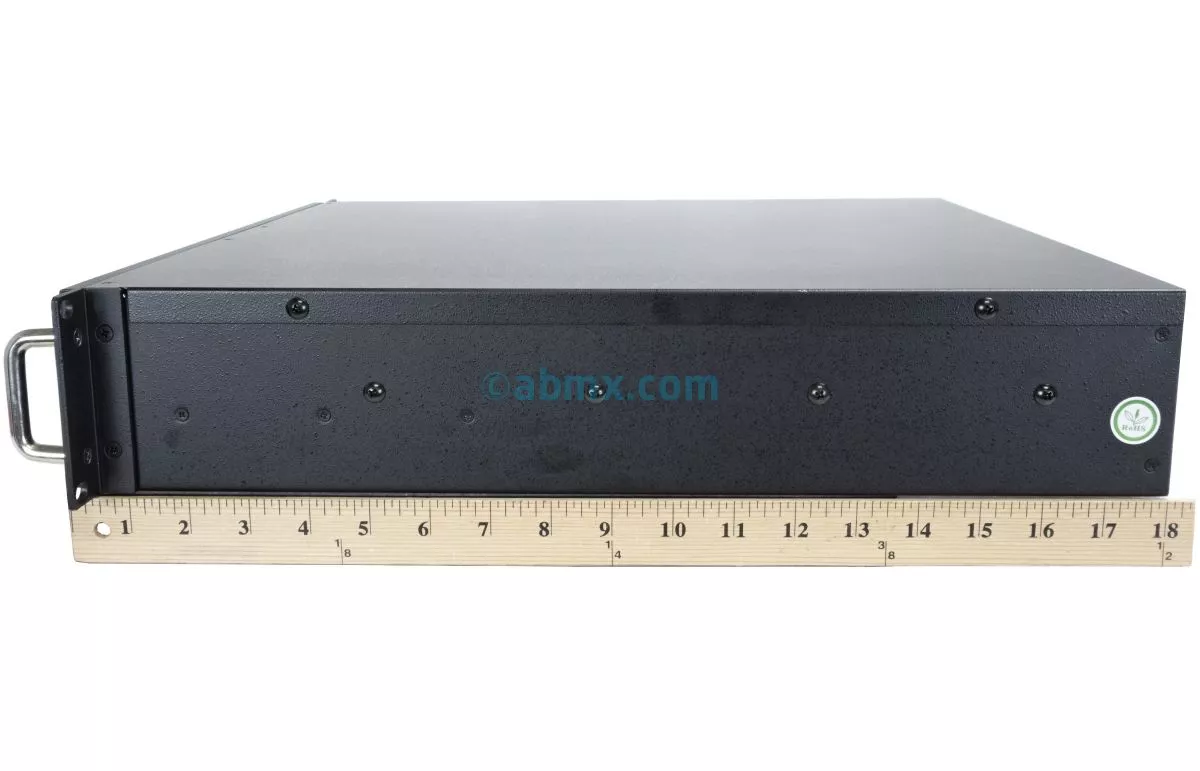

  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Door: Single Door with 2 Thumbscrews
  • Air Filter: Inside Front Panel (Washable)
  • Front: 2 x USB Ports
Processor/Chipset
  • Single Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933/2666MHz ECC 3DS, LRDIMM, RDIMM
Storage
  • Up to 13 x NVMe M.2 SSDs
  • IPMI 2.0 support (ASPEED AST2600 BMC)
Drive Bays
  • Up to 12 x NVMe M.2 SSDs
  • Up to 26TB of storage can be supported

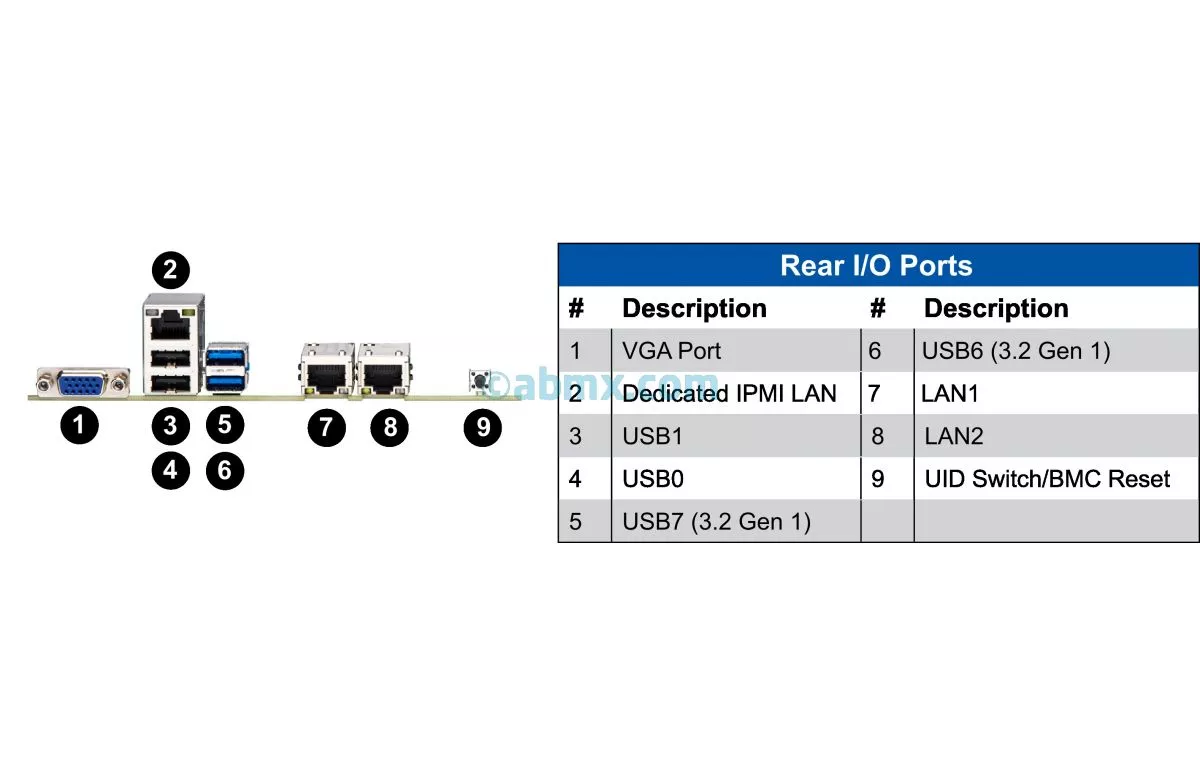

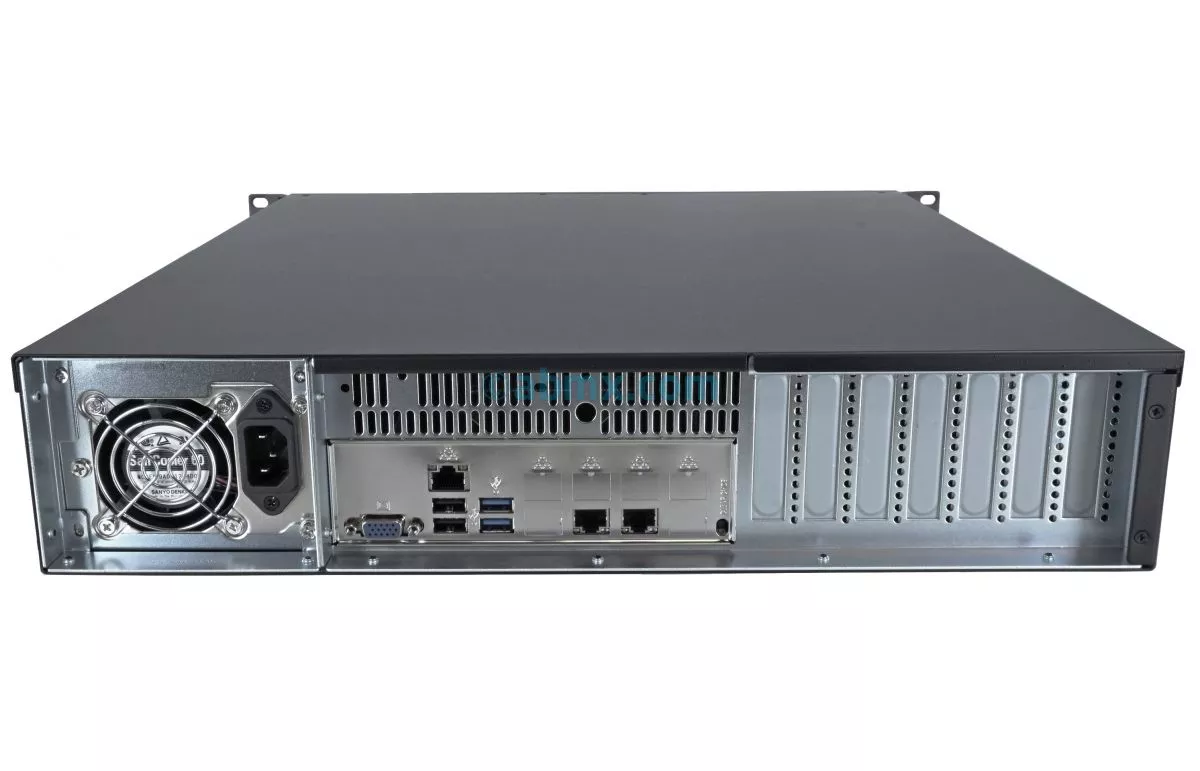

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (4 x via header, 2 x rear)
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-E 4.0 (x16) slot
  • 1 x PCI-E 4.0 (x8) in (x16) slot
  • 2 x PCI-E 4.0 (x8) slot
  • 3 x PCI-E 3.0 (x8) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive is OPTIONAL
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12SPL-F OverallChipset
Intel C621A		LAN
Intel I210		Video
ASPEED AST2600
CentOS 8.4
CentOS Stream 9
ClearOS Community Edition 7.7
7.9
Debian 10.10
12
Fedora Server 32
35
38
Fedora Workstation 33
35
38
FreeBSD 12.2
14
Linux Mint 20
21
Manjaro Linux 20.2
Open Media Vault 4.1.3
6.0.24
OpenBSD 6.8
6.9
7
OpenSUSE Leap 15.4
OPNsense 19.1
23.7
Oracle Linux 7.6
9.0
PFSense 2.4
2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 8.1
9
Rocky Linux 8.4
9
Scientific Linux 7.6
7.9
SUSE Enterprise Server 15
TrueNAS 12.0
13
Ubuntu Desktop 18.04.4 LTS
20.04 LTS
22.04 LTS
Ubuntu Server 18.04.4 LTS
20.04 LTS
22.04 LTS
VMWare ESXi 6.7
8
Windows 11
Windows 32-bit 10
Windows Server 2019
2022
Xenserver 7.6
XigmaNAS 12.3.0.4
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.

Motherboard X12SPL-LN4F

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
