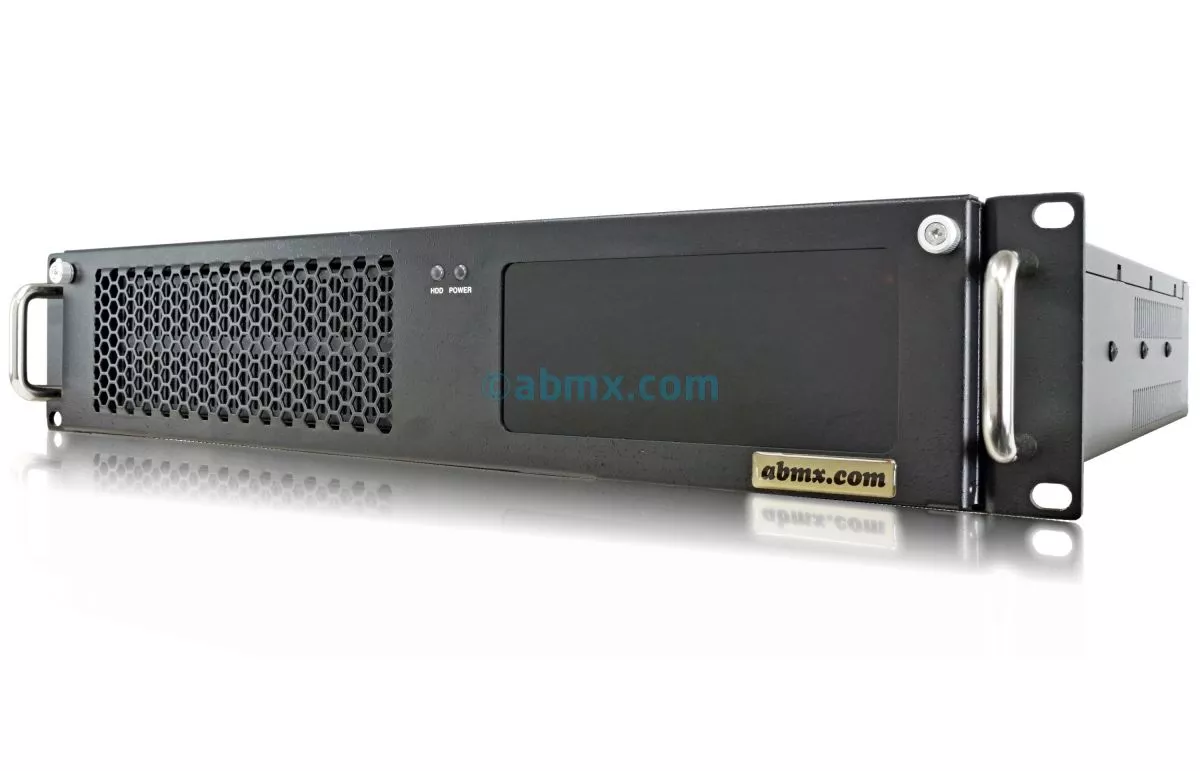

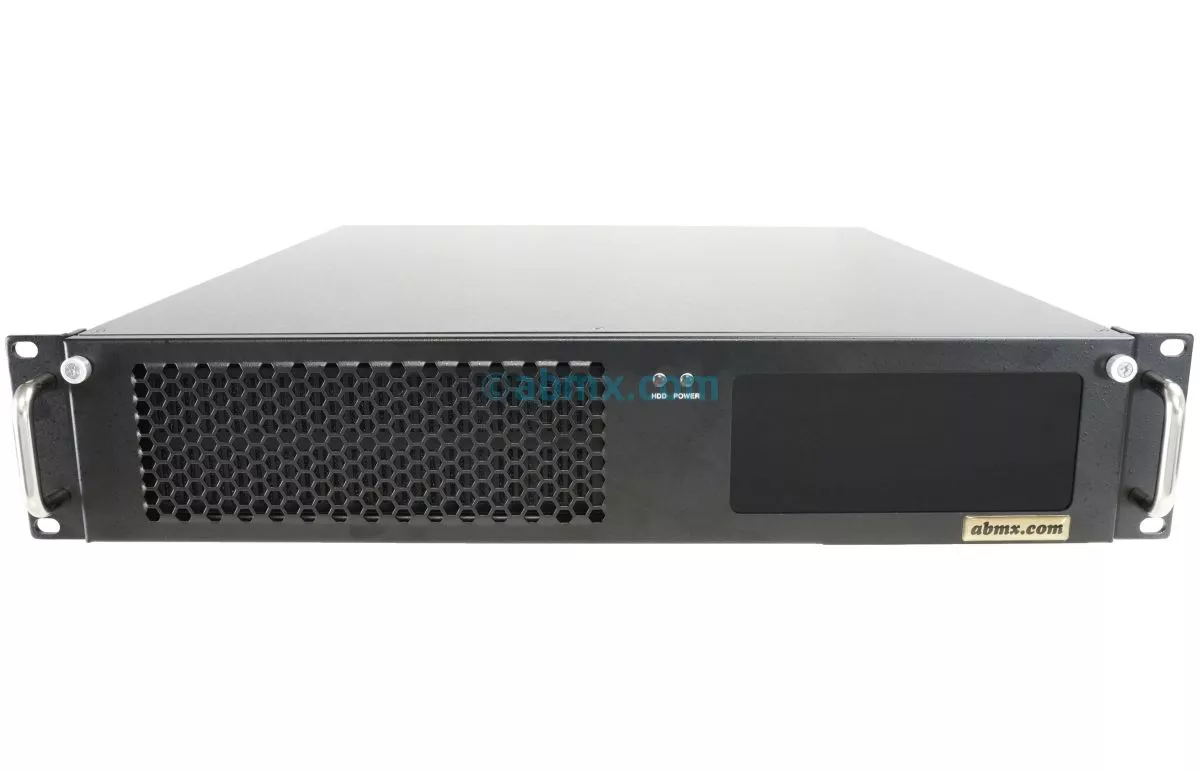

2U Rackmount Server - AMD Threadripper Pro

Elevate your server performance with our 2U  Rackmount AMD Threadripper Server.
The 220LPZ3SRA features AMD's latest Threadripper and Threadripper Pro CPUs, offering up to 96 powerful cores and 4TB of blazing fast DDR5 memory for unparalleled computing power. With a compact design and robust construction, it's engineered for efficiency and reliability. Whether you're tackling demanding workloads or powering intensive applications, this 2U Rackmount AMD Threadripper Server is the ultimate solution. Contact us now to learn more and customize your configuration.

Key Features
  • Short Depth
  • Front USB
  • Redundant Power (optional)
  • Video (HD Output)
  • 5.25" Drive Bay
  • 20-Inch deep
  • TPM 2.0 (Optional)
  • Dedicated IPMI
  • Dual LAN - 1GbE
  • Dual LAN - 10GbE (Optional)
Related Tags
Samsung 970 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
Western Digital® Enterprise-class
NVIDIA Ampere
NVIDIA Turing
NVIDIA Ampere
NVIDIA Turing
NVIDIA Ada Lovelace
NVIDIA Ampere
NVIDIA Ada Lovelace
Special Order
Microsoft®

Tech Specs

Chassis

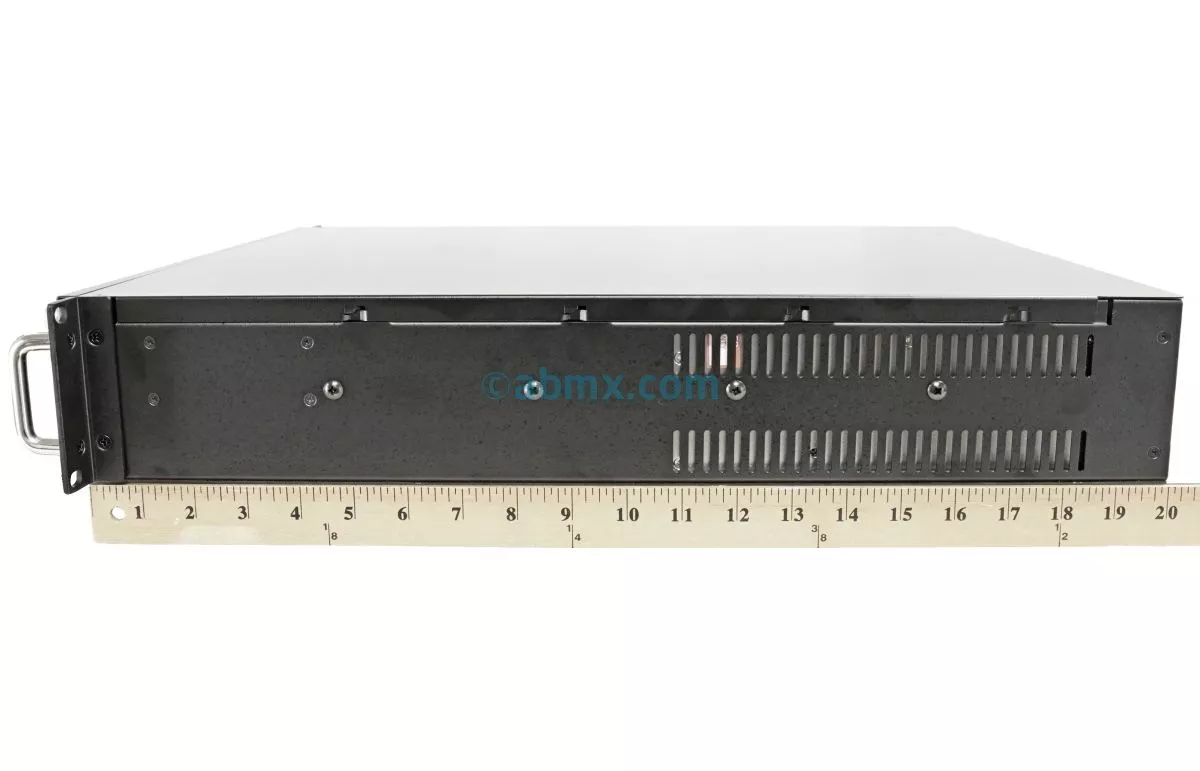

  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch
  • Dimensions: 20.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Single Door w/ 2 Thumbscrews
  • Air Filter: Inside Front Panel (Washable)
  • Front USB: 2 ports
Processor/Chipset
  • Single Socket sTR5 (LGA-4844)
  • Supports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
  • TRX50 chipset
BIOS
  • AMI 32MB SPI Flash EEPROM
  • ACPI 6.5
  • SMBIOS 3.6 or later
  • UEFI 2.9
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x DDR5 DIMM sockets
  • Suppots up to 4TB
  • 5200 MT/s DDR5 ECC RDIMM/3DS RDIMM
  • Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
Storage
  • 4 x SATA3 (6Gbps) ports
  • IPMI 2.0 (ASPEED AST2600)
  • Chassis supports up to three drives
  • 2 x M.2 NVMe 2280
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Drive
  • Up to 72 Terabyte of storage can be supported
  • 1 x 5.25-inch Drive Bay
I/O ports
  • 2 x RJ45 Gigabyte Ethernet Lan ports
  • Optional Upgrade to 2 x RJ45 10-Gigabit Ethernet LAN ports
  • 5 x USB 3.2 Gen2x1 ports (1 x header type C, 4 x rear type A)
  • 1 x USB 3.2 Gen2x2 port (1 x rear type C)
  • 2 x USB 3.2 Gen1x1 ports (2 x via header)
  • 2 x USB 2 ports (2 x via header)
  • 1 x VGA port
  • 1 x COM Port (1 x COM rear)
  • 1 x TPM Header
Video / Audio
  • Graphics controller & VGA support via ASPEED AST2600 BMC
  • ALC 888S HD Audio 5.1 Channel on-board

Network
  • Dual Gigabit LAN (Broadcom BCM5720), OR
  • Dual 10Gb LAN (Broadcom BCM57416) (OPTIONAL)
  • Single LAN with ASPEED AST2600 (Dedicated LAN for IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 2 x PCI-E 5.0 (x8) slots (Open rear)
  • 2 x PCI-E5.0 (x16) slots (Metal armor protection, support 2 triple/dual/single-width GPU cards)
  • 1 x PCI-E 4.0 (x8) slot (MCIO connector)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • AC HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: CB, CCC, CE, TUV
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Large Image

OS Compatibility

Motherboard H13SRA-F OverallChipset
AMD TRX50		LAN
Broadcom BCM5720
CentOS 9
Debian 12
Fedora Server 41
Fedora Workstation 41
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 22.04 LTS
24.04 LTS
Ubuntu Server 22.04 LTS
24.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.

OS Compatibility

Motherboard H13SRA-TF OverallChipset
AMD TRX50		LAN
Broadcom BCM57416
CentOS 9
Debian 12
Fedora Server 41
Fedora Workstation 41
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 22.04 LTS
24.04 LTS
Ubuntu Server 22.04 LTS
24.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
