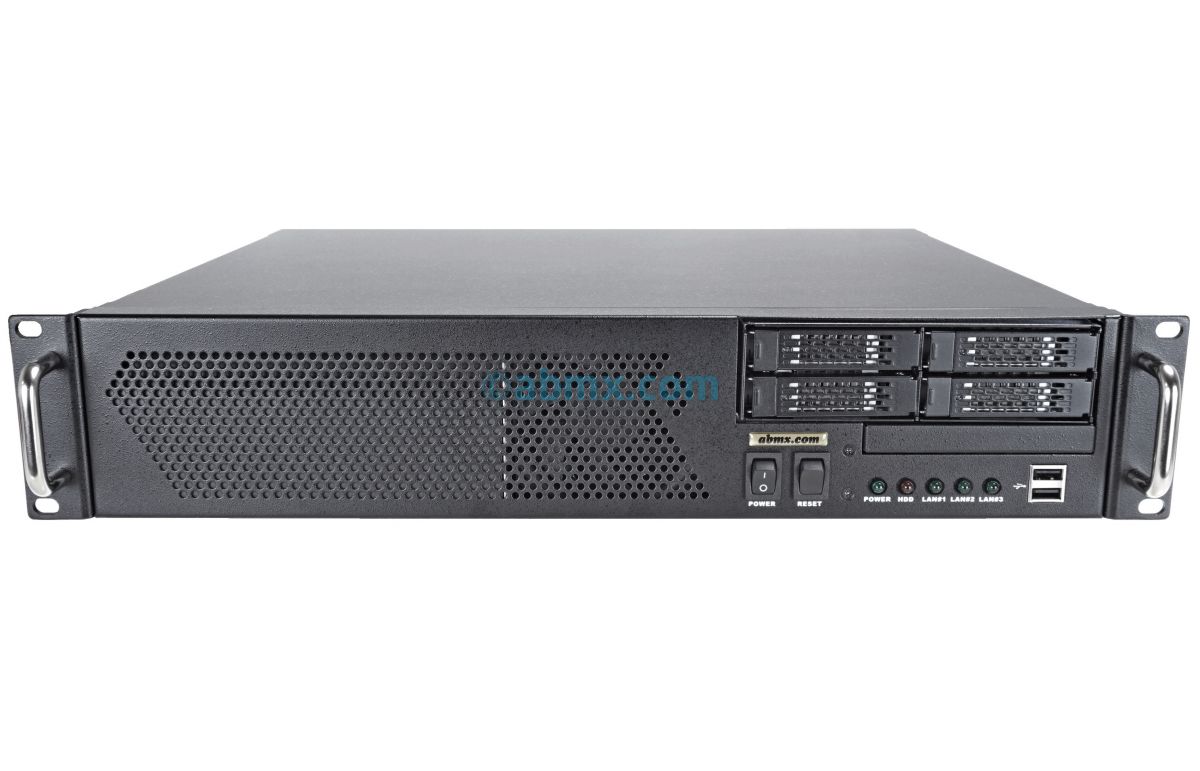

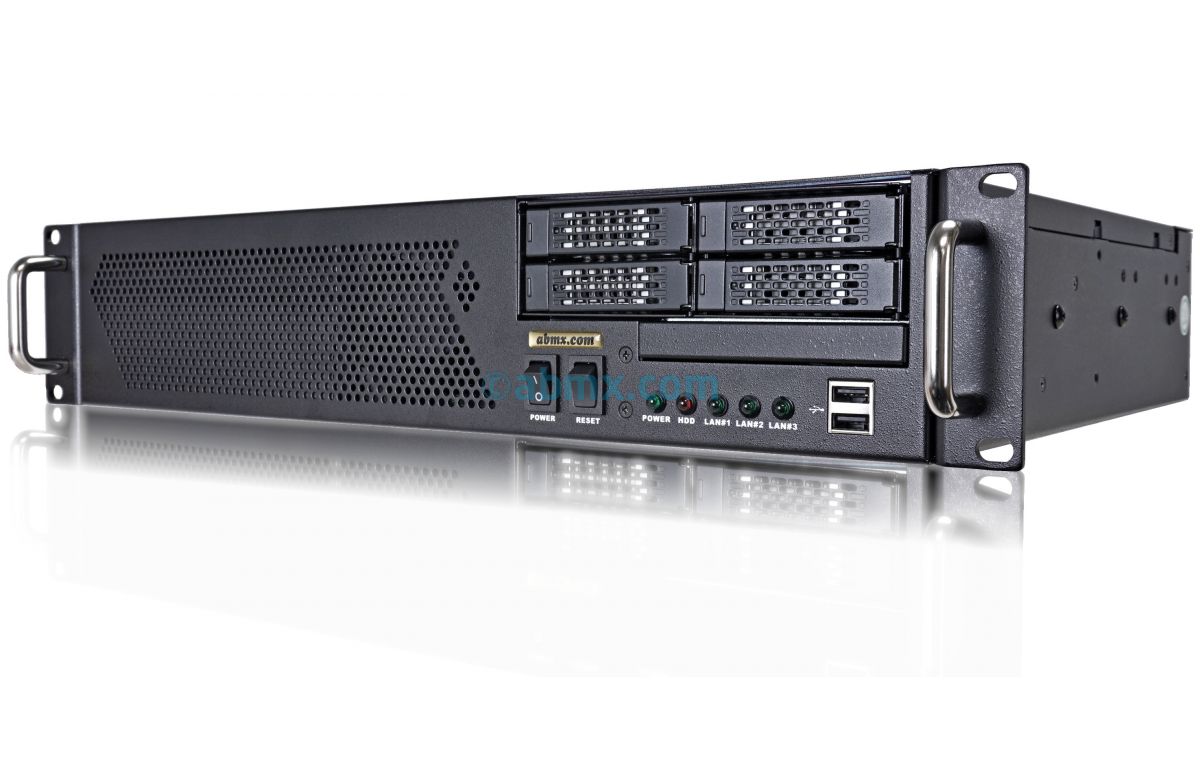

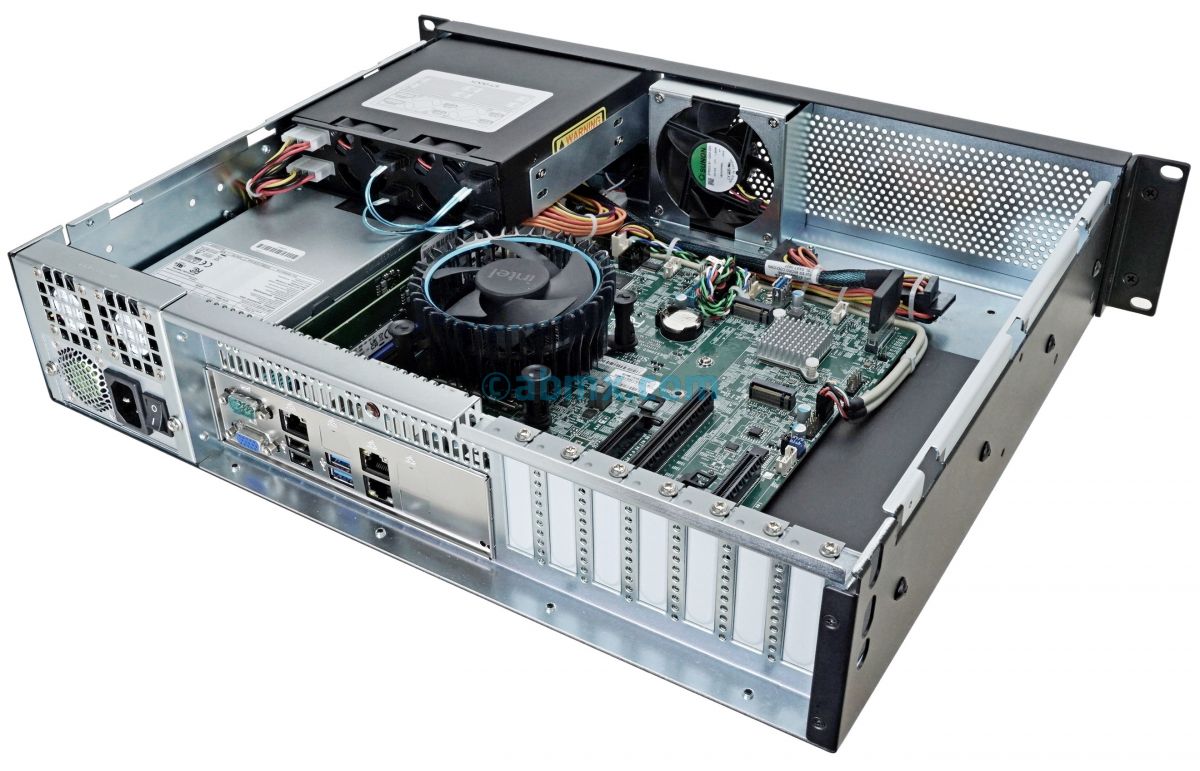

2U Mini Server - Front I/O

Model: 215FS11M-LP

Motherboard

Processor

Memory

Storage

WD Ultrastar® Enterprise-class
Samsung 860 EVO
Samsung 860 PRO
Intel DC S4500 Enterprise
Intel DC S3710 Enterprise

Storage 2

Storage 3

RAID / Storage Controller

Additional Network Adapter

Remote Management Card (KVM/Media-over-LAN)

Trusted Platform Module (TPM)

Optical Drive

Power Supply

Rack Mounting Sliding Rails Kit

OS Compatibility

Operating System

VMware
Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Additional Notes, e.q. your RAID configuration, ...

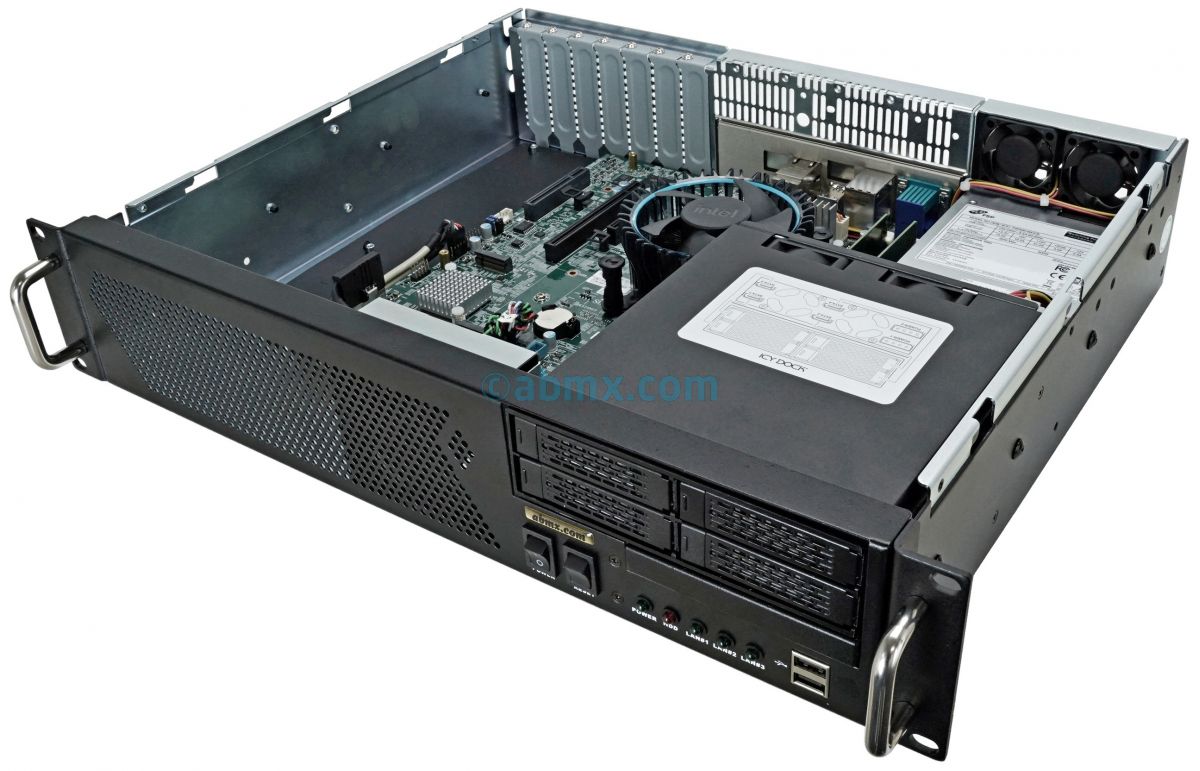

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

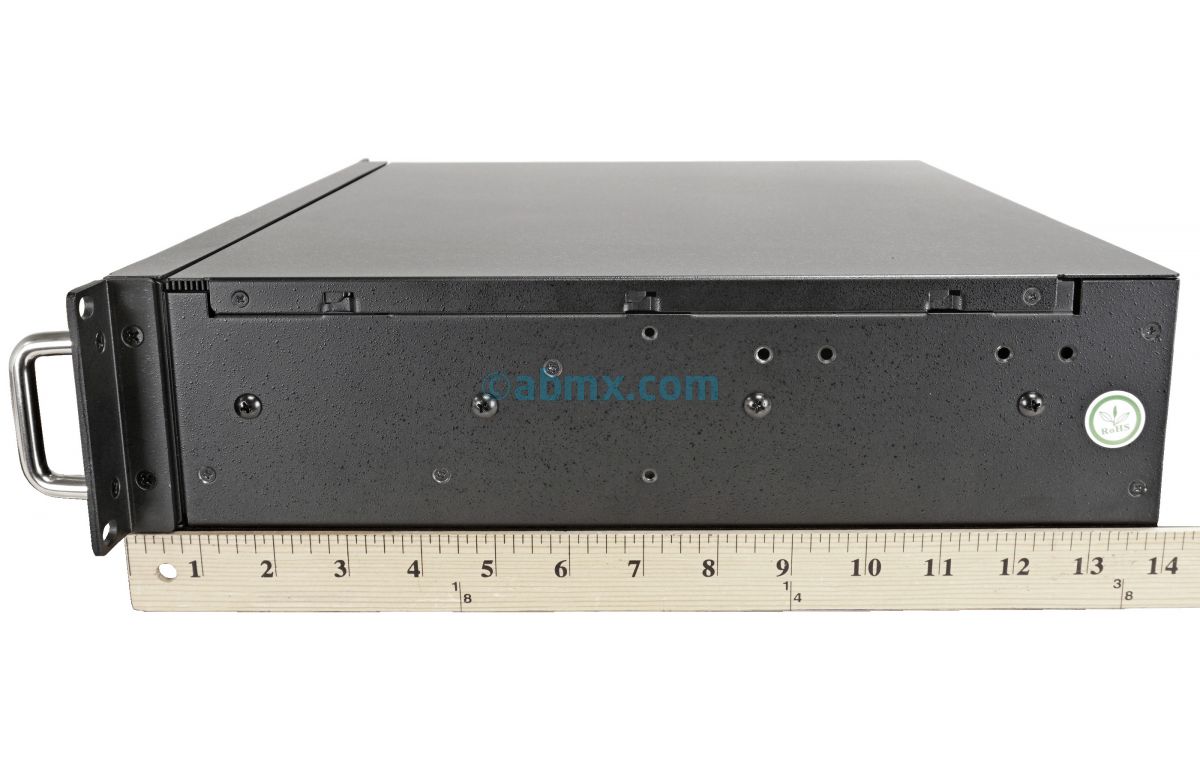

  • Dimensions: 14.5" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
Processor / Chipset
  • Single Socket H4 (LGA 1151)
  • Supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3/i5/i7, Intel® Pentium®, Intel® Celeron®
  • Intel® C236 chipset
BIOS
  • 128Mb SPI Flash EEPROM with AMI BIOS
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 64GB DDR4 ECC Un-buffered memory
  • 2133/1866/1600MHz
Storage / IPMI
  • 8 x SATA3 (6Gbps)
  • Chassis supports up to four SATA HDD/SSD
  • Support for IPMI 2.0 with virtual media over LAN and KVM-over-LAN (OPTIONAL)

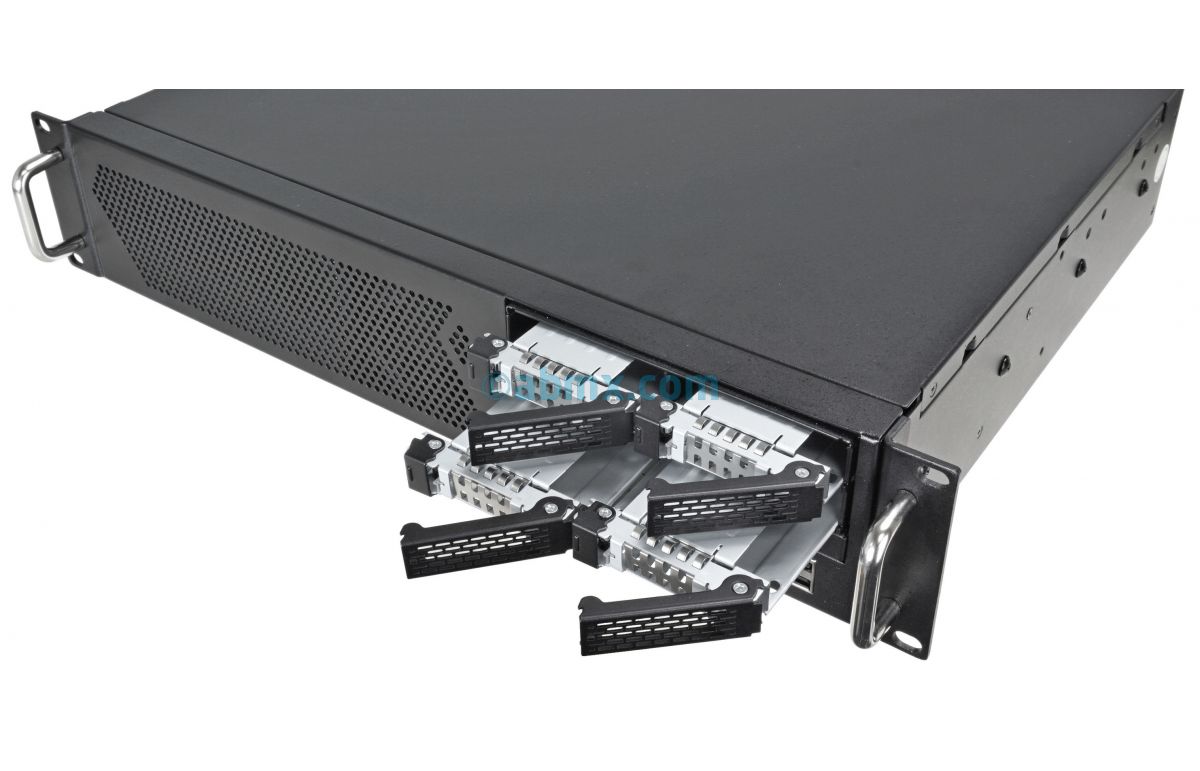

Drive Bays
  • HD1-2 Bay: fixed 3.5-inch HD Drives, OR
  • HD1-4 Bay: fixed 2.5-inch SS Drives
  • Up to 16 Terabyte of storage can be supported
  • 1 x Slim Optical Drive Bay

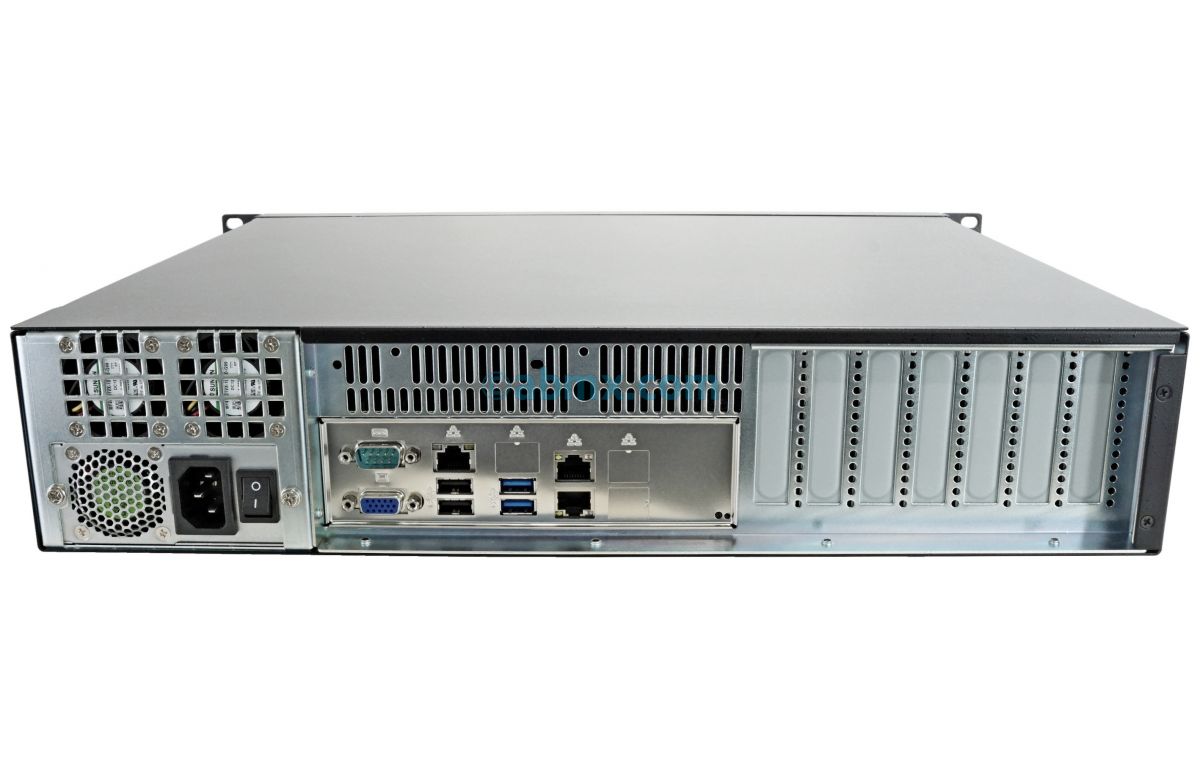

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 5 x USB 3.0 ports (2 x rear + 2 x via header + 1 x Type A)
  • 6 x USB 2.0 ports (2 x rear + 4 x via header)
  • 1 x VGA port
  • 2 x COM ports (1 x rear, 1 x header)
  • 2 x SuperDOM (Disk on Module) ports
  • 1 x TPM 1.2 20-pin Header
Video / Audio
  • ASPEED AST2400 BMC graphics on-board

Network
  • Dual Intel® i210-AT Gigabit LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 3.0 x8 (in x16 slot) (low-profile)
  • 1 x PCI-E 3.0 x8 (low-profile)
  • 2 x PCI-E 3.0 x4 (in x8 slot) (low-profile)
Power Consumption / Acoustic Noise Emission
  • Between 48 Watts to 72 Watts with the standard configuration
  • Noise level (during normal operation): ~ 60 dBA (ISO 7779 operator position, 0.6 meter)
Power Supply
  • AC HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • OPTIONAL 48V DC Power supply
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 2U Rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 800-711-1788
Environmental specifications
  • Operating Temperature: 10º to 35º C (50º to 95º F)
  • Non-operating Temperature: -40º to 70º C (-40º to 158º F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available

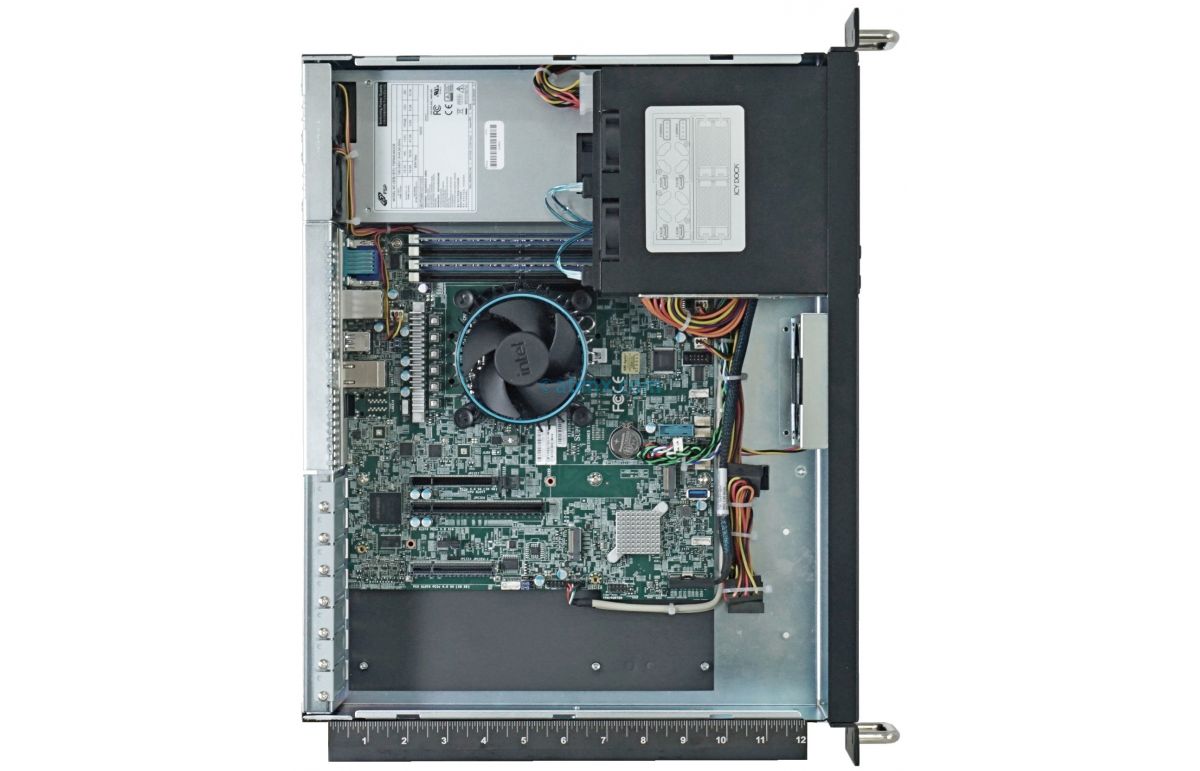

Motherboard X11SSM OverallChipset
Intel C236
LAN
Intel i210-AT
USB
Intel C236
Video
ASPEED AST1400
AsteriskNOW 10.13
CentOS 5.0
6.0
7.0
Citrix Xenserver 6.5
7.0
Debian 8.0
9.0
Elastix 5.0
Fedora Server 25
26
27
Fedora Workstation 25
26
27
FreeBSD 10.0
11.0
9.0
FreeNAS 11.0
9.0
OpenBSD 5.0
6.0
OpenIndiana Hipster 2018.04
OpenSUSE Leap 15
OpenSUSE Tumbleweed
Oracle Linux 7
PFSense 2.3
2.4
Red Hat Enterprise Linux 5.0
6.0
7.0
Sangoma Linux 7
Scientific Linux 5.0
6.0
7.0
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
Ubuntu Desktop 14.04 LTS
16.04 LTS
18.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
18.04 LTS
Untangle NG Firewall 12
13
VMWare ESXi 5.0
5.5
6.0
6.5
Windows 10
7
Windows Server 2008 R2
Windows Server 2012 R2
2016

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
