2U Rackmount Server - 4th Gen AMD EPYC

Model: 220LPAS3LN

AMD is making a significant impact in the server market with its powerful EPYC server processor line. These high core-count CPUs are an ideal choice for large parallel workloads and offer a cost-effective solution. This 3U Short-Depth AMD EPYC server with Front I/O is suitable for both simple and advanced projects that require up to 96-cores/192-threads and up to 3 Terabytes of DDR5 memory. The 316FAS3LN comes equipped with front I/O, providing easy access to motherboard and PCI connectors. It supports up to seven full-height PCIe expansion cards and optional 24v DC power, making it a highly flexible system.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 5.25" Drive Bay
  • 20-Inch deep
Recommended Uses

24 - 64 Cores
AMD EPYC

16 - 768 GB

3 x 3.5 Fixed

2 x 1GbE

5 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM)

Power Supply

Special Order

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

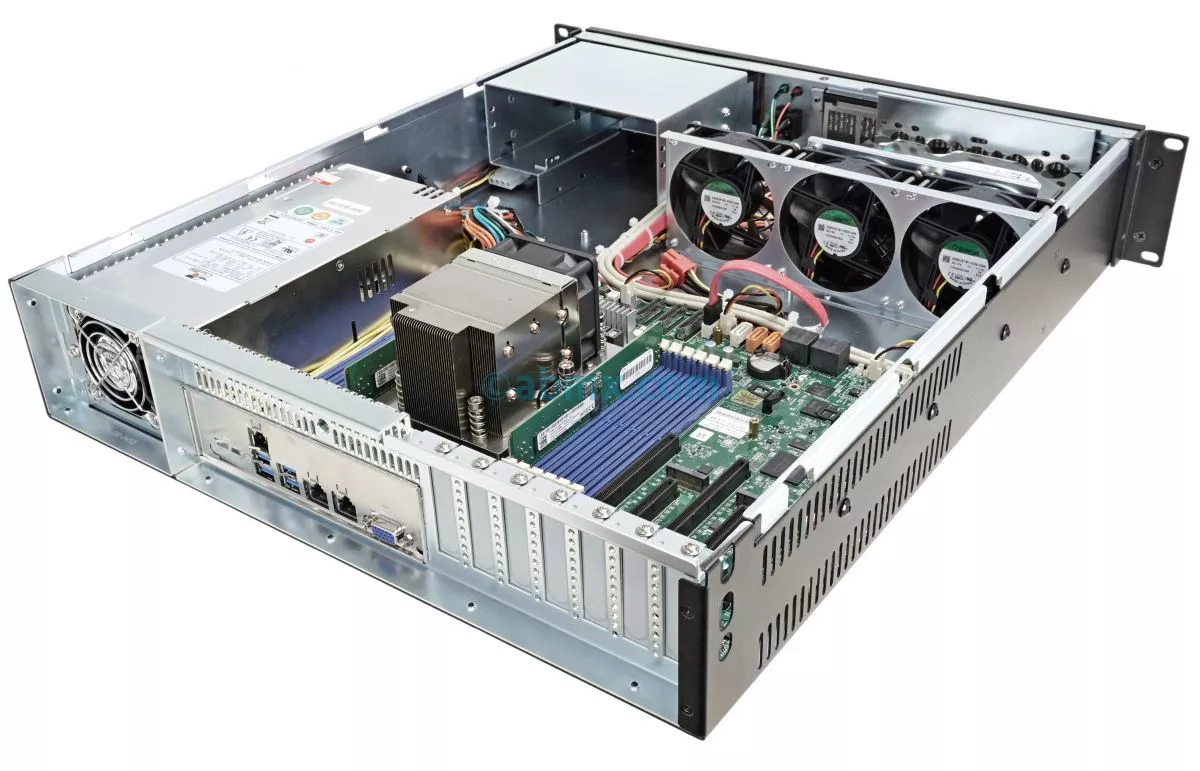

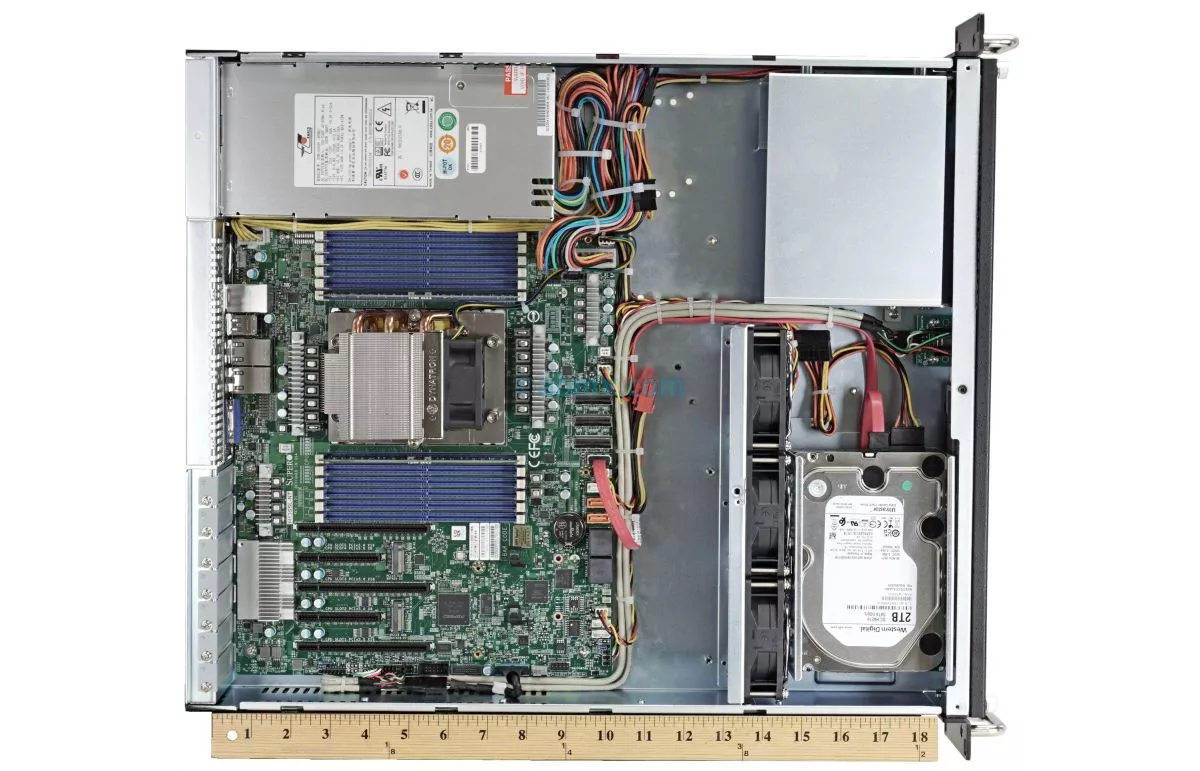

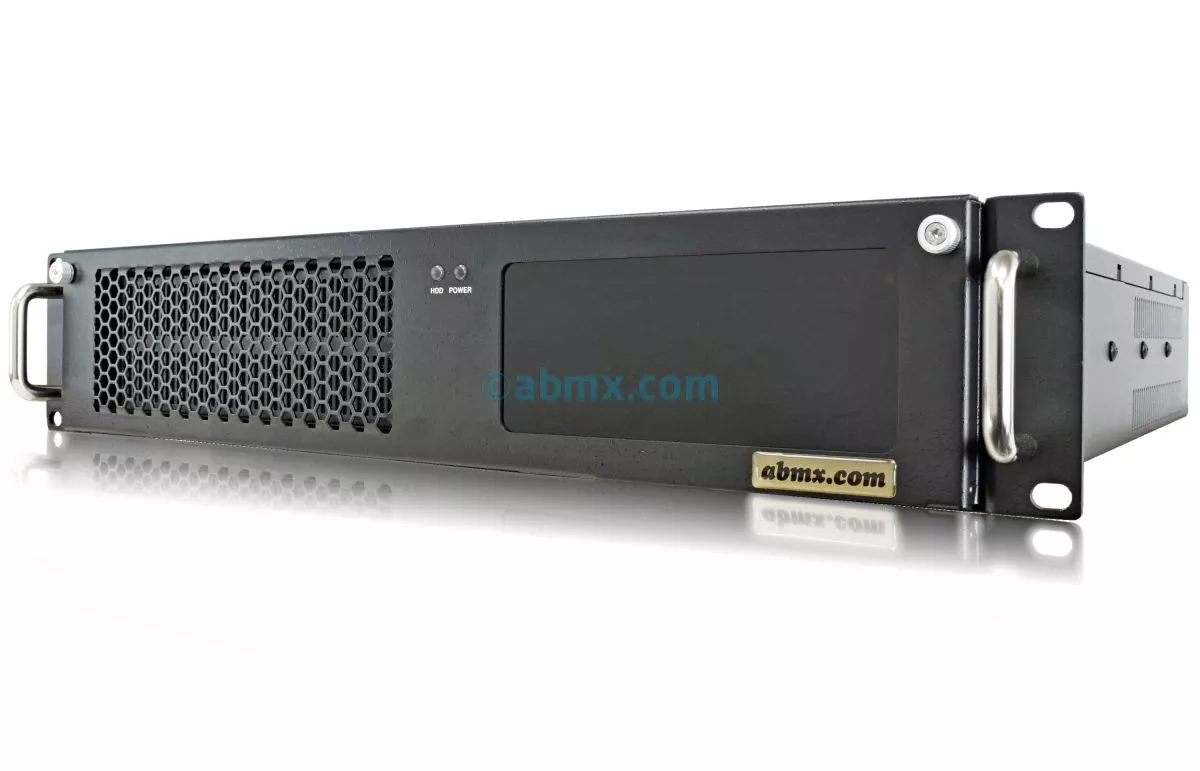

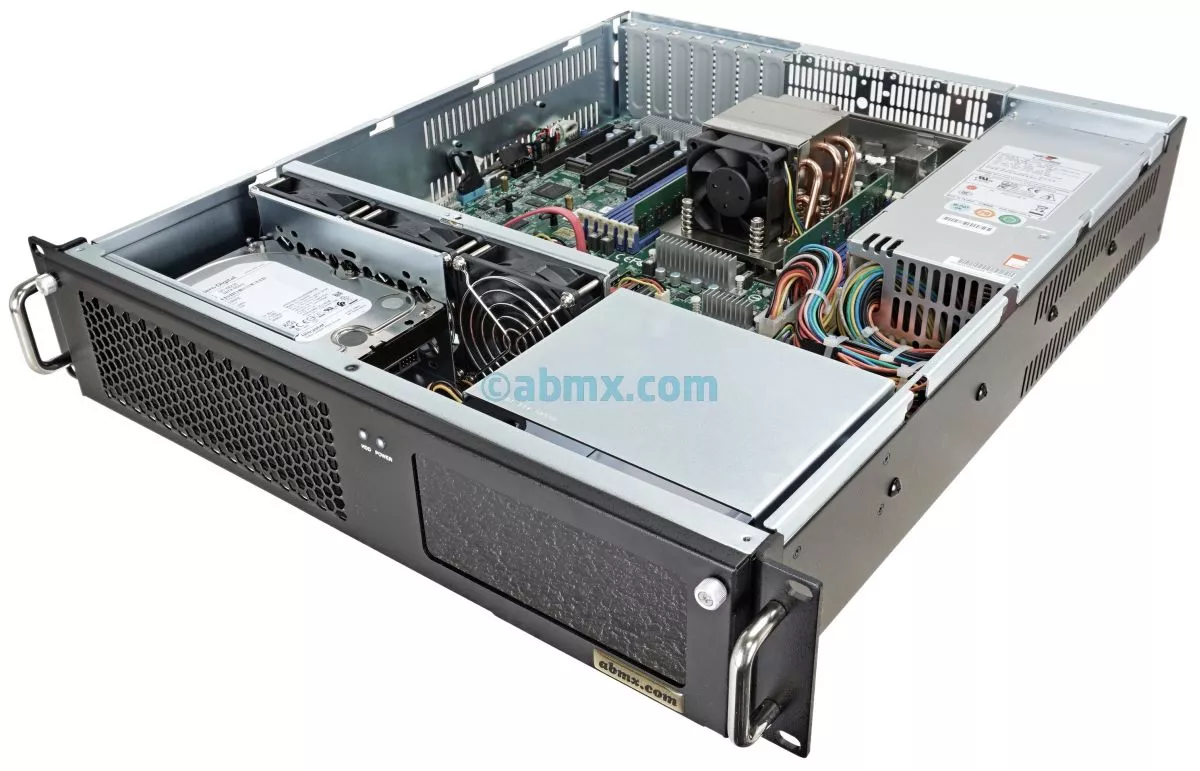

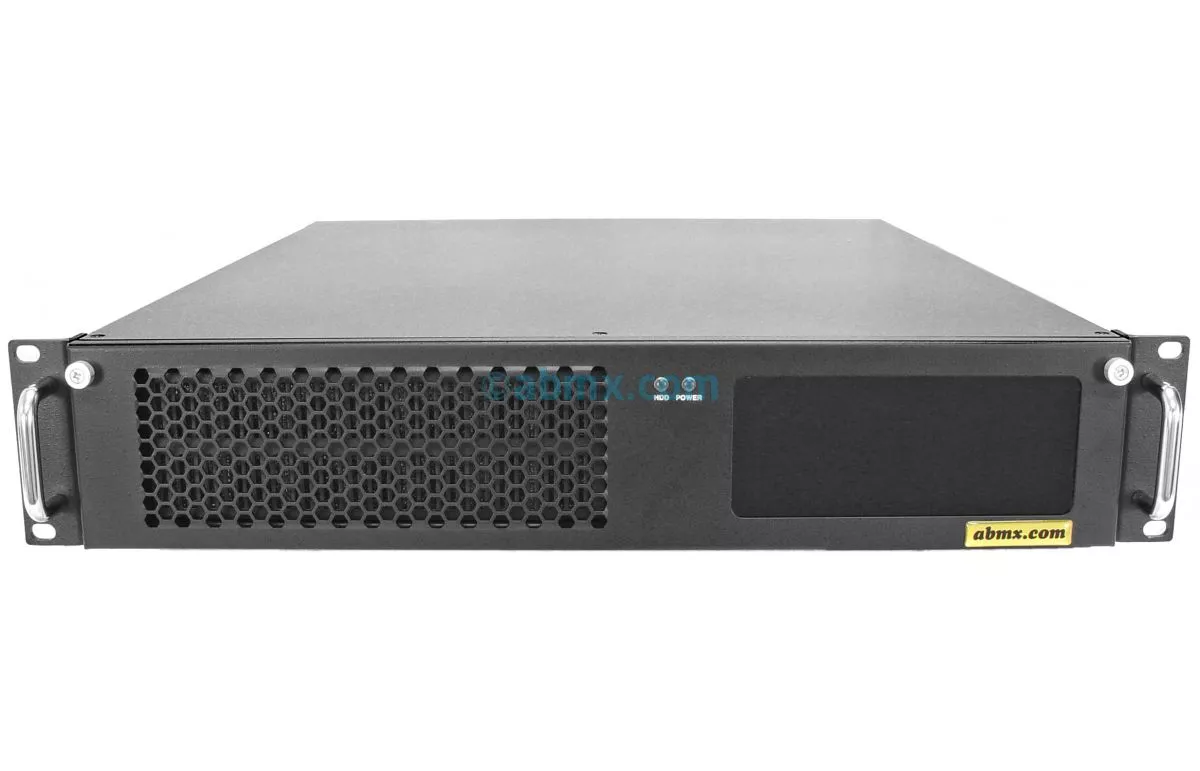

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

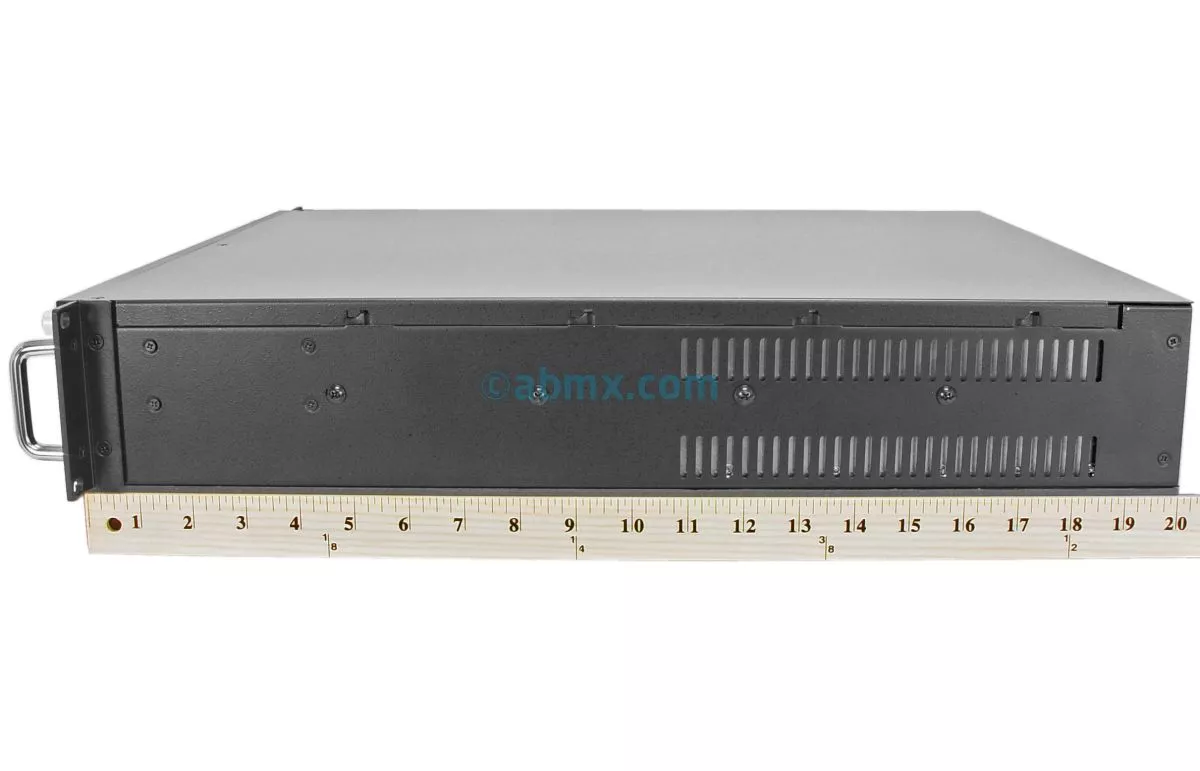

  • Dimensions: 20.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Single Door w/ 2 Thumbscrews
  • Air Filter: Inside Front Panel (Washable)
  • Front USB: 2 ports
Processor/Chipset
  • Single Socket SP5
  • Supports Single AMD EPYC™ 9004 series Processors
  • Chipset: System on Chip
BIOS
  • AMI 32MB SPI Flash EEPROM
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • Plug and Play (PnP)
  • USB Keyboard support
Memory
  • 12 x DDR5 RDIMM sockets
  • Supports up to 3TB
  • 4800MHz ECC Registered DDR5 DRAM
Storage / IPMI
  • 8 x SATA3 (6 Gbps) ports
  • Chassis supports up to three drives
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • 2 x M.2 NVMe (2280, 22110)
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Drives
  • Up to 66 Terabyte of storage can be supported
  • 1 x 5.25-inch Drive Bay
I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 6 x USB 3.1 Gen.1 ports (4 x rear + 2 x via header)
  • 1 x VGA port
  • 1 x COM port (rear)
  • 1 x TPM 2.0 header
Video
  • ASPEED AST2600 BMC on-board

Network
  • Dual Gigabit Ethernet LAN Controller (Broadcom BCM5720)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 3 x PCIe 5.0 (x16) (in x16) slots
  • 2 x PCIe 5.0 (x8) slots
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • High-efficiency power supply
  • Tested to comply with FCC Standards
  • Certifications: UL, CSA, TUV
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard H13SSL-N
AsteriskNOW 10.13
CentOS 6.0
7.0
7.6
7.9
8.4
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
7.9
Debian 10.10
10.2
10.7
11.4
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 26
27
29
32
35
36
Fedora Workstation 26
27
29
32
33
35
36
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
13.1
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
21
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
6.0.24
OpenBSD 5.0
6.0
6.4
6.8
6.9
7.1
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15.4
OpenSUSE Tumbleweed
OPNsense 19.1
22.7
Oracle Linux 7
7.6
9.0
PFSense 2.3
2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 5.0
8.1
9.0
Rocky Linux 8.4
9.0
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
7.9
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
13
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
7.0
VyOS 1.2
Windows 10
7
Windows 11 Original Release
Windows 32-bit 10
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS 12.3.0.4
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
