2U Mini Server - Front I/O

Model: 214FLS2L

This 2U mini server features Intel's latest Raptor Lake Xeon E processors up to 8 cores, 16 threads, and up to 128GB of DDR4 memory for unbeatable performance. The unique reverse design offers quick and easy access to the system's IO ports and PCIe slots without having to pull the system out or climb behind the rack. At only 14 inches deep, this highly capable front I/O system provides quick access and saves on rack space with it's small short-depth footprint.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Front I/O Ports
  • 14-Inch deep
Recommended Uses

4 - 6 Cores
Xeon E

8 - 128 GB

1 x 3.5 Fixed

2 x 1GbE

4 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

External Optical Drive (for OS installation, Backups, etc.)

Power Supply

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch
  • Dimensions: 14.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB Ports
  • Front I/O Ports
Processor/Chipset
  • Single Socket LGA-1200 (Socket H5)
  • Supports 10th Gen. Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
  • Intel® C252 chipset
BIOS
  • 256MB UEFI
  • ACPI 6.0
  • SMBIOS 3.3
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Memory
  • 4 x DIMM sockets
  • Supports up to 128GB ECC Un-buffered DIMM
  • 3200/2933 MHz ECC DDR4 UDIMM
Storage / IPMI
  • 6 x SATA3 (6Gbps) ports
  • Intel® C252 controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports one drive
  • 1 x M.2 NVMe (2280)
Drive Bays
  • HD1 Bay: fixed 1 x 3.5-inch HDD or 2 x 2.5-inch SSD
  • Up to 22 Terabyte of storage can be supported

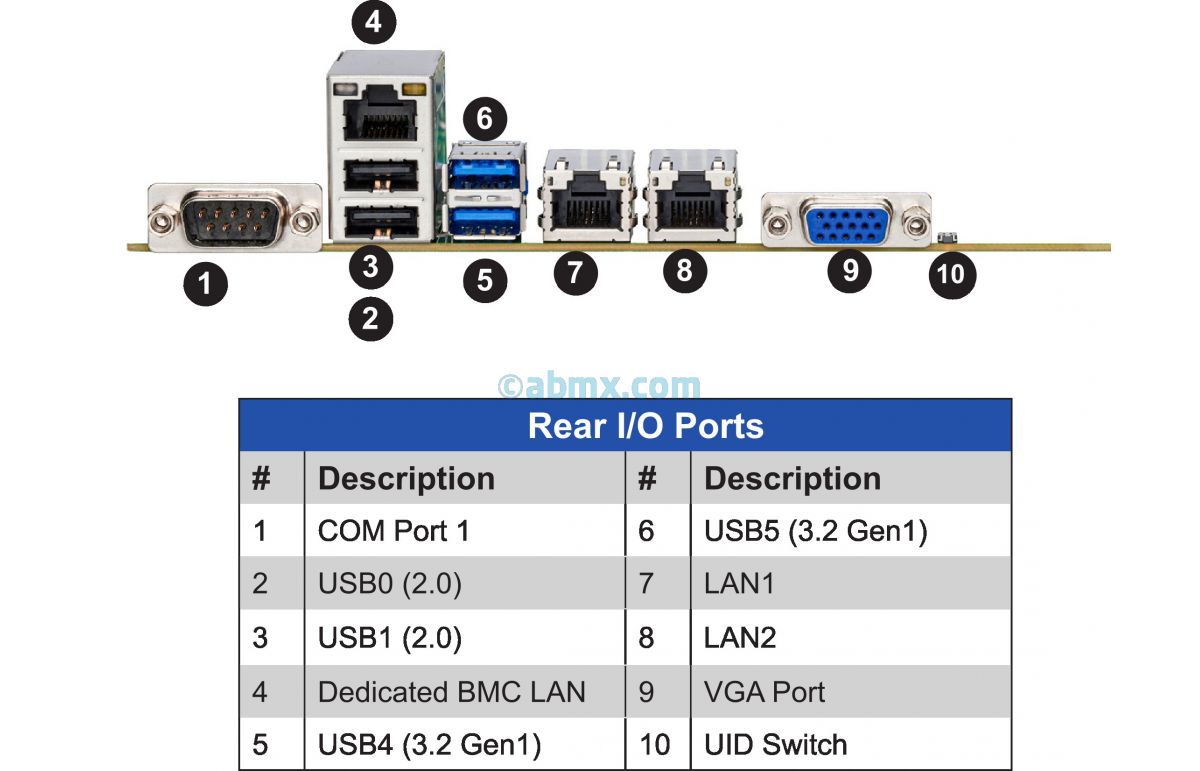

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (2 x rear, 2 x via header)
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear, 1 x type A)
  • 1 x VGA D-Sub Connector port
  • 2 x COM Port (1 x header, 1 x rear)
  • 2 x SATA DOM (Disk on Module) power connector support
  • 1 x TPM Header
Video
  • ASPEED AST2600 BMC on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller on-board
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-e 4.0 (x8) in (x16) slot
  • 1 x PCI-e 4.0 (x8) slot
  • 1 x PCI-e 4.0 (x4) in (x8) slot
  • 1 x PCI-e 3.0 (x2) in (x4) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-Efficiency Power Supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
CD-ROM /DVD-ROM
  • External USB Optical Drive (OPTIONAL)
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12STL-F OverallChipset
Intel C252		LAN
Intel I210		Video
ASPEED AST2600
CentOS 8.4
ClearOS Community Edition 7.9
Debian 11.4
Fedora Server 36
Fedora Workstation 36
FreeBSD 13.1
Linux Mint 21
Manjaro Linux 20.2
OpenSUSE Leap 15.4
Oracle Linux 9.0
Red Hat Enterprise Linux 9.0
Rocky Linux 9.0
Scientific Linux 7.9
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
VMWare ESXi 7.0
Windows 10
Windows Server 2019

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
