2U Server - AMD EPYC - 8 x Hot-Swap Bays - Redundant Power

Model: 226LRAS2L

8 - 64 Cores
AMD EPYC

8 - 512 GB

8 x 3.5 Hot-Swap
2 x 3.5 Fixed

2 x 1GbE

7 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Power Supply

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 2U Rackmountable Enclosure (LOW-PROFILE)
  • 1 Rack Unit Height (3.5")

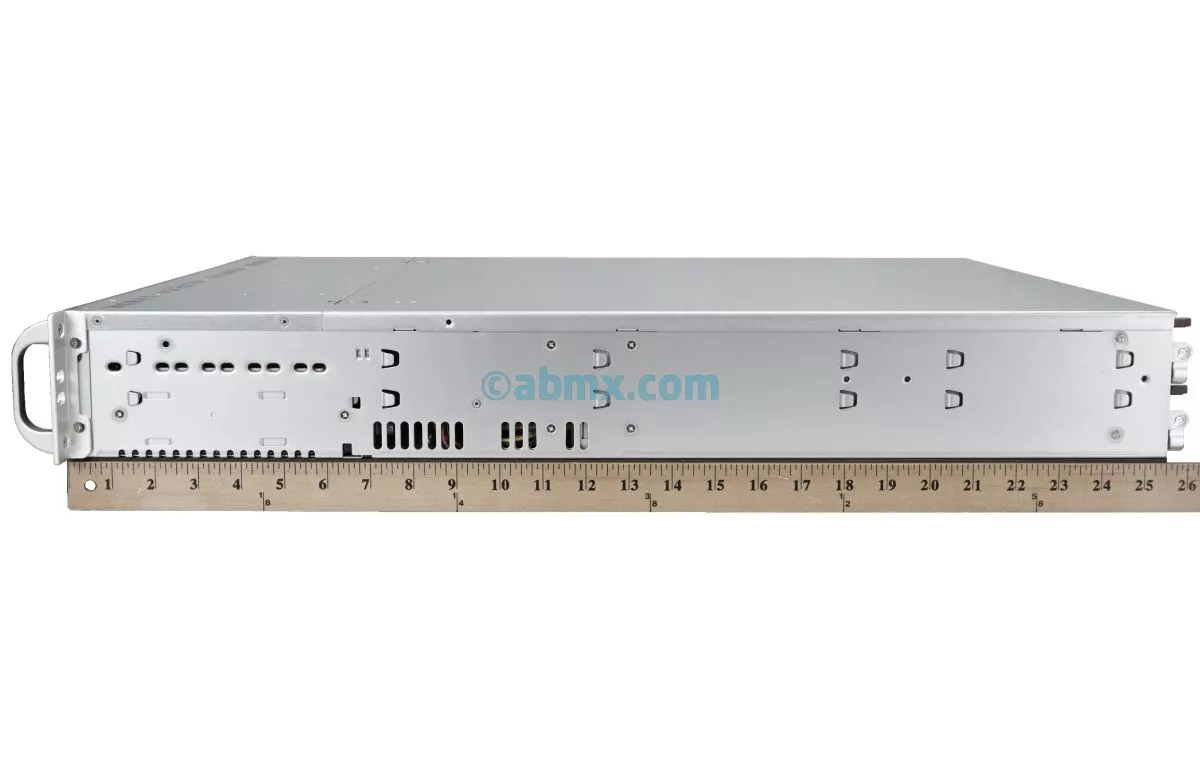

  • Dimensions: 25.5" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket SP3
  • Supports Single AMD EPYC™ 7003/7002-series Processor
  • Chipset: System on Chip
BIOS
  • AMI 256Mb SPI Flash EEPROM
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Memory
  • 8 x 288-pin DDR4 DIMM sockets
  • Supports up to 2TB
  • 3200MHz ECC Registered DDR4 DRAM
  • 8-channel memory bus
Storage / IPMI
  • 8 x SATA3 (6 Gbps) ports
  • 8 x SATA3 or 2 x NVMe via single SlimSAS x8 (SATA/NVMe Hybrid)
  • Chassis supports up to ten drives
  • IPMI 2.0 support (ASPEED AST2500 BMC)
  • 2 x M.2 NVMe (2280, 22110)

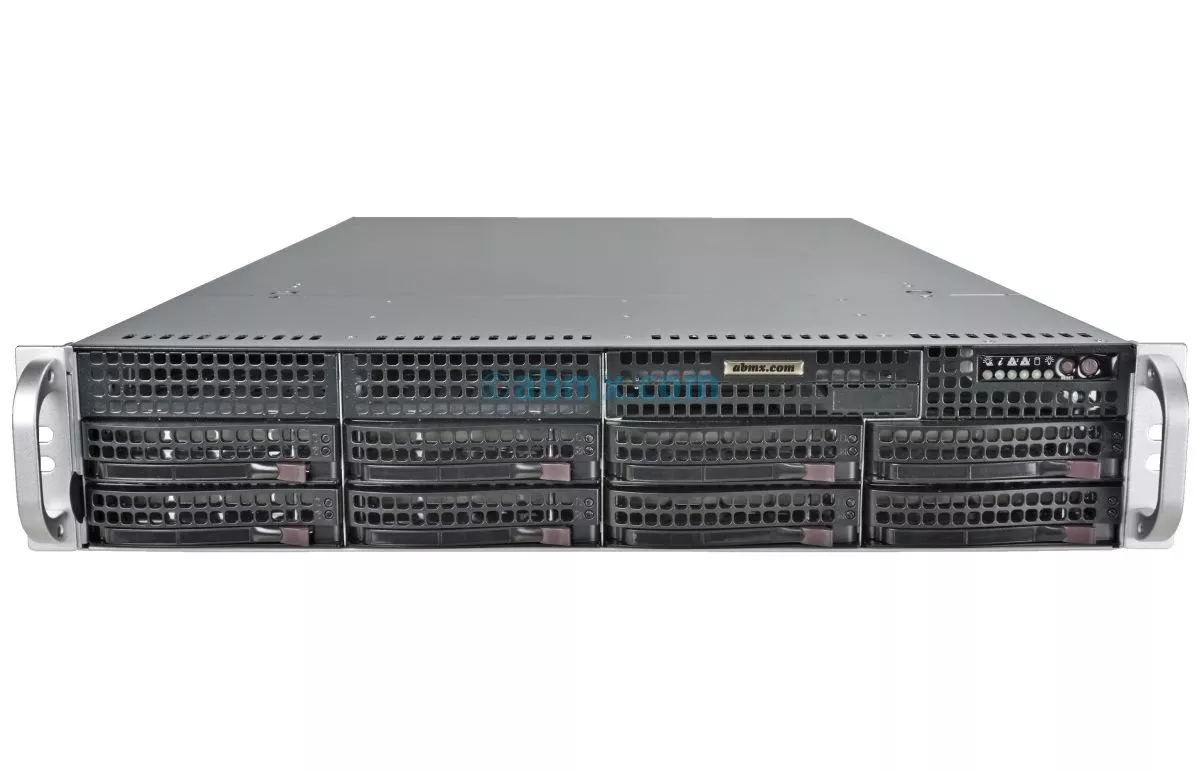

Drive Bays
  • HD1-8 Bay: Hot-swap 3.5/2.5-inch Drive Bays
  • HD9-10 Bay: fixed OS 3.5/2.5-inch Drive Bays
  • Up to 220 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

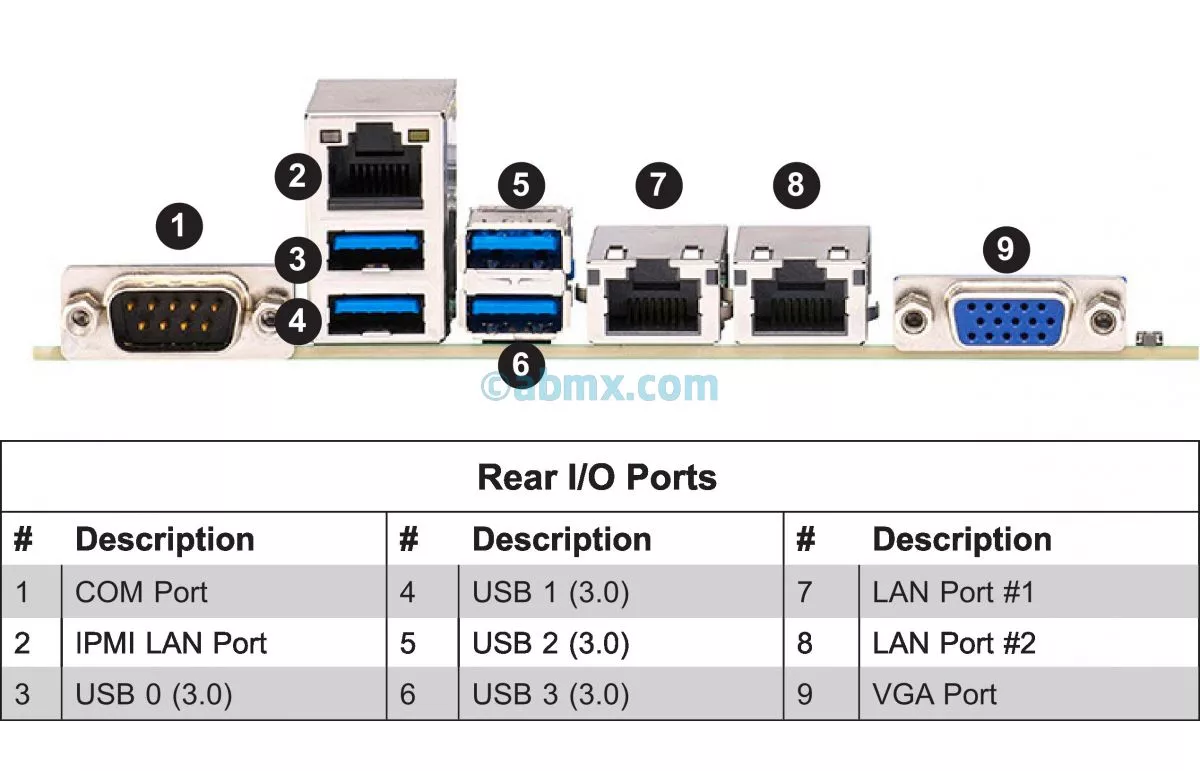

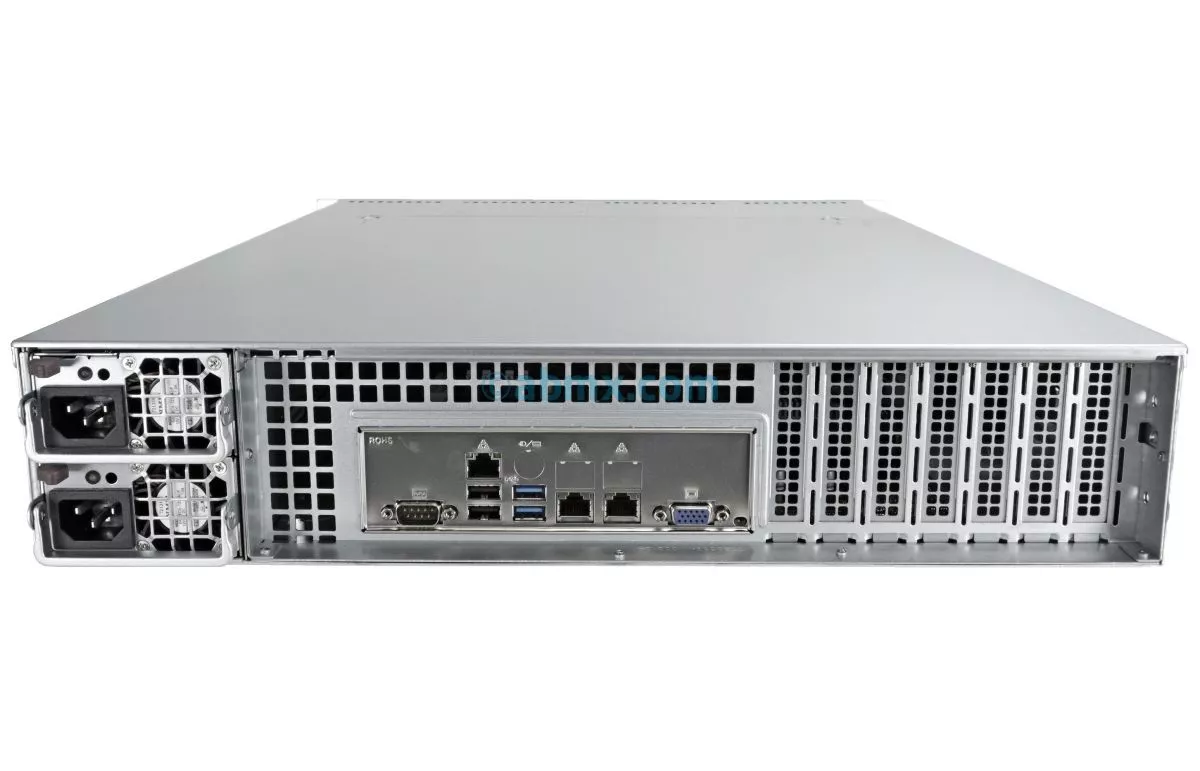

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 6 x USB 3.0 ports (4 x rear + 2 x via header)
  • 1 x VGA port
  • 1 x COM port (rear)
  • 2 x SATA DOM power connectors
  • 1 x TPM 2.0 header
Video
  • ASPEED AST2500 BMC on-board

Network
  • Dual Gigabit Ethernet LAN Controller (Broadcom BCM5720)
  • 1 x Realtek RTL8211F PHY (dedicated IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 5 x PCI-e 4.0 (x16) slots
  • 2 x PCI-e 4.0 (x8) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, UL/CB, UL/CUL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 2U rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
