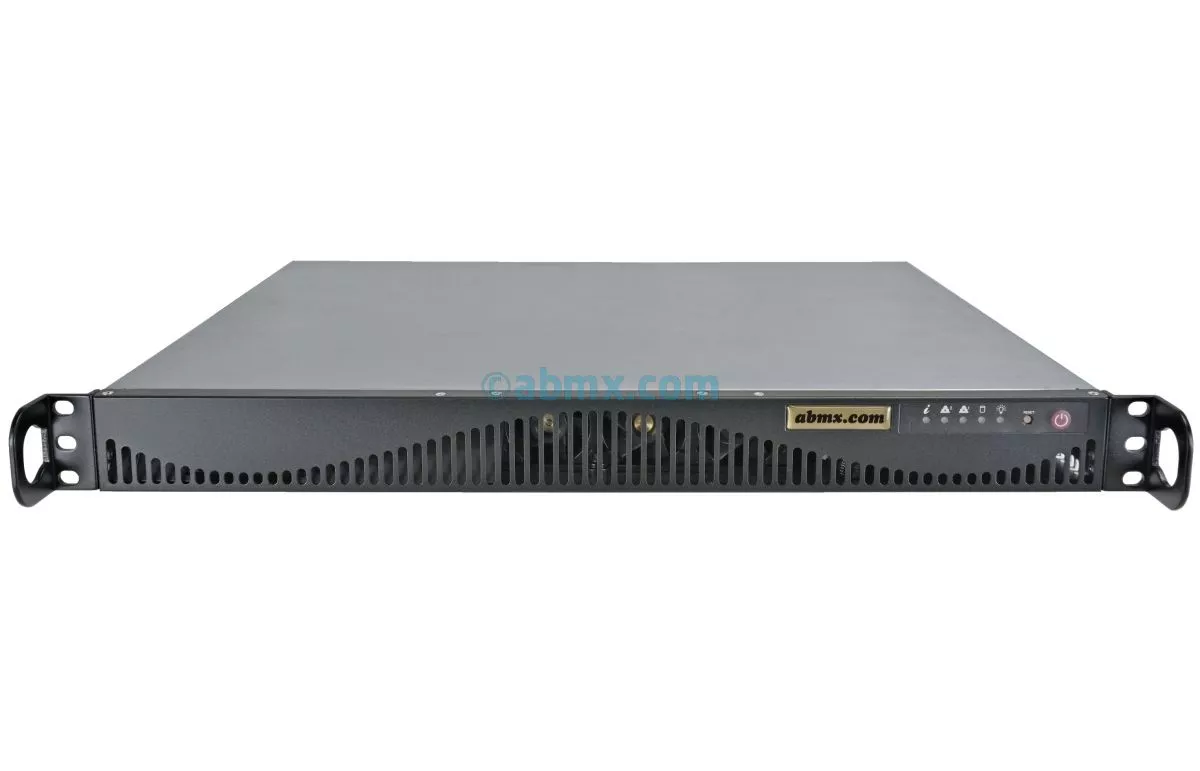

1U Server - Xeon Scalable

Model: 115X2PL-FA

8 - 32 Cores
Xeon Scalable

16 - 512 GB

1 x 3.5 Fixed

2 x 1GbE

1 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Samsung 990 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Riser Card

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

External Optical Drive (for OS installation, Backups, etc.)

Power Supply

Rack Mounting Rail Kit

OS Compatibility

Operating System

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

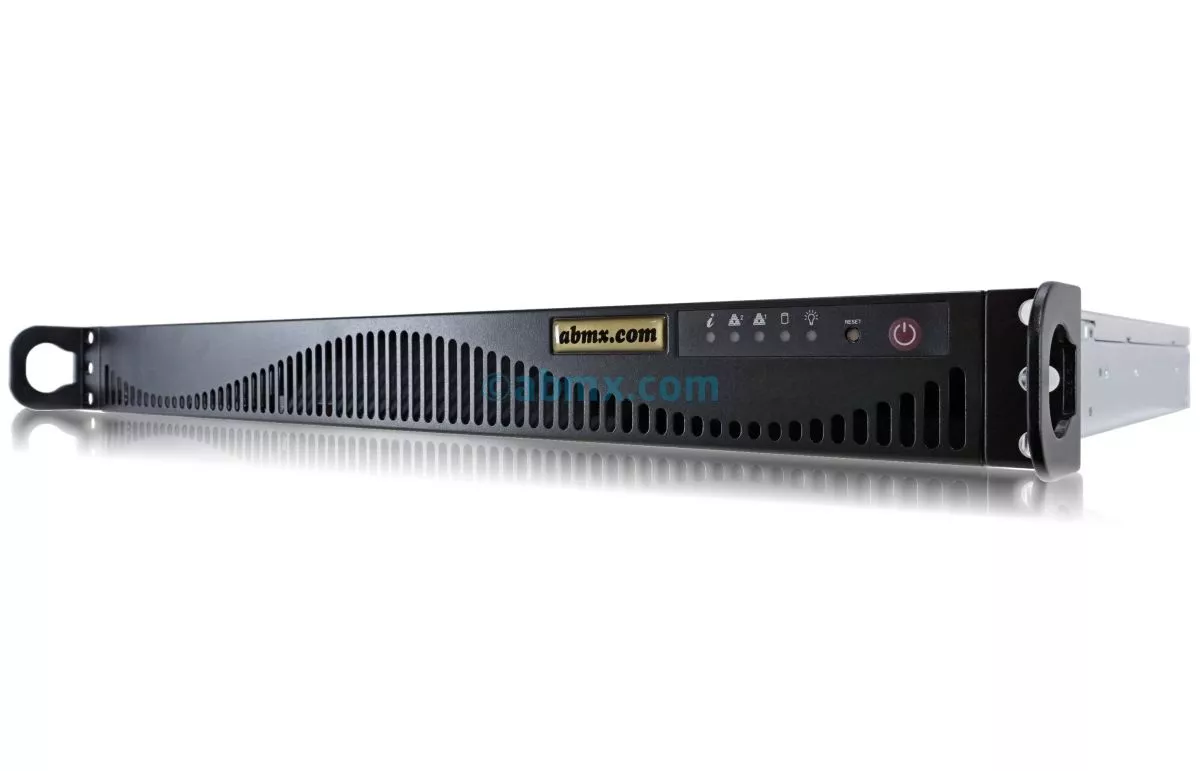

Chassis
  • 1U Short-Depth Mini Rackmountable Enclosure
  • 1 Rack Unit Height (1.7")

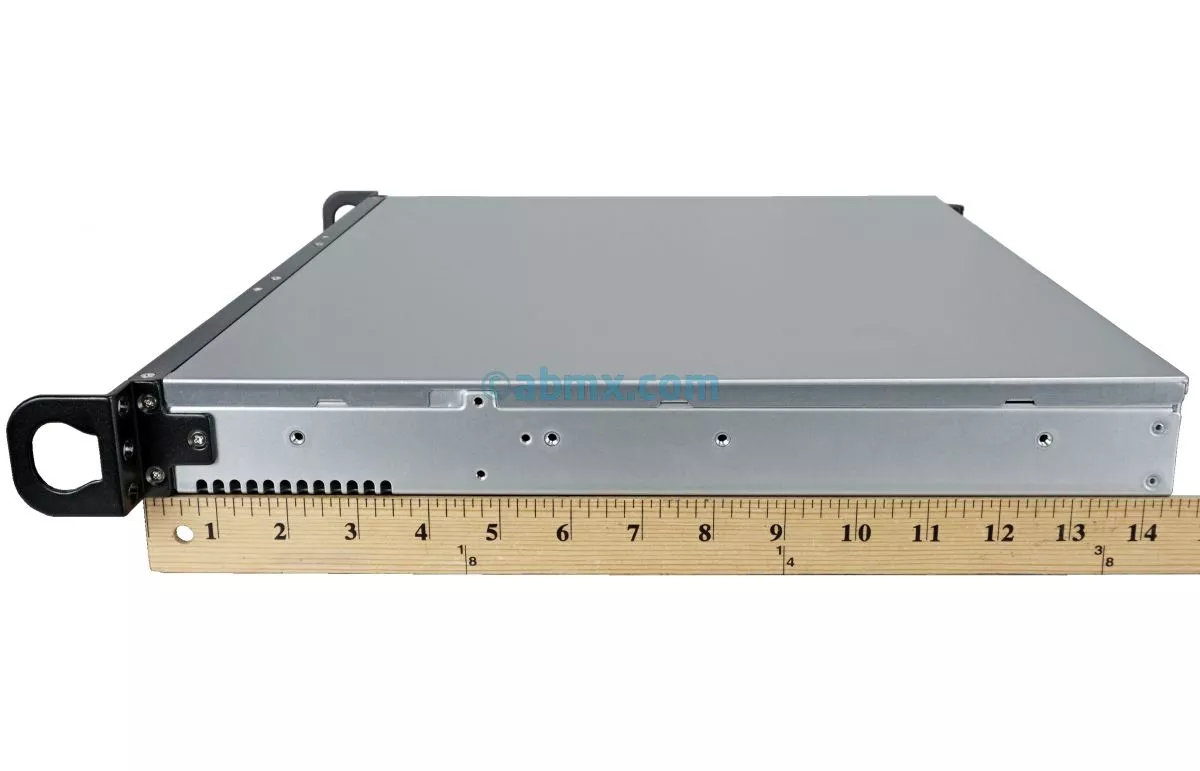

  • Dimensions: 14.5" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm

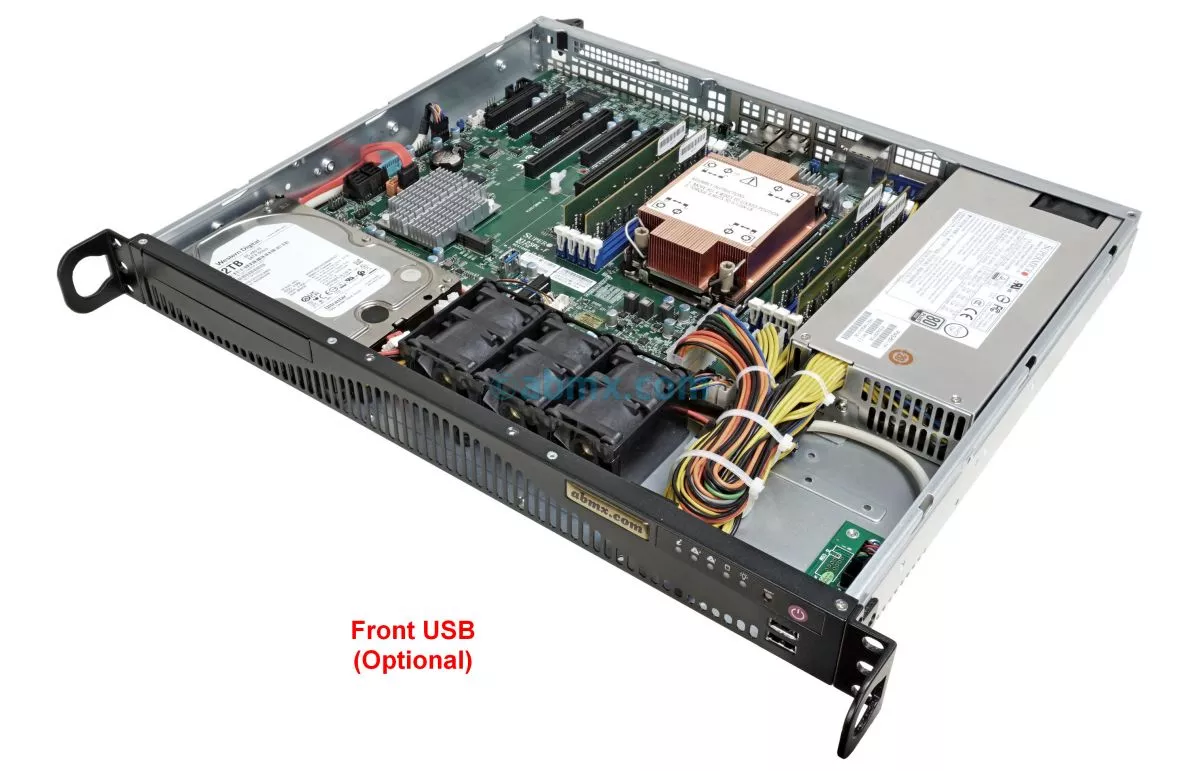

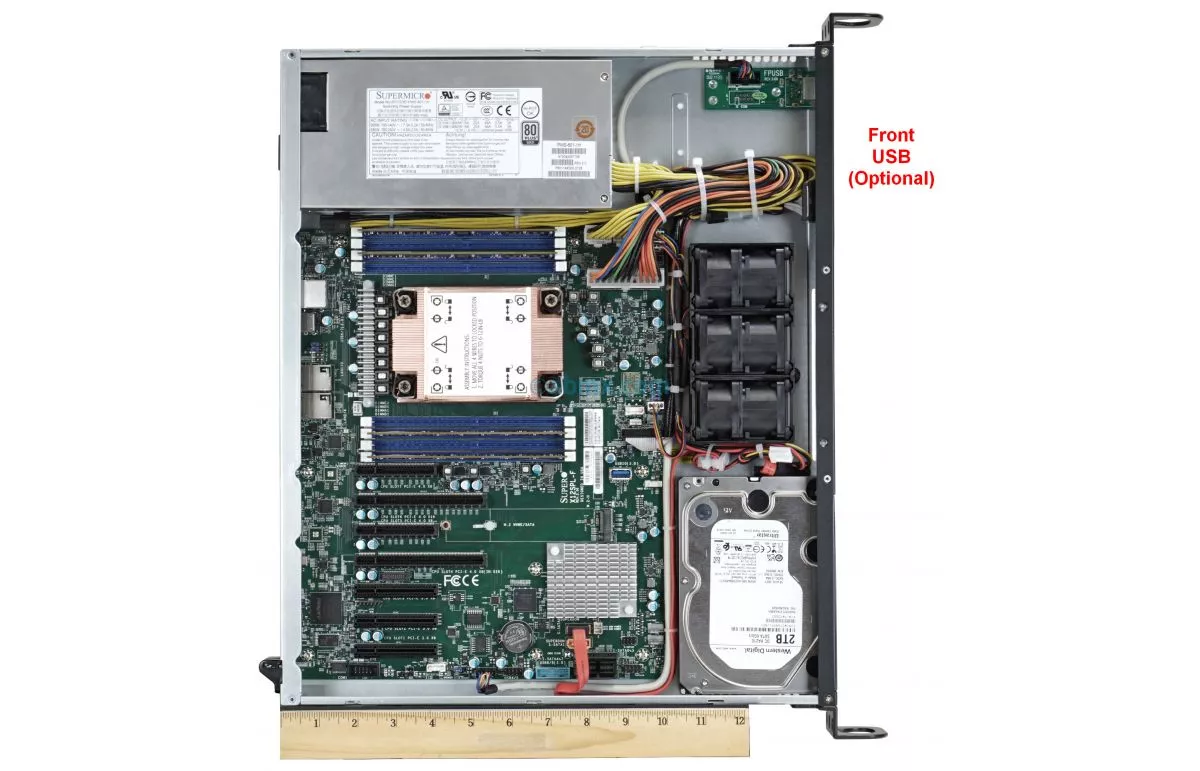

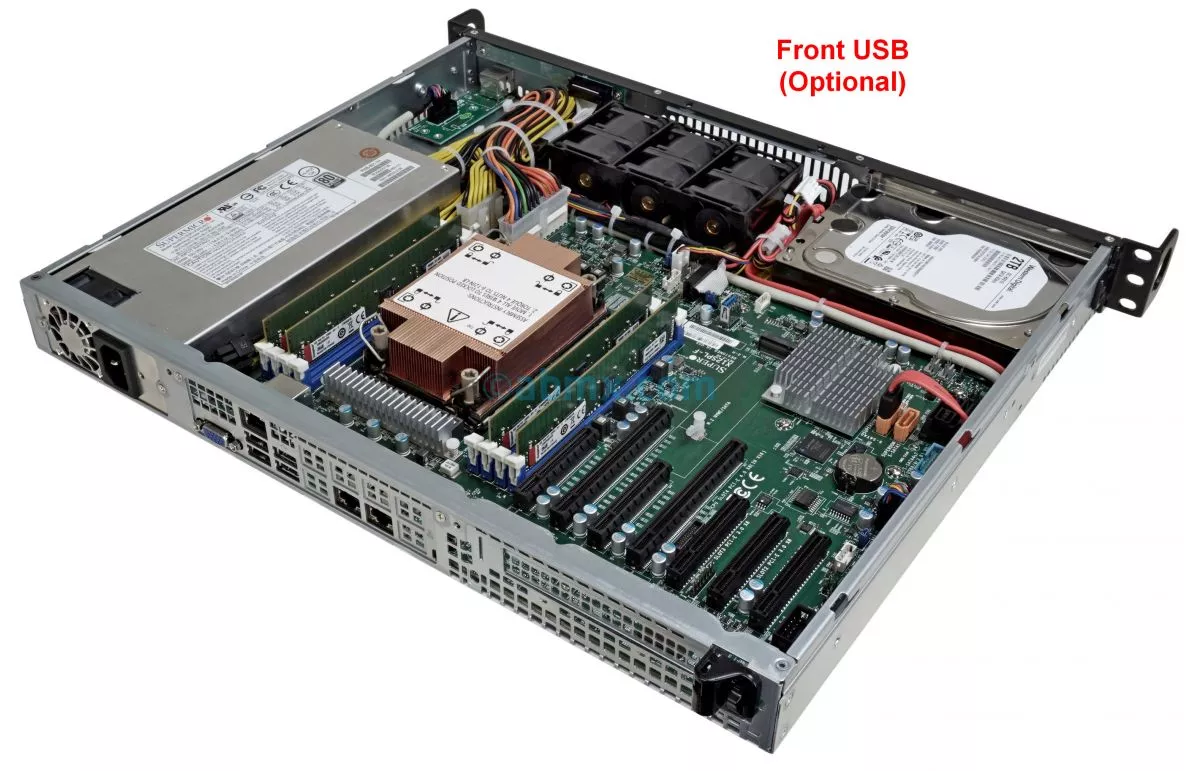

  • 2 x Front USB Ports (OPTIONAL)
Processor/Chipset
  • Single Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933MHz ECC 3DS, LRDIMM, RDIMM
Storage / IPMI
  • 10 x SATA3 (6Gbps) ports
  • Intel® C621A controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports one 3.5-inch drive or up to four 2.5-inch drives
  • 1 x M.2 NVMe 2280/22110
Drive Bays
  • HD1 Bay: fixed 3.5-inch HDD, or
    up to ***4 x 2.5-inch SATA/SSD Drives (***Slim-line Oprical Drive Bay and Front USB ports are not available)
  • Up to 24 Terabyte of storage can be supported

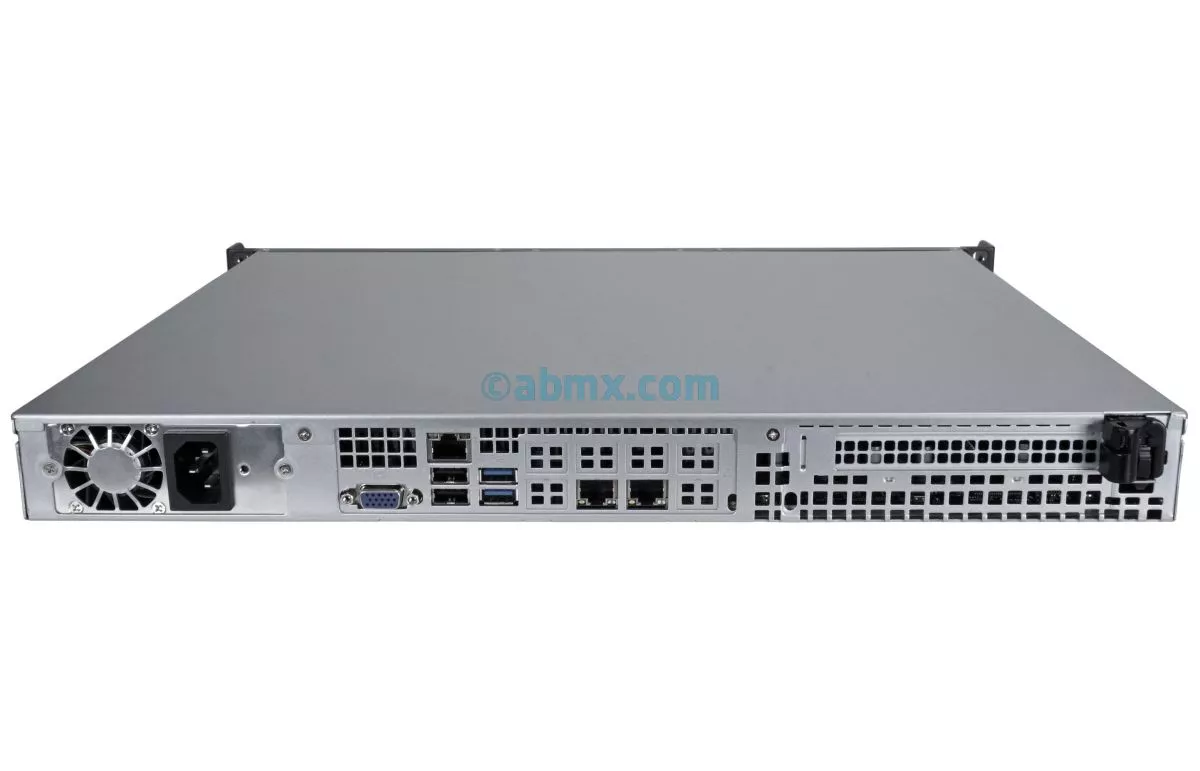

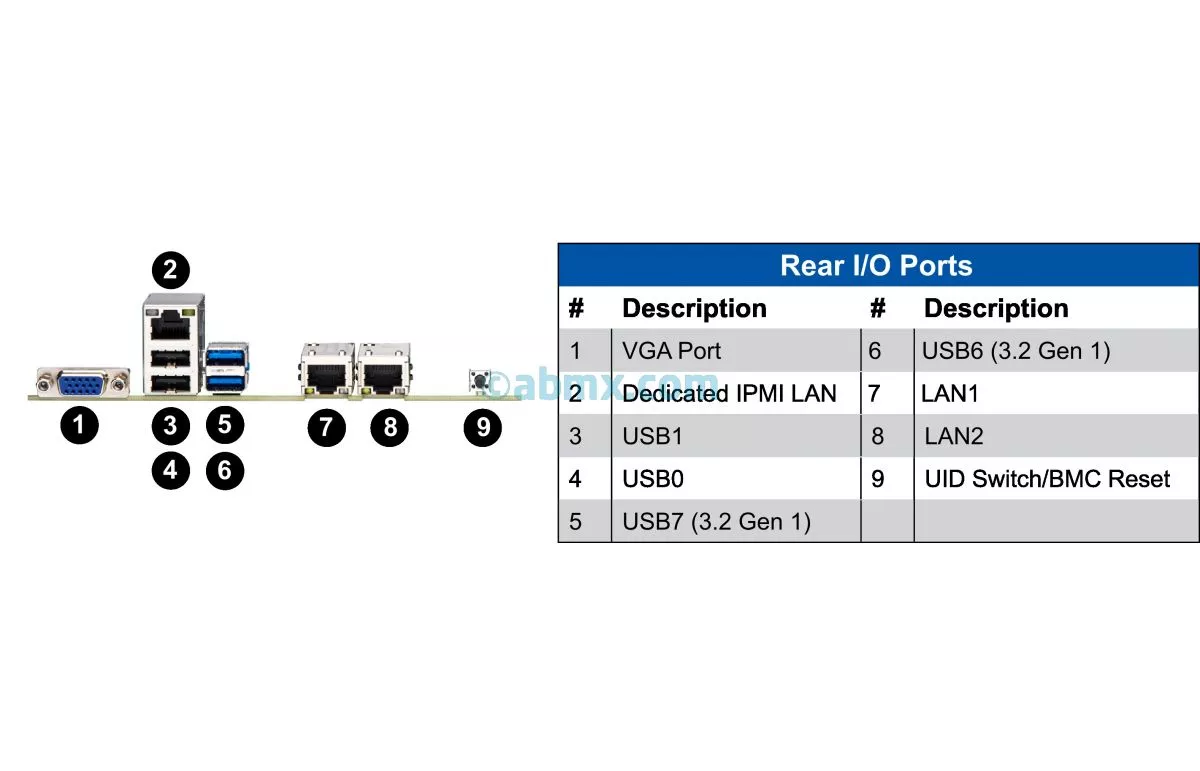

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (4 x via header, 2 x rear)
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 4.0 x16 (in x16) - full height (via Riser card)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.

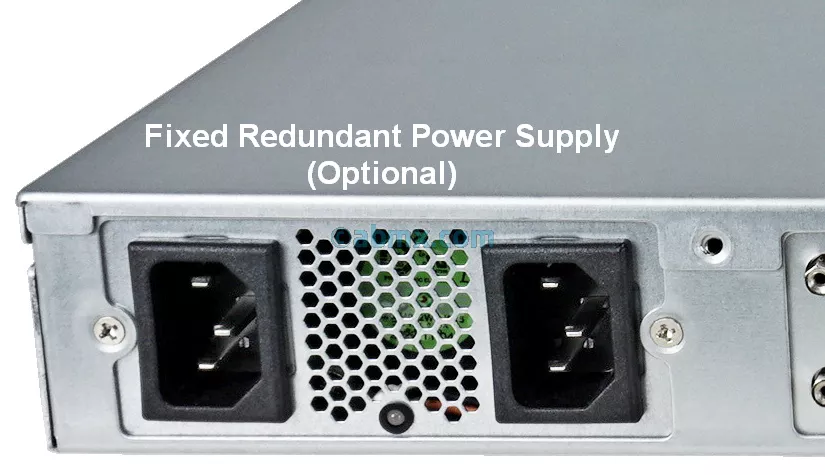

Power Supply
  • High-efficiency power supply
  • Tested to comply with FCC Class B Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL,
CD-ROM /DVD-ROM
  • Slim-line Optical Drive*** (OPTIONAL)
  • *** This option is NOT available if up to 4 x 2.5-inch drives selected
  • External USB Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12SPL-F /SPC621D8

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
