Workstation - Intel Xeon W

Model: T22IWX3RA

6 - 56 Cores
Xeon W

32 - 512 GB

6 x 3.5 Fixed

1 x 1GbE

4 x PCI-e

Case/Tower

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 980 PRO
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

Exposed 5.25'' Drive Bay (2)

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

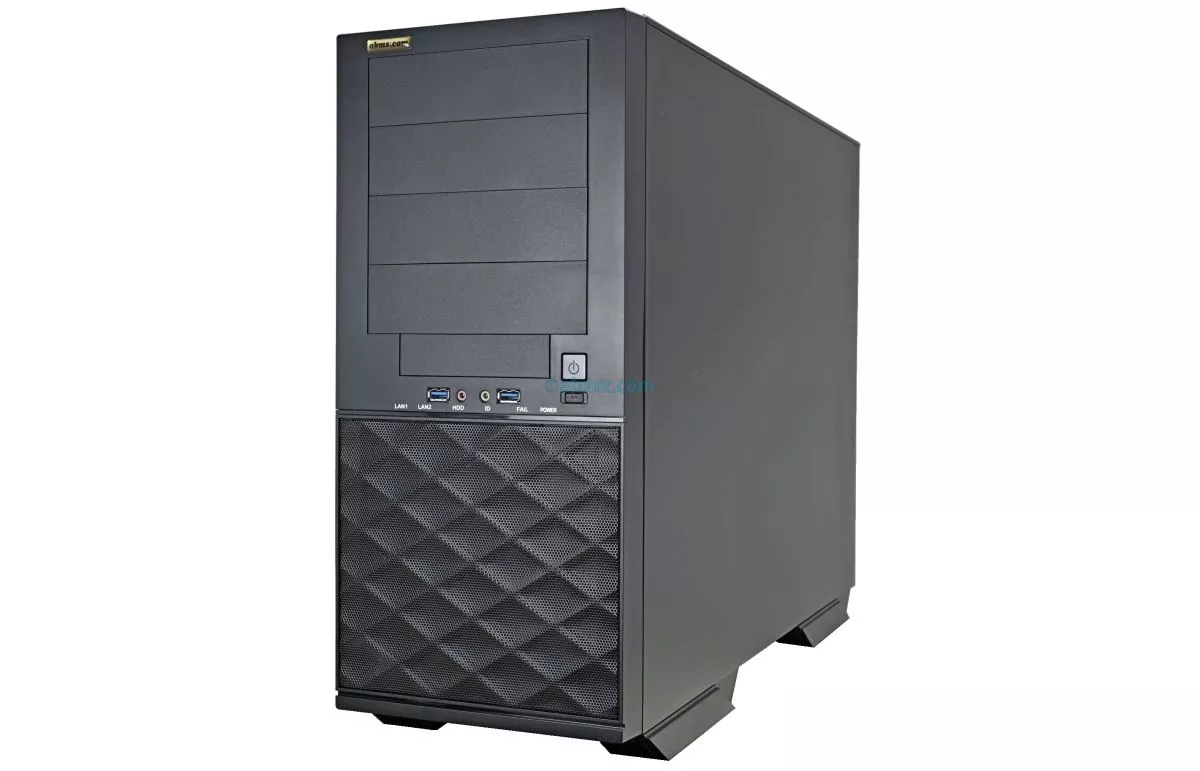

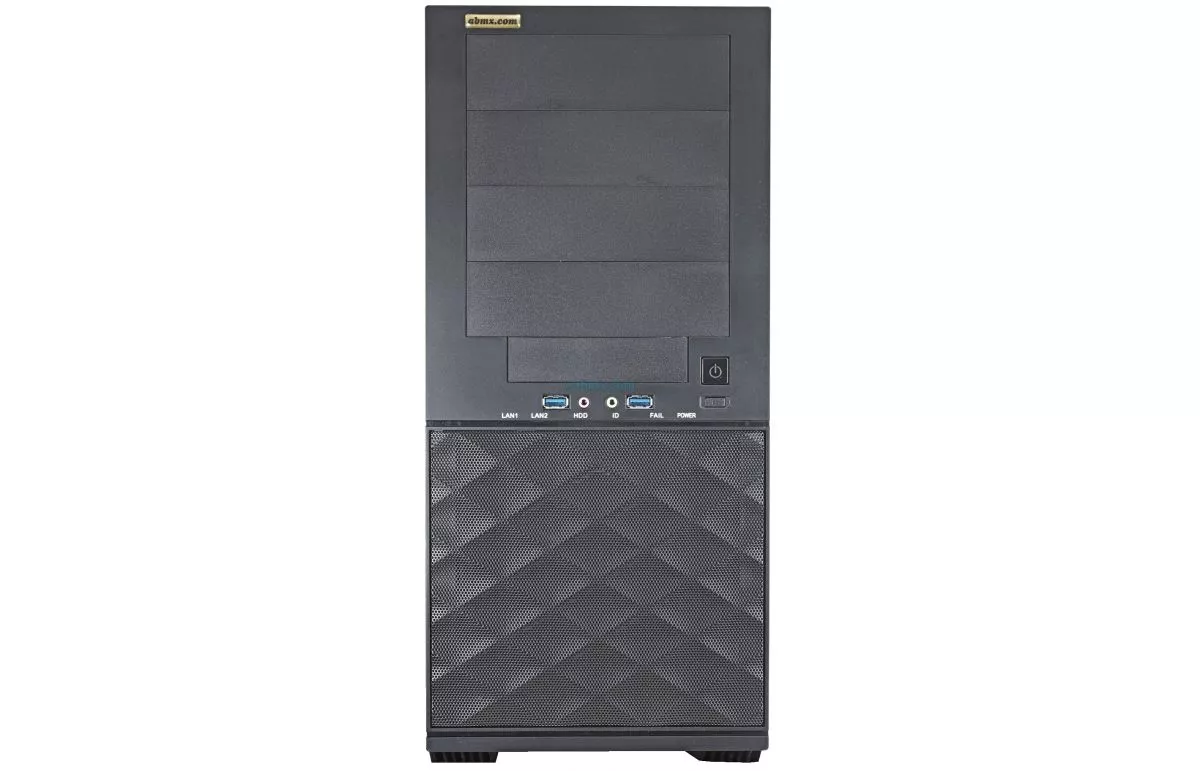

Chassis
  • Mini-Tower Industrial Grade Chassis

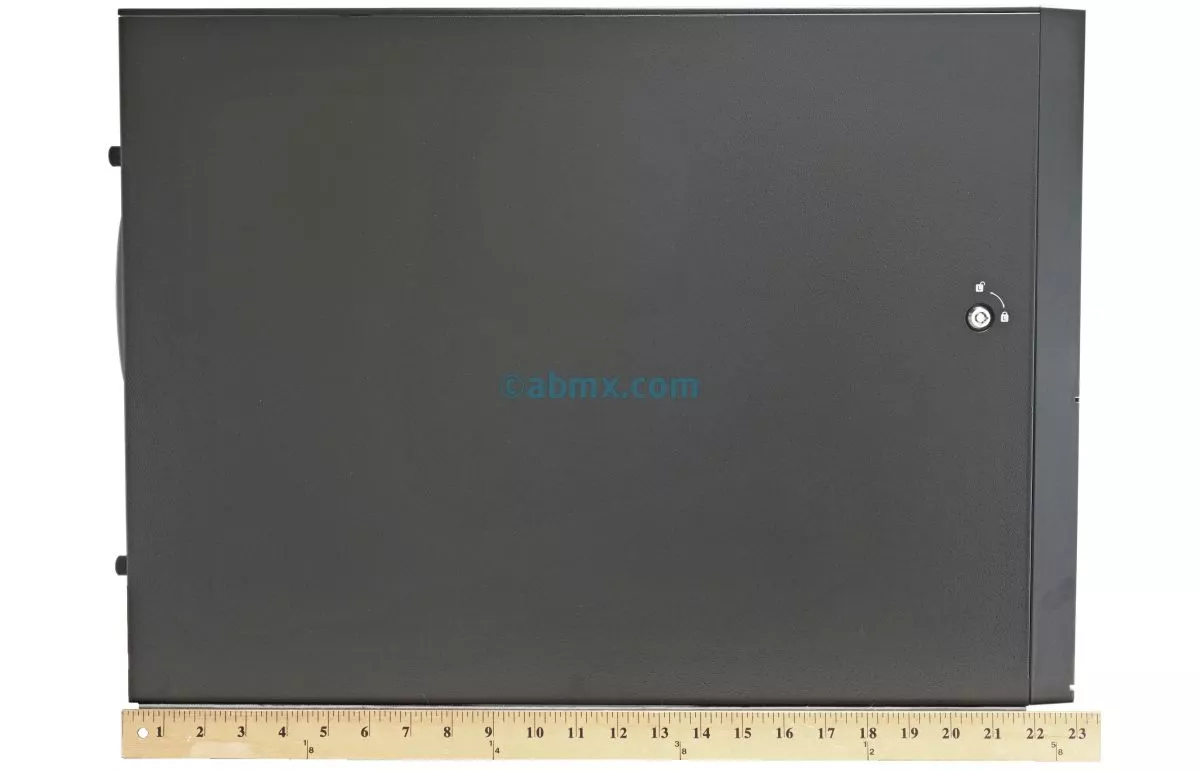

  • Dimensions (Chassis Only): 22.1" (D) x 7.9" (W) x 16.9" (H)
  • Metal thickness: 0.8 mm
  • 2 x Front USB 3.0 ports
Processor/Chipset
  • Single Socket LGA-4677 (Socket E)
  • Supports Intel® Xeon® W-3400 / W-2400 series processors
  • TDP up to 350W
  • Intel® W790 Chipset
BIOS
  • 32MB SPI Flash with AMI BIOS
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later
Memory
  • 8 x DIMM sockets
  • Supports up to 2TB 3DS ECC RDIMM, 512GB ECC RDIMM
  • DDR5-4800MHz
Storage / IPMI
  • 6 x SATA3 (6Gbps) ports
  • Intel® W790 controller controller on-board
  • IPMI 2.0 on-board
  • Chassis supports up to six hard drives
  • 2 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-6 Bay: fixed 3.5-inch SATA/ SSD Hard Drive Trays
  • Up to 144 Terabyte of storage can be supported
  • 4 x 5.25-inch External Drive Bays

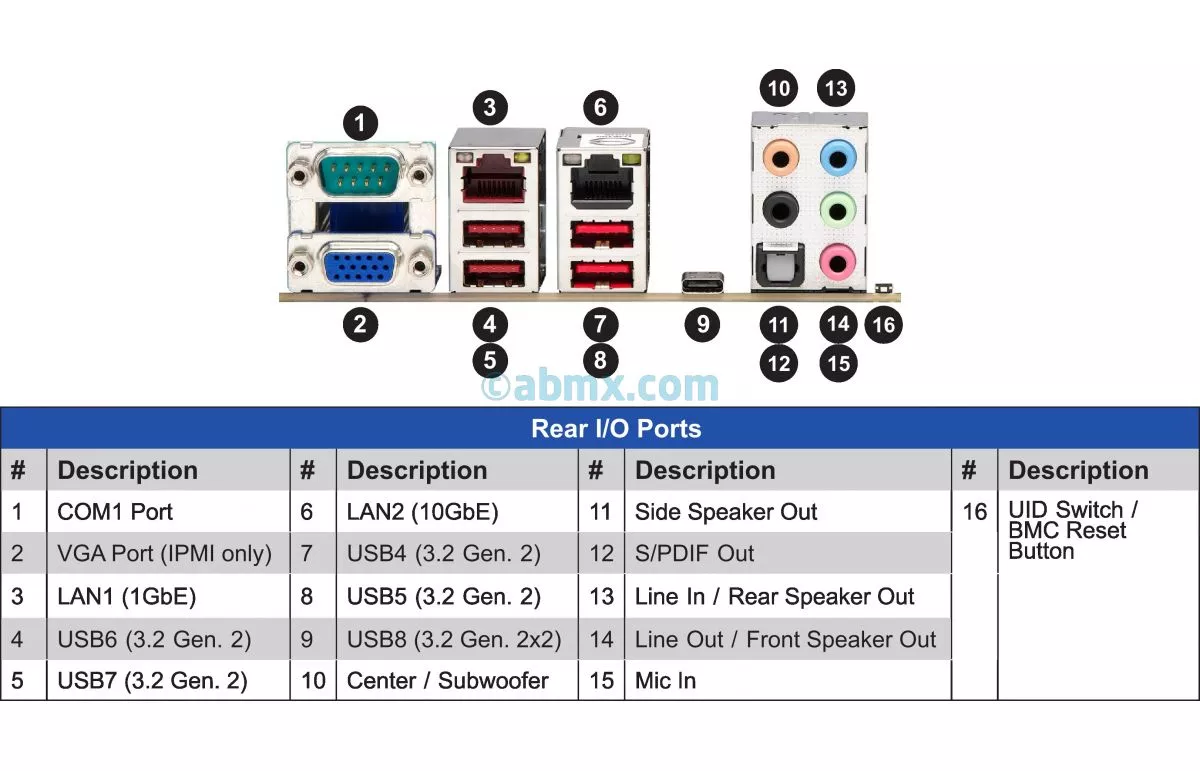

I/O ports
  • 1 x RJ45 10GbE Ethernet LAN port
  • 1 x RJ45 Gigabit Ethernet LAN port (Shared IPMI Port)
  • 4 x USB 3.2 Gen. 2 Ports (10Gb, Type-A)
  • 1 x USB 3.2 Gen. 2x2 Port (20Gb, Type-C)
  • 1 x UEB 3.2 Gen 2x2 via header (20Gb)
  • 2 x USB 3.2 Gen. 1 via header (5Gb)
  • 2 x USB 2.0 via header
  • 1 x VGA port (IPMI only)
  • 1 x COM Port
  • TPM 2.0 onboard
Video / Audio
  • Graphics controller & VGA support via ASPEED AST2600 BMC
  • Realtek ALC888S - HD Audio 7.1 on-board

Network
  • 1 x Gigabit Ethernet LAN port (Intel i210AT) (shared IPMI port)
  • 1 x 10-Gigabit Ethernet LAN port (Aquantia AQC113)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 4.0 (x4) slot
  • 3 x PCI-e 5.0 (x16) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • ATX HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Not supported
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X13SRA-TF OverallChipset
Intel W790
LAN
Marvell AQC113
LAN
Intel i210-AT
CentOS Stream 9
Debian 12
Fedora Server 38
Fedora Workstation 38
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
