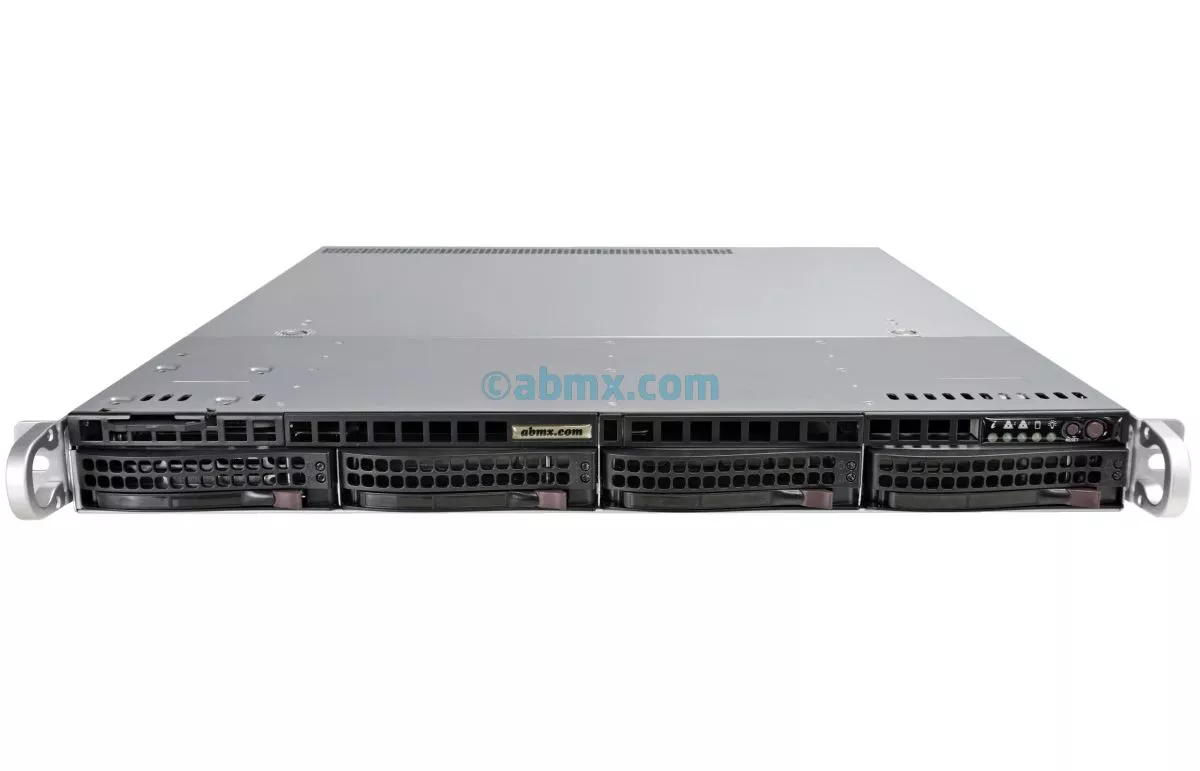

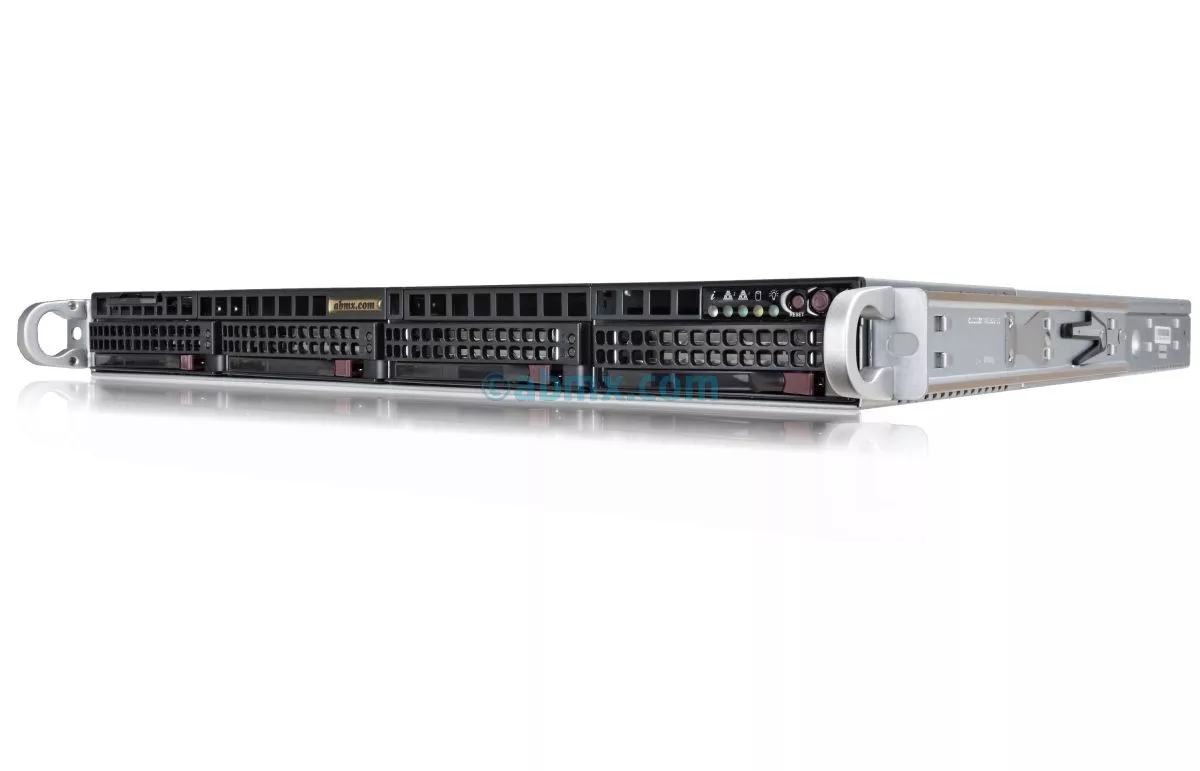

1U Server - 4 x Hot-Swap Bays

This versatile 1U Server is engineered for high-density environments, utilizing Intel Xeon E processors with up to 8 cores to deliver powerful compute performance in a compact form factor. Designed for maximum reliability, the system supports up to 128GB of DDR5 ECC Unbuffered memory, making it an ideal 1U Server for memory-intensive applications, virtualization, and edge computing. Storage flexibility is a core highlight, featuring 4 x 3.5-inch hot-swap bays for high-capacity data management and a dedicated NVMe M.2 slot for rapid boot speeds. Despite its short-depth, 20-inch deep chassis, this 1U Server offers excellent expandability via a PCIe riser card slot, while dual Gigabit LAN and a dedicated IPMI port ensure seamless remote management and network connectivity. Whether deployed for enterprise workloads or space-constrained cabinets, this 1U Server provides the perfect balance of space efficiency, quick maintenance, and professional-grade hardware.

Key Features
  • Short Depth
  • Redundant Power (optional)
  • 20-Inch deep
  • Dual LAN
  • Dedicated IPMI / iKVM
  • TPM 2.0
Related Tags
Samsung 990 PRO
Samsung 9100 PRO
SK hynix Platinum P51
WD_BLACK SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
Western Digital® Enterprise-class
Special Order
Microsoft®
Special Order

Tech Specs

Chassis
  • 1U Rackmount Server Chassis
  • 19" Rackmount Standard

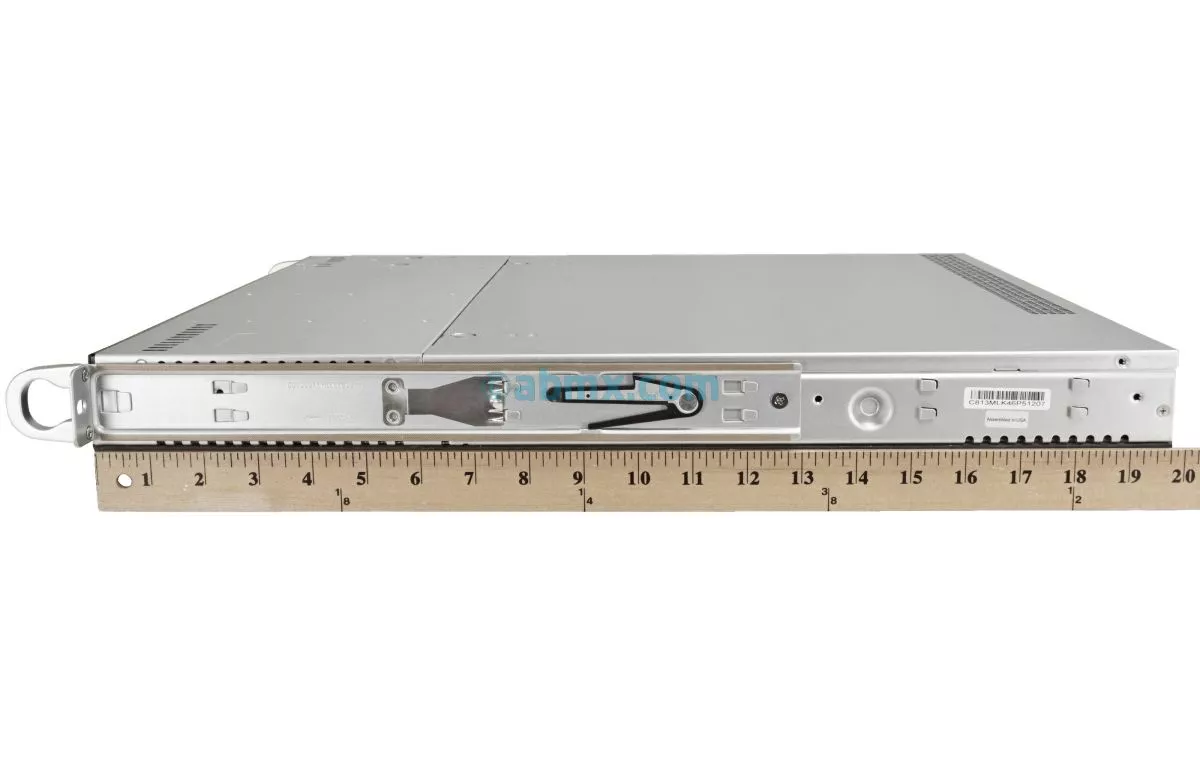

  • Dimmensions: 19.98" (D) x 19" (W) x 1.7" (H)
  • Cooling: 4 x 40mm fans


Processor / Chipset

  • Intel® Xeon® 6300 Series processors
  • Intel® Xeon® E-2400 Series processors
  • Intel® Pentium® Gold processors
  • Single processor, TDP up to 95W
  • Intel® Socket LGA 1700 (Socket V0)
  • Intel® C262 chipset


Memory

  • 4 x DIMM slots
  • DDR5 ECC Unbuffered memory support
  • Up to 128GB total memory
  • ECC UDIMM up to 32GB supported
  • Memory Speed: Up to 4400 MT/s


Storage

  • 8 x SATA 6Gb/s ports via Intel® C262 chipset
  • 1 x M.2 NVMe 2280/22110 PCIe Gen4 x4 slot
  • SATA RAID 0/1/5/10 support via Intel® C262 chipset
  • 4 x 3.5-inch or 2.5-inch Hot-swap Drive Bays
  • 4-Port 1U 12Gbps Backplane Support
  • 1 x Slim Optical Drive Bay
  • Please contact our technical support team at (714) 258-2269 or [email protected] for storage configuration options

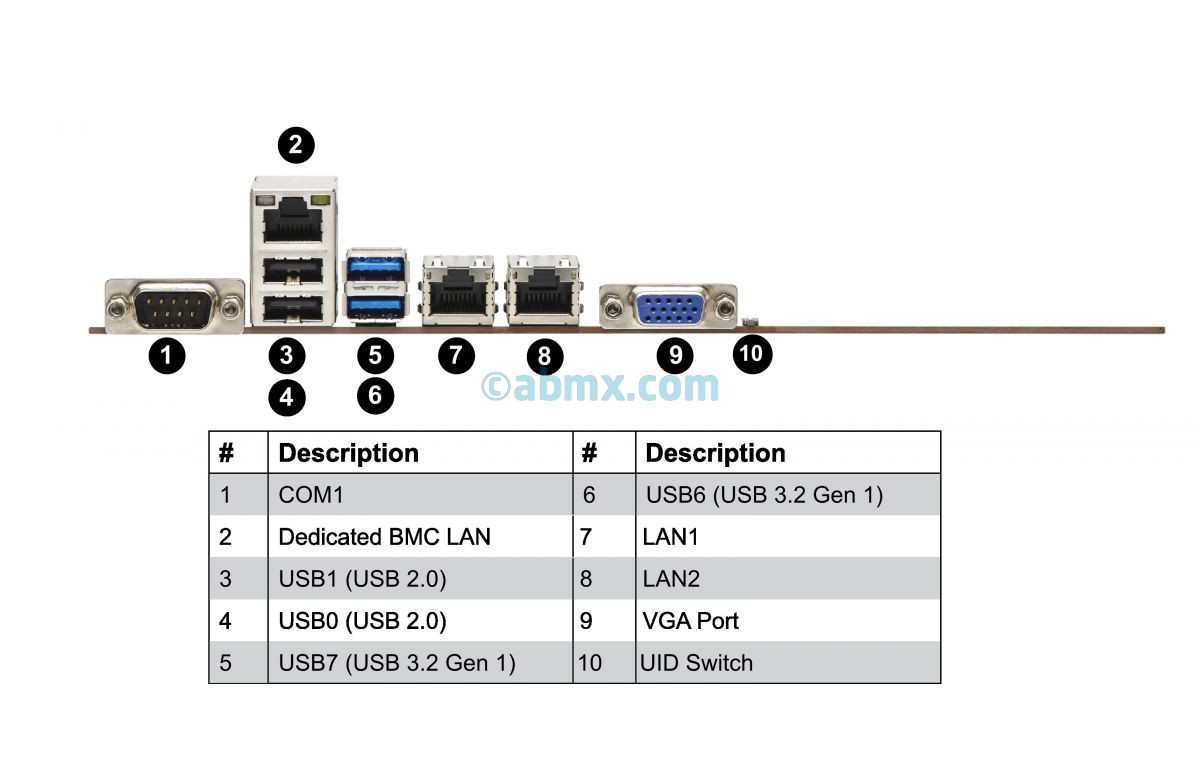

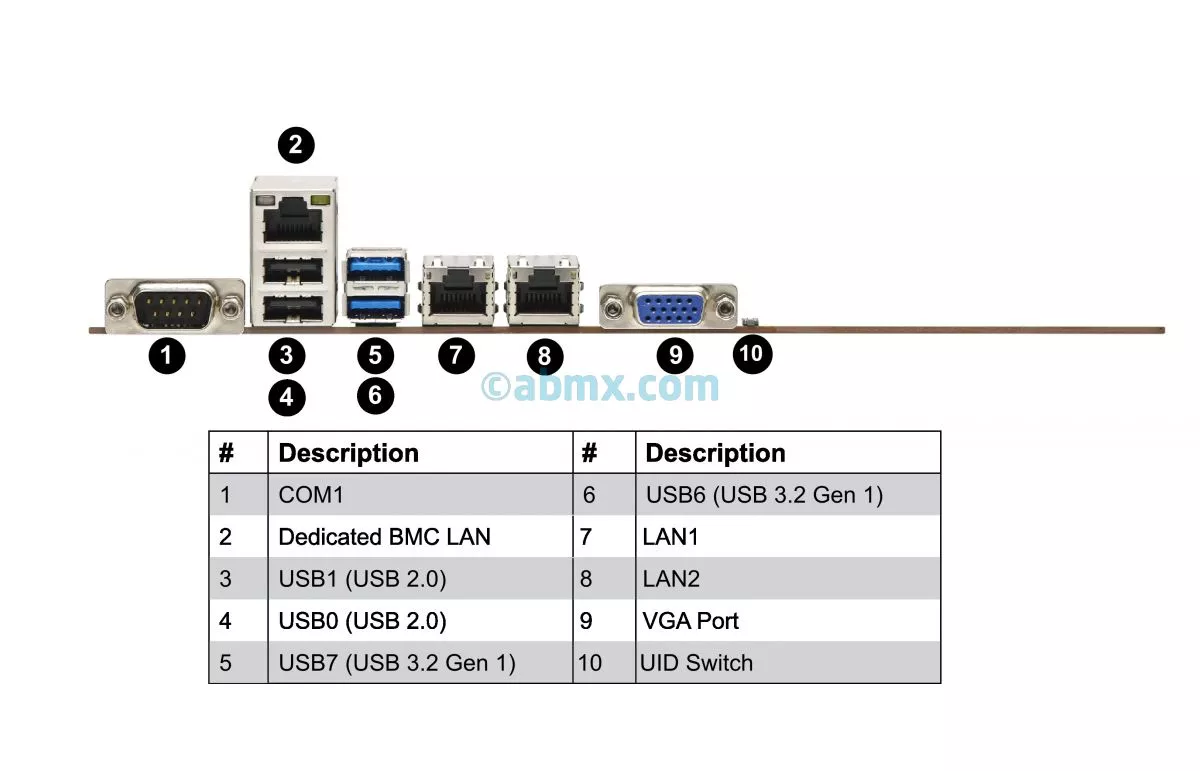

Input / Output

  • 2 x 1G RJ45 Etherenet LAN ports
  • 1 x 1G RJ45 Management LAN port
  • 2 x USB 2.0 Type-A ports (rear)
  • 4 x USB 2.0 ports (header)
  • 2 x USB 3.2 Gen 1 Type-A ports (rear)
  • 2 x USB 3.2 Gen1 ports (header)
  • 1 x USB 3.2 Gen1 Type-A port (internal)
  • 1 x VGA port
  • 1 x COM port (rear)
  • 1 x COM port (header)


Security Module

  • 1 x TPM 2.0 header with SPI interface
  • 1 x TCG TPM 2.0 kit - Infindeon 9670 controller


Audio / Video

  • No on-board Audio Codec
  • Integrated in ASPEED® AST2600 (1 x VGA port)















Network
  • 2 x 1G RJ45 LAN ports (Intel® i210 controller)
  • 1 x 1G RJ45 Management LAN port (IPMI)


Board Management

  • ASPEED® AST2600 Baseboard Management Controller - IPMI 2.0
  • Redfish APIs
  • BMC Web GUI
  • HTML5 KVM with multi-language support
  • DCMI 1.5
  • Serial Redirection
  • User account management and Role-based authority
  • Power control
  • Temperature monitoring
  • Real-time power reading
  • Power thresholds & alerts
  • Fan monitoring
  • Memory monitoring
  • CPU monitoring
  • RAID monitoring and configuration
  • GPU monitoring
  • NIC monitoring
  • HDD monitoring
  • Health /System Events
  • Syslog


PCIe Expansion Slots

  • 1 x PCIe x8 in x16 Riser Slot


Power Supply

  • High Efficiency Power Supply
  • Form Factor: 1U Standard
  • Input Voltage: 100 - 240Vac
  • Input Frequency: 50-60Hz
  • Input Current: 100-240Vac @ 6.6A max
  • Protections: OCP, OVP
  • Certifications: BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL
  • Redundant Power supply (optional)


Rack Support

  • 19" Rackmount Standard
  • Rackmount Rail kit is available in the System Configurator (optional)


OS Compatibility

  • Please contact out technical support team at (714) 258-2269 or [email protected] for questions about OS compatibility.


Warranty

  • 3-Year Parts and Labor Standard*
    *Batteries are subject to DOA only and are NOT subject for replacement of Return
  • Extended Warranties Available
  • Please visit https://www.abmx.com/terms-and-warranties to see our complete terms and warranty information












Large Image

OS Compatibility

Motherboard X13SCL-F OverallChipset
Intel C262		LAN
Intel I210		Video
ASPEED AST2600
CentOS Stream 10
Debian 13
Fedora Server 38
43
Fedora Workstation 38
43
FreeBSD 15
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 10
Rocky Linux 10
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
24.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
24.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022
2025

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
