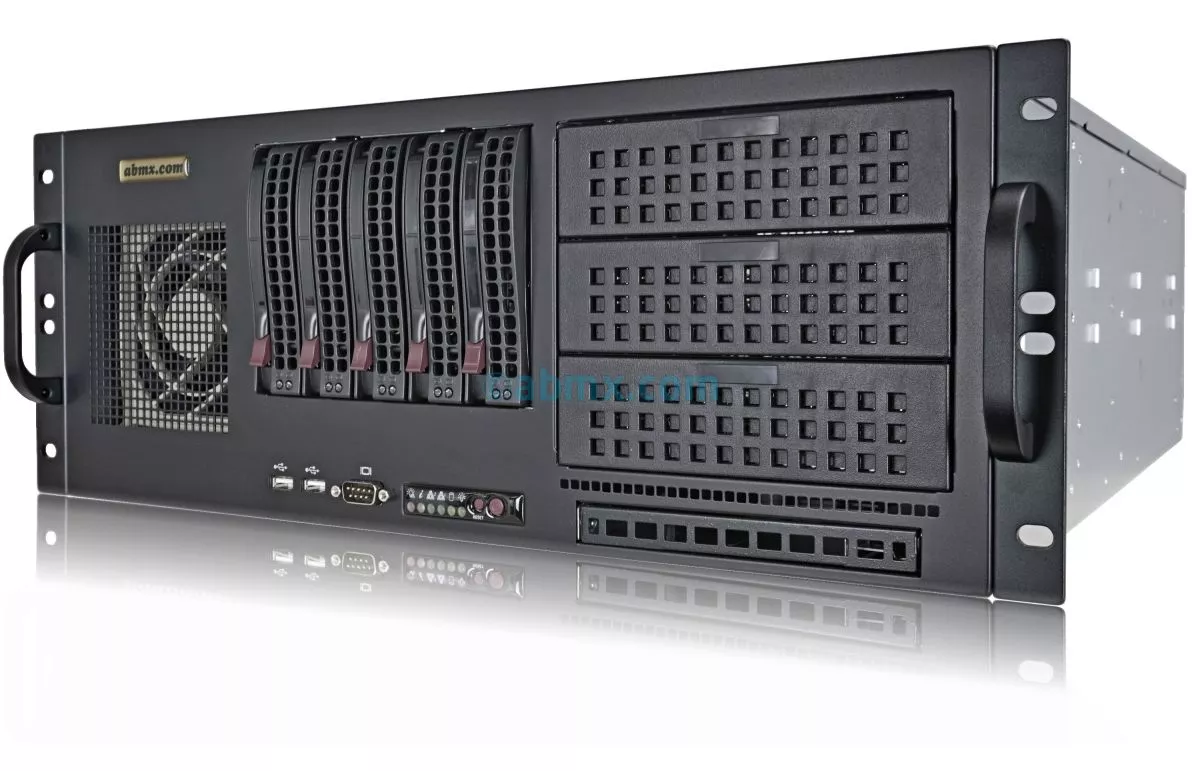

4U Server - Dual Xeon Scalable - 5 x Hot-Swap Bays

Model: 421CX3DE-V

8 - 32 Cores
Dual Xeon Scalable

32 - 1024 GB

5 x 3.5 Hot-Swap

2 x 1GbE

6 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

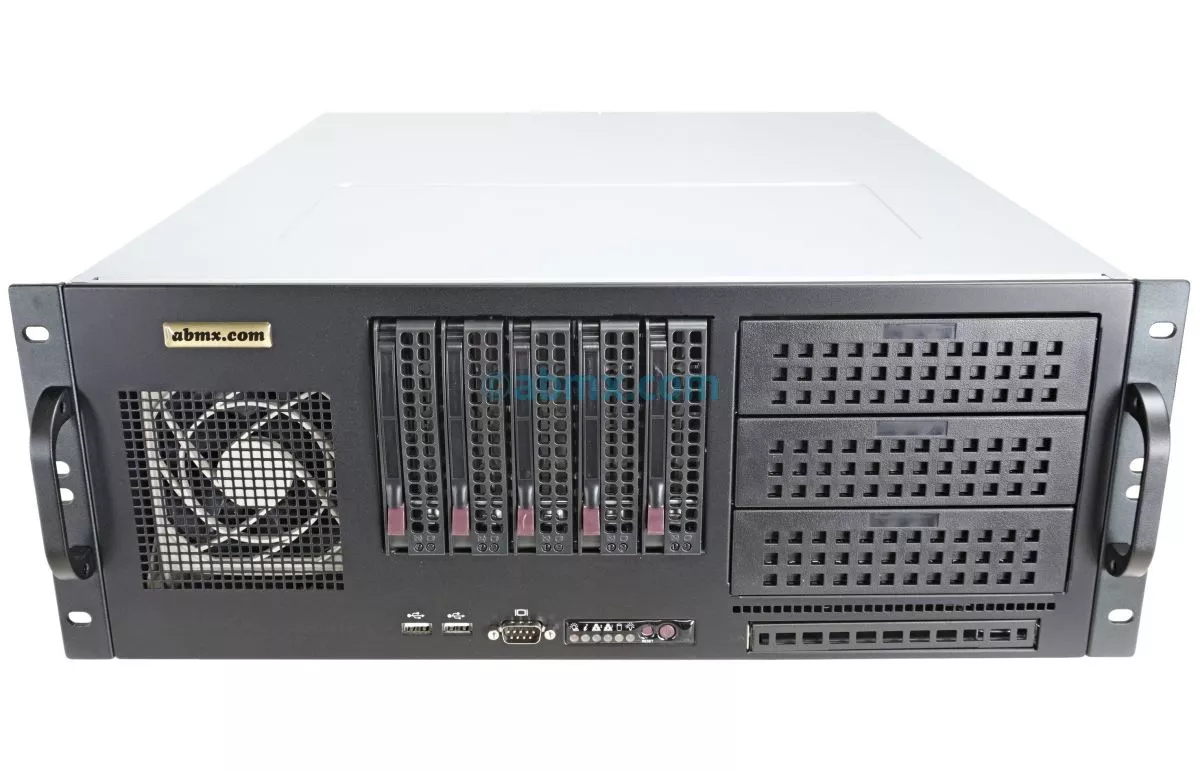

  • 4U Short Rack Mountable Enclosure
  • Rack Unit Height: 7.0-inch

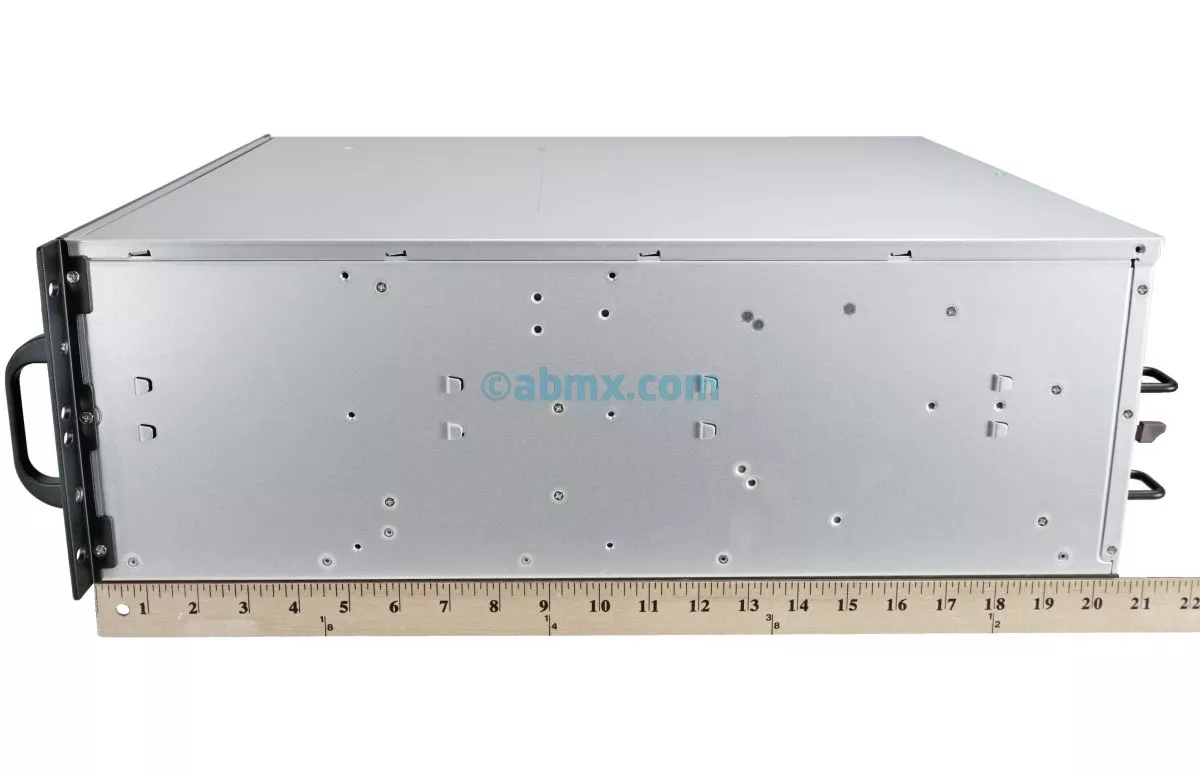

  • Dimensions: 20.5" (D) x 19" (W) x 7.0" (H)
  • Metal thickness: 1.2 mm
  • Front: 2 x USB 3.0 Ports and 1 x COM port
Processor/Chipset
  • Dual Socket LGA-4677 (Socket E)
  • Supports 4th Gen Intel® Xeon® Scalable processors
  • Intel® C741 chipset
BIOS
  • AMI 32MB AMI UEFI
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2
Memory
  • 16 x DDR5 DIMM sockets
  • Supports up to 4TB
  • DDR5 4800/4400/4000MHz ECC RDIMM (3DS)
Storage / IPMI
  • 2 x SATA 6Gb/s ports
  • 8 x SATA 6Gb/s via SlimSAS x8 Connector
  • Intel® C741 controller on-board
  • Chassis supports up to five drives
  • IPMI 2.0 on-board (ASPEED AST2600 BMC)
  • 2 x M.2 NVMe 2280
Drive Bays

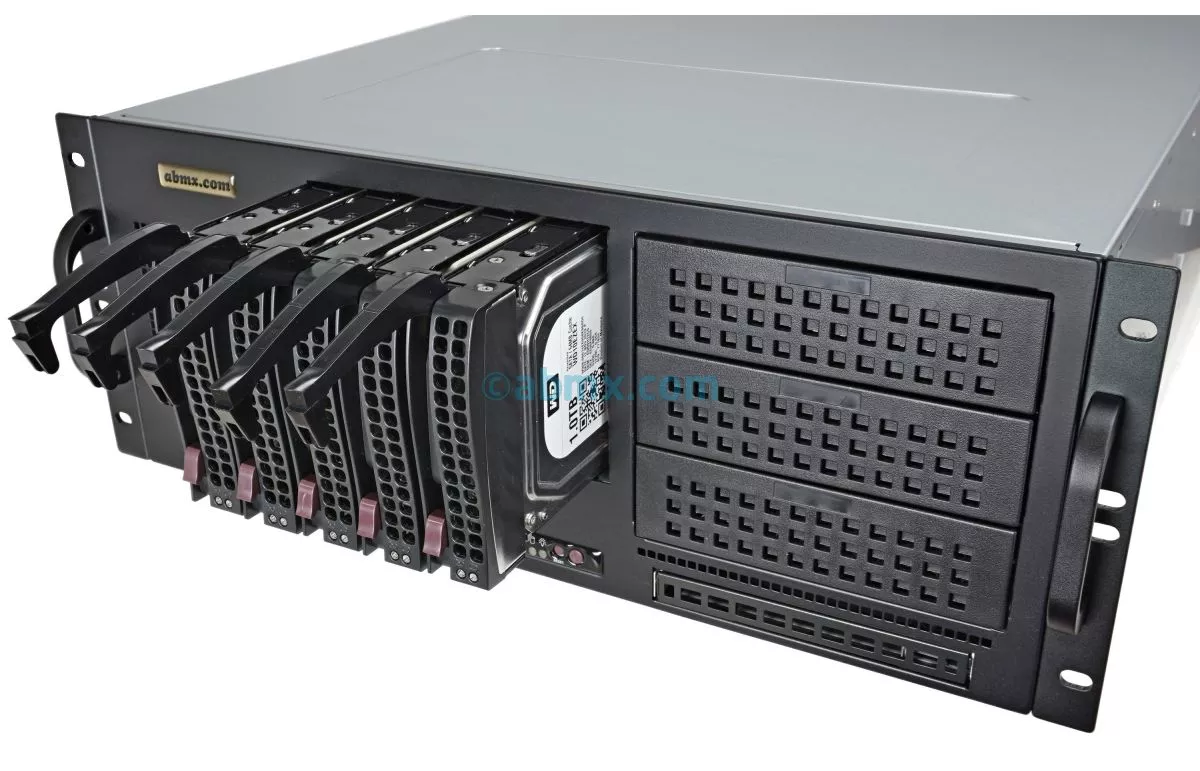

  • HD1-5 Bay: hot-swap SATA/ SSD Hard Drive
  • Up to 110 Terabyte of storage can be supported
  • 3 x 5.25-inch Peripheral Bay

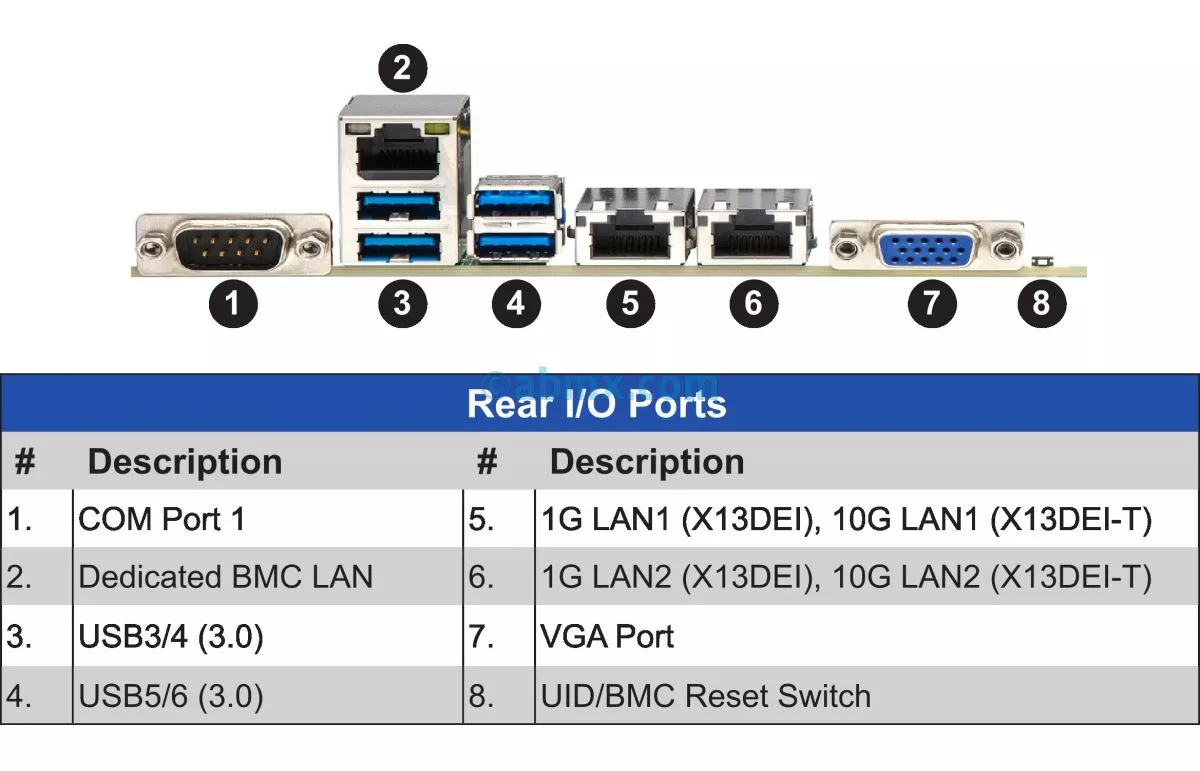

I/O ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x RJ45 Gigabit Ethernet LAN ports, OR
  • 2 x RJ45 10 Gigabit Ethernet LAN ports (OPTIONAL)
  • 6 x USB 3 ports (4 x rear, 2 x via header)
  • 3 x USB 2 ports (1 x Type A, 2 x via header)
  • 1 x VGA D-Sub Connector port
  • 2 x COM Ports (1 x header, 1 x rear)
  • 1 x TPM header
  • 3 x MCIO PCI-e 5.0 (x8) connector
Video
  • Integrated in Aspeed® AST2600

Network
  • Dual Gigabit LAN Ethernet Controller (Broadcom BCM5720), OR
  • Dual 10GBase-T LAN Ethernet Controller (Broadcom BCM57416) - OPTIONAL
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 2 x PCI-e 5.0 (x8) slots
  • 4 x PCI-e 5.0 (x16) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-efficiency PS2 power supply
  • Tested to comply with FCC class B Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
