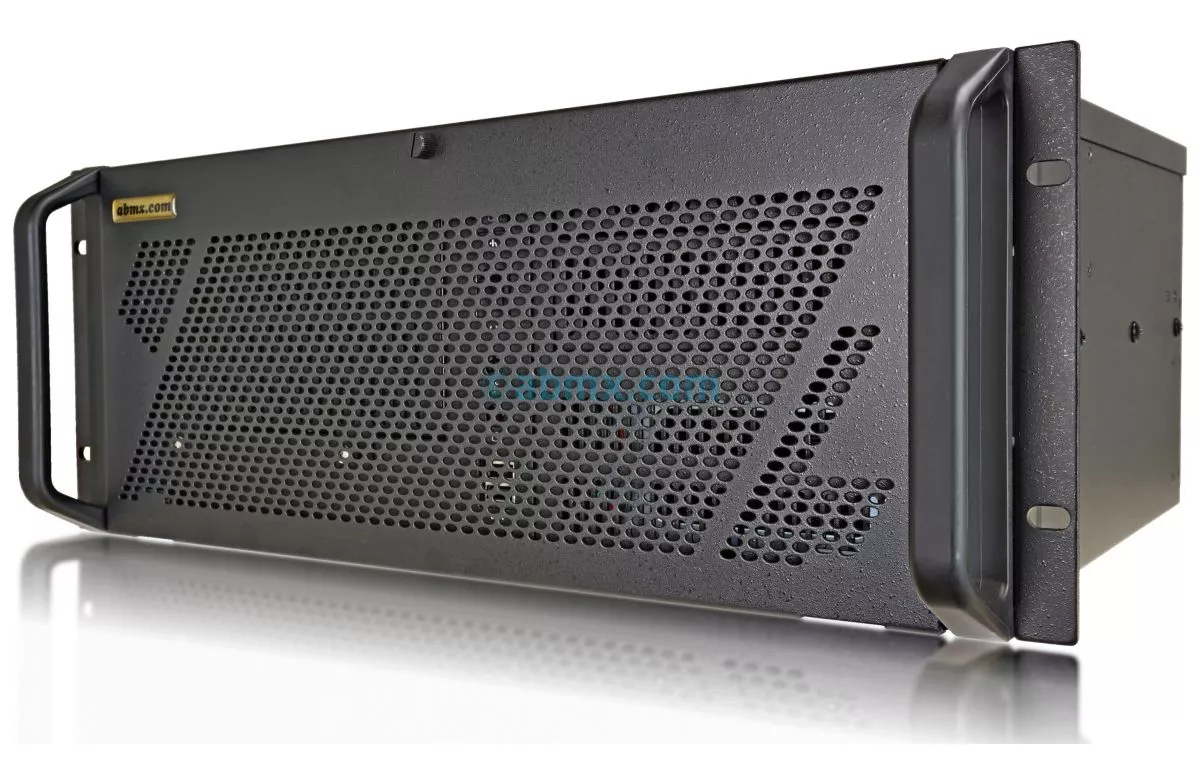

4U Short-Depth Server - Intel 13th Gen

Model: 412S3ZF

Built with our most popular 4U chassis, the 412S3ZF is an excellent short depth server or workstation for projects that require full-sized expansion options. Despite its short 12" depth, this chassis can handle full-height and full-length expansion cards that require additional power connections, and features Intel's latest 13th Gen Core processors for up to 24 cores, and up to 128GB of blazing fast DDR5 memory. Ask us about additional serial, USB or network ports that can be provided in this system.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 5.25" Drive Bay
  • 12-Inch deep
Recommended Uses

4 - 24 Cores
Core i9, i7, i5
i3, Pentium, Celeron

8 - 64 GB

4 x 2.5 Fixed

2 x 1GbE

3 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Trusted Platform Module (TPM)

Power Supply

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

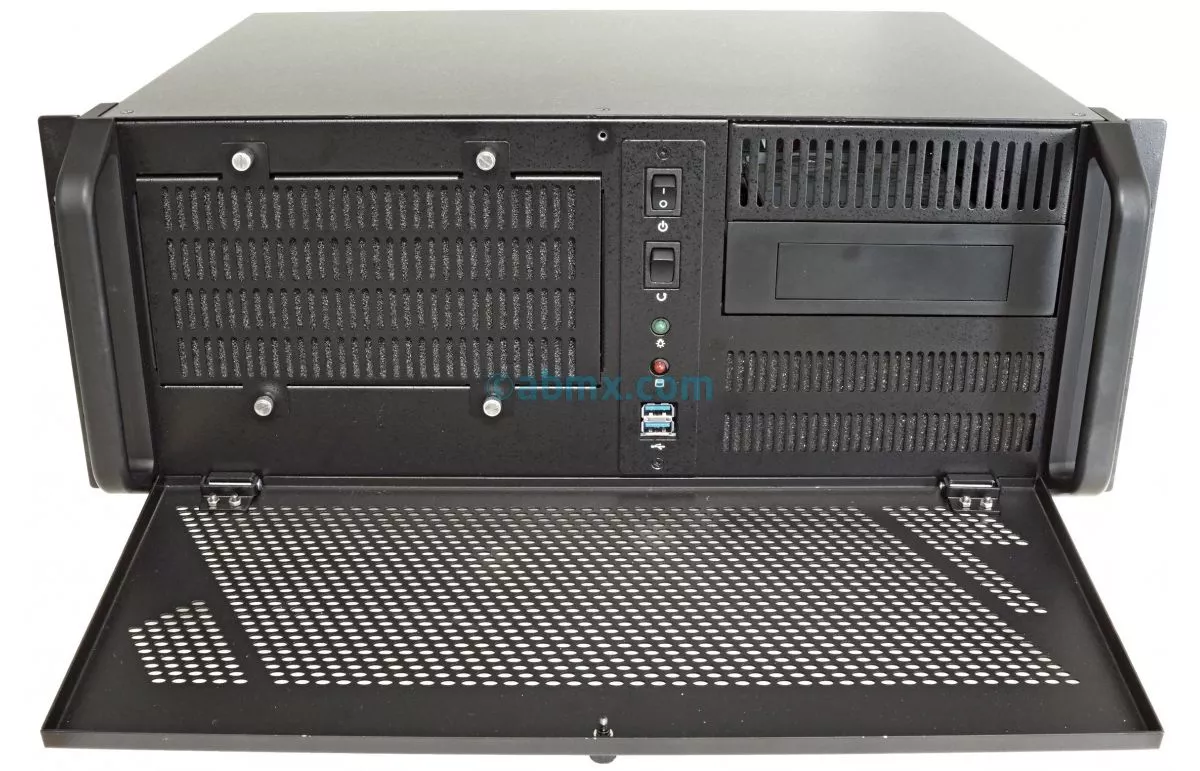

  • 4U Short-depth Rack Mountable Enclosure
  • Rack Unit Height: 7.0-inch
  • Dimensions: 11.9" (D) x 19" (W) x 7.0" (H)
  • Metal thickness: 1.2 mm
  • Front USB: 2 x Ports
  • Single Door with 1 x Thumbscrew
Processor/Chipset
  • Single Socket LGA-1700
  • Supports 13th /12th Gen. Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Intel® R680E Chipset
BIOS
  • AMI UEFI
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR5 DIMM sockets
  • Supports up to 128GB Unbuffered ECC/non-ECC UDIMM
  • 4400/4000/3600 MT/s
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • Intel R680E controller on-board
  • IPMI 2.0 on-board
  • Chassis supports up to four drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-4 Bay: fixed 2.5-inch SATA/SSD Hard Drive
  • Up to 16 Terabyte of storage can be supported
  • 2 x 5.25-inch Bay

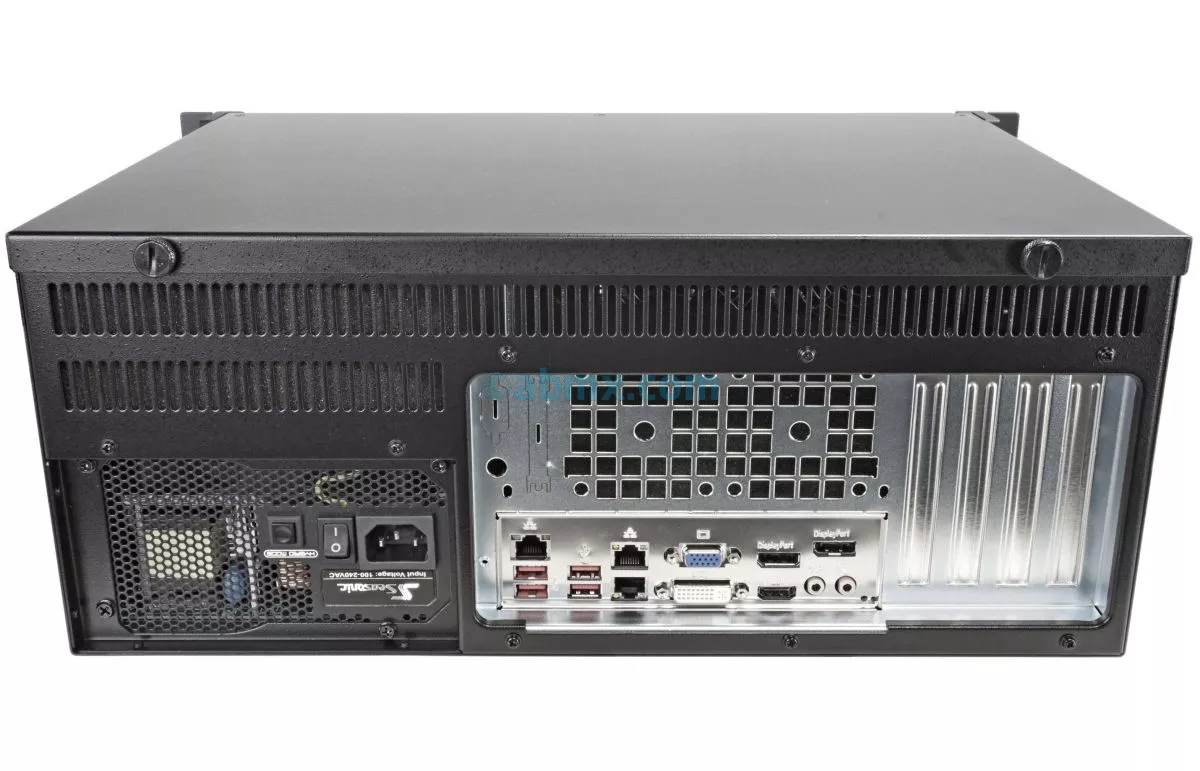

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (4 x headers)
  • 6 x USB 3.2 Gen.2 ports (4 x rear type A, 2 x via header)
  • 2 x USB 3.2 Gen.1 ports (2 x via header)
  • 1 x VGA port
  • 1 x DVI - D port
  • 1 x HDMI 2.0b port
  • 2 x DP (DisplayPort) ports
  • 4 x COM Ports (2 x header RS232/422/485, 2 x header RS232)
  • TPM 2.0 onboard
Video / Audio
  • ALC 888S HD Audio on-board
  • DVI - D port, 1 HDMI 2.0b port, 2 DP (DisplayPort) ports: integrated graphics from CPU

Network
  • Dual LAN with Intel® Ethernet Controller i225LM
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 5.0 x16 slot
  • 2 x PCI-e 4.0 x4 (in x8) slot
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X13SAZ-F
AsteriskNOW 10.13
CentOS 6.0
7.0
7.6
7.9
8.4
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
7.9
Debian 10.10
10.2
10.7
11.4
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 26
27
29
32
35
36
Fedora Workstation 26
27
29
32
33
35
36
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
13.1
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
21
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
6.0.24
OpenBSD 5.0
6.0
6.4
6.8
6.9
7.1
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15.4
OpenSUSE Tumbleweed
OPNsense 19.1
22.7
Oracle Linux 7
7.6
9.0
PFSense 2.3
2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 5.0
8.1
9.0
Rocky Linux 8.4
9.0
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
7.9
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
13
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
7.0
VyOS 1.2
Windows 10
7
Windows 11 Original Release
Windows 32-bit 10
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS 12.3.0.4
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
