2U Mini Server - Front I/O - Xeon Scalable 4th Gen

Model: 214FLGX3M

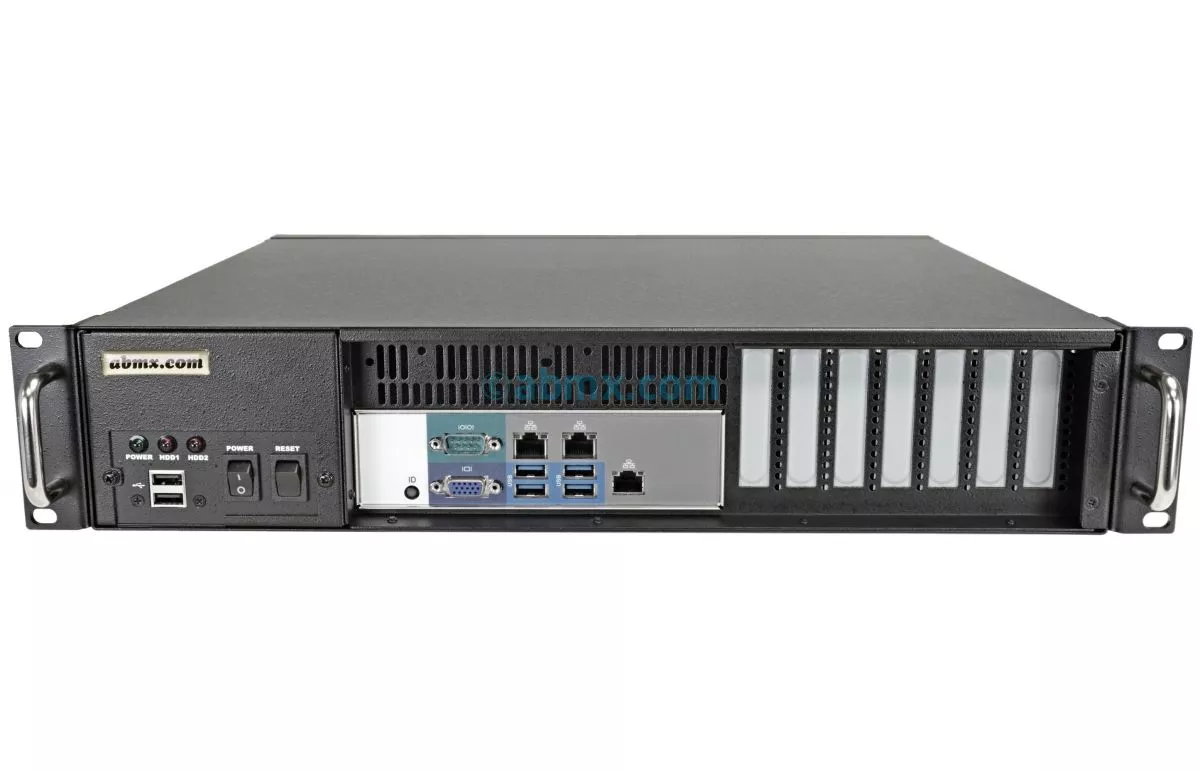

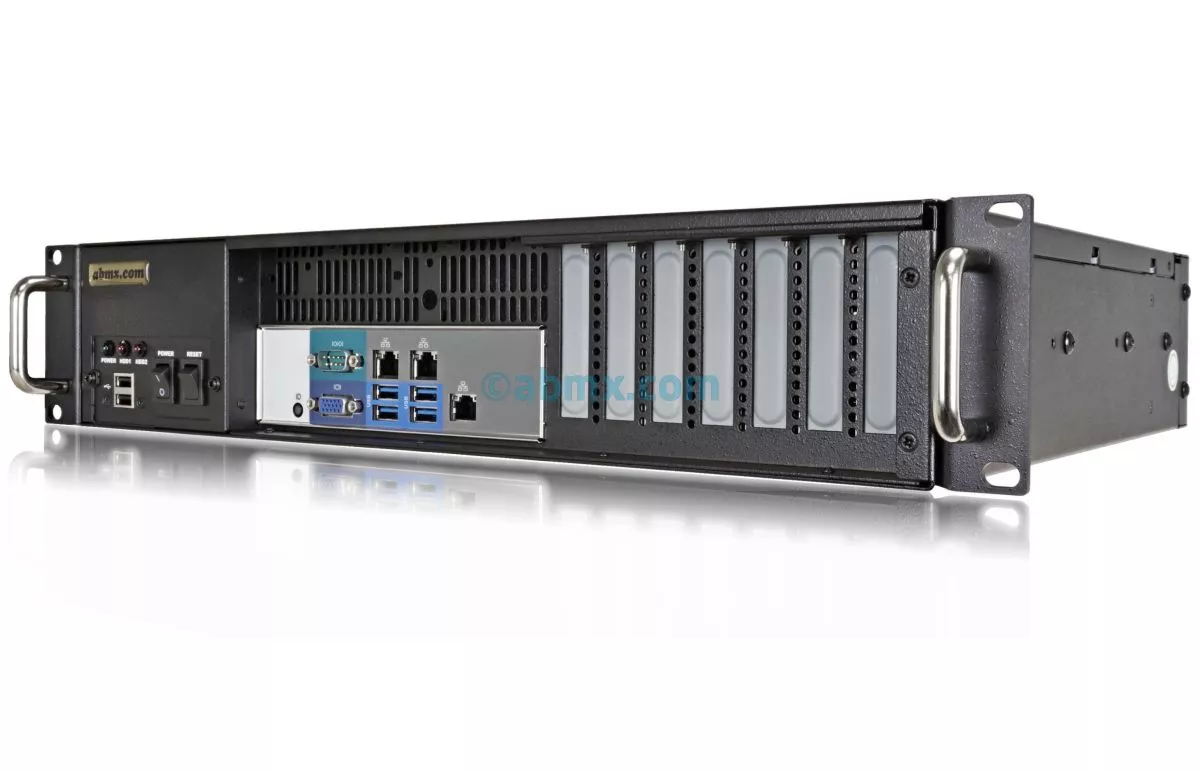

This short-depth 2U server features the latest Intel 4th Gen. Xeon Scalable processors up to 60 cores, 120 threads, and up to 768GB of DDR5 memory for unbeatable performance. The unique reverse design offers quick and easy access to the system's IO ports and PCIe slots without having to pull the system out or climb behind the rack. At only 14 inches deep, this highly capable system provides quick access and saves on rack space.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Front I/O Ports
  • 14-Inch deep
Recommended Uses

8 - 32 Cores
Xeon Scalable

16 - 512 GB

1 x 3.5 Fixed
2 x 2.5 Fixed

2 x 1GbE

7 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Additional Network Adapter

Trusted Platform Module (TPM)

External Optical Drive (for OS installation, Backups, etc.)

Power Supply

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

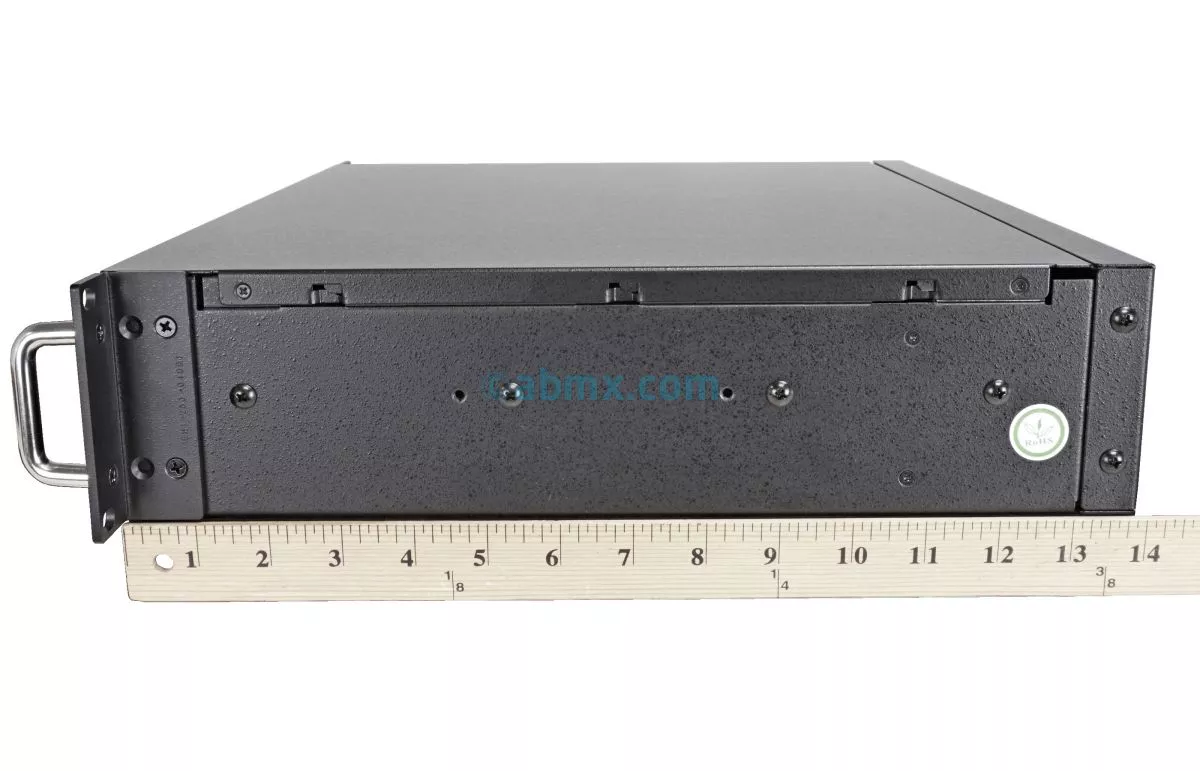

  • Dimensions: 14.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB Ports
  • Front I/O Ports
Processor/Chipset
  • Single Socket LGA-4677 (Socket E)
  • Supports 4th Gen Intel® Xeon® Scalable processors
  • Intel® C741 chipset
Expansion (LOW-PROFILE)
  • 3 x PCI-e 5.0 (x16) low-profile slot
  • 4 x PCI-e 5.0 (x8) low-profile slot
Memory
  • 8 x DDR5 DIMM sockets
  • Supports up to 768GB
  • DDR5 4800/4400/4000MHz ECC RDIMM (3DS)
Storage / IPMI
  • 12 x SATA 6Gb/s ports
  • Intel® C741 controller on-board
  • Chassis supports one drive
  • 1 x M.2 NVMe 2280
Drive Bays
  • HD1 Bay: fixed 1 x 3.5-inch HDD or 2 x 2.5-inch SSD
  • Up to 22 Terabyte of storage can be supported

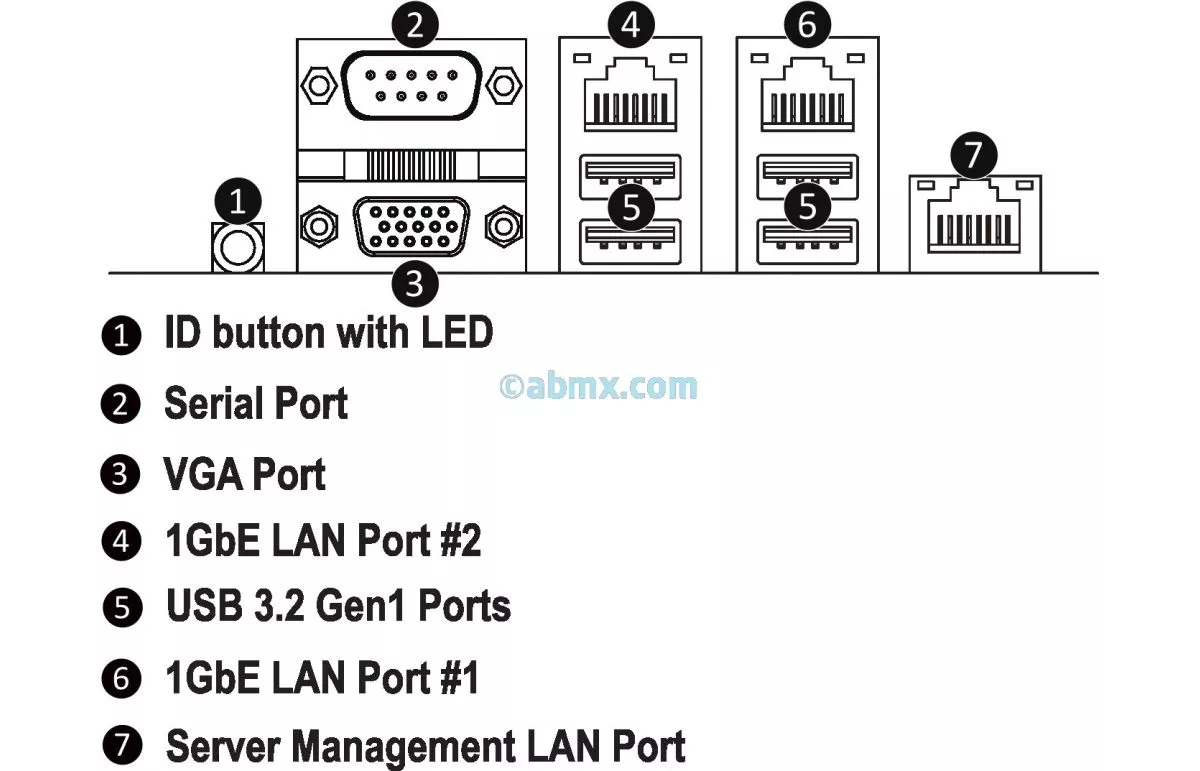

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x MLAN port
  • 4 x USB 3.2 Gen1 ports (1 x USB 3.2 Gen1 header)
  • 1 x VGA port
  • 1 x COM Port
  • Trusted Platform Module (TPM) 2.0 is included
  • 1 x ID button with LED
Video
  • Integrated in Aspeed® AST2600
  • 2D Video Graphic Adapter with PCI-e bus interface
    1920x1200@60Hz 32bpp, DDR4 SDRAM

Network
  • Dual Gigabit LAN ports (Intel® I210-AT), NCSI function supported
  • Single Gigabit management LAN
Board Management
  • Aspeed® AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-Efficiency Power Supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
CD-ROM /DVD-ROM
  • External USB Optical Drive (OPTIONAL)
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard MS03-CE0

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
