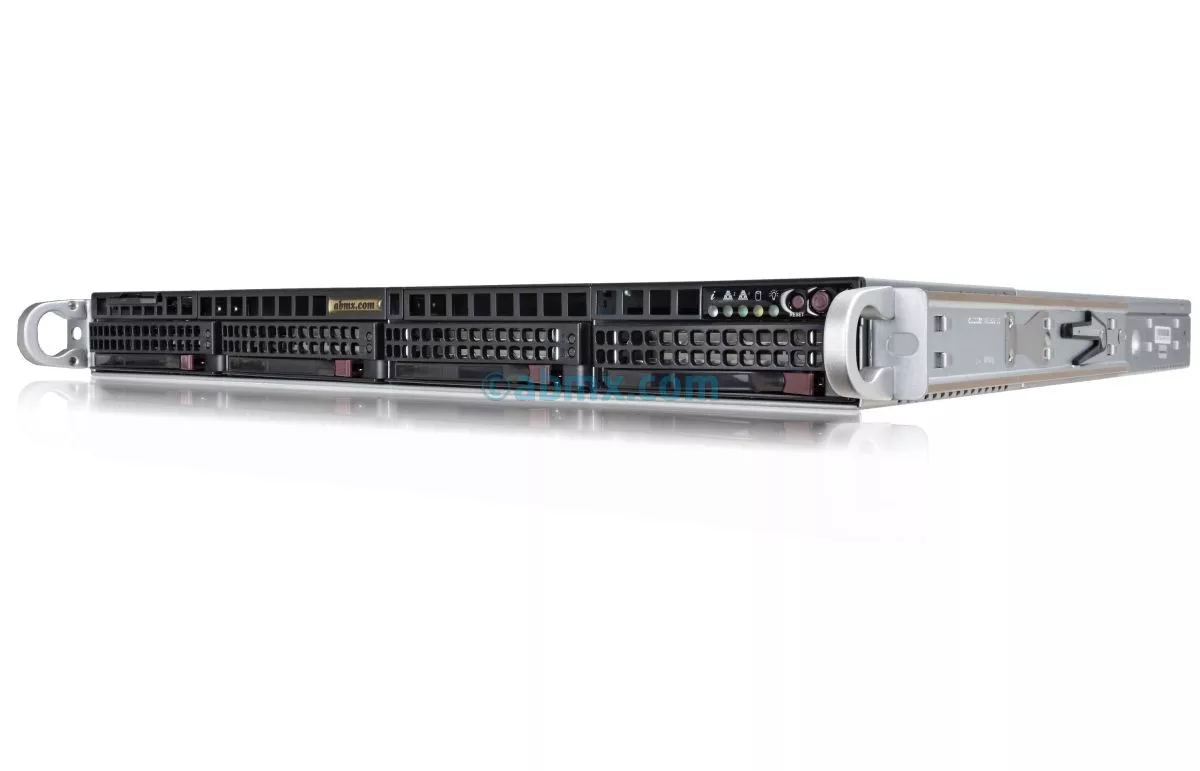

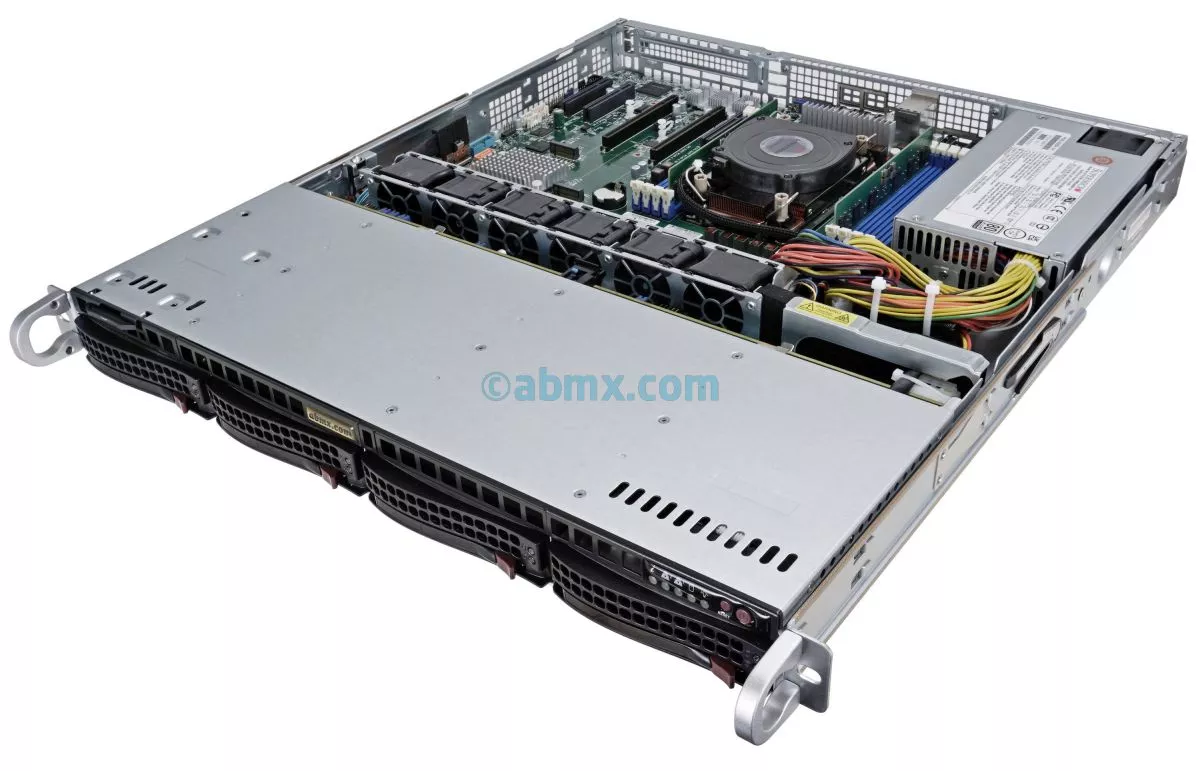

1U Rack Server - Xeon Scalable 4th Gen

Model: 1202X3S

The 1202X3S is the high-end Intel Xeon Scalable version of our popular 1U four hot-swap bay model, featuring a single Scalable Xeon. This unassuming system can house up-to 60 powerful cores with a total of 120 computational threads and up to 2TB of DDR5 RAM for unbeatable performance. With the optional Dual 10GbE RJ45 ports, this system is great for appliances that need to handle a high traffic load or highly parallel tasks.

Key Features
  • Short Depth
  • Front USB (optional)
  • Redundant Power (optional)
  • 20-Inch deep
  • Dedicated IPMI / iKVM
  • TPM 2.0 (optional)
  • Dual 10GbE RJ45 (optional)
Recommended Uses

8 - 32 Cores
Xeon Scalable

16 - 512 GB

4 x 3.5 Hot-Swap

2 x 1GbE

1 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM)

Optical Drive

Front USB/COM port

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 1U Rackmountable Enclosure
  • Black color
  • 1 Rack Unit Height (1.7")

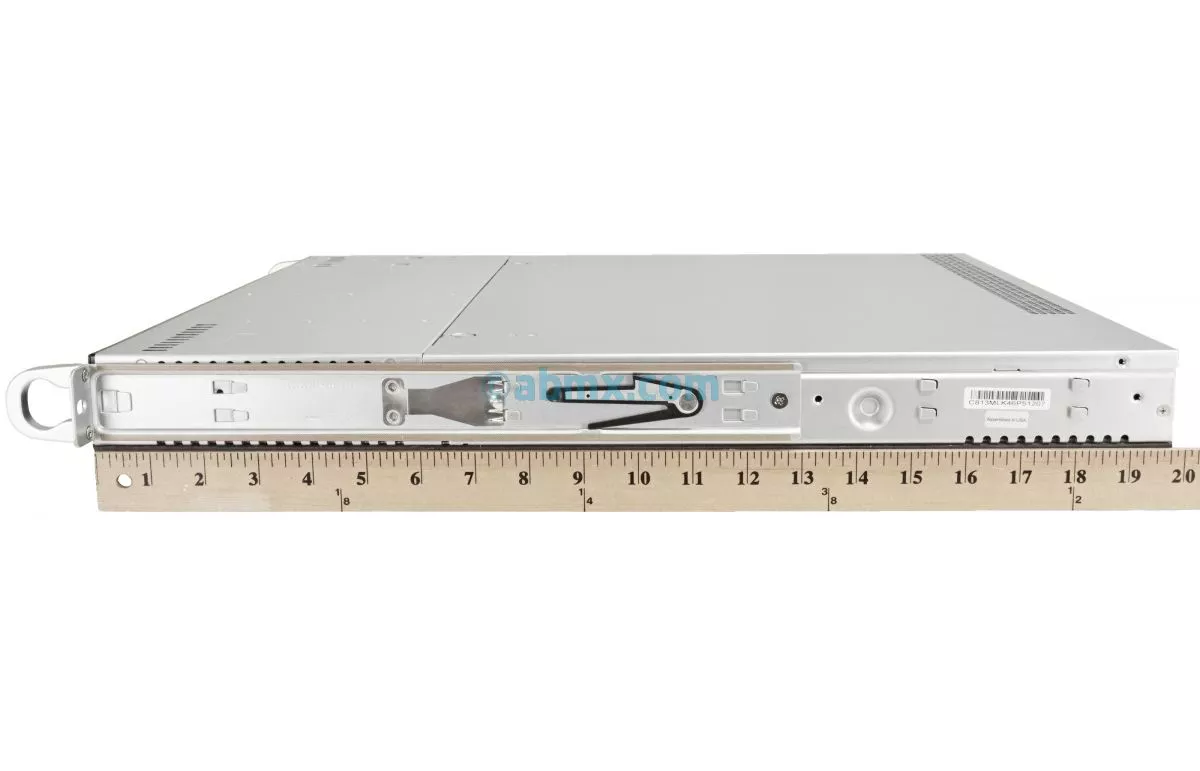

  • Dimensions: 19.98" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-4677 (Socket E)
  • Supports 4th Gen Intel® Xeon® Scalable processors
  • Intel® C741 chipset
BIOS
  • AMI UEFI
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • Secure Boot Capable
Memory
  • 8 x DDR5 DIMM sockets
  • Supports up to 2TB
  • DDR5 4800/4400/4000MHz ECC RDIMM (3DS)
Storage / IPMI
  • 10 x SATA3 (6Gbps) ports
  • Intel® C741 controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports up to four 3.5-inch drives
  • 2 x M.2 NVMe 2280/22110
Drive Bays

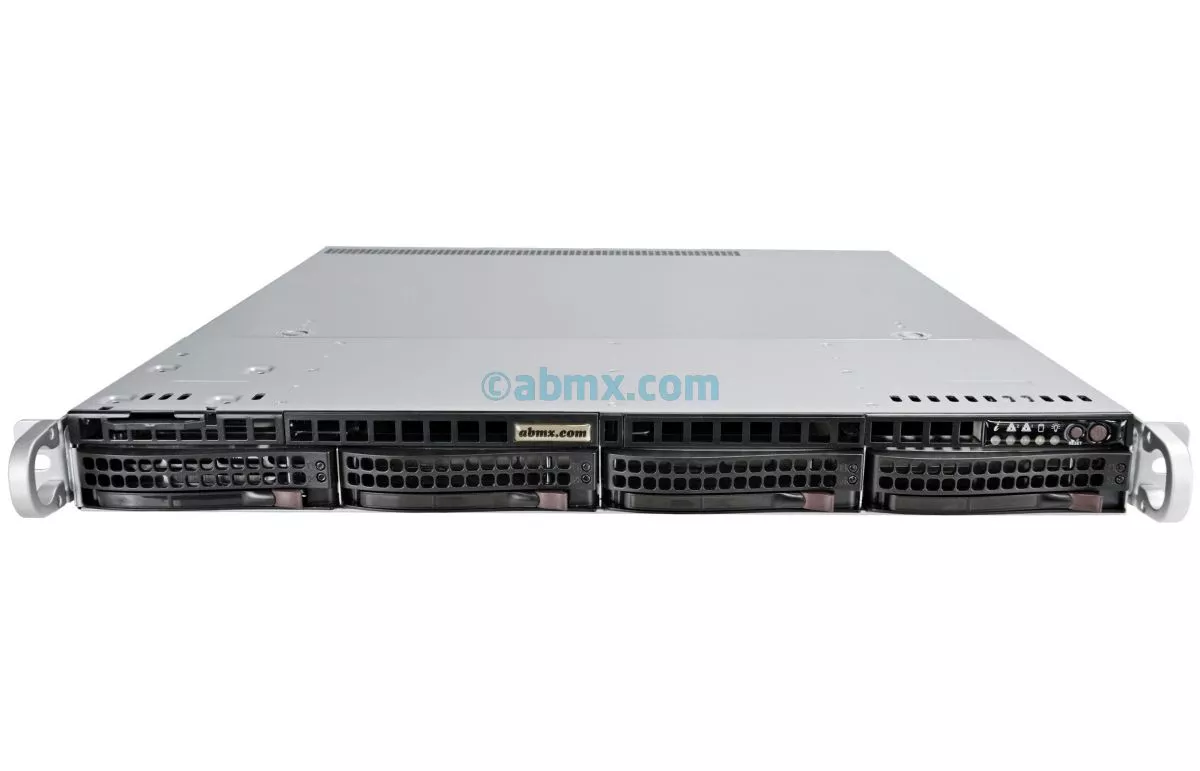

  • HD1-4 Bay: hot-swap 3.5-inch HDD or SSD

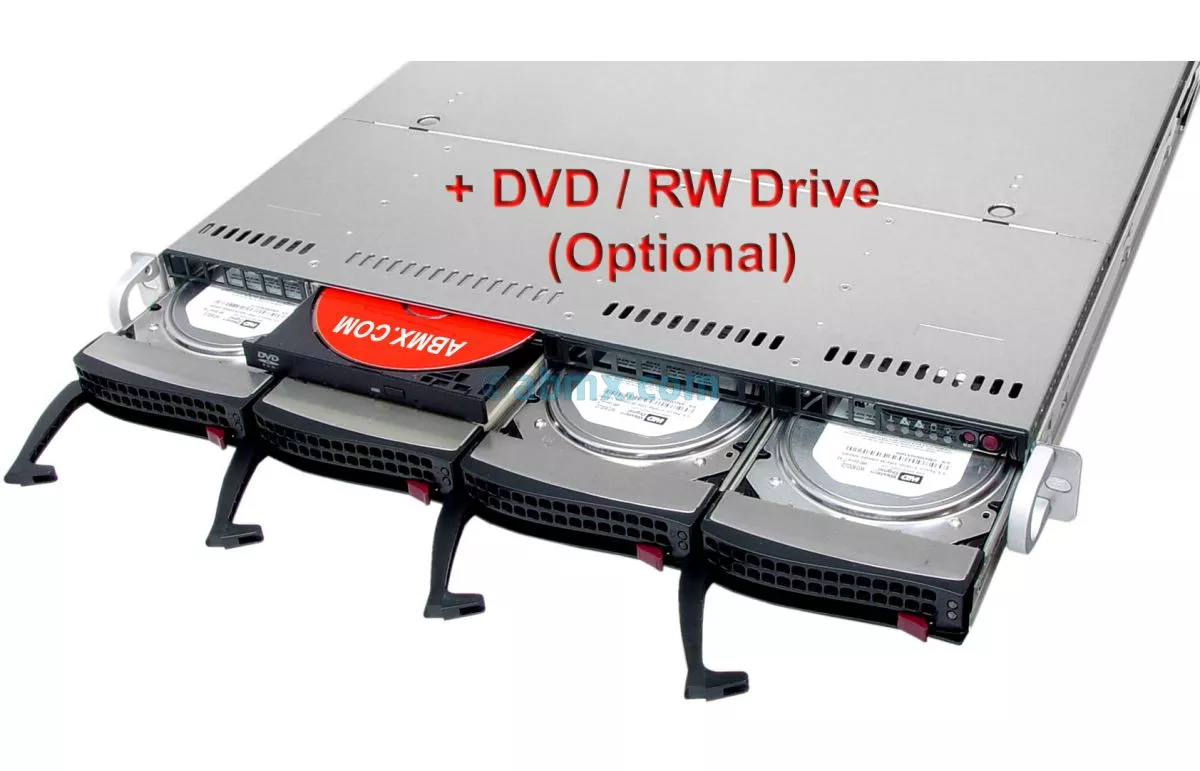

  • Slim-line Optical Drive Bay
  • Up to 88 Terabyte of storage can be supported

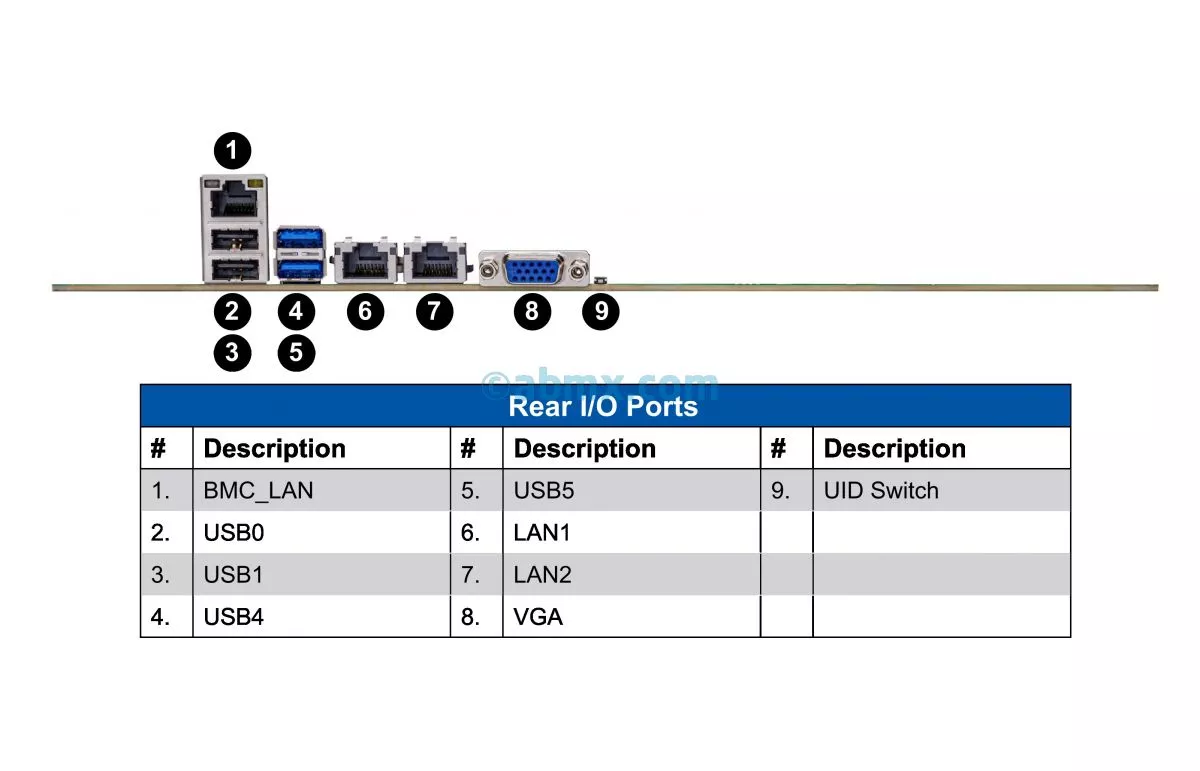

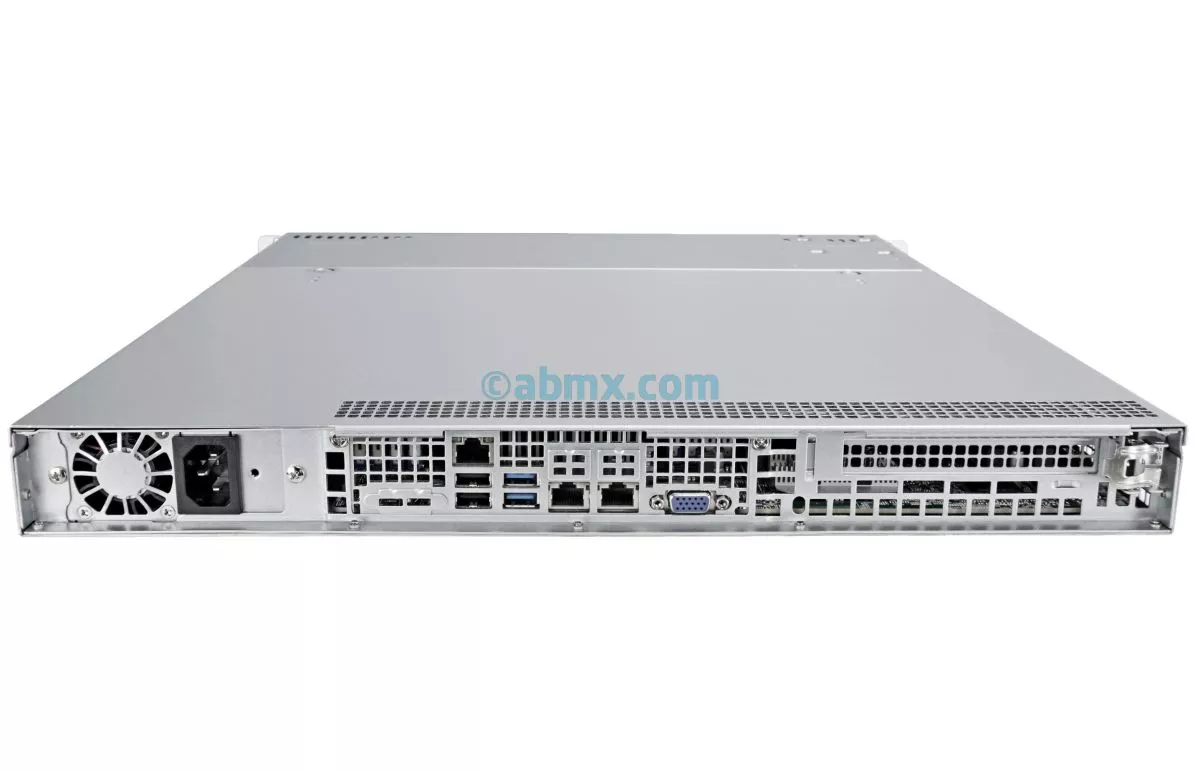

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x USB 2 ports (2 x rear)
  • 4 x USB 3.2 Gen.1 ports (2 x rear, 1 type x A, 1 x via header)
  • 1 x VGA D-Sub Connector port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
  • Trusted Platform Module (TPM) 2.0 (OPTIONAL)
Video
  • Aspeed AST2600 BMC Graphics on-board

Network
  • Dual Gigabit LAN Intel® i210 Ethernet Controller
  • OPTIONAL - Dual 10Gigabit LAN Intel® X550 Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 4.0 x16 (in x16) - full height (via Riser card)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • High-efficiency power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, UL/CB, UL/CUL
  • Redundant Power Supply (OPTIONAL)
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available

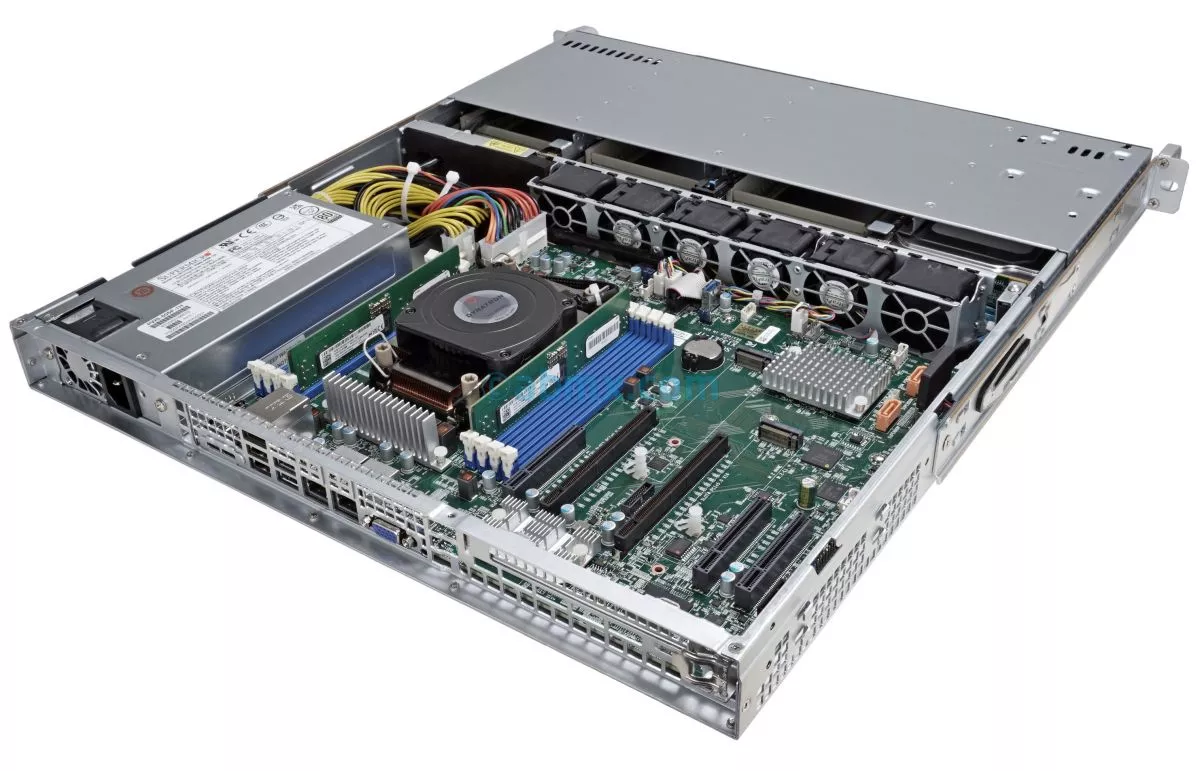

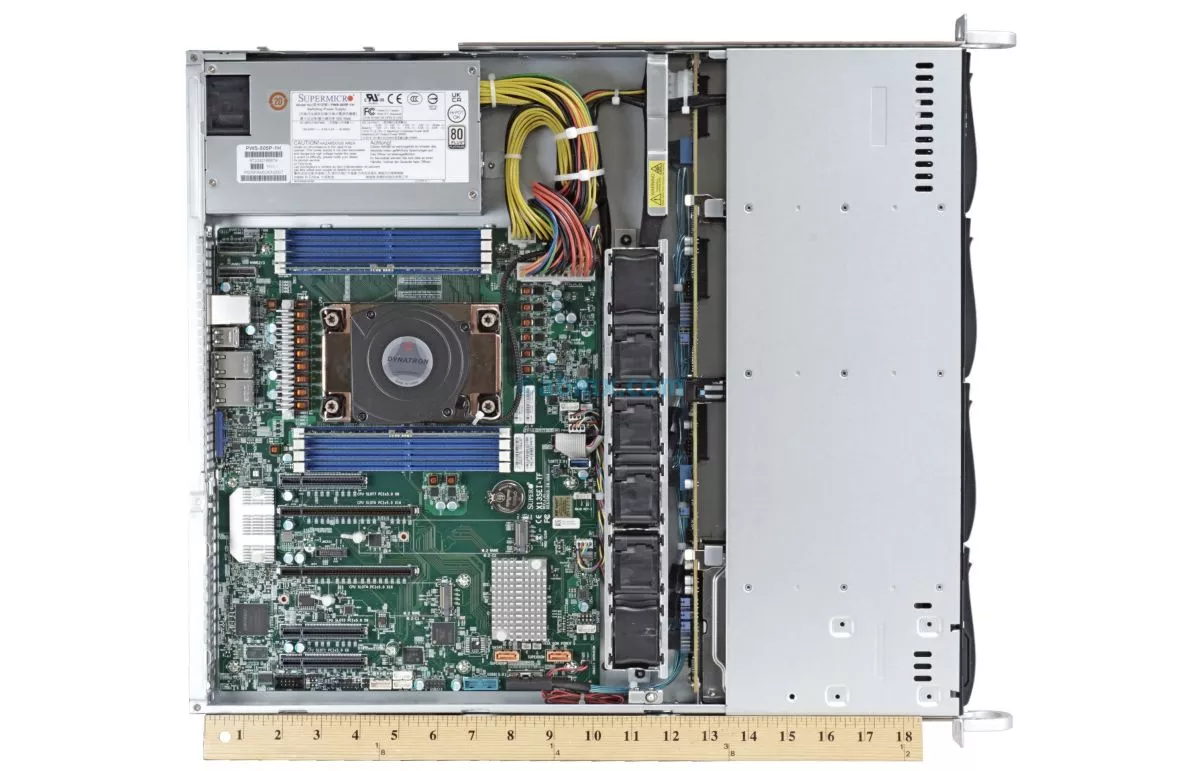

Motherboard X13SEI-F
AsteriskNOW 10.13
CentOS 6.0
7.0
7.6
7.9
8.4
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
7.9
Debian 10.10
10.2
10.7
11.4
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 26
27
29
32
35
36
Fedora Workstation 26
27
29
32
33
35
36
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
13.1
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
21
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
6.0.24
OpenBSD 5.0
6.0
6.4
6.8
6.9
7.1
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15.4
OpenSUSE Tumbleweed
OPNsense 19.1
22.7
Oracle Linux 7
7.6
9.0
PFSense 2.3
2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 5.0
8.1
9.0
Rocky Linux 8.4
9.0
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
7.9
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
13
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
22.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
7.0
VyOS 1.2
Windows 10
7
Windows 11 Original Release
Windows 32-bit 10
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS 12.3.0.4
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
