1U AMD Ryzen Server

Model: 115ZA47

2 - 12 Cores
AMD Ryzen

8 - 128 GB

1 x 3.5 Fixed
2 x 2.5 Fixed

2 x 1GbE

1 x PCI-e (optional)

Chassis

Motherboard

Processor

Memory

Storage

Western Digital® Enterprise-class
NVMe M.2
Samsung 860 EVO
Samsung 860 PRO
Intel® D3-S4510 Enterprise
Intel® D3-S4610 Enterprise

Storage 2

Riser Card

PCI Expansion Slot (Req. Riser Card)

Optical Drive

Front Bezel Color

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

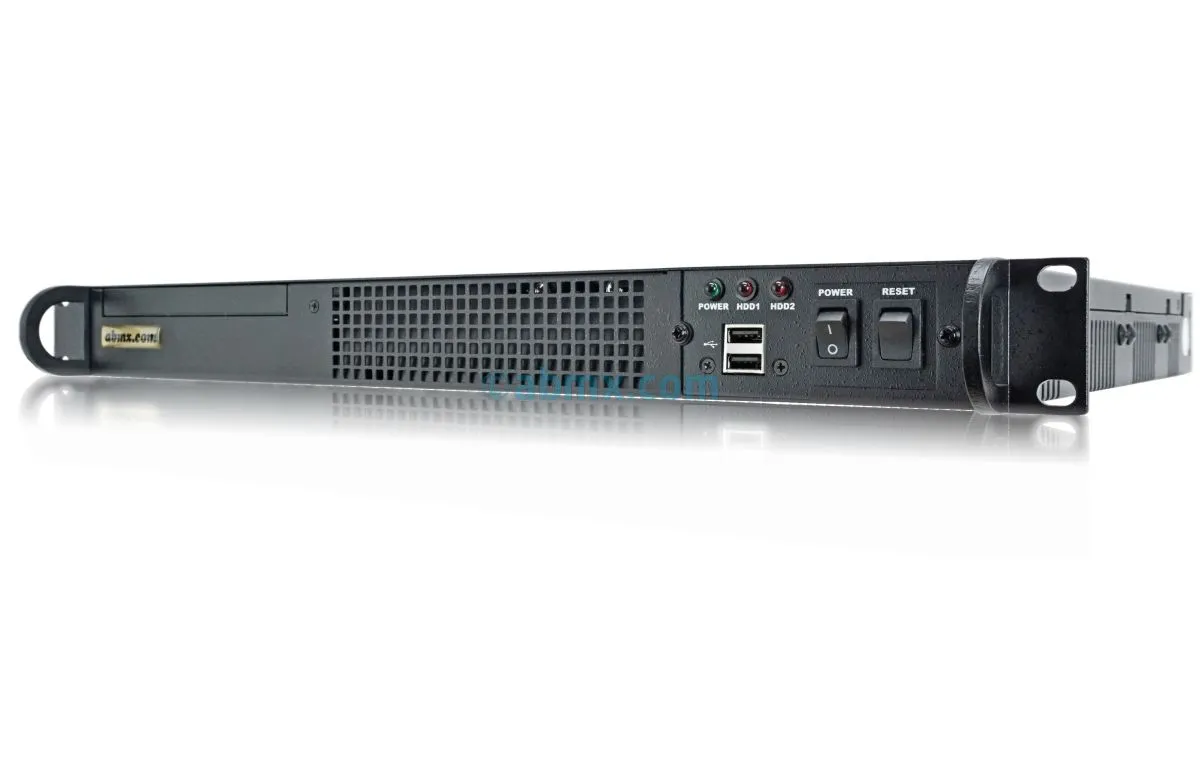

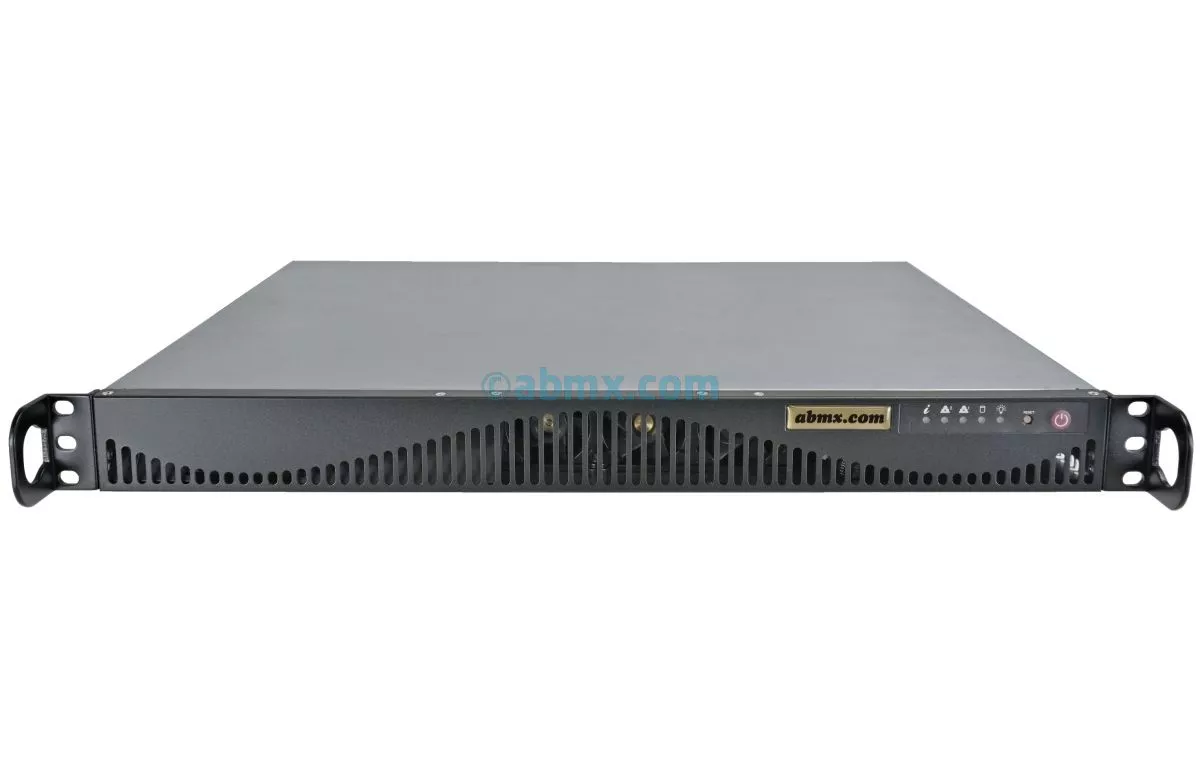

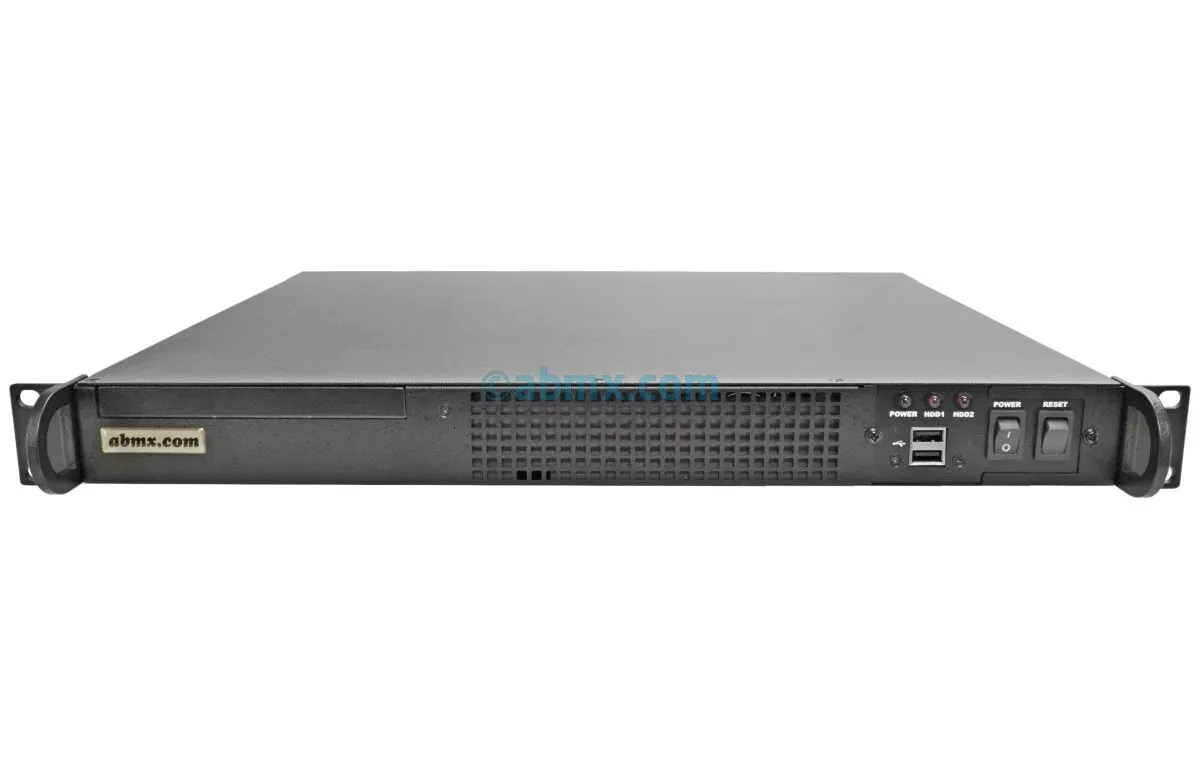

  • 1U Short-Depth Mini Rackmountable Enclosure
  • Rack Unit Height: 1.7-inch

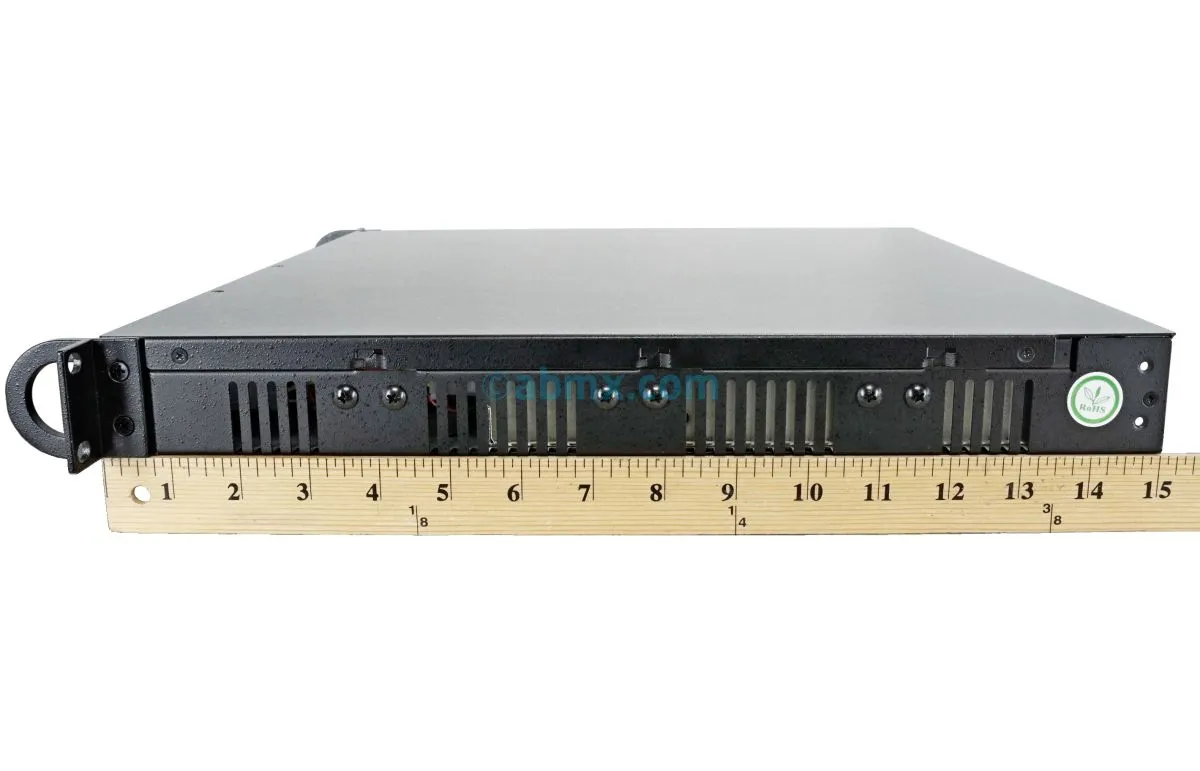

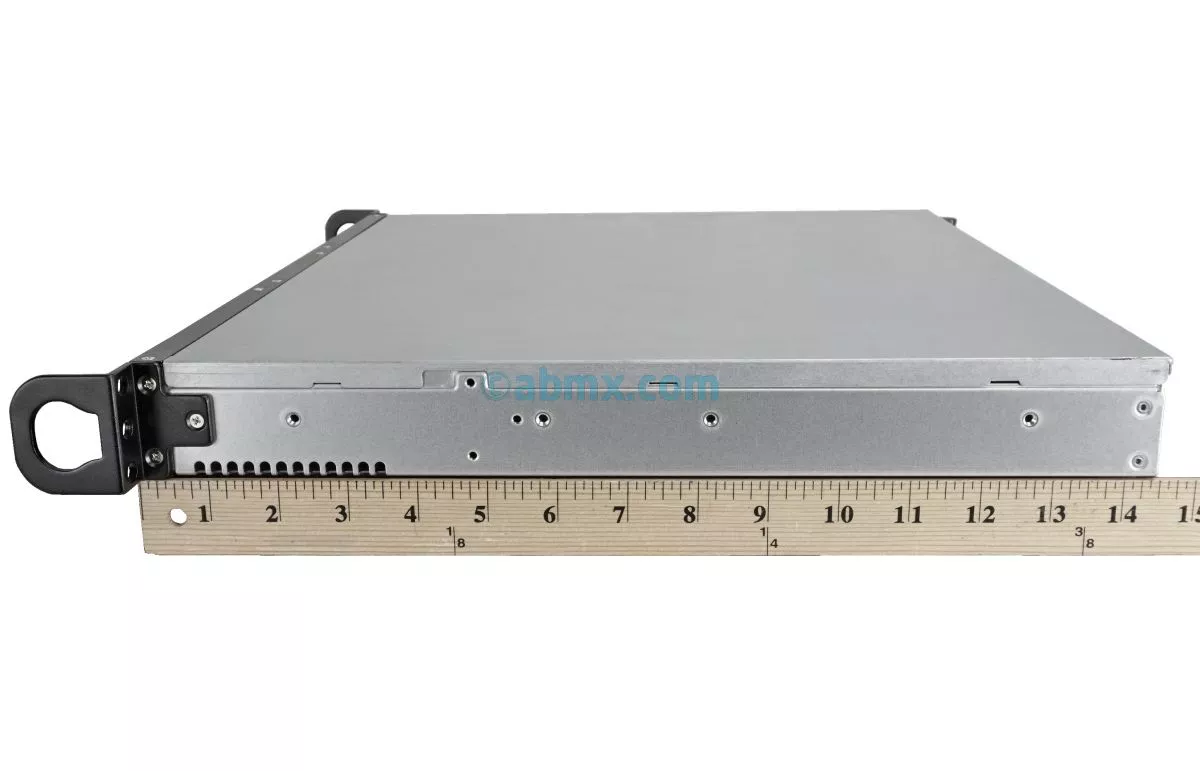

  • Dimensions: 14.5" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm

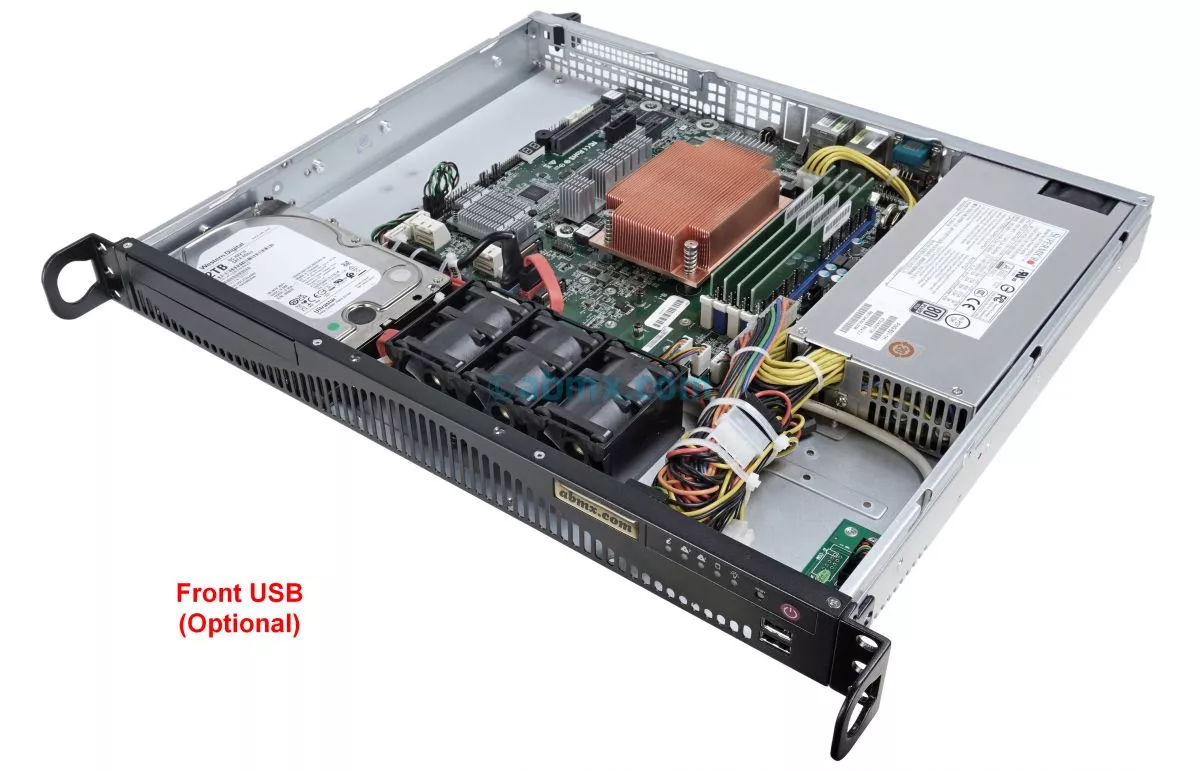

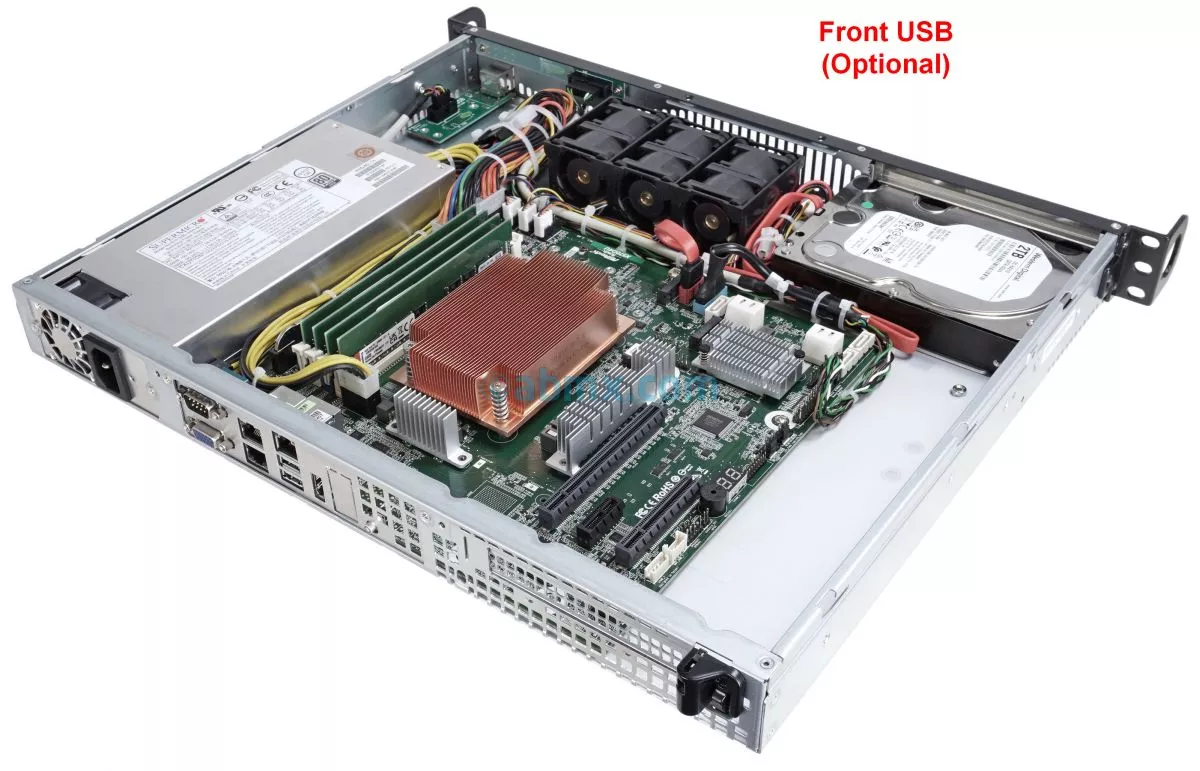

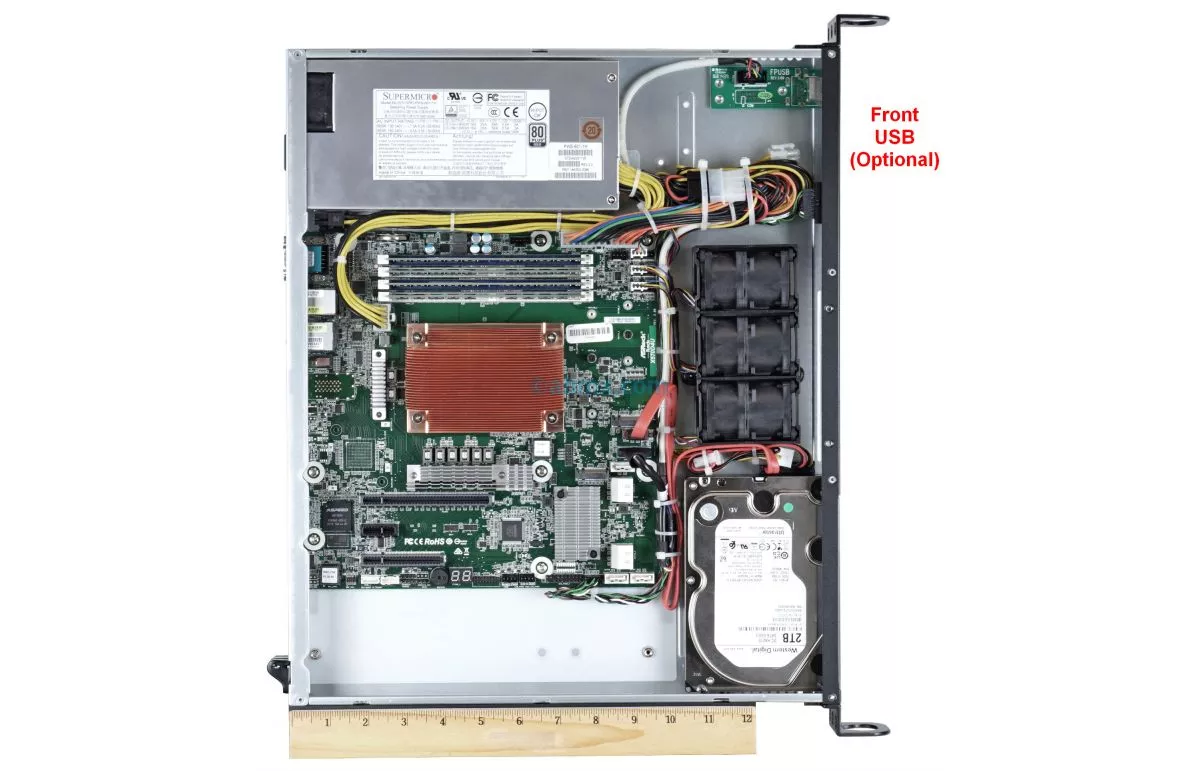

  • 2 x Front USB 2.0 Ports
Processor/Chipset
  • Single AMD AM4 Socket
  • Supports AMD Ryzen™ PRO/ Ryzen™ 2nd and 3rd gen. processors
  • AMD Promontory X470 chipset
BIOS
  • 16MB AMI UEFI Legal BIOS
  • Plug and Play (PnP)
  • ACPI 2.0 Compliance Wake Up Events
  • SMBIOS 2.8.0 Support
  • ASRock Rack Instant Flash
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB* DDR4 ECC/non-ECC Un-buffered memory
  • Dual Channel DDR4 memory technology
  • 3200/2933/2666/2400/2133 MHz
  • * 128GB RAM supported ONLY with Ryzen 5 3600 or higher CPU
Storage / IPMI
  • 6 x SATA3 (6Gbps) ports
  • Additional Storage Controller on-board: Asmedia 1061: 2 x SATA3 (6Gbps)

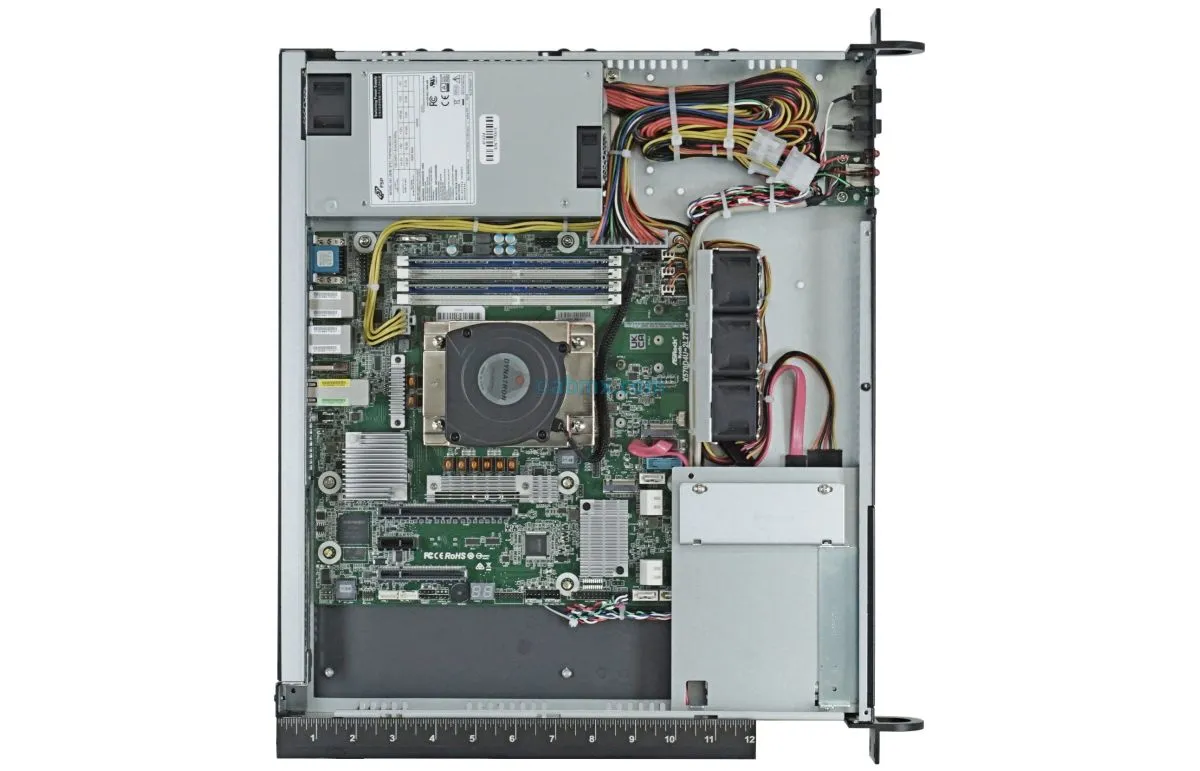

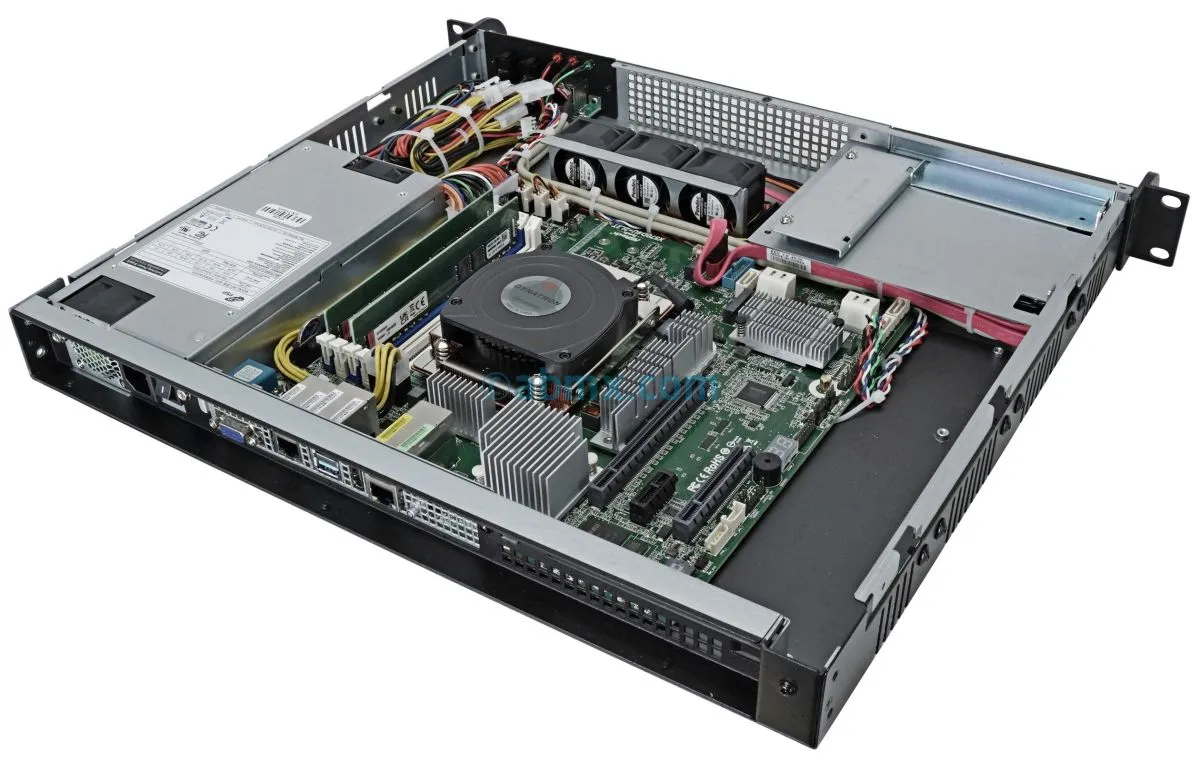

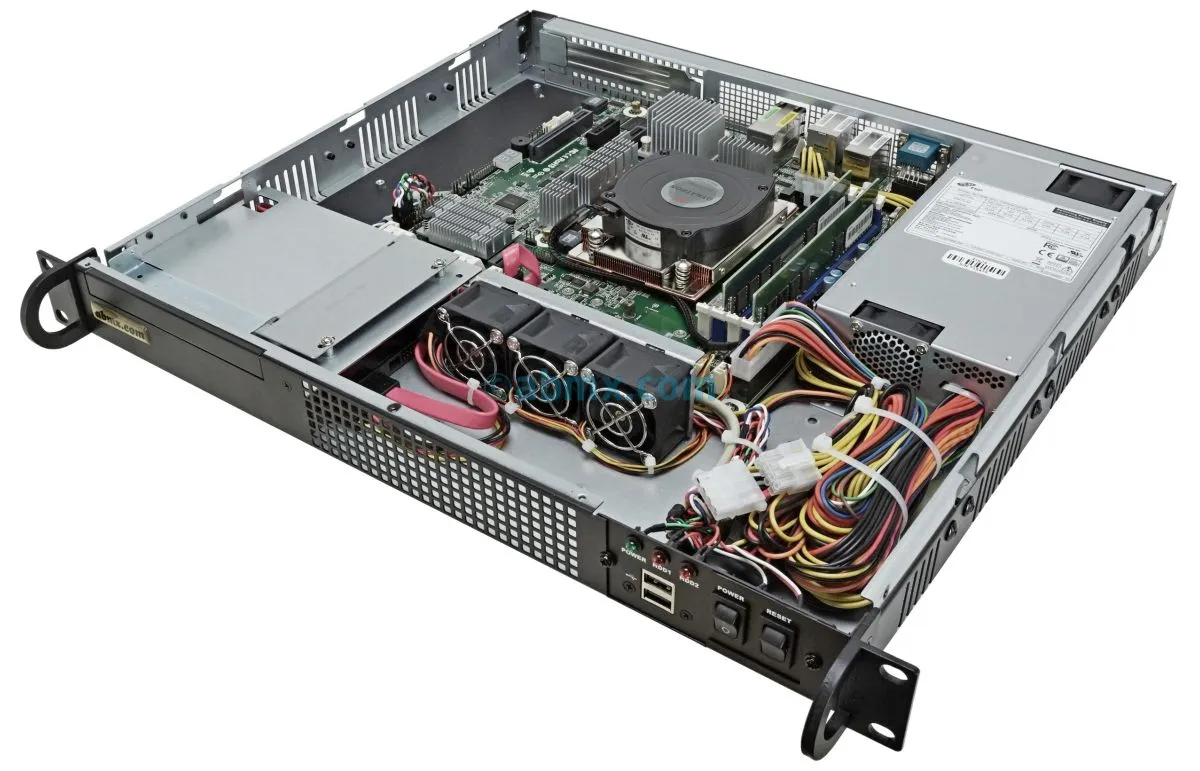

  • Chassis supports one 3.5-inch or two 2.5-inch hard drives
  • IPMI Dedicated GLAN: 1 x Realtek RTL8211E
  • ASPEED AST2500
Drive Bays
  • HD1 Bay: fixed 1 x 3.5-inch SATA or 2 x 2.5-inch SSD* Drive
  • Up to 14 Terabyte of storage can be supported
  • * If 2 x 2.5-inch SSD are selected, Optical Drive Option is NOT available

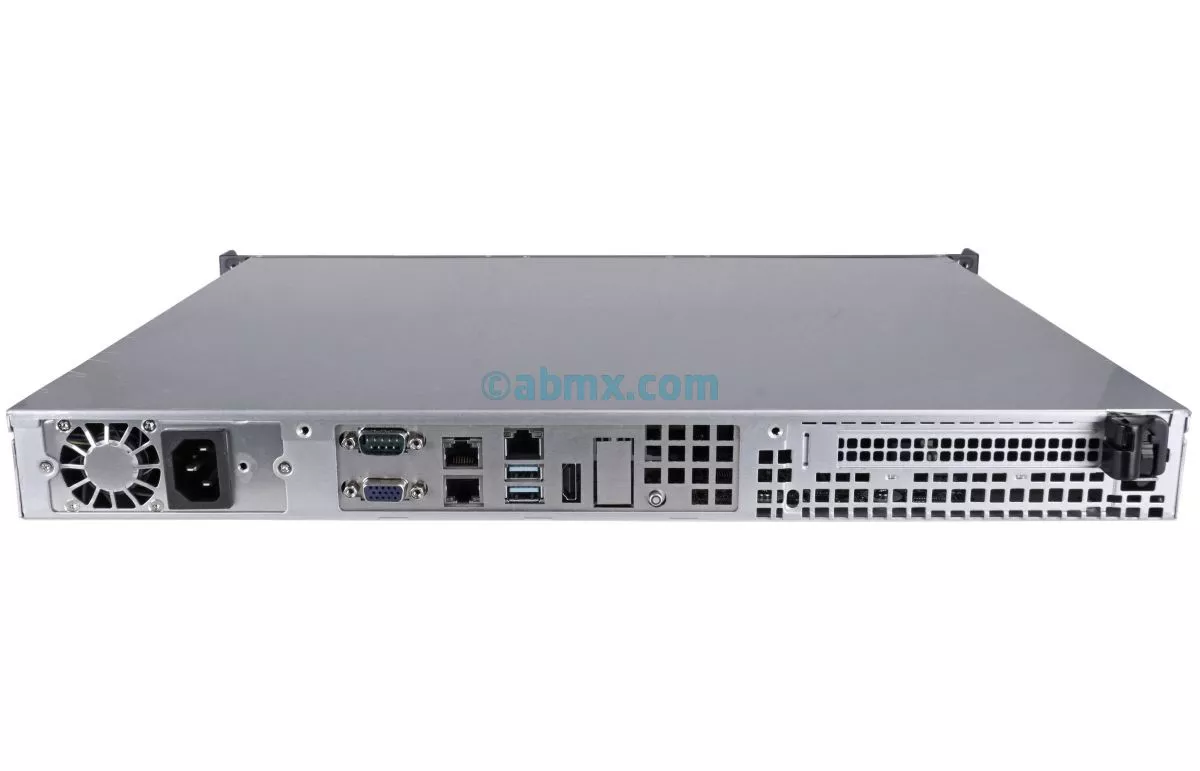

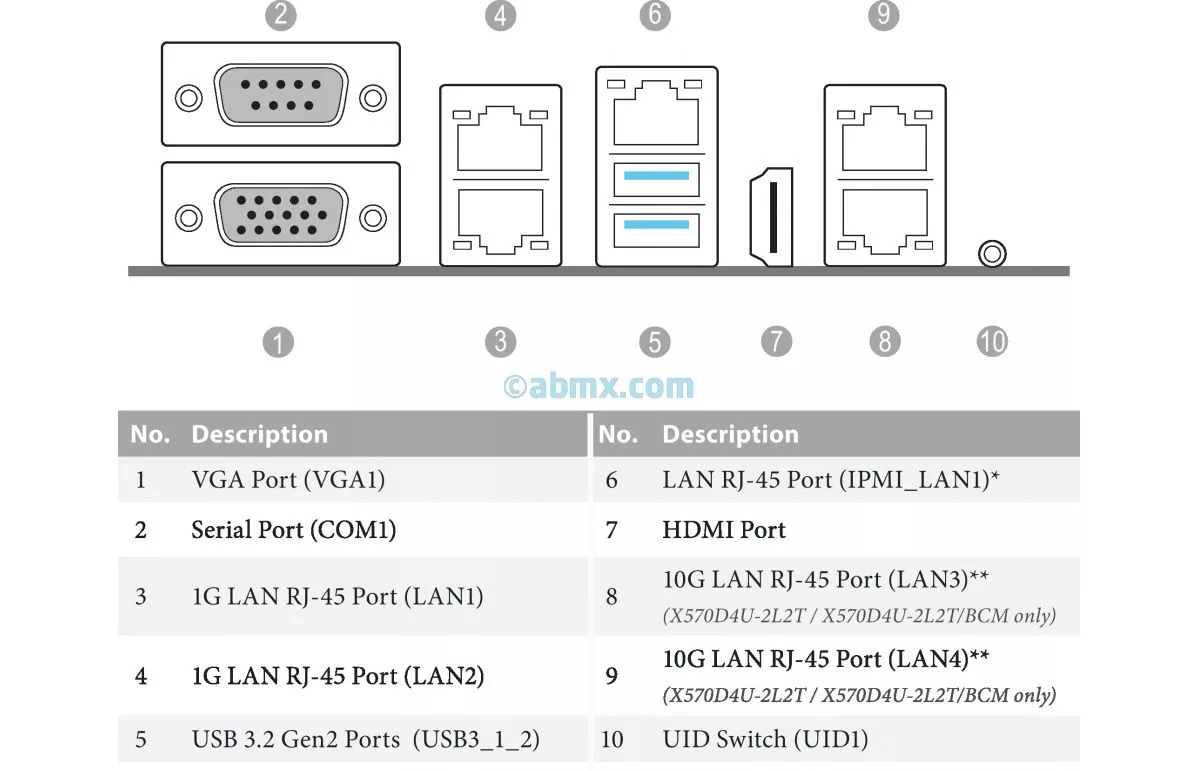

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x USB 3.1 Gen1 Port
  • 1 x VGA D-Sub port
  • 1 x Serial Port
  • 1 x TPM Header
  • 1 x SATA DOM port
Video
  • ASPEED AST2500 Video on-board
  • VRAM: DDR4 16MB

Network
  • Dual Intel® i210AT Gigabit LAN (RJ45)
  • 1 x RJ45 Dedicated IPMI LAN port
  • Supports Wake-On-LAN
  • Supports Energy Efficient Ethernet 802.3az
  • Supports Dual LAN with Teaming function
  • Supports PXE
  • LAN1 supports NCSI
Hardware Monitor
  • Operating Temperature Range 5°C - 35°C (41°F - 95°F)
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 3.0 (x16) slot - full height (Riser card - OPTIONAL)
  • M.2:
  • 2 x PCI-E 3.0 (x2) or PCI-E 2.0 (x4) only
  • 2242/2260/2280/22110
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).

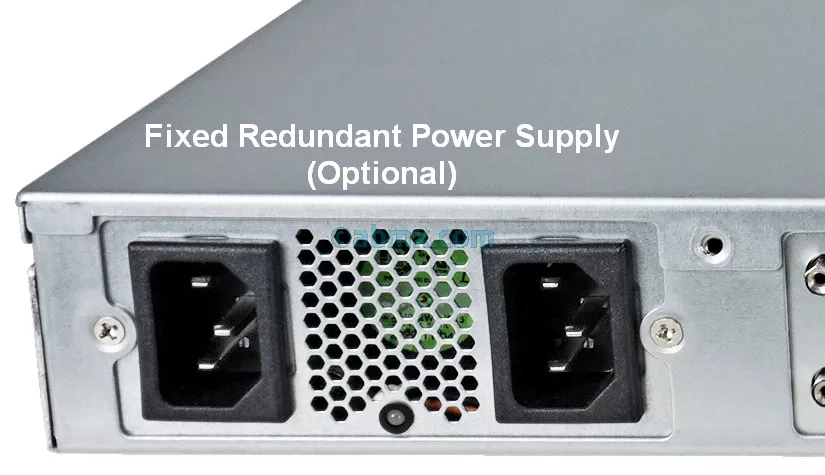

Power Supply
  • 1U HE power supply
  • Tested to comply with FCC class B Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
  • This Option is not available if 2 x 2.5-inch SSD are selected
Rack Support
  • 1U rackmount rails kit is OPTIONAL
OS Compatibility
  • Windows10 (64 bit)
  • Ubuntu 16.04.4 (64 bit)
  • RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit)
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X470D4U OverallChipset
AMD X470
LAN
Intel i210-AT
Video
Aspeed AST2500
AsteriskNOW 10.13
CentOS 5.0
6.0
6.10
7.0
7.6
8.0
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
Debian 10.2
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 25
26
27
29
32
Fedora Workstation 25
26
27
29
32
FreeBSD 10.0
11.0
11.2
12
12.1
9.0
FreeNAS 11.0
11.2
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
Manjaro Linux 18.0.4
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 5.0
6.0
6.4
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15
OpenSUSE Tumbleweed
OPNsense 19.1
Oracle Linux 7
7.6
PFSense 2.3
2.4
Proxmox VE 5.3-2
Red Hat Enterprise Linux 5.0
6.0
7.6
8.1
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
19.04
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
19.04
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
VyOS 1.2.0
Windows 10
7
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
