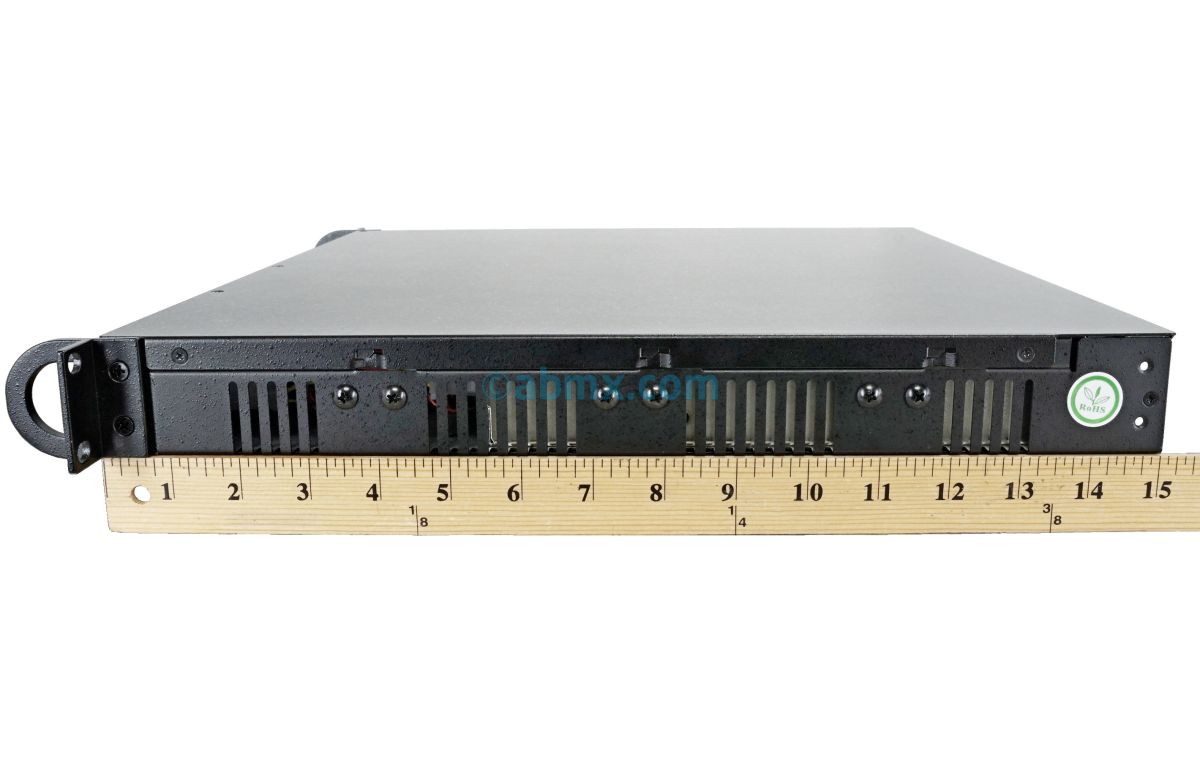

1U Rackmount Server - 4 x Hot-Swap Bays

Model: 120S1CH

The 120S1CH is a 1U short-depth rack server with four hot swap bays and room for a RAID controller for redundancy. Equipped with the latest 1151 Coffee Lake Xeon E platform from Intel™, this server is capable of up to 16 processing threads and 128GB of RAM suitable for a number of workloads. Check out the 14TB hard drives to bring the total disk space up to 56 terabytes. This rackmount pc is the perfect solution for applications such as a NAS, web server, virtualization host, or backup server where a 1U form factor is needed while maximizing storage capacity. New to this server line is the option to add up to 2 NVMe SSD's for high-speed storage.

Key Features
  • Short Depth
  • Redundant Power (optional)
  • 20-Inch deep
  • Dual NVMe M.2
  • Dual LAN
  • TPM 2.0 (optional)
Recommended Uses

2 - 8 Cores
Xeon E
i3, Pentium, Celeron

8 - 128 GB

4 x 3.5 Hot-Swap

2 x 1GbE

1 x PCI-e (optional)

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM)

Optical Drive

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 1U Rackmountable Enclosure
  • Black color
  • 1 Rack Unit Height (1.7")
  • Dimensions: 19.85" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-1151 (Socket H4)
  • Supports 8th/9th Gen. Intel® Core i3/Pentium®/Celeron® CPU
  • Supports Intel® Xeon® E-2100/2200 series CPU
  • Intel® C246 chipset
BIOS
  • 256MB UEFI
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Memory
  • 4 x DIMM sockets
  • Supports up to 128GB ECC Un-buffered DIMM
  • 3200/2933MHz ECC DDR4 UDIMM
Storage / IPMI
  • 8 x SATA3 (6Gbps) ports
  • Intel® C246 controller on-board
  • IPMI 2.0 support (ASPEED AST2500)
  • Chassis supports up to four 3.5-inch hard drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-4 Bay: hot-swap 3.5-inch SATA/ SSD Drive
  • Slim-line Optical Drive Bay
  • Up to 72 Terabyte of storage can be supported
I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (4 x via header, 2 x rear)
  • 3 x USB 3.1 Gen1. ports (2 x via header, 1 x type A)
  • 2 x USB 3.1 Gen2. ports (2 x rear)
  • 1 x VGA port
  • 2 x COM Ports (1 x rear, 1 x header)
  • 1 x TPM Header
Video
  • Aspeed AST2500 BMC on-board

Network
  • Dual Gigabit Ethernet LAN (Intel® I210)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 3.0 x8 slot (via riser card - OPTIONAL)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X11SCH-F OverallChipset
Intel C246		LAN
Intel I210		Video
Aspeed AST2500
CentOS 7.9
8.4
ClearOS Community Edition 7.7
Debian 10.10
11.4
FreeBSD 12.2
13.1
Linux Mint 20
Manjaro Linux 20.2
Open Media Vault 4.1.3
OpenBSD 6.8
6.9
Ubuntu Desktop 20.04 LTS
Ubuntu Server 20.04 LTS
VMWare ESXi 6.7
7.0
Windows 10
Windows 32-bit 10
Windows Server 2019

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
