1U Rackmount Workstation - Xeon W

Model: 115S2ZF

Our most popular "pizza box" mini-system format sporting the 1200 socket Comet Lake platform from Intel™. This 1U Mini-Server PC is a cost-effective middle ground for simple to advanced level projects that require up to 10 cores and 128GB of DDR4 RAM in a small short-depth footprint. New to this server line is the option to add an NVMe SSD for high-speed storage and Intel's powerful Xeon-W processors.

Key Features
  • Short Depth
  • Front USB
  • 48v DC Power (optional)
  • Video (HD Output) (optional)
  • 15-Inch deep
  • TPM 2.0 (optional)
Recommended Uses

2 - 10 Cores
Xeon W-1200
Core i9, i7, i5
i3, Pentium, Celeron

8 - 128 GB

1 x 3.5 Fixed
2 x 2.5 Fixed

2 x 1GbE

1 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO - M.2 NVMe SSD
Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Riser Card

PCI Expansion Slot (Req. Riser Card)

Trusted Platform Module (TPM)

Optical Drive

External Optical Drive (for OS installation, Backups, etc.)

Power Supply

Front Bezel Color

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

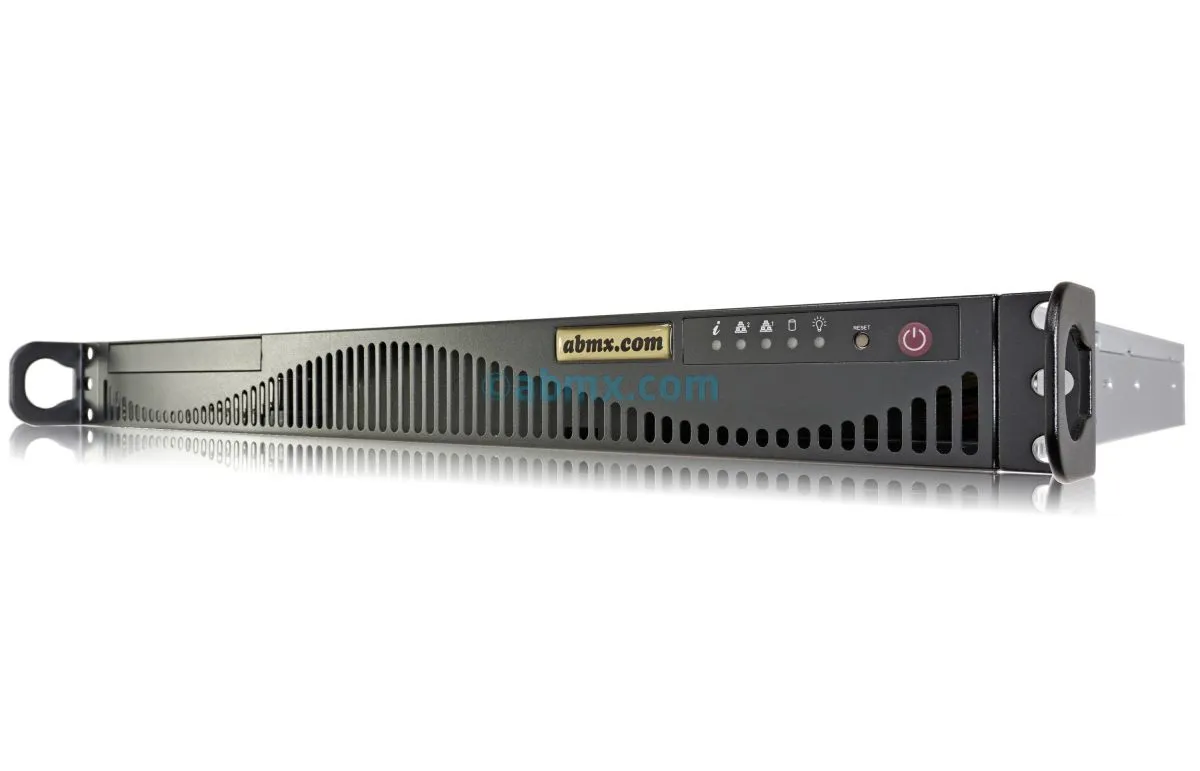

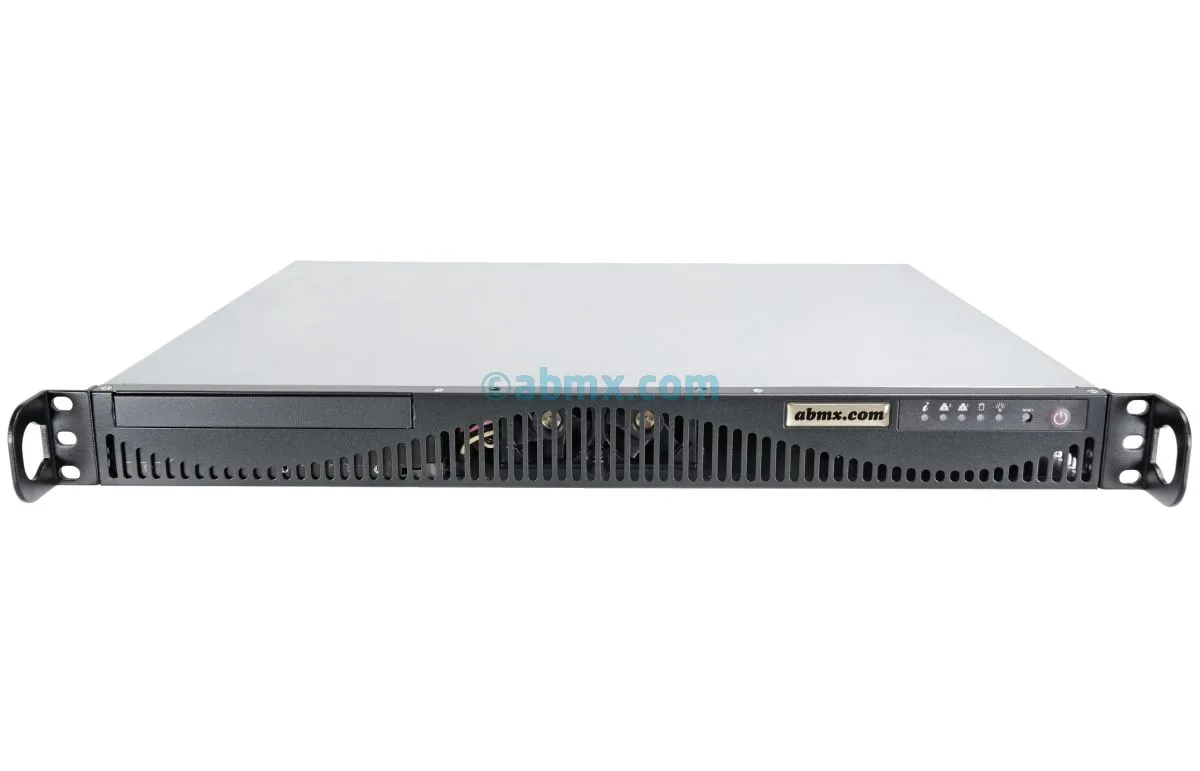

Chassis
  • 1U Short-depth Mini Rackmountable Enclosure
  • Black color
  • 1 Rack Unit Height (1.7")

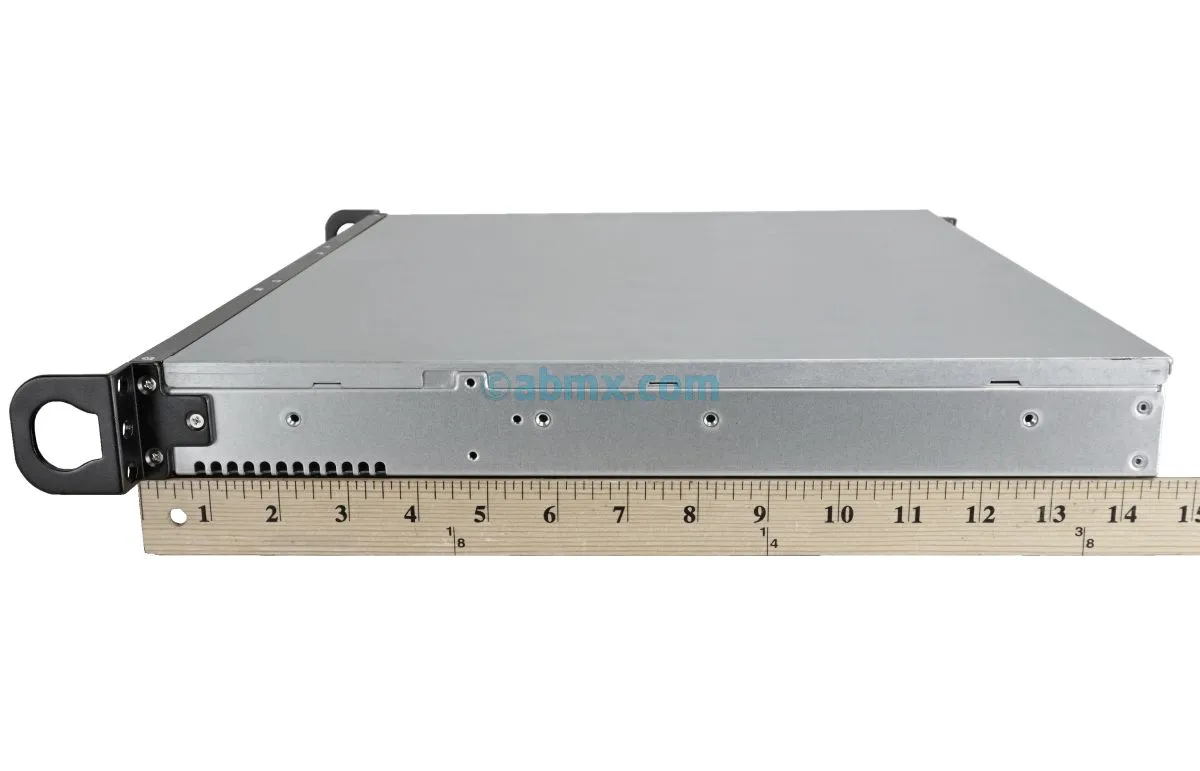

  • Dimensions: 14.5" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB ports (OPTIONAL)
Processor/Chipset
  • Single Socket H5 (LGA 1200)
  • Supports Intel® 10th Gen Core™ i3/i5/i7/i9, Intel® Pentium®, Intel® Celeron®, Intel® Xeon® W-1200
  • Intel® W480 chipset
BIOS
  • AMI UEFI
  • ACPI 6.1
  • SMBIOS 3.1
  • PCI FW 3.0
  • UEFI 2.6
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB
  • 3200/2933/2666 DDR4 Un-buffered ECC/non-ECC memory
  • Non-ECC RAM is not compatible with Xeon CPUs
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • Intel® W480 controller on-board
  • Chassis supports one hard drive or up to four SSDs
  • IPMI 2.0 support (ASPEED AST2500)
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1 Bay: fixed 3.5-inch HDD, OR up to ***4 x 2.5-inch SSDs (***Slim-line Optical Drive Option is not available)
  • Up to 18 Terabyte of storage can be supported

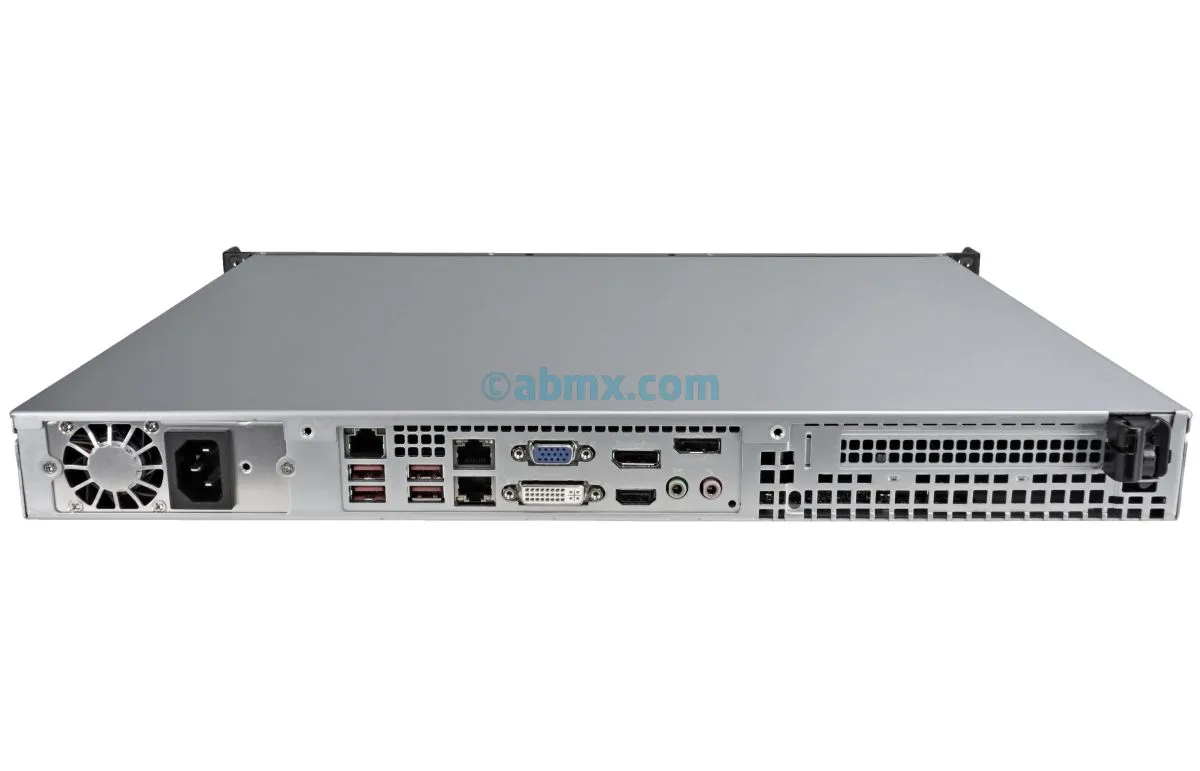

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (6 x via headers)
  • 6 x USB 3.2 Gen.2 ports (4 x Rear Type A, 2 x via headers)
  • 1 x VGA D-Sub Connector port
  • 2 x DP++(Dual-Mode DisplayPort) ports
  • 1 x DVI - D port
  • 2 x COM Ports (1 x header)
  • TPM Header and Chip both
Video
  • Aspeed AST2500 BMC, Intel® HD Graphics

Network
  • Single Gigabit Ethernet LAN controller (Intel® PHY I219LM)
  • Single Gigabit Ethernet LAN Controller (Intel® i210-AT)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 3.0 (x16) slot (Riser card is required - OPTIONAL)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter).

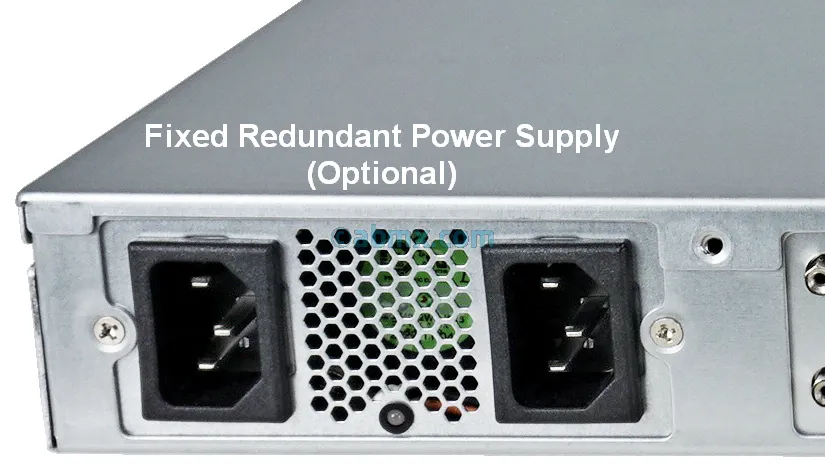

Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
  • 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)***
  • *** Available only if 1 x 3.5-inch HDD selected
  • External USB Optical Drive (OPTIONAL)
Rack Support
  • 1U Rackmount rails kit (OPTIONAL)
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12SCZ-F OverallChipset
Intel W480		LAN
Intel i210-AT		LAN
Intel i219LM		Video
Aspeed AST2500
Debian 11.4
Red Hat Enterprise Linux 9.0
Rocky Linux 9.0
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
Windows 10
Windows Server 2019

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
