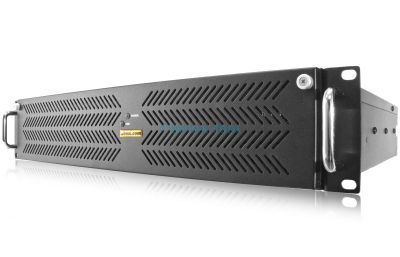

2U Short-Depth Server - AMD EPYC


Key Features
  • Short Depth
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • 5.25" Drive Bay
  • 18-Inch deep
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order - May have extended lead time.
Special Order
Special Order
Special Order
Special Order
Samsung 990 EVO Plus
Samsung 990 PRO
Samsung 9100 PRO
SK hynix Platinum P51
WD_BLACK SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
SATA HDD
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
NVIDIA
Special Order
Special Order
Special Order
Microsoft®
Special Order

Tech Specs

Chassis
  • 2U Rackmount Server Chassis - Low-Profile
  • 19" Rackmount Standard
  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Front Ports: 2 x USB 3.0
  • Front Single Door w/ 2 Thumbscrews
  • Air Filter: Inside Front Panel (Washable)
Processor / Chipset
  • AMD EPYC™ 9005/9004-series Processors
  • Single processor, TDP up to 500W
  • Socket SP5
  • Chipset: System on Chip
Memory
  • 12 x DIMM slots
  • DDR5 ECC Registered memory support
  • Up to 3TB total memory
  • RDIMM/3DS RDIMM up to 256GB supported
  • Memory Speed: Up to 6400 MT/s
Storage
  • 16 x SATA3 6Gbps ports (8 x onboard, 8 x from JMCIO3)
  • 2 x M.2 NVMe 2280/ 22110 PCIe Gen4 x4 slots
  • 3 x 3.5-inch Internal Drive Bays
  • 1 x 5.25-inch Optical Drive Bay
  • Please contact our technical support team at (714) 258-2269 or [email protected] for storage configuration options
Input / Output
  • 2 x 10G RJ45 LAN ports
  • 1 x 1G RJ45 Management LAN port
  • 6 x USB 3.0 ports (4 x rear + 2 x via header)
  • 1 x VGA port
  • 1 x COM port (header)
  • 1 x MCIO (PCIe 5.0 x8/SATA3) Hybrid port
  • 2 x MCIO (PCIe 5.0 x8) ports
Security Module
  • 1 x TPM header
  • 1 x TCG TPM 2.0 kit - Infineon 9670 controller
Audio / Video
  • No on-board Audio Codec
  • Integrated in ASPEED® AST2600 (1 x VGA port)

PCIe Expansion Slots
  • 3 x PCIe 5.0 x16 Low-Profile Slots
  • 2 x PCIe 5.0 x8 Low-Profile Slots
Network
  • 2 x 10G RJ45 LAN ports (Broadcom BCM57416 controller)
  • 1 x 1G RJ45 Management LAN port (IPMI)
Board Management
  • ASPEED® AST2600 Baseboard Management Controller - IPMI 2.0
  • Redfish APIs
  • BMC Web GUI
  • HTML5 KVM with multi-language support
  • DCMI 1.5
  • Serial Redirection
  • User account management and Role-based authority
  • Power control
  • Temperature monitoring
  • Real-time power reading
  • Power thresholds & alerts
  • Fan monitoring
  • Memory monitoring
  • CPU monitoring
  • RAID monitoring and configuration
  • GPU monitoring
  • NIC monitoring
  • HDD monitoring
  • Health /System Events
  • Syslog
Power Supply
  • High Efficiency Power Supply
  • Form Factor: 2U Standard
  • Tested to comply with FCC Standards
  • Certifications: UL, CSA, TUV
Rack Support
  • 19" Rackmount Standard
  • Rackmount Rail kit is available in the System Configurator (optional)
OS Compatibility
  • Please contact our technical support team at (714) 258-2269 or [email protected] for questions about OS compatibility.
Warranty
  • 3-Year Parts and Labor Standard*
  • *Batteries are subject to DOA only and are NOT subject for replacement of Return
  • Extended Warranties Available
  • Please visit https://www.abmx.com/terms-and-warranties to see our complete terms and warranty information
