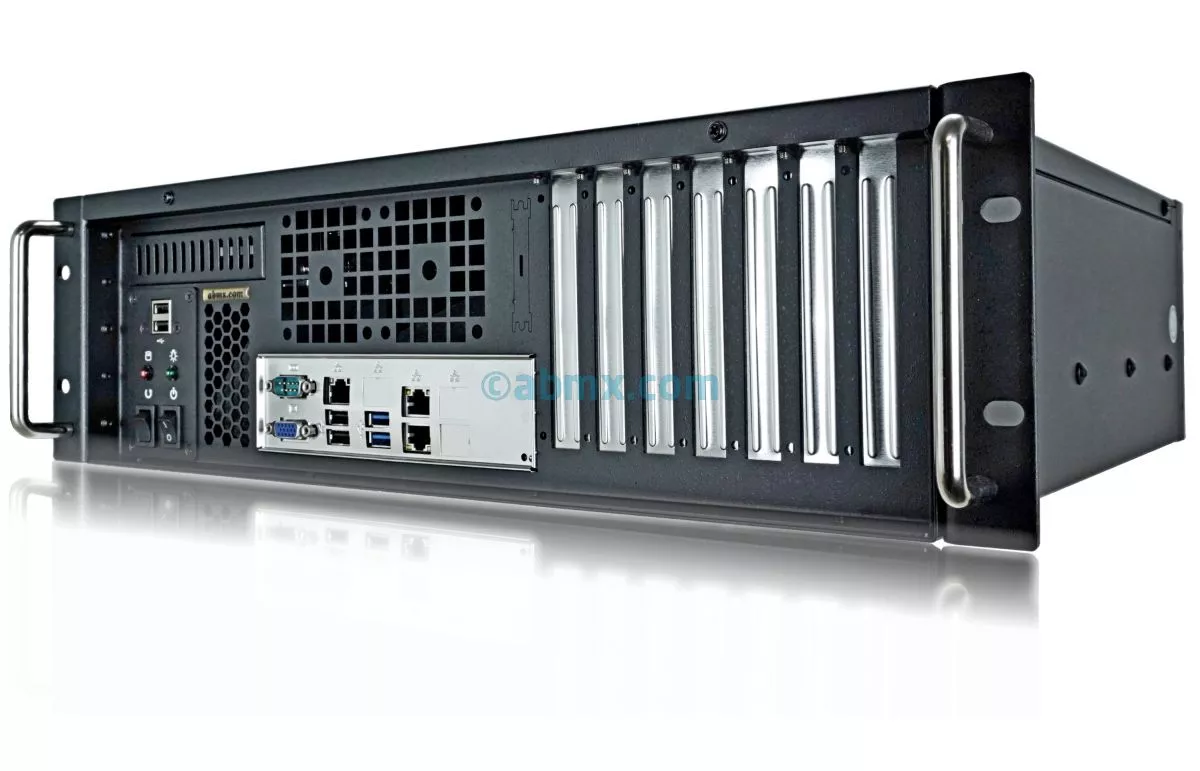

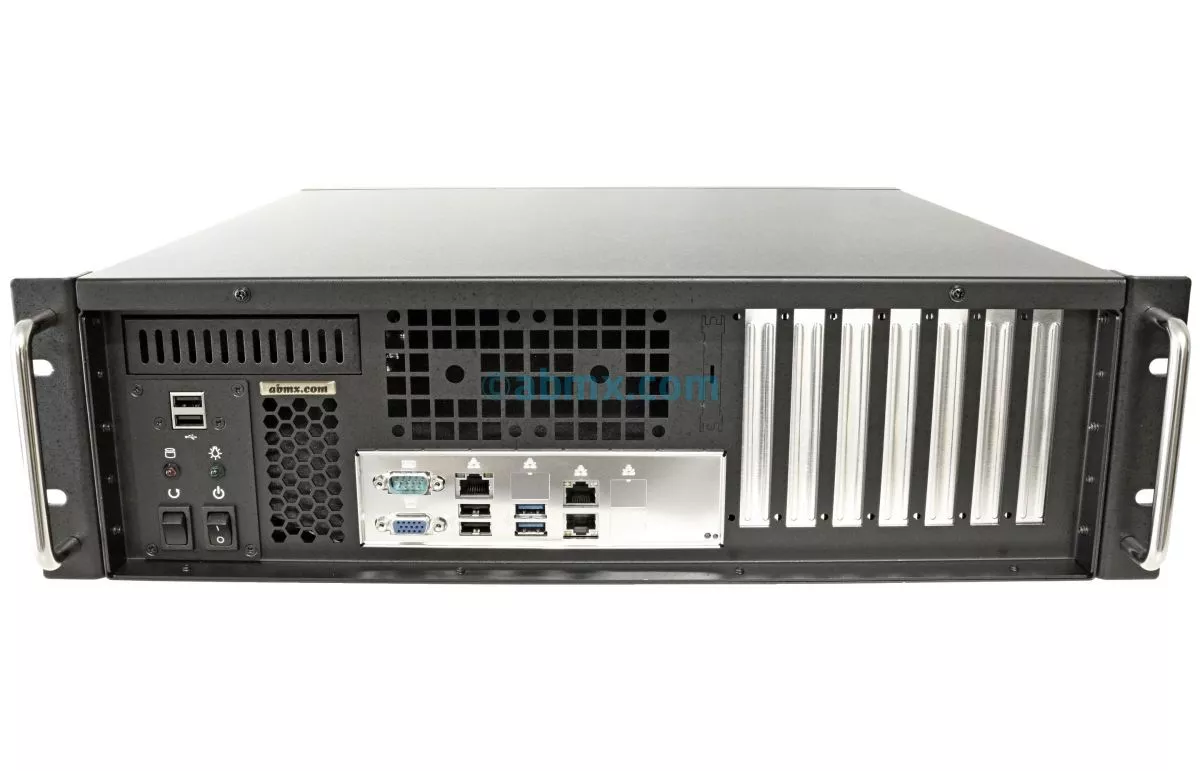

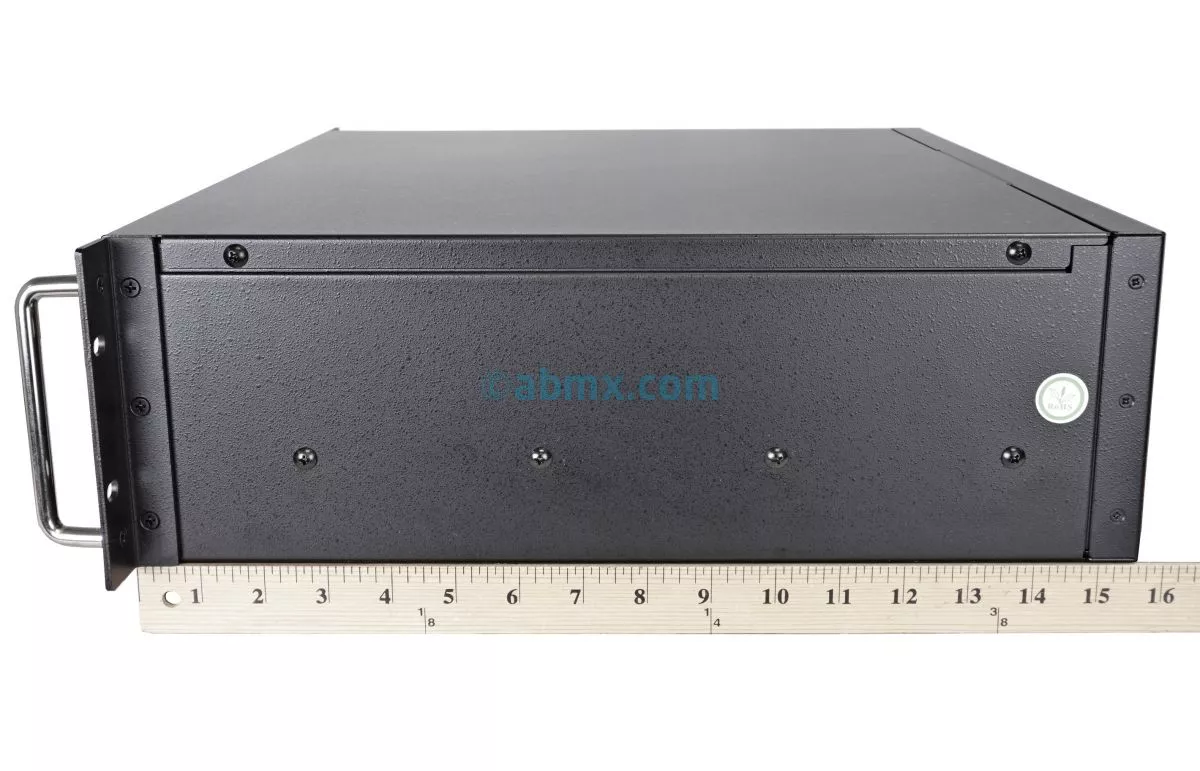

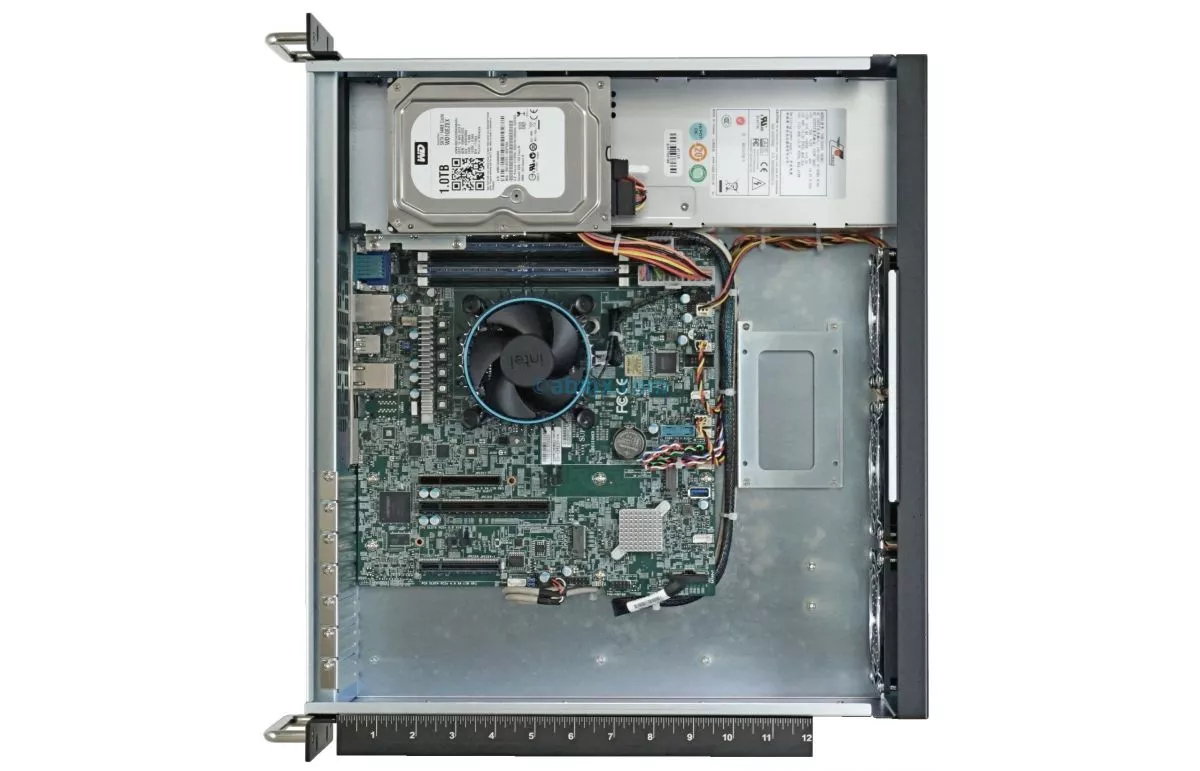

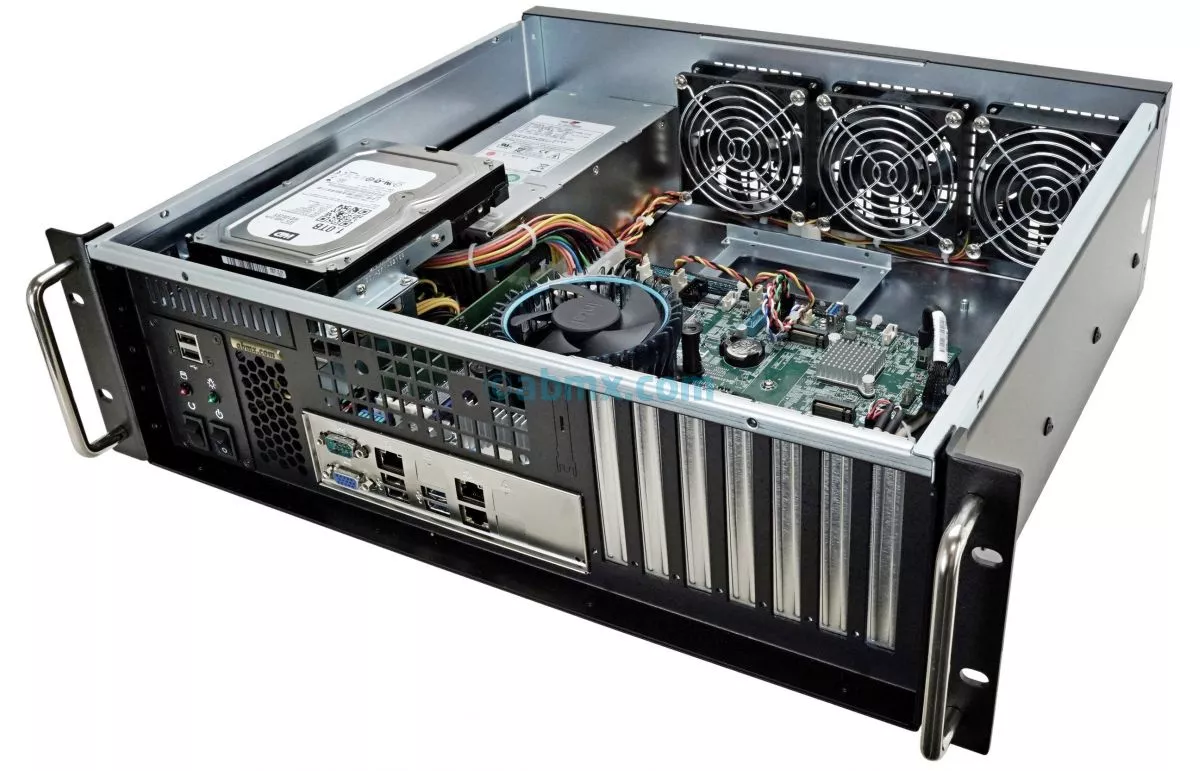

This 16-inch deep, 3U Short-Depth Server is specifically engineered for high performance in space-constrained environments. A key differentiator is its genuine Front I/O access, which allows all motherboard ports and expansion cards to be accessed directly from the front of the rack. This makes the 3U Short-Depth Server the ideal choice for enterprise edge deployments where maintenance requires fast access to the Front I/O or where rear-rack access is difficult or impossible.Powered by Intel Xeon E-2400 / 6300 CPUs, this system supports up to 8 cores and 128GB of DDR5 ECC memory. The Front I/O design is complemented by three full-height PCIe expansion slots, dual 1GbE LAN, dual NVMe M.2 slots for high-speed storage, and an internal 3.5-inch drive bay, making this 3U Short-Depth Server a versatile and powerful solution.
|
|
| Motherboard X13SCH-F | Overall | Chipset Intel C266 | LAN Intel I210 | Video ASPEED AST2600 |
|---|---|---|---|---|
| CentOS 9 | ||||
| Debian 12 | ||||
| Fedora Server 38 | ||||
| 41 | ||||
| Fedora Workstation 38 | ||||
| 41 | ||||
| FreeBSD 14 | ||||
| OpenBSD 7 | ||||
| OPNsense 23.7 | ||||
| PFSense 2.7.2 | ||||
| Proxmox VE 8.1 | ||||
| Red Hat Enterprise Linux 9 | ||||
| Rocky Linux 9 | ||||
| SUSE Enterprise Server 15 | ||||
| TrueNAS 13 | ||||
| Ubuntu Desktop 20.04 LTS | ||||
| 22.04 LTS | ||||
| 24.04 LTS | ||||
| Ubuntu Server 20.04 LTS | ||||
| 22.04 LTS | ||||
| 24.04 LTS | ||||
| VMWare ESXi 8 | ||||
| Windows 10 | ||||
| 11 | ||||
| Windows Server 2022 |
DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
| Motherboard X13SCH-LN4F | Overall | Chipset Intel C266 | LAN Intel I210 | Video ASPEED AST2600 |
|---|---|---|---|---|
| CentOS 9 | ||||
| Debian 12 | ||||
| Fedora Server 41 | ||||
| Fedora Workstation 41 | ||||
| FreeBSD 14 | ||||
| OpenBSD 7 | ||||
| OPNsense 23.7 | ||||
| PFSense 2.7.2 | ||||
| Proxmox VE 8.1 | ||||
| Red Hat Enterprise Linux 9 | ||||
| Rocky Linux 9 | ||||
| SUSE Enterprise Server 15 | ||||
| TrueNAS 13 | ||||
| Ubuntu Desktop 22.04 LTS | ||||
| 24.04 LTS | ||||
| Ubuntu Server 22.04 LTS | ||||
| 24.04 LTS | ||||
| VMWare ESXi 8 | ||||
| Windows 11 | ||||
| Windows Server 2022 |
DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
