1U Telecom Server - Front I/O - 48V DC Power Supply
Model #: 114FSB7-48DC
Model 114FSB7-48DC
AvailabilityUsually Ships in
24-72 Hours
Price $859.00
Subtotal
$859
Request a Quote Request a Quote
Submit for Review Submit for Review
Print it! Print summary
PDF it! Download as PDF
Save it! Save this Configuration
Configuration Summary:
Black color
Supermicro® X7SBi Motherboard
1-Core 1.80 GHz -- Intel Celeron 430 (512K Cache, 800 FSB, Low-Power)
512MB (1 x 512MB) DDR2 SDRAM
Solid State Drive - 8 GB SATA - MLC SSD
No IPMI Selected
No Rack Rails Selected
Linux
64-bit
No Pre-Installed OS (Test OS will remain)
No Windows installation required (Arbitrary test OS will remain for QA)
3 Year Limited Warranty, Return to Depot, Parts & Labor
1
2
3
4
5
Key Features:
  • Single Intel Xeon with 1333MHz cache
  • Up to 8GB DDR-2 Memory
  • Two Gigabit Ethernet controllers
  • Two fixed SATA Hard Drive Bays

Color
Color
Motherboard
Processor
Processor
Memory
Memory
Hard Drive
Hard Drive
2nd Hard Drive
2nd Hard Drive
External Optical Drive (for OS installation, Backups, etc.)
External Optical Drive (for OS installation, Backups, etc.)
PCI Expansion Slot (Req. Riser Card)
PCI Expansion Slot (Req. Riser Card)
Low Profile USB 2.0 Flash Drive (Bootable)
Remote Management Card (KVM-over-LAN, IPMI 2.0)
Remote Management Card (KVM-over-LAN, IPMI 2.0)
Rack Mounting Sliding Rails Kit
Rack Mounting Sliding Rails Kit
Wall Mounting Bracket
What Operating System do you plan on using?
What Operating System do you plan on using?
Operating System Bit Version
Operating System Bit Version
Pre-installed** Operating System
Pre-installed** Operating System
** Windows Installation (w/ Microsoft Windows purchase only)
** Windows Installation (w/ Microsoft Windows purchase only)
Extended service plan
Extended service plan
Server Name / Function
Server Name / Function
Available Options:
Chassis

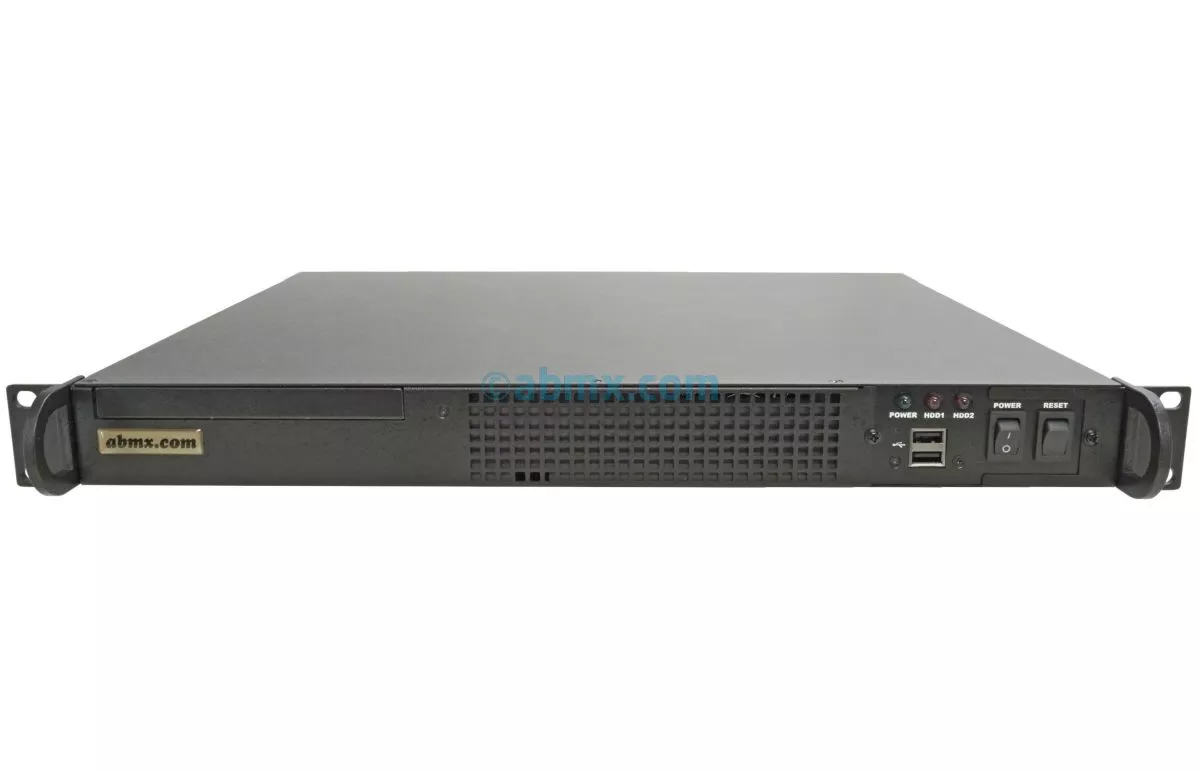

  • 1U Rack Mountable Enclosure
  • 1 Rack Unit Height (1.7")

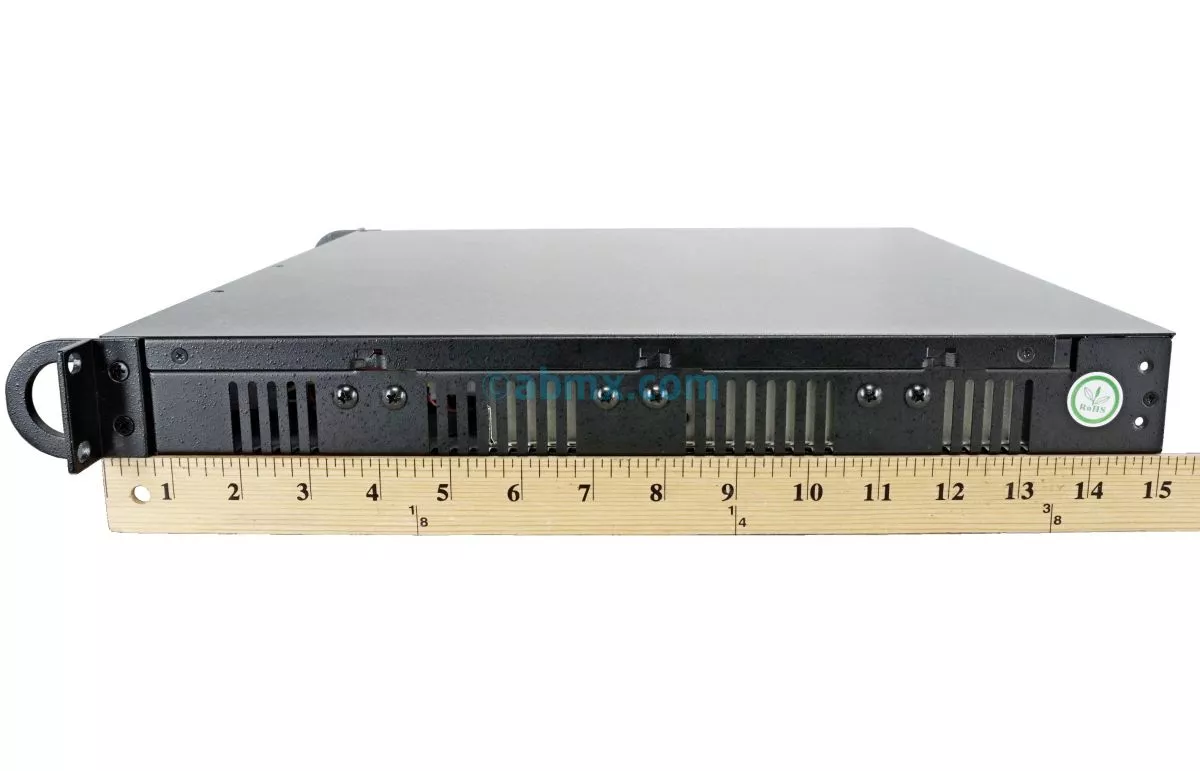

  • Dimensions: 14" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
  • Front Panel: 2 x Front USB 2.0 ports, 2 x LAN ports, 1 x COM port
Processor
  • Single LGA775 ZIF Socket
  • Supports an Intel Xeon Dual/Quad Core E3100/3000 / X3300/X3200 Series processors
  • Supports Intel Xeon L3300 /L3100 /L3000 series processors
  • Supports an Intel Core2 Quad Q9000/Q8000/Q6000 series processors
  • Supports an Intel Core 2 Duo E8000/E7000/E6000/E4000 series processors
  • Supports an Intel Pentium E5000/E5200 series processors
  • Supports an Intel Celeron E1000/400 series processors
Chipset
  • 1333/ 1066 / 800 MHz system bus
  • Intel 3210 chipset
  • ICH9R + PXH + Intel 82573V + Intel 82573L
BIOS
  • 16Mb Flash EEPROM with Phoenix BIOS
Memory
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB
  • DDR2 800/667MHz unbuffered ECC / non-ECC SDRAM (Dual Channel)
Storage / IPMI
  • Six Serial ATA ports (3 Gbps performance)
  • Intel ICH9R SATA controller built-in
  • Host RAID 0,1 on-board
  • Chassis supports up to two 2.5" hard drives
  • Hardware RAID is optional
  • Support for 1U IPMI v.2.0 (optional)
Drive Bays
  • HD1-2 Bay: fixed SATA 2.5" Notebook Hard Drive
  • Up to 600GB of storage can be supported

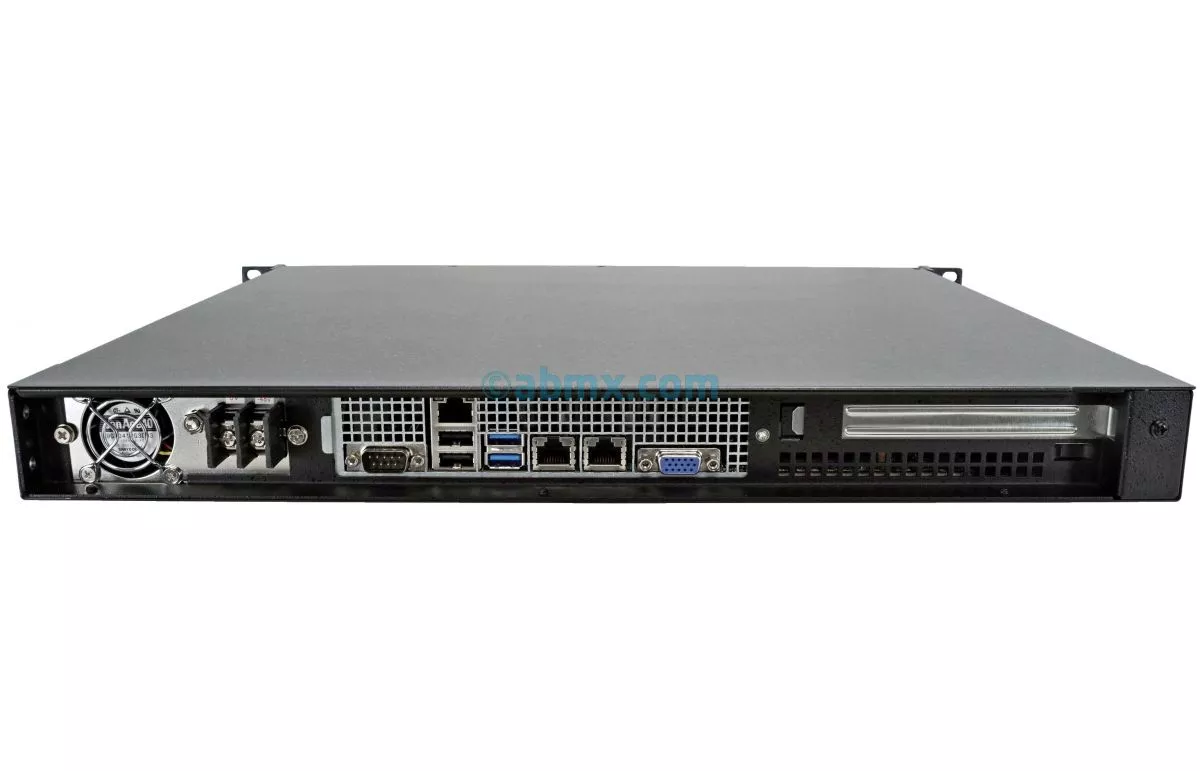

I/O ports
  • PS/2 Keyboard port
  • PS/2 Mouse port
  • 1 x VGA
  • 2 x RJ45 port
  • 8 x USB 2.0 ports (2 x on-board, 2 x rear ports, 2 x headers)
  • 1 x Fast UART 16550 serial port (1 x header)
  • 1 x ECP / EEP Parallel Port
  • 1 x Floppy Port (1.44MB)
Video
  • On board ATI ES1000 32MB graphics

Network
  • 2 x Intel 82573 V/L Gigabit PCI-Express Ethernet
  • Supports 10Base-T, 100Base-T, 1000BASE-T, RJ45 output
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 Universal slot:
  • 1 x (x8) PCI-E slot, or
  • 1 x 64-bit 133MHz PCI-X slot
  • Requires a PCI riser card - optional
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter)
Power Supply
  • 410W DC power supply (24-pin)
  • Voltage Range = -36V to -72V
  • Nominal Voltage = -48V
  • Max Input Current = 18A @ -48V
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, TUV, CE, EN, EC, CCC
Floppy Drive
  • External USB Floppy Drive (Optional)
CD-ROM /DVD-ROM
  • External Optical Drive (Optional)
Rack Support
  • 1U Chassis Mounting Rails and Kit (Optional)
OS Compatibility
  • Asterisk 1.x
  • CentOS 4.x, 5.x
  • Debian 5.0.x
  • Fedora 10, 11, 12, 13
  • FreeBSD 7.x, 8.x
  • m0n0wall 1.3x
  • OpenBSD 4.x
  • OpenFiler 2.3
  • OpenSUSE 10.x, 11.x
  • Oracle Enterprise Linux 4.x, 5.x
  • PFSense 1.2.x
  • RHEL 4.x, 5.x
  • Ubuntu 8.x, 9.x, 10.x
  • Windows XP/2003/7/2008/2008 R2
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
