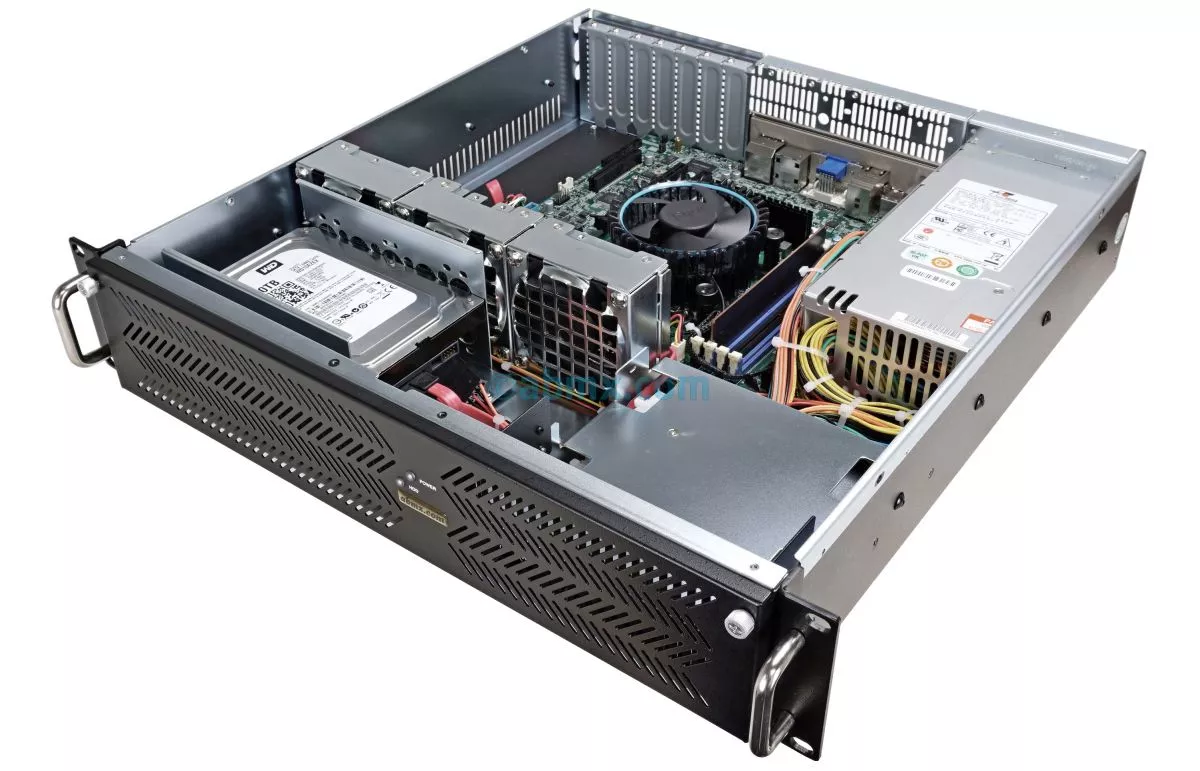

2U Short-Depth Server - Intel 13th Gen

Model: 218LPS3ZF

This 2U short-depth server features the latest 13th generation Intel processors for unparalleled performance with up to 24 cores, 32 threads, and up to 128GB of DDR5 memory for blazing fast speeds. The short 18" deep design strikes the perfect balance between compact design that saves on rack space while still providing the expansion capabilities needed in a 2U server with up to seven low-profile PCIe slots.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 48v DC Power (optional)
  • 5.25" Drive Bay

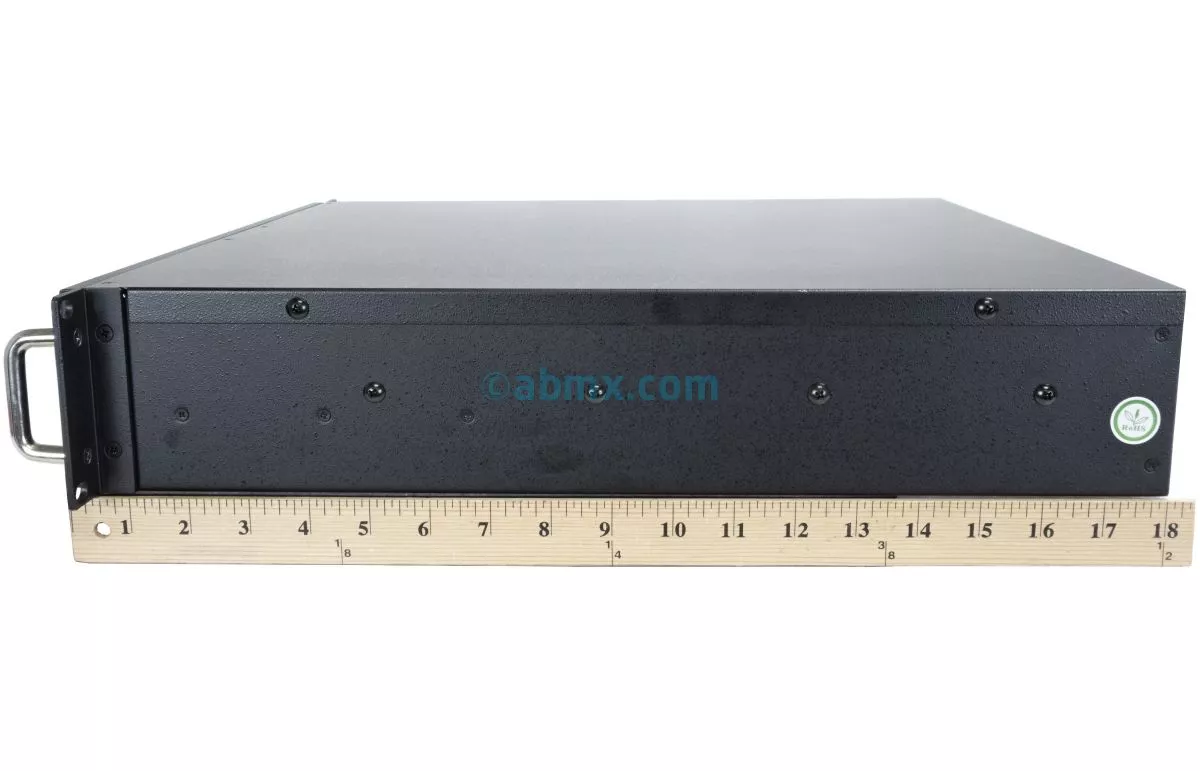

  • 18-Inch deep
Recommended Uses

4 - 24 Cores
Core i9, i7, i5
i3, Pentium, Celeron

8 - 64 GB

3 x 3.5 Fixed

2 x 1GbE

3 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 970 EVO Plus - M.2 NVMe SSD
Samsung 980 PRO - M.2 NVMe SSD
Western Digital® Enterprise-class - SATA HDD
Samsung 870 EVO - SATA SSD
Samsung 870 QVO - SATA SSD
Solidigm-SKHynix D3-S4520 (formerly Intel) - SATA SSD
Solidigm-SKHynix D3-S4620 (formerly Intel) - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Special Order

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

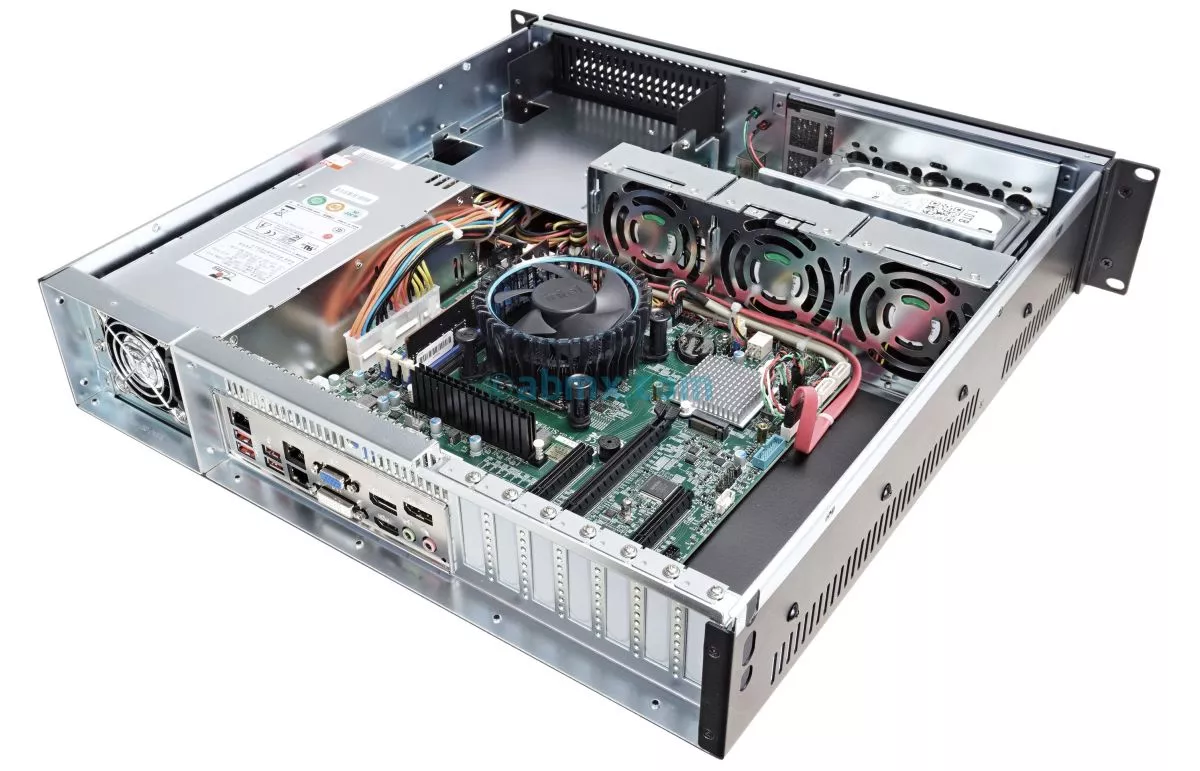

Chassis

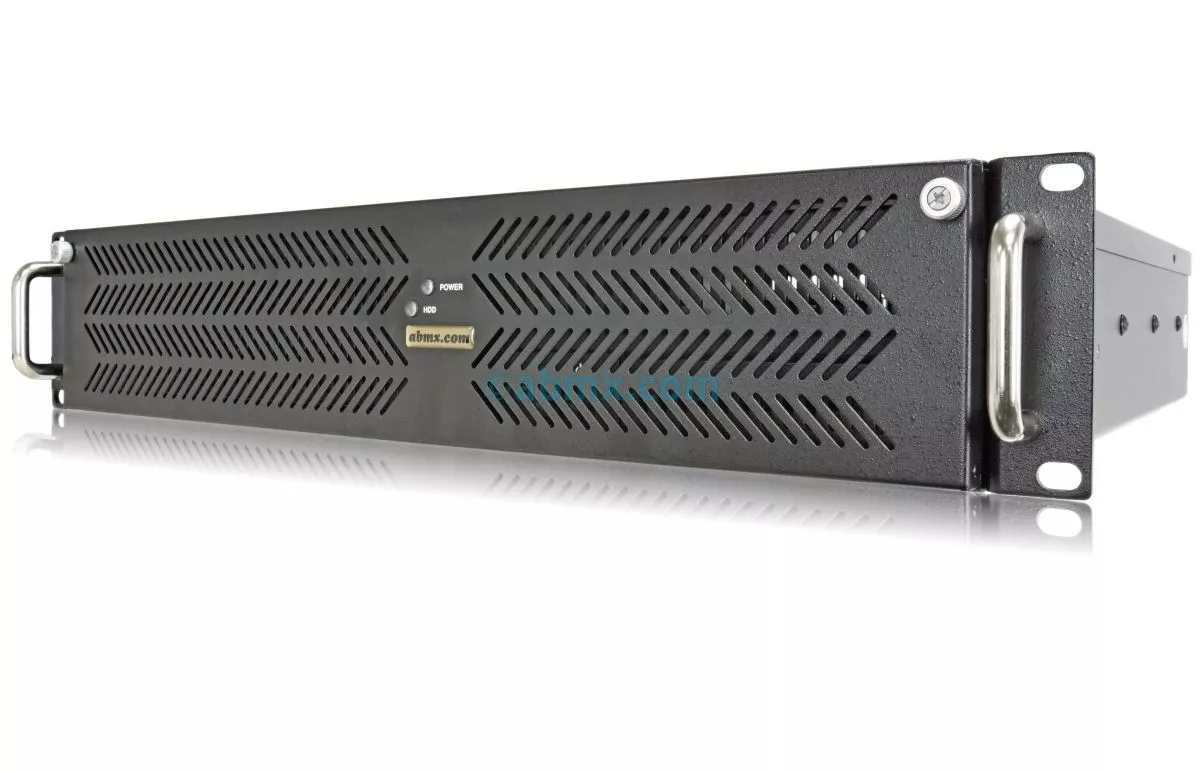

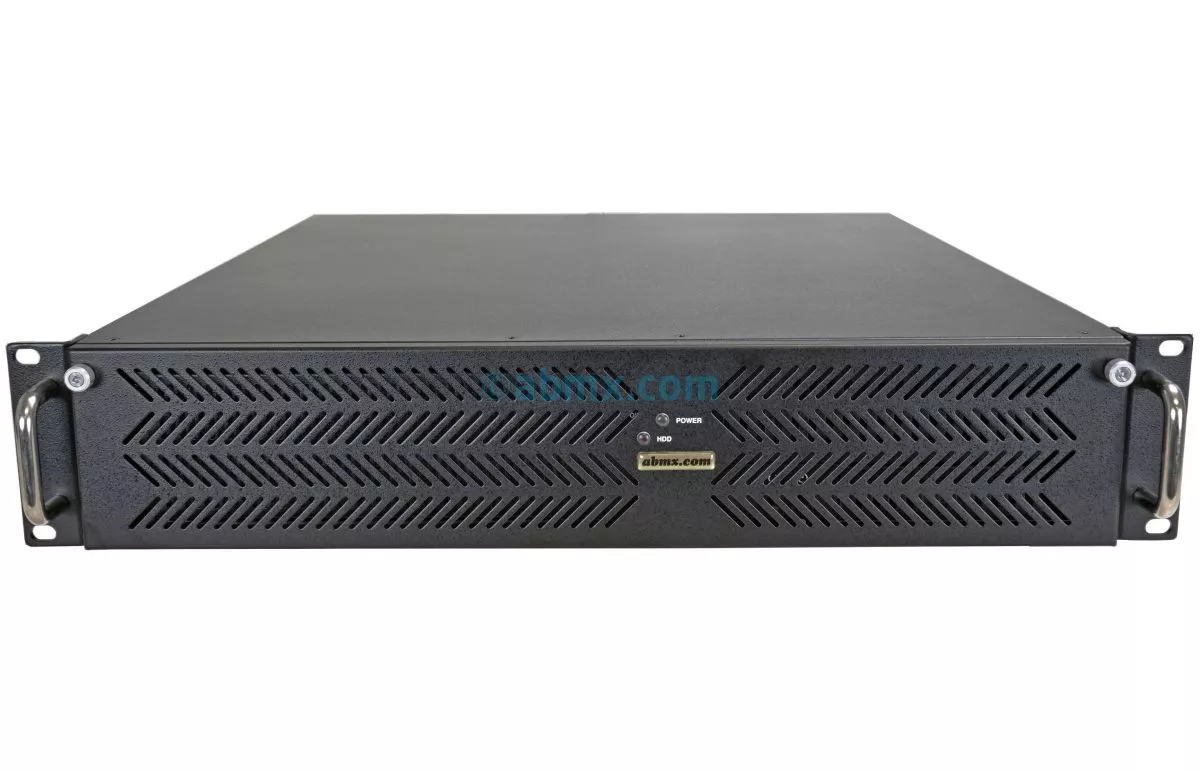

  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch
  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Single Door with 2 Thumbscrews

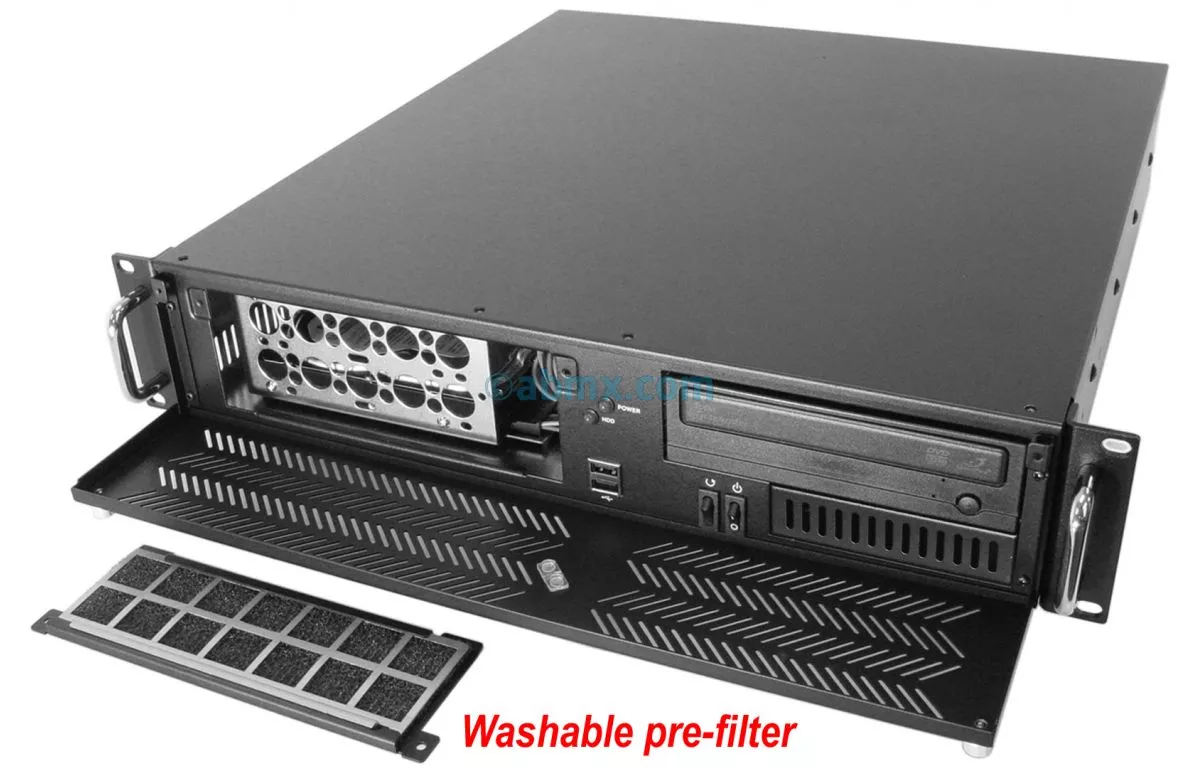

  • Air Filter Inside Front Panel (Washable)
  • Front USB: 2 x ports
Processor/Chipset
  • Single Socket LGA-1700
  • Supports 13th /12th Gen. Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Intel® R680E Chipset
BIOS
  • AMI UEFI
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR5 DIMM sockets
  • Supports up to 128GB Unbuffered ECC/non-ECC UDIMM
  • 4400/4000/3600 MT/s
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • Intel R680E controller on-board
  • IPMI 2.0 on-board

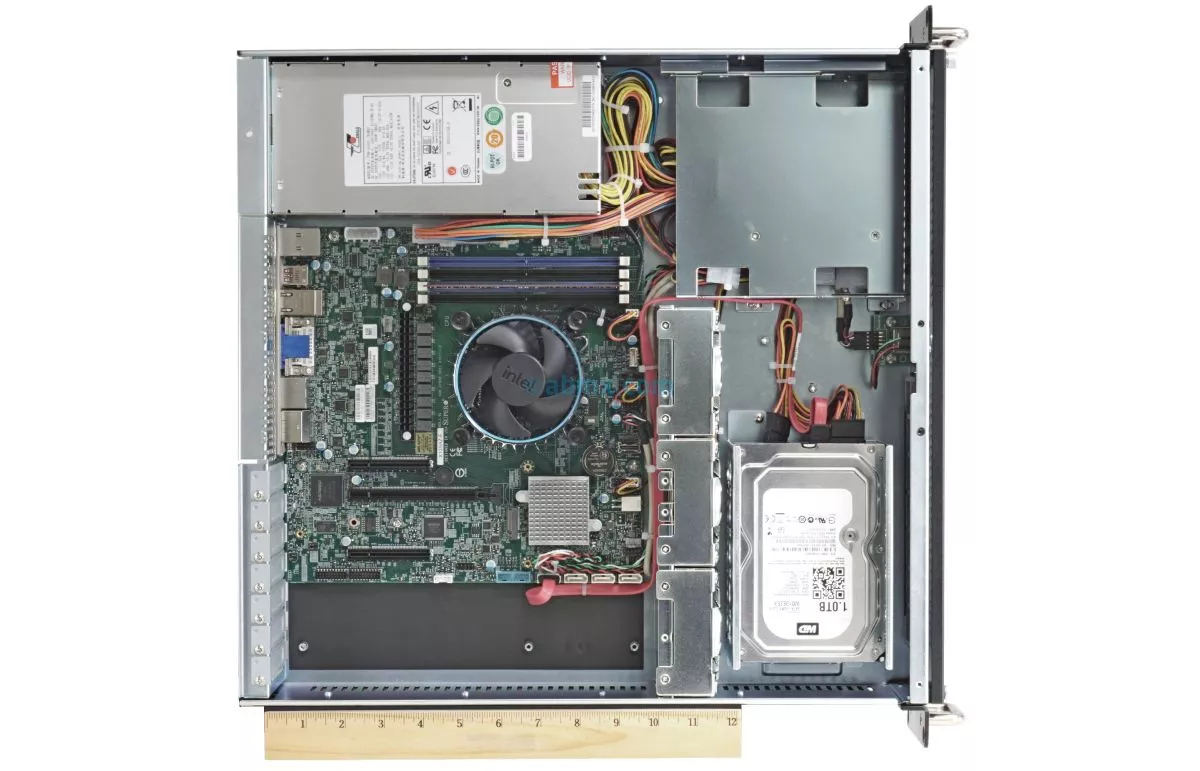

  • Chassis supports up to three drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Drive
  • Up to 66 Terabyte of storage can be supported
  • 1 x 5.25-inch Drive Bay

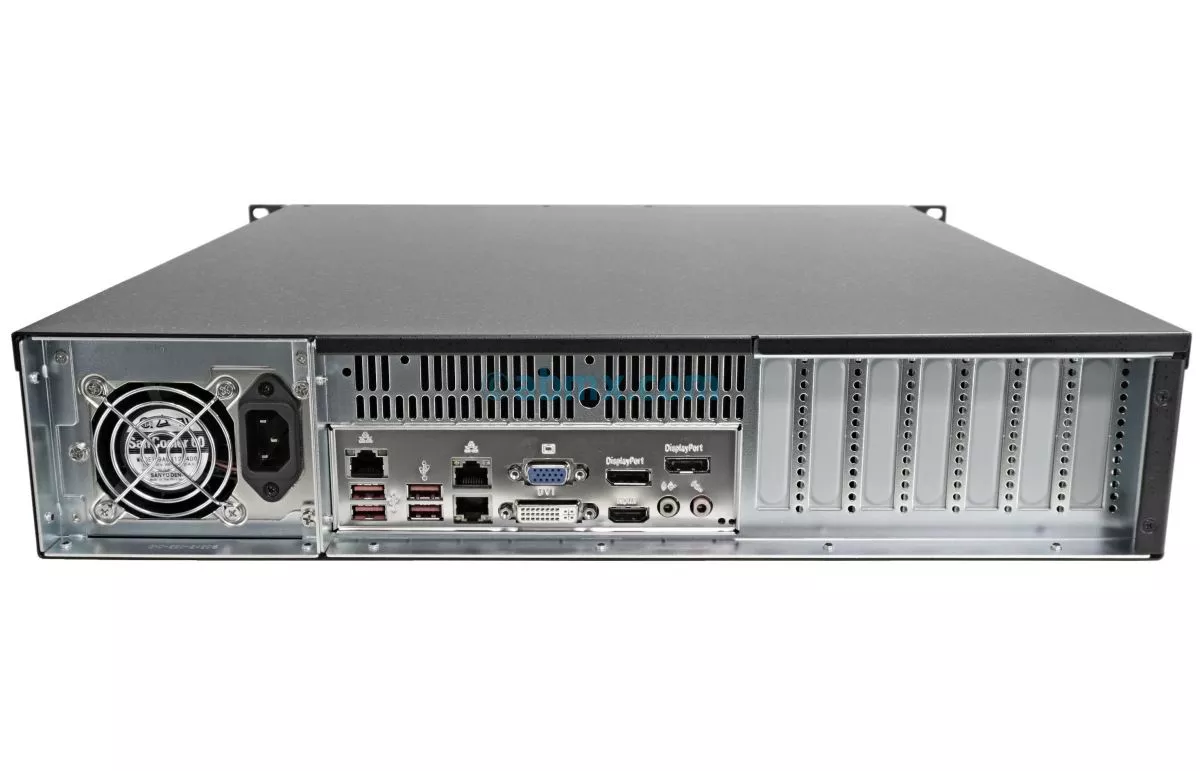

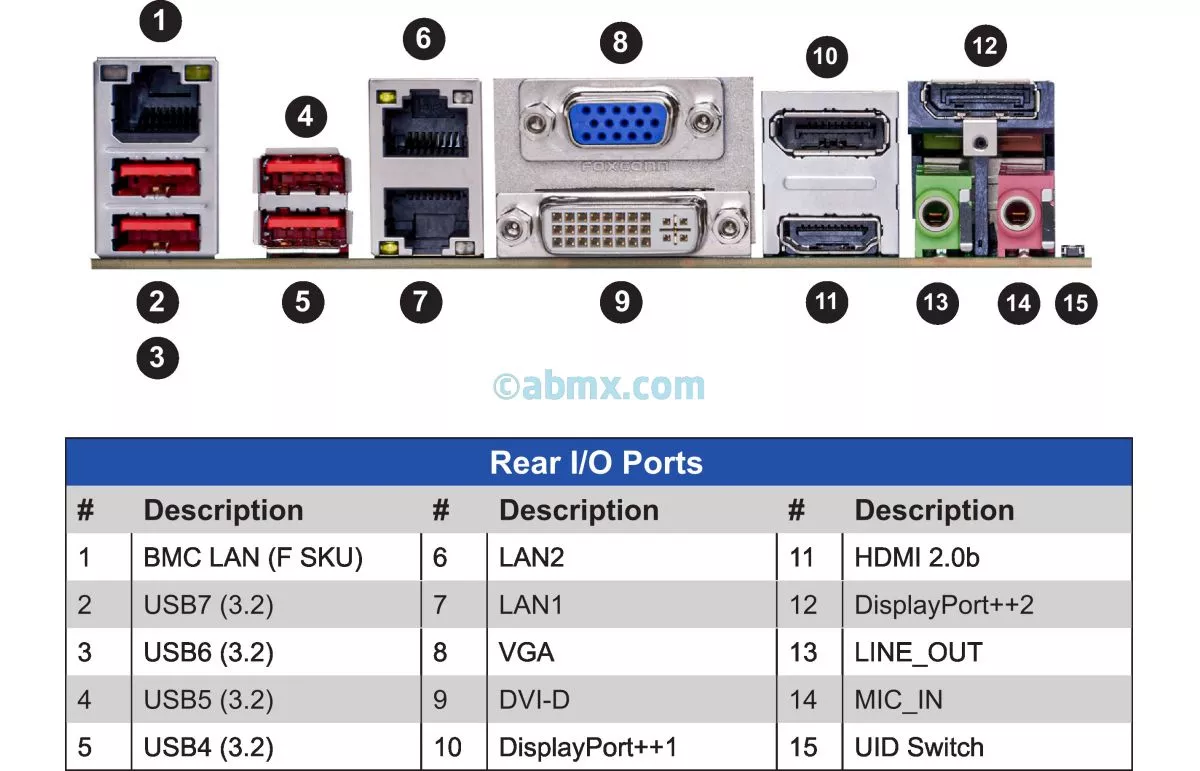

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (4 x headers)
  • 6 x USB 3.2 Gen.2 ports (4 x rear type A, 2 x via header)
  • 2 x USB 3.2 Gen.1 ports (2 x via header)
  • 1 x VGA port
  • 1 x DVI - D port
  • 1 x HDMI 2.0b port
  • 2 x DP (DisplayPort) ports
  • 4 x COM Ports (2 x header RS232/422/485, 2 x header RS232)
  • TPM 2.0 onboard
Video / Audio
  • ALC 888S HD Audio on-board
  • DVI - D port, 1 HDMI 2.0b port, 2 DP (DisplayPort) ports: integrated graphics from CPU

Network
  • Dual LAN with Intel® Ethernet Controller i225LM
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-e 5.0 x16 slot
  • 2 x PCI-e 4.0 x4 (in x8) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, CB, CCC, CE, TUV
  • Redundant or 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X13SAZ-F OverallChipset
Intel R680E		LAN
Intel i225LM		Video
ASPEED AST2600
CentOS Stream 9
Debian 12
Fedora Server 38
Fedora Workstation 38
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
