2U Rack Server - 8 x Hot-Swap SATA
Model #: 226SB7-8
Model 226SB7-8
AvailabilityUsually Ships in
24-72 Hours
Price $1,059.00
Subtotal
$1,059
Request a Quote Request a Quote
Submit for Review Submit for Review
Print it! Print summary
PDF it! Download as PDF
Save it! Save this Configuration
Configuration Summary:
Black color
Supermicro® X7SBE Motherboard
1-Core 1.80 GHz -- Intel Celeron 430 (512K Cache, 800 FSB, Low-Power)
512MB (1 x 512MB) DDR2 SDRAM
80 GB 7,200-rpm - SATA 3Gb/s
No Optical Drive Selected
No IPMI Selected
No Hardware RAID Selected
Single (Non-Redundant) Power Supply
Rackmount Mounting Kit and Rails (Included)
Linux
32-bit
No Pre-Installed OS (Test OS will remain)
No Windows installation required (Arbitrary test OS will remain for QA)
3 Year Limited Warranty, Return to Depot, Parts & Labor
1
2
3
4
5
6
7
Key Features:
  • Single Intel Xeon Dual/Quad/Intel Core 2 Duo/Quad, 1333MHz FSB
  • Up to 8GB DDR2 Memory
  • Two Gigabit Ethernet controllers
  • 4 x 64bit PCI-X Low-Profile Expansion Slots + 2 x PCI-e slots
  • Eight hot-swap SATA Hard Drive Bays
  • Optional slim-line Floppy Drive
  • Optional slim-line CD/DVD-ROM Drive
  • 2U rackmount chassis

Color
Color
Motherboard
Chassis Front Bezel
Chassis Front Bezel
Processor
Processor
Memory
Memory
Hard Drive
Hard Drive
2nd Hard Drive
2nd Hard Drive
3rd Hard Drive
3rd Hard Drive
4th Hard Drive
4th Hard Drive
5th Hard Drive
5th Hard Drive
6th Hard Drive
6th Hard Drive
7th Hard Drive
7th Hard Drive
8th Hard Drive
8th Hard Drive
Optical Drive
Optical Drive
Floppy Drive (Please choose for Windows w/RAID)
Floppy Drive (Please choose for Windows w/RAID)
PCI Expansion Slot (Low-Profile)
PCI Expansion Slot (Low-Profile)
Low Profile USB 2.0 Flash Drive (Bootable)
Remote Management Card (KVM-over-LAN, IPMI 2.0)
Remote Management Card (KVM-over-LAN, IPMI 2.0)
RAID Controller
RAID Controller
Battery Backup Unit for RAID Controller
Battery Backup Unit for RAID Controller
Power Supply Option
Power Supply Option
Rack Mounting Sliding Rails Kit
Rack Mounting Sliding Rails Kit
What Operating System do you plan on using?
What Operating System do you plan on using?
Operating System Bit Version
Operating System Bit Version
Pre-installed** Operating System
Pre-installed** Operating System
** Windows Installation (w/ Microsoft Windows purchase only)
** Windows Installation (w/ Microsoft Windows purchase only)
Extended service plan
Extended service plan
Server Name / Function
Server Name / Function
Available Options:



Chassis
  • 2U Rack Mountable Enclosure
  • Rack Unit Height (3.5")

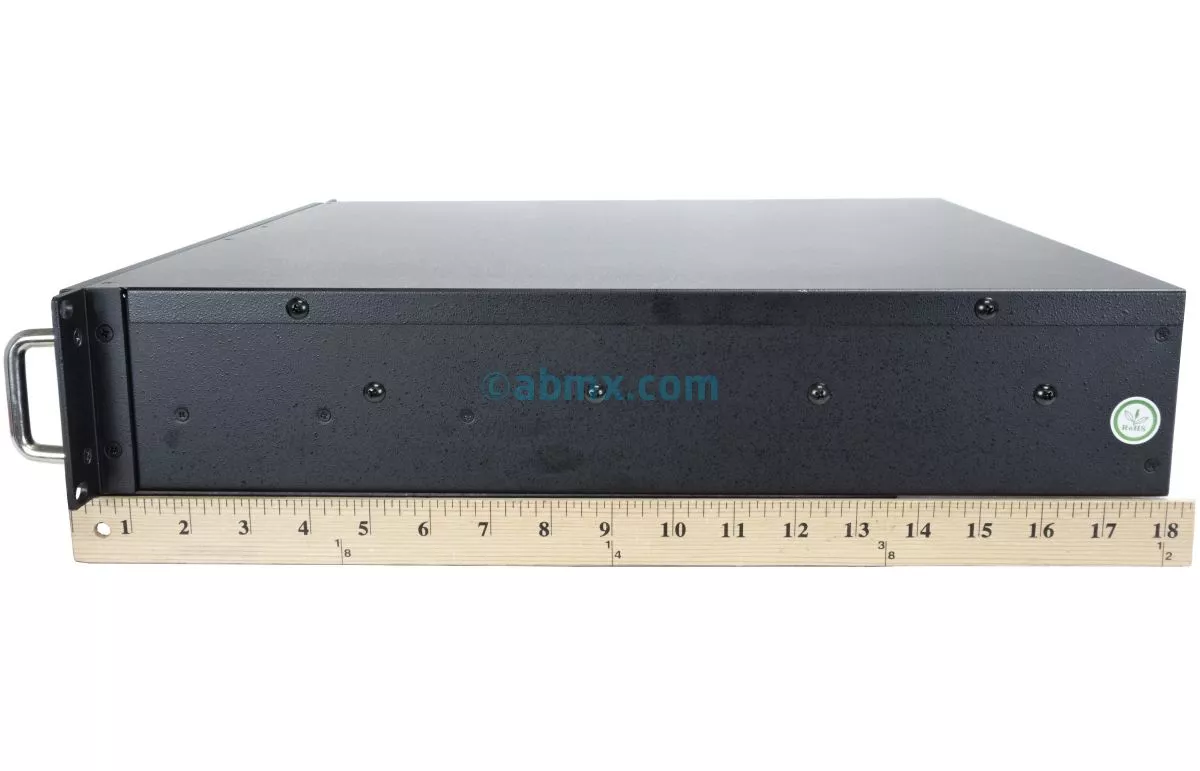

  • Dimensions: 25.5" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • 2U Chassis Mounting Rails Kit (Optional)
Processor
  • Single LGA775 ZIF Socket
  • Supports a Quad-Core Intel Xeon 3300/3200 series
  • Supports a Dual-Core Intel Xeon E3100/3000 series
  • Supports an Intel Core 2 Quad Q9000/Q8000/Q6000 series
  • Supports an Intel Core2 Duo E8000/E7000/E6000/E5000/E4000 series
  • Supports an Intel Pentium dual-core E2000/E1000 series
  • Supports an Intel Celeron 400 series
  • Hyper-Threading (HT) capable
  • 2MB / 1MB L2 Cache
Chipset
  • 1333 / 1066 / 800 MHz system bus
  • Intel 3210 chipset **NOTE: The 3210 chipset does not support graphics cards in the PCI-e slot
  • ICH9R + PXH + Intel 82573V + Intel 82573L
BIOS
  • 16Mb Flash EEPROM with Phoenix BIOS
Memory
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB
  • DDRII 800/667 unbuffered ECC / non-ECC SDRAM (Dual Channel)
Storage / IPMI
  • Six Serial ATA ports (3 Gbps performance)
  • Intel ICH9R SATA2 (3 Gbps) controller built-in
  • Host RAID 0, 1, 5, 10 support (Windows Only)
  • Host RAID 0, 1, 10 support (Linux)
  • Hardware SATA RAID is optional
  • Chassis supports up toeight hard drives
  • Support for Intelligent Platform Management Interface v.2.0 (IPMI)(Optional)
Drive Bays
  • HD1-8 Bay: Hot-swap SATA Hard Drive
  • 1 x Slim Optical Drive Bay
  • 1 x Slim Floppy Drive Bay
  • Up to 12 Terabyte of storage can be supported
I/O ports
  • PS/2 Keyboard port
  • PS/2 Mouse port
  • 1 x VGA port
  • 2 x RJ45 port
  • 7 x USB 2.0 ports
  • 1 x Fast UART 16550 serial ports (1 x header)
  • 1 x Floppy Port (1.44MB)
  • 1 x ECP/EEP Parallel Port
Video
  • On-board ATI ES1000 32MB graphics

Network
  • 1 x Intel 82573V Gigabit PCI-Express Ethernet
  • 1 x Intel 82573L Gigabit PCI-Express Ethernet
  • Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 2 x 64-bit PCI-X (3.3V) 133MHz Slot (low-profile)
  • 2 x 64-bit PCI-X (3.3V) 100MHz Slot (low-profile)
  • 1 x (x8) PCI-Express Slot (low-profile)
  • 1 x (x4) PCI-Express Slot (low-profile)
Power Consumption/Acoustic noise emission
  • Between 130Watts to 150Watts with the standard configuration
  • Noise level (during normal operation): ~ 58dBA (ISO 7779 operator position 0.6 meter)
Power Supply
  • 560W AC power supply w/ PFC (24-pin)
  • 100-240 V, 50-60 Hz, 8.5-4 Amp
  • Tested to comply with FCC Standards
  • 80 PLUS Certified
  • Certifications: UL, CUL, TUV, CE, EN, CCC, CB
Floppy Drive
  • Slim-line Floppy Drive (Optional)
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (Optional)
Rack Support
  • 2U Chassis Mounting Rails Kit (Optional))
OS Compatibility
  • Asterisk 1.x
  • CentOS 4.x, 5.x
  • Debian 5.0.x
  • Fedora 10, 11, 12, 13
  • FreeBSD 7.x, 8.x
  • m0n0wall 1.3x
  • OpenBSD 4.x
  • OpenFiler 2.3
  • OpenSUSE 10.x, 11.x
  • Oracle Enterprise Linux 4.x, 5.x
  • PFSense 1.2.x
  • RHEL 4.x, 5.x
  • Ubuntu 8.x, 9.x, 10.x
  • Windows XP/2003/7/2008/2008 R2
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Pros:
  • 8 hot-swap hdd bays
  • Optional Redundant Power
  • Supports KVM-Over-LAN
  • Low-profile PCI Expansion

Cons:
  • Very Loud

The Bottom Line:Enterprise-grade 2U rackmount server. Increased safety and storage performance w/ up to 8 hot-swap HDDs. Manage from anywhere in the world! -> Optional KVM-Over-LAN hardware remote management... Legacy PCI-x (64-bit) + PCI-e support...

Recommended Uses:Database Server, file server, appliance server, web server, dvr, voip, PBX, asterix box
