  Home > Rackmount Servers > 2U Rack Servers > 2U Server - Core i7 > Model: 221S8

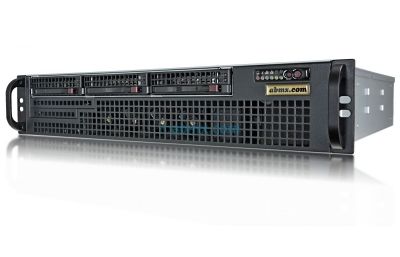

2U Rack Server - 2 x Fixed Bay SATA - 6 x PCI / PCIe slots
Model #: 221S8
Model 221S8
AvailabilityUsually Ships in
24-72 Hours
Price $1,289.00
Subtotal
$1,289
Request a Quote Request a Quote
Submit for Review Submit for Review
Print it! Print summary
PDF it! Download as PDF
Save it! Save this Configuration
Configuration Summary:
Black color
Supermicro® X8STE Motherboard
4-Core 2.66Ghz -- Intel Core i7-920 (8MB Cache, 8 Logical Cores)
1GB (1 x 1GB) DDR3 SDRAM
80 GB 7,200-rpm - SATA 3Gb/s
No Optical Drive Selected
No Hardware RAID Selected
Single (Non-Redundant) Power Supply
No Rack Rails Selected
Windows
64-bit
No Pre-Installed OS (Test OS will remain)
No Windows installation required (Arbitrary test OS will remain for QA)
3 Year Limited Warranty, Return to Depot, Parts & Labor
1
2
3
4
5
Key Features:
  • Single Xeon Quad Core (Nehalem, 5500 series) / Intel Core i7
  • Up to 24GB DDR-3 Memory
  • 4 x PCI-e, 2 x PCI Expansion Slots (low-profile)
  • Dual Intel Gigabit Ethernet controllers
  • 2U Industrial Grade Supermicro rack

Color
Color
Motherboard
Processor
Processor
Memory
Memory
Hard Drive
Hard Drive
2nd Hard Drive
2nd Hard Drive
Exposed 5.25'' Drive Bay
Exposed 5.25'' Drive Bay
Optical Drive
Optical Drive
PCI Expansion Slot (Low-Profile)
PCI Expansion Slot (Low-Profile)
Low Profile USB 2.0 Flash Drive (Bootable)
RAID Controller
RAID Controller
Battery Backup Unit for RAID Controller
Battery Backup Unit for RAID Controller
Power Supply Option
Power Supply Option
Rack Mounting Sliding Rails Kit
Rack Mounting Sliding Rails Kit
What Operating System do you plan on using?
What Operating System do you plan on using?
Operating System Bit Version
Operating System Bit Version
Pre-installed** Operating System
Pre-installed** Operating System
** Windows Installation (w/ Microsoft Windows purchase only)
** Windows Installation (w/ Microsoft Windows purchase only)
Extended service plan
Extended service plan
Server Name / Function
Server Name / Function
Available Options:
Chassis
  • 2U Rack Mountable Enclosure (low-profile)
  • 1 Rack Unit Height (3.5")
  • Dimensions: 20.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
Processor
  • LGA 1366 Socket
  • Intel Core i7-965 Extreme Edition
  • Intel Core i7 series
  • Intel Xeon 5500 series
  • Intel Xeon 3500 series
Chipset
  • QPI (up to 6.4 GT/s)
  • Intel X58 Express chipset
  • ICH10R
BIOS
  • 32Mb SPI Flash EEPROM with AMI BIOS
Memory
  • 6 x DIMM sockets
  • Supports up to 24GB 1333 / 1066 / 800MHz DDR3 non-ECC / ECC Un-Buffered memory
  • ECC Un-buffered memory is required for Xeon 5500 series
  • Three Channel memory bus
Storage
  • 6 x SATA Ports
  • Intel ICH10R SATA (3.0Gbps) Controller
  • HostRAID 0, 1, 5, 10 support
  • Hardware RAID is OPTIONAL
  • Chassis supports up to three hard drives
Drive Bays
  • HD1-3 Bay: fixed SATA/SSD Hard Drives
  • 1 x 5.25-inch Peripheral Bay
  • 1 x Slim Optical Drive Bay
  • 1 x 3.5-inch Floppy Drive Bay
  • Up to 8 Terabyte of storage can be supported
I/O ports
  • PS/2 Keyboard port
  • PS/2 Mouse port
  • 1 x VGA
  • 2 x RJ45 port
  • 8 x USB 2.0 ports (2 rear ports + 2 x on-board + 2 internal headers (4 ports))
  • 1 x Fast UART 16550 serial port (1 x header)
  • 1 x Floppy Port (1.44MB)
Video
  • On board Matrox G200eW 8 MB DDR2 graphics

Network
  • 2 x Intel 82574L Gigabit Ethernet Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 3 x (x8) PCI-e 2.0 slots (1 using x16 slot) (low-profile))
  • 1 x (x4) PCI-e slot (using x8 slot) (low-profile)
  • 2 x 32-bit PCI slot (low-profile)
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter)
Power Supply
  • 480W power supply
  • OPTIONAL Redundant Power Supply
  • Tested to comply with FCC Standards
Floppy Drive
  • Floppy Drive (OPTIONAL)
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • 2U Chassis Mounting Rails and Kit (OPTIONAL)
OS Compatibility
  • VMware ESXi 4.x
  • Asterisk 1.x
  • CentOS 4.x, 5.x
  • Debian 5.0.x
  • Fedora 10, 11, 12, 13
  • FreeBSD 7.x, 8.x
  • m0n0wall 1.3x
  • OpenBSD 4.x
  • OpenFiler 2.3
  • OpenSUSE 10.x, 11.x
  • Oracle Enterprise Linux 4.x, 5.x
  • PFSense 1.2.x
  • RHEL 4.x, 5.x
  • Ubuntu 8.x, 9.x, 10.x
  • Windows XP/2003/7/2008/2008 R2
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Pros:
  • Nehalem hexacore Xeon support
  • 2 fixed hdd bays
  • Low-profile PCI expansion
  • Washable Inside Front Panel Filter
  • Optional Redundant power

Cons:
  • 2 Fixed HDDs, no hot-swap
  • Loud

The Bottom Line:Enterprise-grade 2U rackmount server. Run more services! -> Latest Intel processor technology (Xeon 5600). Open 5.25 inch bay for special tape or optical drives.

Recommended Uses:Database server, appliance server, web server, file server, dvr, voip, pbx, asterix box, large database server, virtualization server, esx, hyper-v
Price with selected options :
$1,289
