1U Rackmount Server - 2 x Full-Height Expansion - KVM-Over-LAN
Model #: 126X8
Model 126X8
AvailabilityUsually Ships in
24-72 Hours
Price $1,069.00
Subtotal
$1,069
Request a Quote Request a Quote
Submit for Review Submit for Review
Print it! Print summary
PDF it! Download as PDF
Save it! Save this Configuration
Configuration Summary:
Black color
Supermicro® X8SIU-F Motherboard
Pentium G6950 -- Entry Level CPU (2.8GHz, 3MB Cache, 533 FSB)
1GB (1 x 1GB) DDR3 ECC Un-Buffered SDRAM (Pentium/Core i3/Xeon CPU)
80 GB 7,200-rpm - SATA 3Gb/s
No Optical Drive Selected
1U Riser Card (2 x PCI-e x8)
560W High-Efficiency Power Supply
Rackmount Mounting Kit and Rails (Included)
Windows
64-bit
No Pre-Installed OS (Test OS will remain)
No Windows installation required (Arbitrary test OS will remain for QA)
3 Year Limited Warranty, Return to Depot, Parts & Labor
1
2
3
4
5
Key Features:
  • Single Core i3/ Xeon CPU with 4/8Mb Cache
  • Up to 32GB DDR-2 ECC FB-DIMM Memory
  • Universal slot: 2 x PCI / PCI-e Expansion Slots
  • Dual Intel Gigabit Ethernet controllers
  • 1U Industrial Grade Supermicro rack

Color
Color
Motherboard
Processor
Processor
Memory
Memory
Hard Drive
Hard Drive
2nd Hard Drive
2nd Hard Drive
3rd Hard Drive
3rd Hard Drive
4th Hard Drive
4th Hard Drive
Optical Drive
Optical Drive
Riser card
Riser card
PCI Expansion Slot 1
PCI Expansion Slot 2
Low Profile USB 2.0 Flash Drive (Bootable)
Battery Backup Unit for RAID Controller
Battery Backup Unit for RAID Controller
Power Supply Option
Power Supply Option
Rack Mounting Sliding Rails Kit
Rack Mounting Sliding Rails Kit
What Operating System do you plan on using?
What Operating System do you plan on using?
Operating System Bit Version
Operating System Bit Version
Pre-installed** Operating System
Pre-installed** Operating System
** Windows Installation (w/ Microsoft Windows purchase only)
** Windows Installation (w/ Microsoft Windows purchase only)
Extended service plan
Extended service plan
Available Options:
Chassis

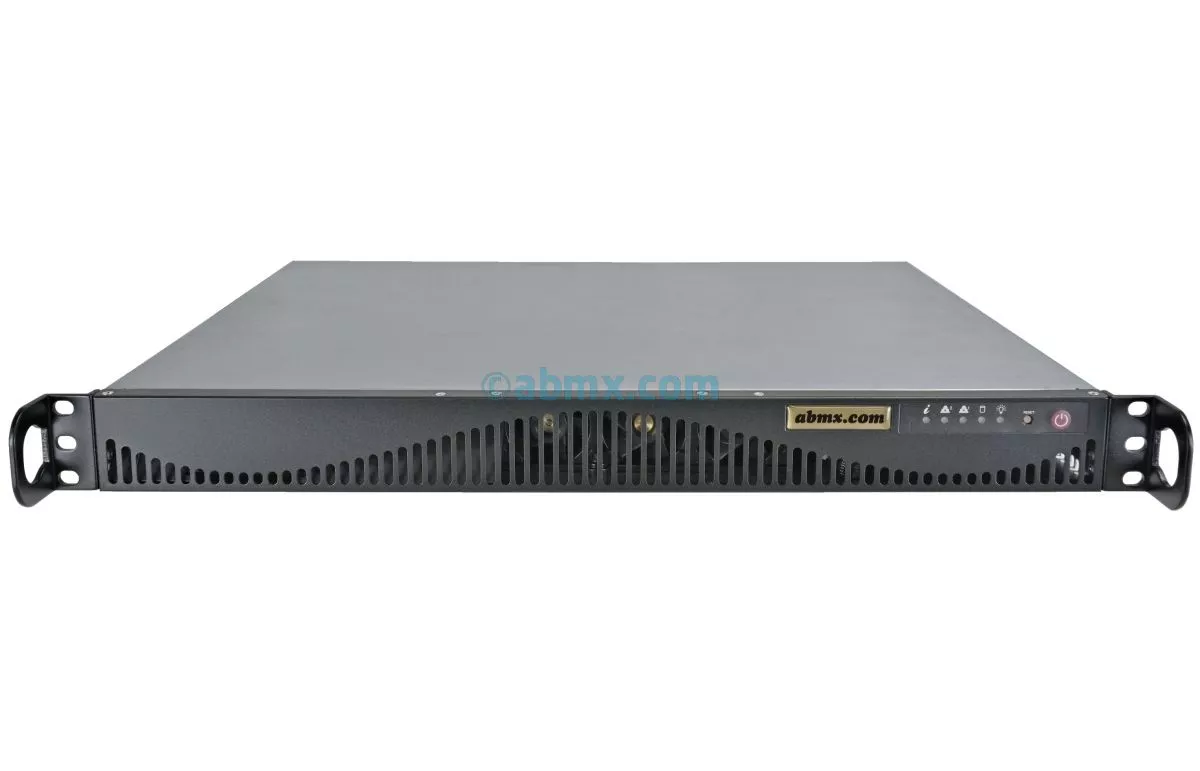

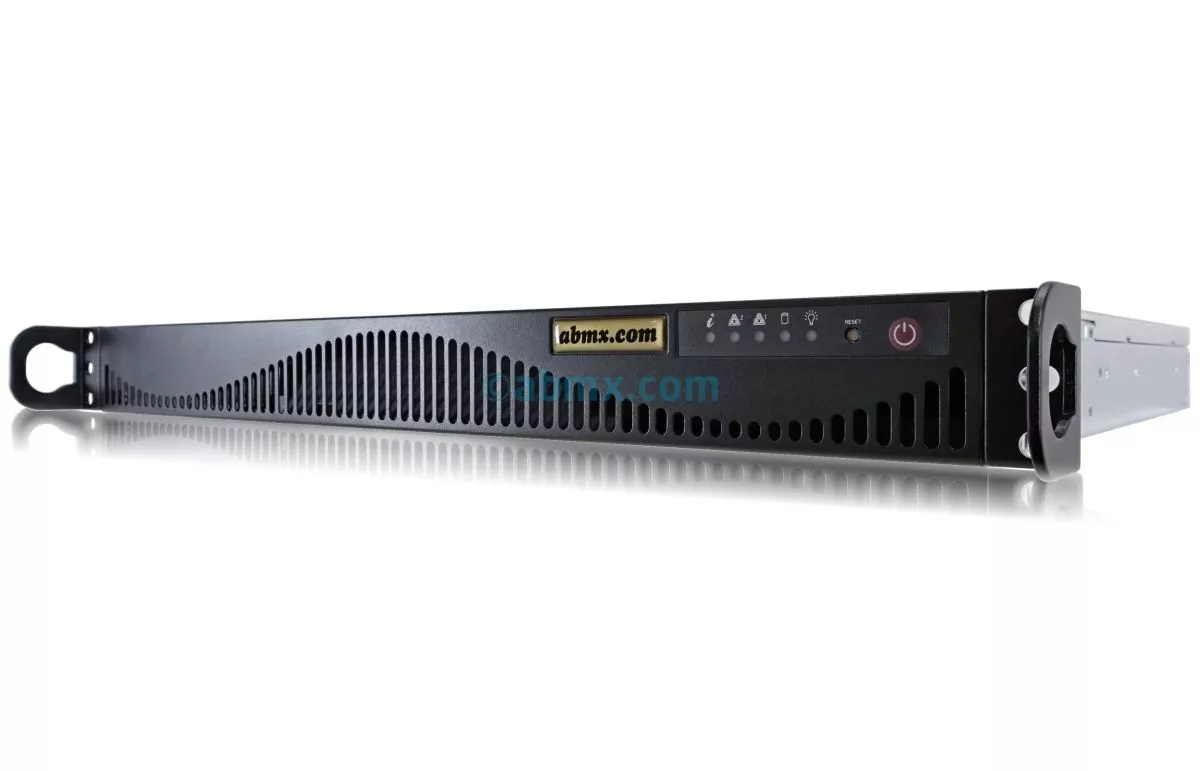

  • 1U Rack Mountable Enclosure
  • 1 Rack Unit Height (1.7")

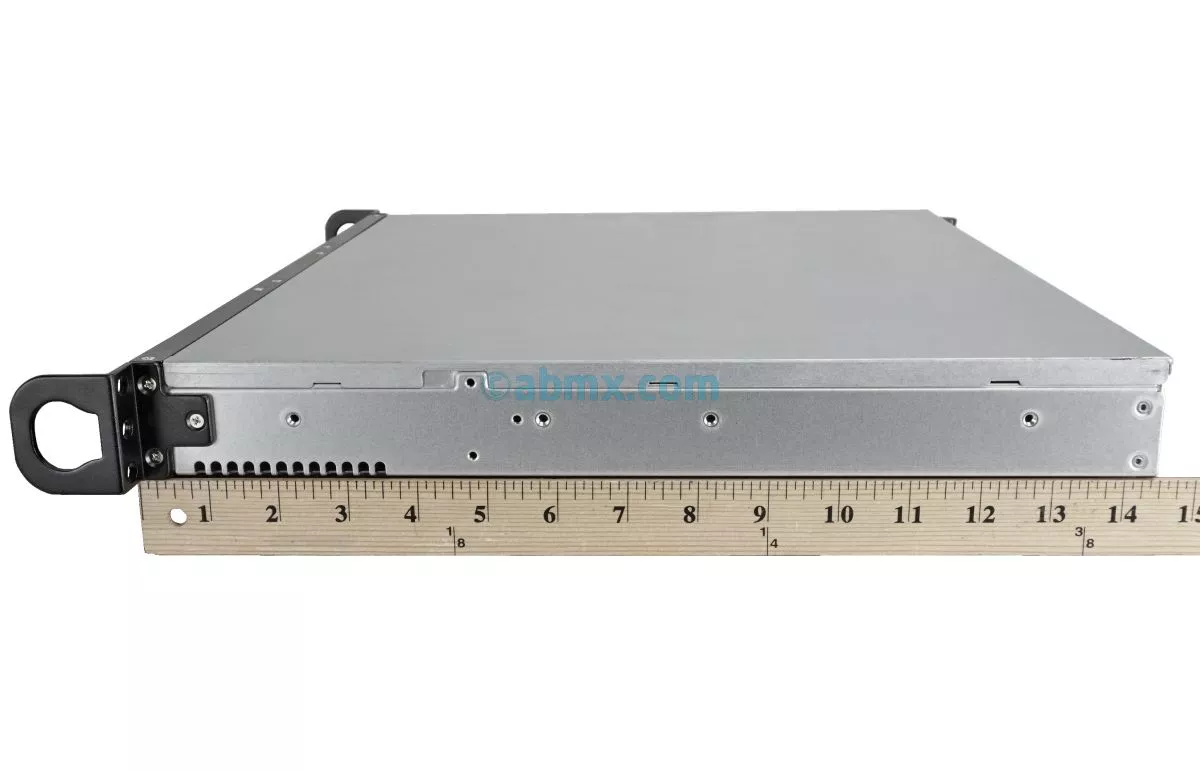

  • Dimensions: 25.6" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor
  • LGA 1156 Socket
  • Intel® Xeon® X3400 series
  • Intel® Xeon® L3400 series
  • Intel® Core™ i3
  • Intel® Pentium® G6950
  • Intel® Celeron® G1101
Chipset
  • Intel® 3420 chipset
BIOS
  • 32Mb SPI Flash EEPROM with AMI BIOS
Memory
  • 6 x 240-pin DIMM sockets
  • Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMMs
  • Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMMs
  • 1333/1066/800 MHz
  • Dual Core processors of Ci3 and Pentium: support ECC UDIMM only
Storage / IPMI
  • 6 x SATA (3 Gbps) ports
  • HostRAID 0, 1, 5, 10 support (Windows)
  • HostRAID 0, 1, 10 support (Linux)
  • Hardware RAID is Optional
  • Chassis supports upto four 3.5" hard drives
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Drive Bays
  • HD1-4 Bay: Hot-swap 3.5" SATA Hard Drives or SSD (Solid State Drives)
  • Up to 12 Terabyte of storage can be supported

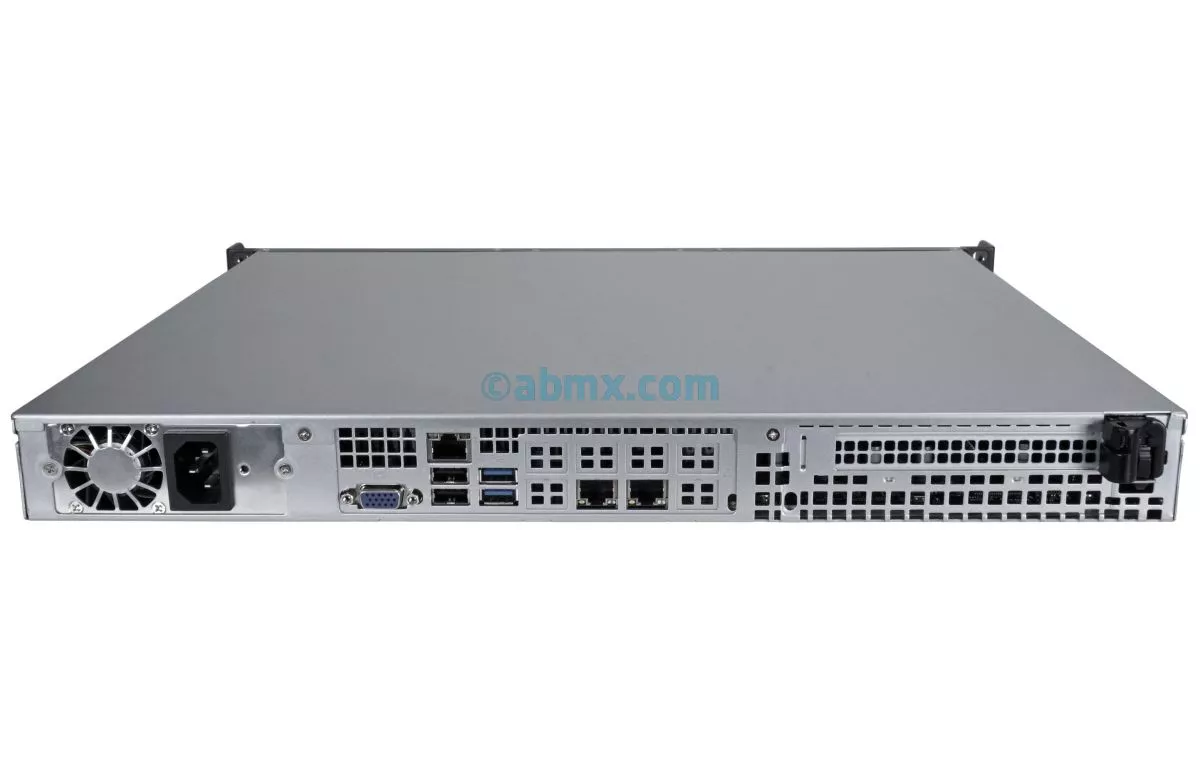

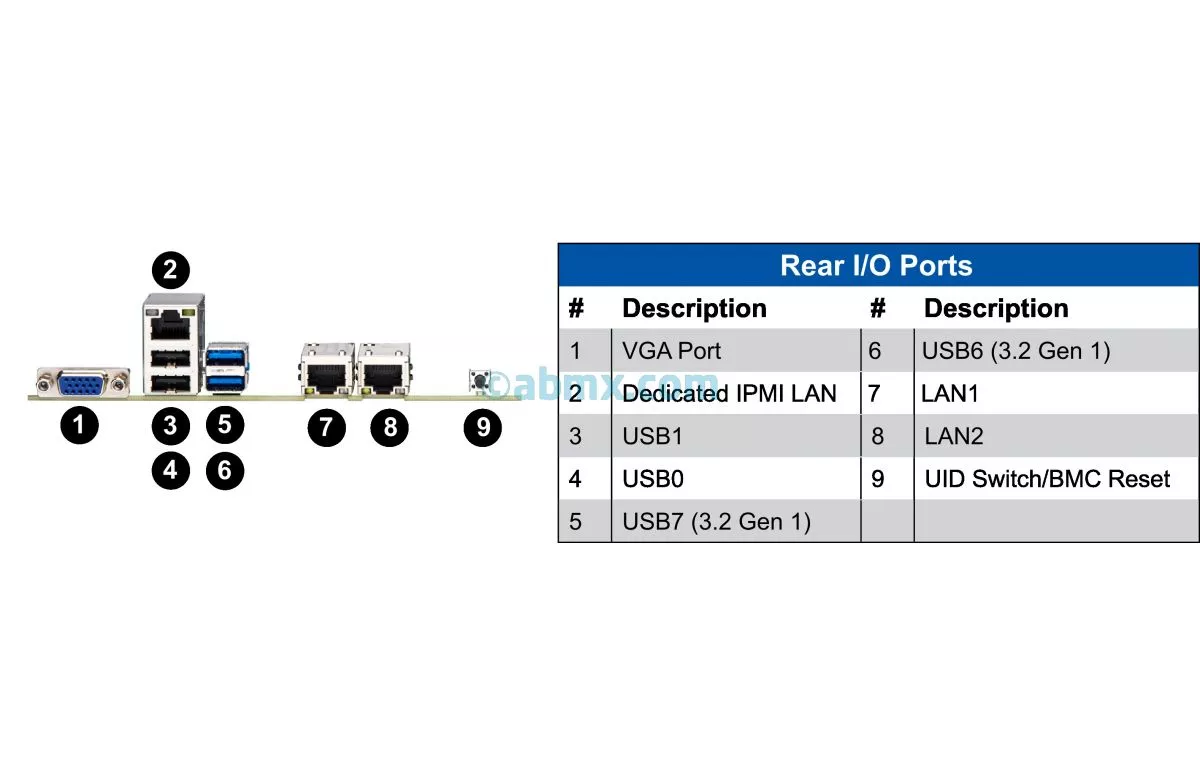

I/O ports
  • PS/2 Keyboard port
  • PS/2 Mouse port
  • 1 x VGA
  • 2 x RJ45 port
  • 1 x RJ45 Dedicated IPMI LAN port

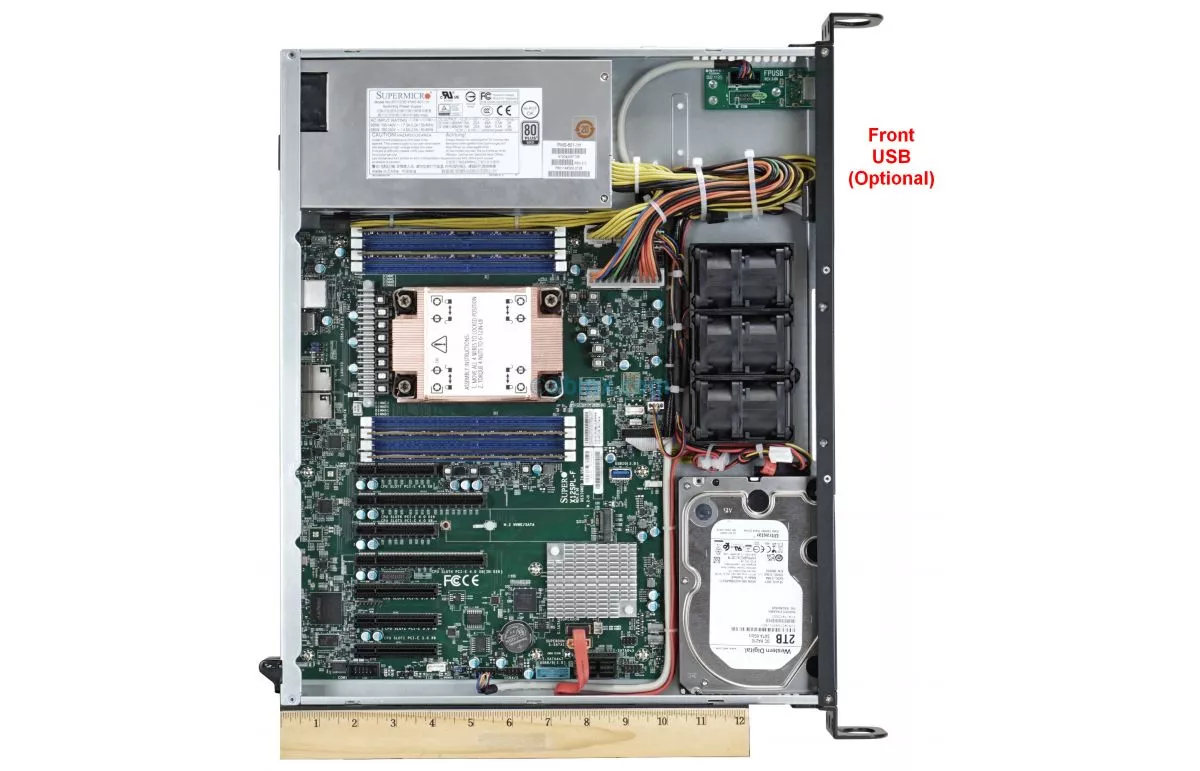

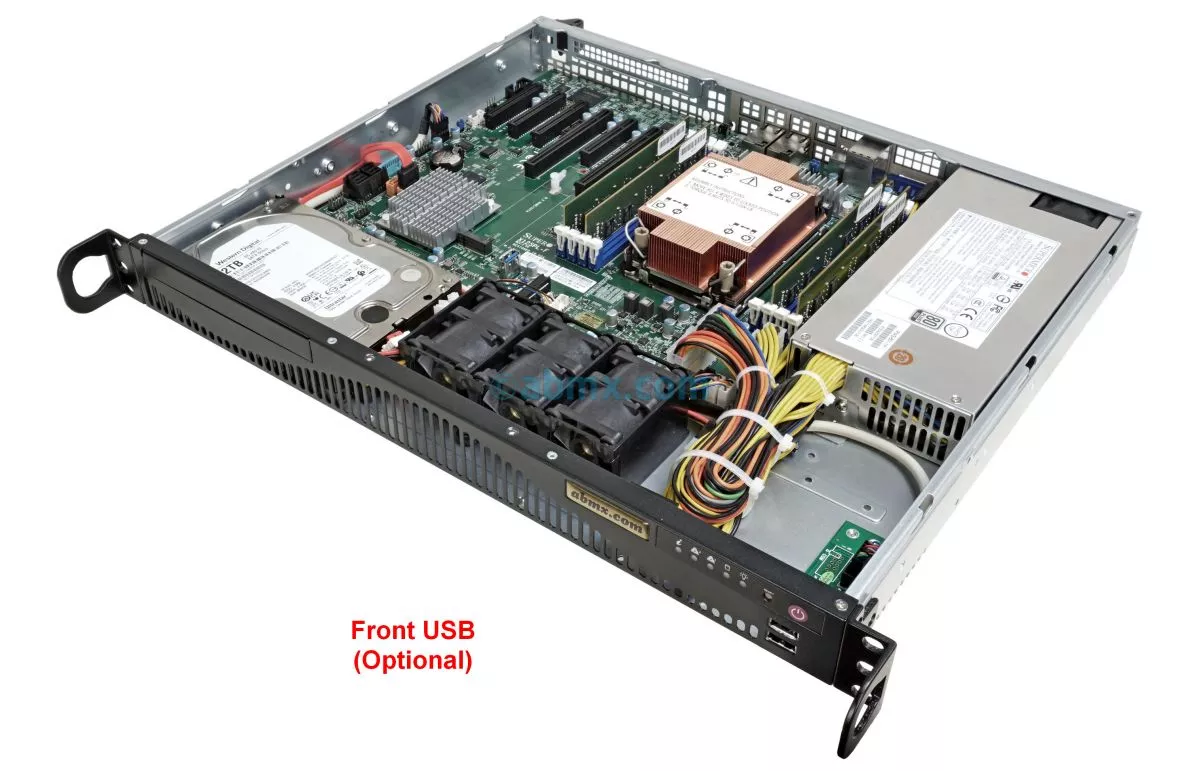

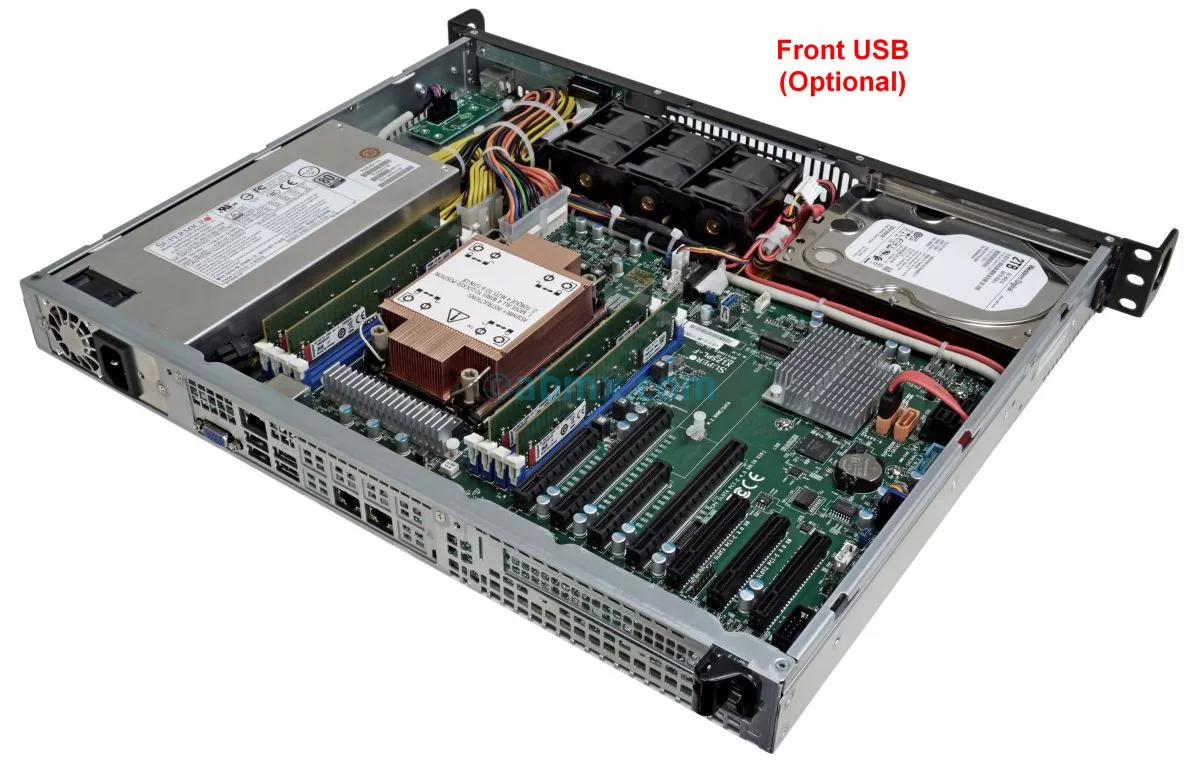

  • Total 7 x USB 2.0 ports (1 rear port + 1 x USB Type-A + 2 internal header (4 ports))
  • 1 x Fast UART 16550 serial port (plus 1 x internal header)
Video
  • Matrox G200eW 16MB DDR2 Graphics on-board

Network
  • Dual Intel® 82574L Gigabit Ethernet Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 x Realtek RTL8201N PHY (dedicated IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • Via riser card (Optional):
  • 1 x (x16) PCI-E 2.0, or
  • 2 x (x8) PCI-E 2.0, or
  • 1 x (x8) PCI-E 2.0 + PCI-X 64-bit
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter)
Power Supply
  • 560W High-efficiency AC power supply w/ PFC (20-pin)
  • 100-240 V, 50-60 Hz, 7.5 Amp max
  • 80PLUS GOLD Certified
  • Tested to comply with FCC Standards
  • Certifications: CCC, UL, CUL, TUV, CE, EN, EC
Floppy Drive
  • USB External Floppy Drive (Optional)
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (Optional)
Rack Support
  • 1U Chassis Mounting Rails and Kit (Included)
OS Compatibility
  • Asterisk 1.x
  • CentOS 4.x, 5.x
  • Debian 5.0.x
  • Fedora 10, 11, 12, 13
  • FreeBSD 7.x, 8.x
  • m0n0wall 1.3x
  • OpenBSD 4.x
  • OpenFiler 2.3
  • OpenSUSE 10.x, 11.x
  • Oracle Enterprise Linux 4.x, 5.x
  • PFSense 1.2.x
  • RHEL 4.x, 5.x
  • Ubuntu 8.x, 9.x, 10.x
  • Windows XP/2003/7/2008/2008 R2
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Pros:
  • 4 hot-swap hdd bays

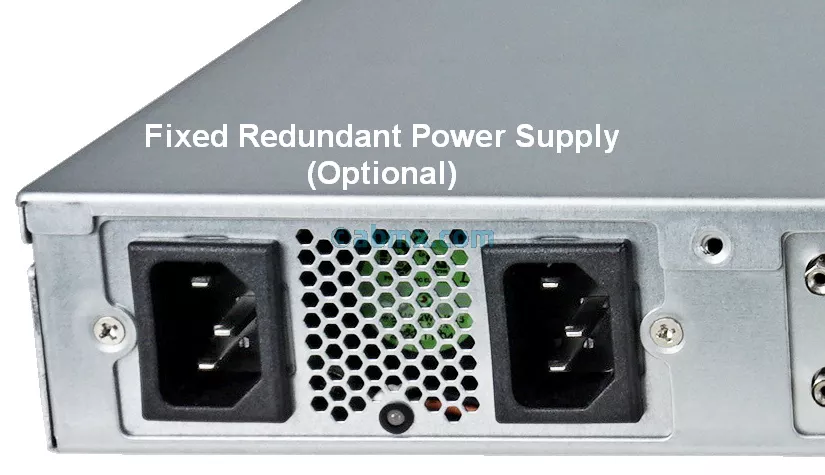

  • Redundant power
  • 2 Flexible PCI Expansions

Cons:
  • Loud

The Bottom Line:1U rackmount server with 2 PCI slots in a 1U (yes it's possible!). Worry less! Redundant AC power provides a valuable safety net. Supports SAS RAID 5/6/10 for the safest redundancy and fastest storage speeds... up to 8 CPU cores.

Recommended Uses:Appliance server, database server, web server, domain controller, storage server, email server
