  Home > Rackmount Servers > 1U Rack Servers > 1U Server - Core 2 > Model: 120SB7

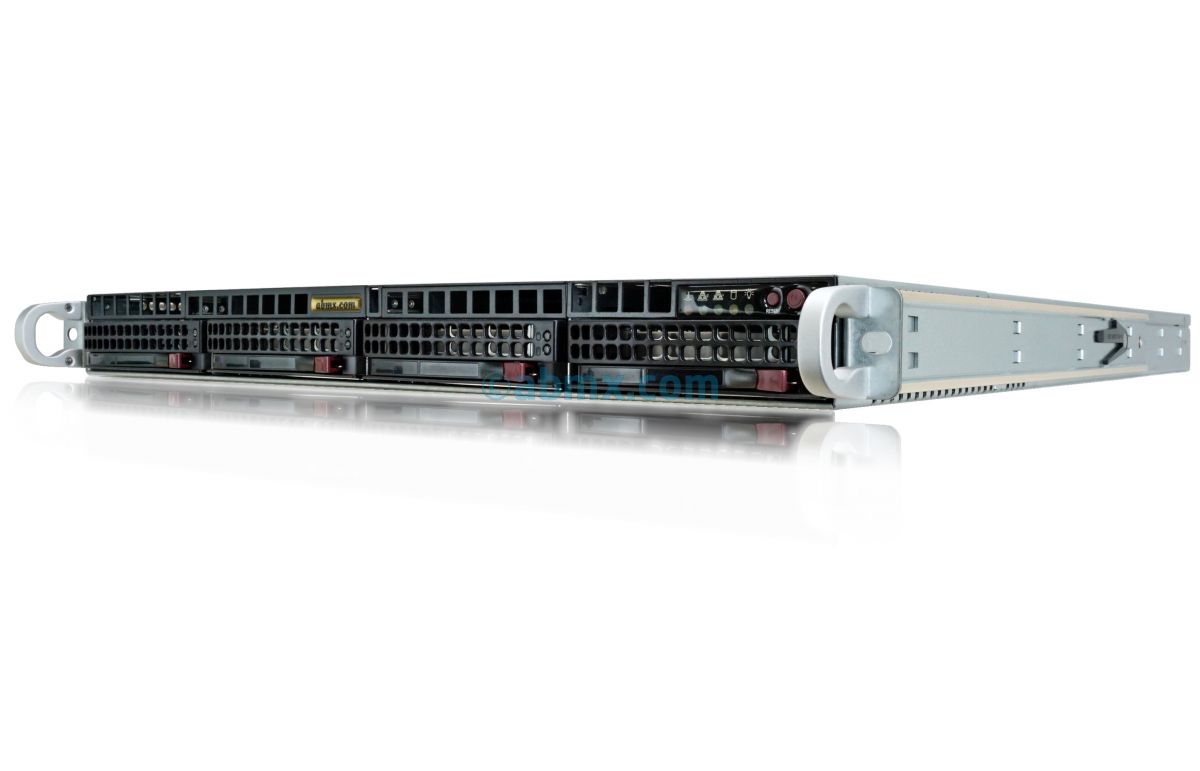

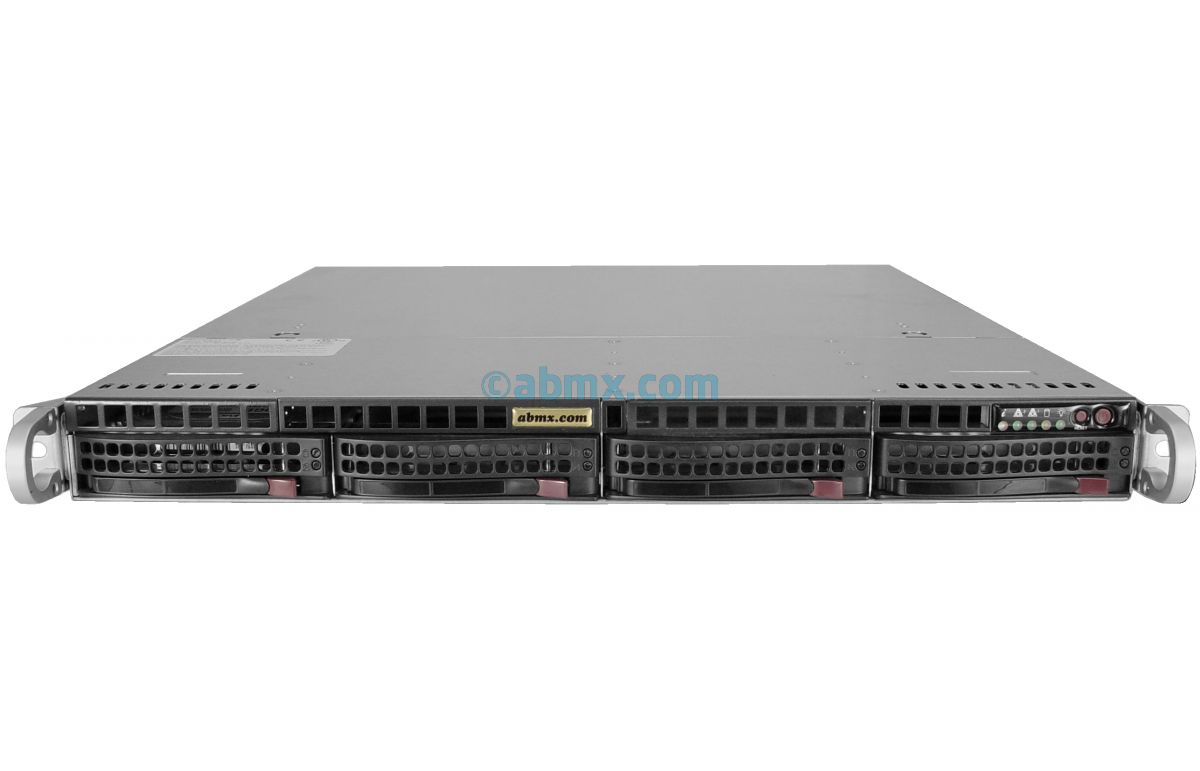

1U Rackmount Server - 4 x Hot-swap SATA
Model #: 120SB7
Model 120SB7
AvailabilityUsually Ships in
24-72 Hours
Price $789.00
Subtotal
$789
Request a Quote Request a Quote
Submit for Review Submit for Review
Print it! Print summary
PDF it! Download as PDF
Save it! Save this Configuration
Configuration Summary:
Black color
Supermicro® X7SBL-LN1Motherboard
1-Core 1.80 GHz -- Intel Celeron 430 (512K Cache, 800 FSB, Low-Power)
512MB (1 x 512MB) DDR2 SDRAM
80 GB 7,200-rpm - SATA 3Gb/s
No Optical Drive Selected
1 x Integrated Intel 82573V PCI-E Gigabit LAN Port
No IPMI Selected
Rackmount Mounting Kit and Rails (Included)
Windows
64-bit
No Pre-Installed OS (Test OS will remain)
No Windows installation required (Arbitrary test OS will remain for QA)
3 Year Limited Warranty, Return to Depot, Parts & Labor
1
2
3
4
5
6
7
Key Features:
  • Single Intel Xeon Dual/Quad/Intel Core 2 Duo/Quad, 1333MHz FSB
  • Up to 8GB DDR2 Memory
  • One Universal PCI slot: 1 x(x8) PCI-e or 1 x 32bit PCI
  • 1 or 2 x Gigabit PCI-e Ethernet controllers
  • Four hot-swap SATA Hard Drive Bay
  • Optional Floppy Drive
  • Optional Optical Drive

Color
Color
Motherboard
Chassis Front Bezel
Chassis Front Bezel
Processor
Processor
Memory
Memory
Hard Drive
Hard Drive
2nd Hard Drive
2nd Hard Drive
3rd Hard Drive
3rd Hard Drive
4th Hard Drive
4th Hard Drive
Optical Drive
Optical Drive
Floppy Drive (Please choose for Windows w/RAID)
Floppy Drive (Please choose for Windows w/RAID)
Integrated Network Interface (part of the motherboard)
Integrated Network Interface (part of the motherboard)
PCI Expansion Slot (Req. Riser Card)
PCI Expansion Slot (Req. Riser Card)
Low Profile USB 2.0 Flash Drive (Bootable)
Remote Management Card (KVM-over-LAN, IPMI 2.0)
Remote Management Card (KVM-over-LAN, IPMI 2.0)
Battery Backup Unit for RAID Controller
Battery Backup Unit for RAID Controller
Rack Mounting Sliding Rails Kit
Rack Mounting Sliding Rails Kit
What Operating System do you plan on using?
What Operating System do you plan on using?
Operating System Bit Version
Operating System Bit Version
Pre-installed** Operating System
Pre-installed** Operating System
** Windows Installation (w/ Microsoft Windows purchase only)
** Windows Installation (w/ Microsoft Windows purchase only)
Extended service plan
Extended service plan
Server Name / Function
Server Name / Function
Available Options:
Chassis
  • 1U Rack Mountable Enclosure
  • 1 Rack Unit Height (1.7")
  • Dimensions: 19.8" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
  • 1U Chassis Mounting Rails and Kit (optional)
Processor
  • Single LGA775 ZIF Socket
  • Supports an Intel Xeon Dual/Quad Core E3100/3000 / 3300/3200 Series processors
  • Supports an Intel Core2 Quad Q9000/Q6000 series processors
  • Supports an Intel Core 2 Duo E8000/E6000 series processors
  • Supports an Intel Pentium dual-core E2000 series processors
  • Supports an Intel Celeron 400 series processors
  • 1333/ 1066 / 800 MHz system bus
  • Intel 3200 + ICH9R Chipset
BIOS
  • 8Mb Flash EEPROM with Phoenix BIOS
Memory
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB
  • DDR2 800/667MHz unbuffered ECC / non-ECC SDRAM (Dual Channel)
Storage / IPMI
  • Six Serial ATA ports (3 Gbps performance)
  • Intel ICH9R SATA controller built-in
  • No HostRAID on-board
  • Chassis supports up to four hard drives
  • Support for 1U IPMI** v.2.0/1.5 (** for model with 2 x Gigabit LANs only)
Drive Bays
  • HD1-4 Bay: hot-swap Hard Drive
  • Up to 4 Terabyte of storage can be supported
I/O ports
  • PS/2 Keyboard port
  • PS/2 Mouse port
  • 1 x VGA
  • 1 or 2 x RJ45 port
  • 7 x USB 2.0 ports (1 x on-board, 2 x rear ports, 2 x headers)
  • 1 x Fast UART 16550 serial port (1 x header)
  • 1 x Floppy Port (1.44MB)
Video
  • On board XGI Volari Z9S 32MB graphics

Network
  • 1 or 2 x Intel 82573 V/L Gigabit PCI-Express Ethernet
  • Supports 10Base-T, 100Base-T, 1000BASE-T, RJ45 output
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 Universal slot:
  • 1 x (x8) PCI-E slot, or
  • 1 x 32-bit 33MHz PCI (5V) slot
  • Requires a PCI riser card - optional
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ 62dBA (ISO 7779 operator position 0.6 meter)
Power Supply
  • Thermal control 280/520W AC power supply with PFC
  • 100 - 240V, 60-50Hz, 5-7 Amp Max
  • Tested to comply with FCC Standards
  • Certifications: UL, TUV, CE, EC
Floppy Drive
  • Floppy Drive (Optional)
CD-ROM /DVD-ROM
  • Slim-line SATA Optical Drive (Optional)
Rack Support
  • 1U Chassis Mounting Rails and Kit (Optional)
OS Compatibility
  • VMware ESXi 4.x
  • Asterisk 1.x
  • CentOS 4.x, 5.x
  • Debian 5.0.x
  • Fedora 10, 11, 12, 13
  • FreeBSD 7.x, 8.x
  • m0n0wall 1.3x
  • OpenBSD 4.x
  • OpenFiler 2.3
  • OpenSUSE 10.x, 11.x
  • Oracle Enterprise Linux 4.x, 5.x
  • PFSense 1.2.x
  • RHEL 4.x, 5.x
  • Ubuntu 8.x, 9.x, 10.x
  • Windows XP/2003/7/2008/2008 R2
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Pros:
  • 4 Hot-swap Bays
  • Enterprise Performance RAID
  • Rock-Solid reliability
  • Flexible PCI Expansion

Cons:
  • Loud
  • Standard non-redundant power

The Bottom Line:A staple of the enterprise environment, this 1U server offers the benefit ofsafe and high-performing RAID arrays. With the proper RAID controller, the 4hot-swap bays allow a RAID 5 or 6. Great for smaller databases due to addedsecurity and faster drive read and writes.

Recommended Uses:Appliance Server, Storage Server, NAS, SAN, MySQL Server, Database Server
